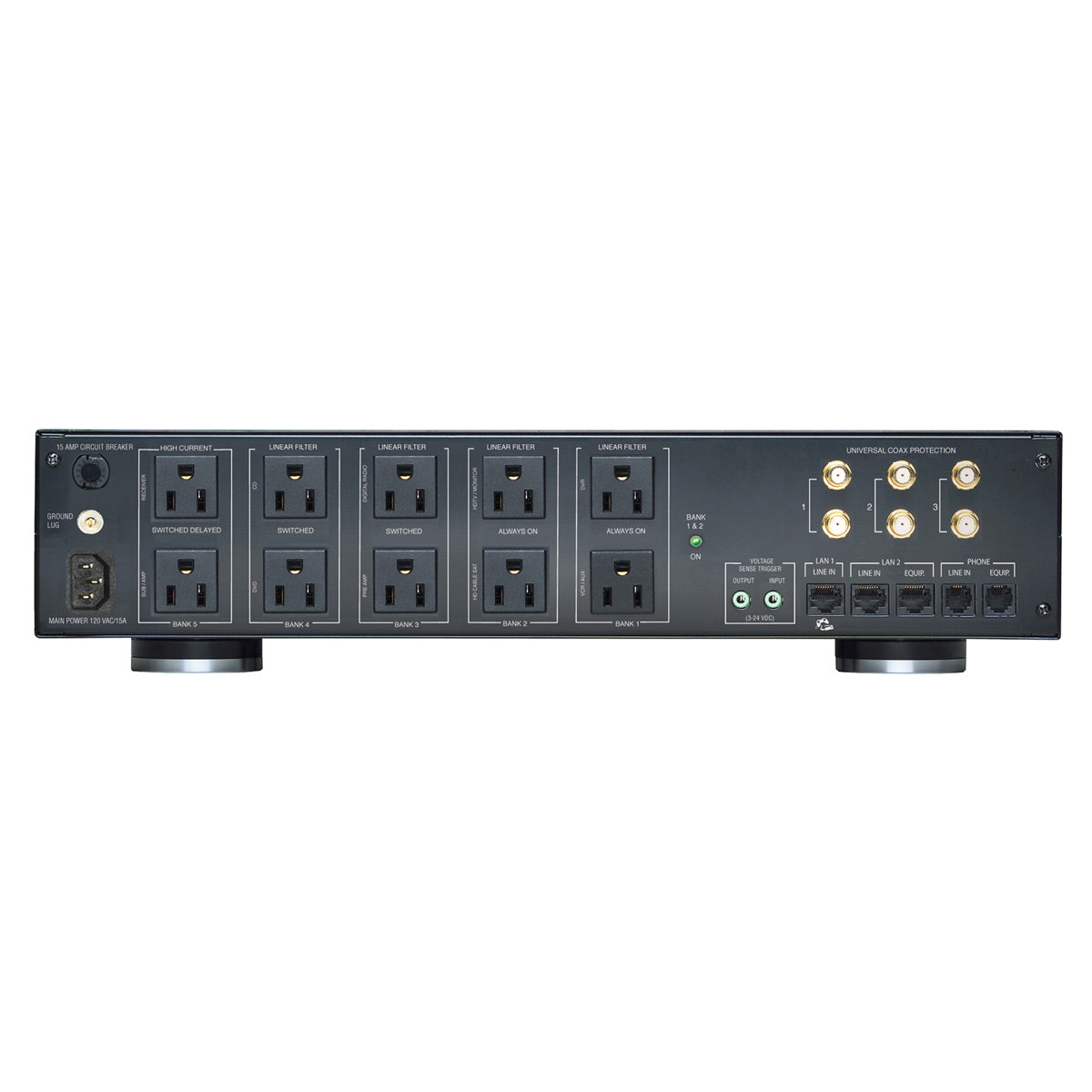

Panamax M5300-PM 11-Outlet Home Theater Power Conditioner

Improves Picture and Sound Quality

Level 4 Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.

Monitors Incoming Line Voltage and Provides a Visual Indication of Power Level

Panamaxs patent pending AVMTM circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing red lightning bolt will be displayed in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Reduces Cross-Contamination Between Components

The M5300-PM is designed to provide noise isolation between 5 isolated outlet banks (including 1 bank with 2 high current outlets) so that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank.

Specifications

General

• Weight 12.8 lbs.
• Rack Ears Included
• Dimensions 17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)

AC Power

• Under-voltage shutoff   90 VAC 2 VAC
• UL1449 Suppression Rating 330V
• Total Current Capacity 15 A
• Thermal Fusing Yes
• Protection Modes L-N, L-G, N-G
• Power Cord 10 ft detachable
• Peak Impulse Current 72,000 Amps
• Over-voltage shutoff 142 VAC 8 VAC
• Line Voltage 120V, 60Hz
• Initial Clamping Level 200V
• Energy Dissipation 2125 Joules
• Catastrophic Surge Circuit Yes

EMI/RFI Noise Filtration

• Banks 1, 2, 3, 4 80 db, 100 KHz &minus 2 MHz
• Bank 5, High Current Outlets 60 db, 100 KHz - 2 MHz

DC Trigger Input

• Voltage and Polarity 3 - 24V DC, bidirectional
• Jacks 3.5mm (1/8") mono mini-plug
• Current Requirement 4.6 mA @3V, 58 mA @24V

DC Trigger Output

• Positive = Tip, Negative = Ring
• Pass through no delay

LAN Circuits

• Wires Protected 8-Wires
• Connectors RJ-45
• Compatibility 10/100bT
• Clamping Level 52V

USB Circuit

• Power Delivery 500 mA @ 5VDC
• Jacks USB-A

Telco Protection

• Wires Protected 2-Wire, Pins 4 & 5
• Suppression Modes Metallic & Longitudinal
• Fuseless/Auto-resetting Yes
• Connectors RJ-11
• Clamping Level 260V
• Capacitance 30pf (approx.)

Universal Coax Protection

• Shielded Yes
• Insertion Loss < 0.5 dB
• HD 1080 i/p Ready Yes
• Frequency Range 0 MHz - 2.2 GHz
• Connections Female "F", Gold Plated
• Clamping Level 75V
• Bidirectional Yes
