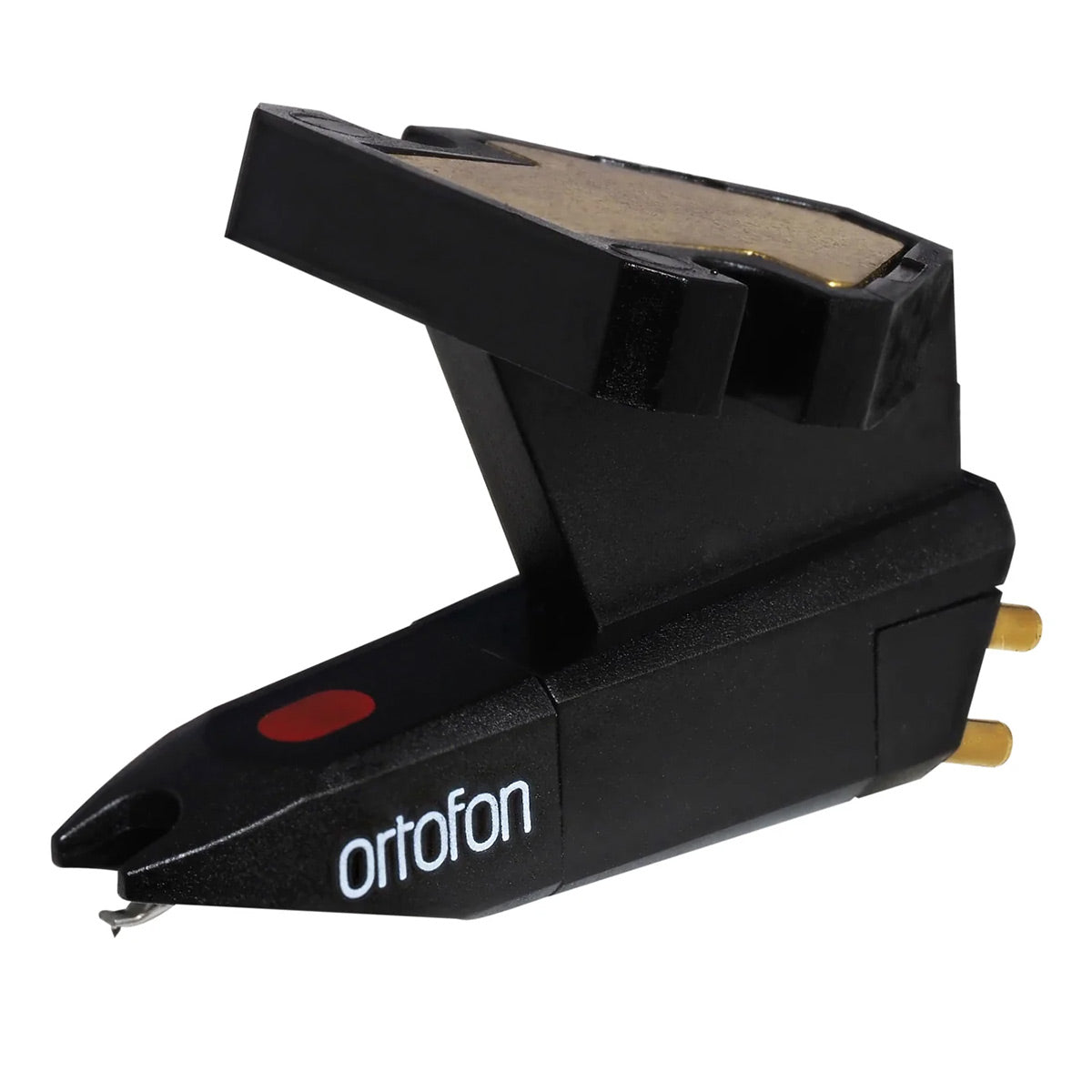

Ortofon Super OM 5E MM Phono Cartridge

Regular price $89.99
Sale price $89.99 Regular price
Save $-89.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Jun 18 – Tue, Jun 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon Super OM-5e Overview

Product Information

Model: OM5ESUPER | UPC: 5705796013849

Specifications

What's In The Box

Product Information

Model: OM5ESUPER | UPC: 5705796013849

The Super OM 5E features improved linearity, higher channel separation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Features

  • Eliptical Stylus
  • Ortofon's Lowest-Mass Range of MM Cartridge
  • Removable Weight-Plate
  • Designed for Easy Mounting & Alignment
  • Excellent Stylus Compatibility

Styli Types And Interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget. In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Stylus Compatibility

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Specifications

  • Channel balance at 1 kHz: 1.5 dB
  • Output voltage at 1 kHz, 5cm/sec: 4 mV
  • Channel separation at 1 kHz: 22 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response 20 Hz - 20 kHz: 20-22.000 Hz + 3 / -3
  • Tracking ability at 315Hz at recommended tracking force: 60 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1.5-2.0 g (15-20 mN)
  • Tracking force, recommended: 1.75 g (17.5 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1 kOhm
  • Cartridge color: Black/Black
  • Cartridge weight
    • incl. extra weight: 5 g
    • excl. extra weight: 2.5 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 580 mH
  • Recommended load capacitance: 200-500 pF

What's In The Box

  • Super OM 5E MM Phono Cartridge
