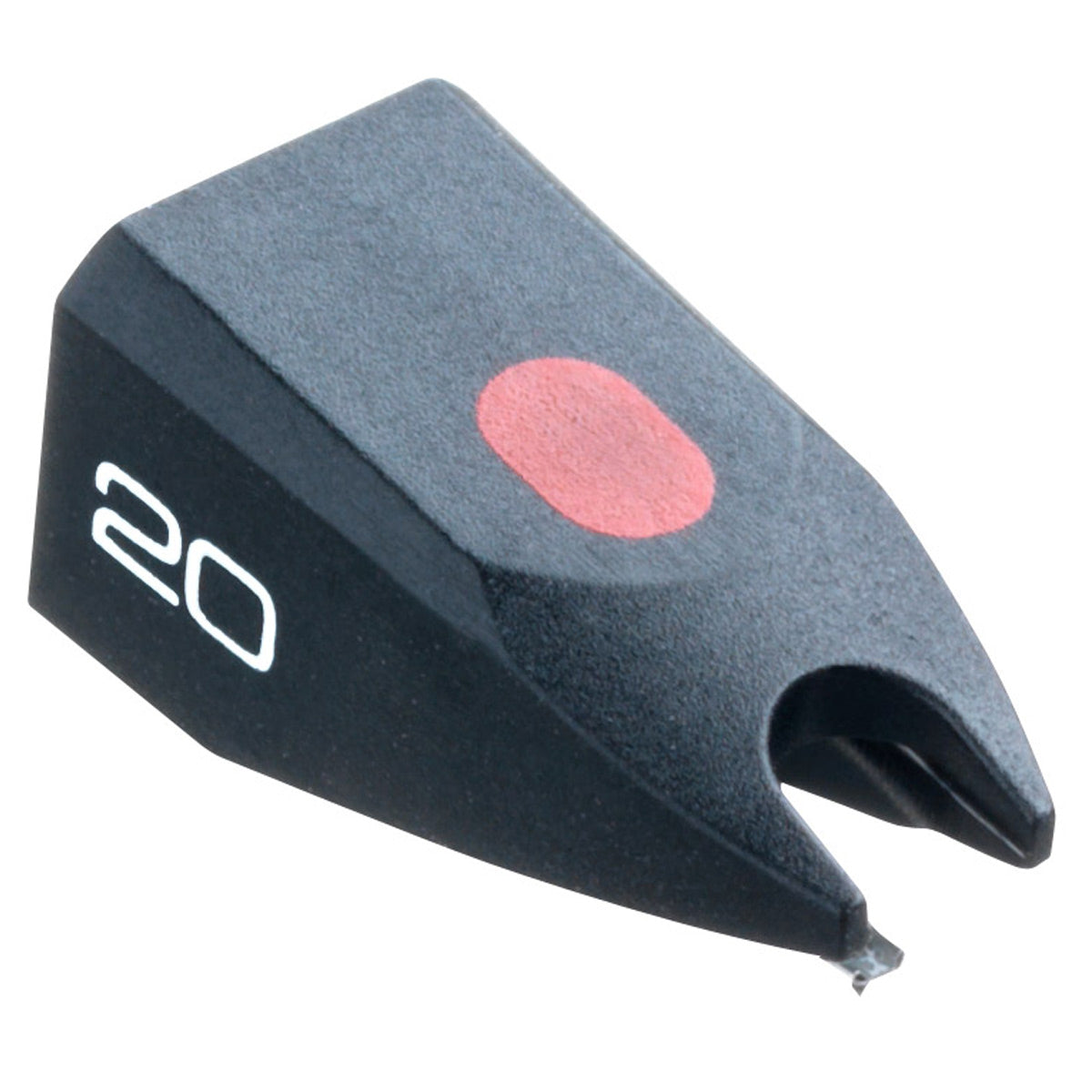

Ortofon Stylus 20 Replacement Stylus (Black)

Regular price $215.00
Sale price $215.00 Regular price
Save $-215.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Jul 24 – Wed, Jul 31

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 20STY | UPC: 5705796130089

Specifications

What's In The Box

Product Information

Model: 20STY | UPC: 5705796130089

Stylus 20 Replacement Stylus

Specifications

  • Frequency range: 20 - 27,000Hz
  • Frequency response: 20 - 20,000Hz 2/-3dB
  • Compliance, dynamic, lateral: 25μm/mN
  • Tracking ability at 315Hz at recommended tracking force: 80 μm
  • Stylus type: Nude Elliptical
  • Stylus tip radius: r/R 8/18μm
  • Equivalent stylus tip mass: 0.4mg
  • Tracking force range: 1.25 - 1.75g (12 - 17.5mN)
  • Tracking force, recommended: 1.5g (15mN)
  • Tracking angle: 20°
  • Recommended for the following cartridge
    • Super OM 20
    • OM 20
    • OMP 20
    • OMB 20
    • LM 20
    • Concorde 20
    • LM 20H
    • TM 20U
    • TM 20H

What's In The Box

  • Stylus 20 Replacement Stylus
