Ortofon Stylus 10 Replacement Stylus

✕

Now on demo at:

1 3
ORTOFON

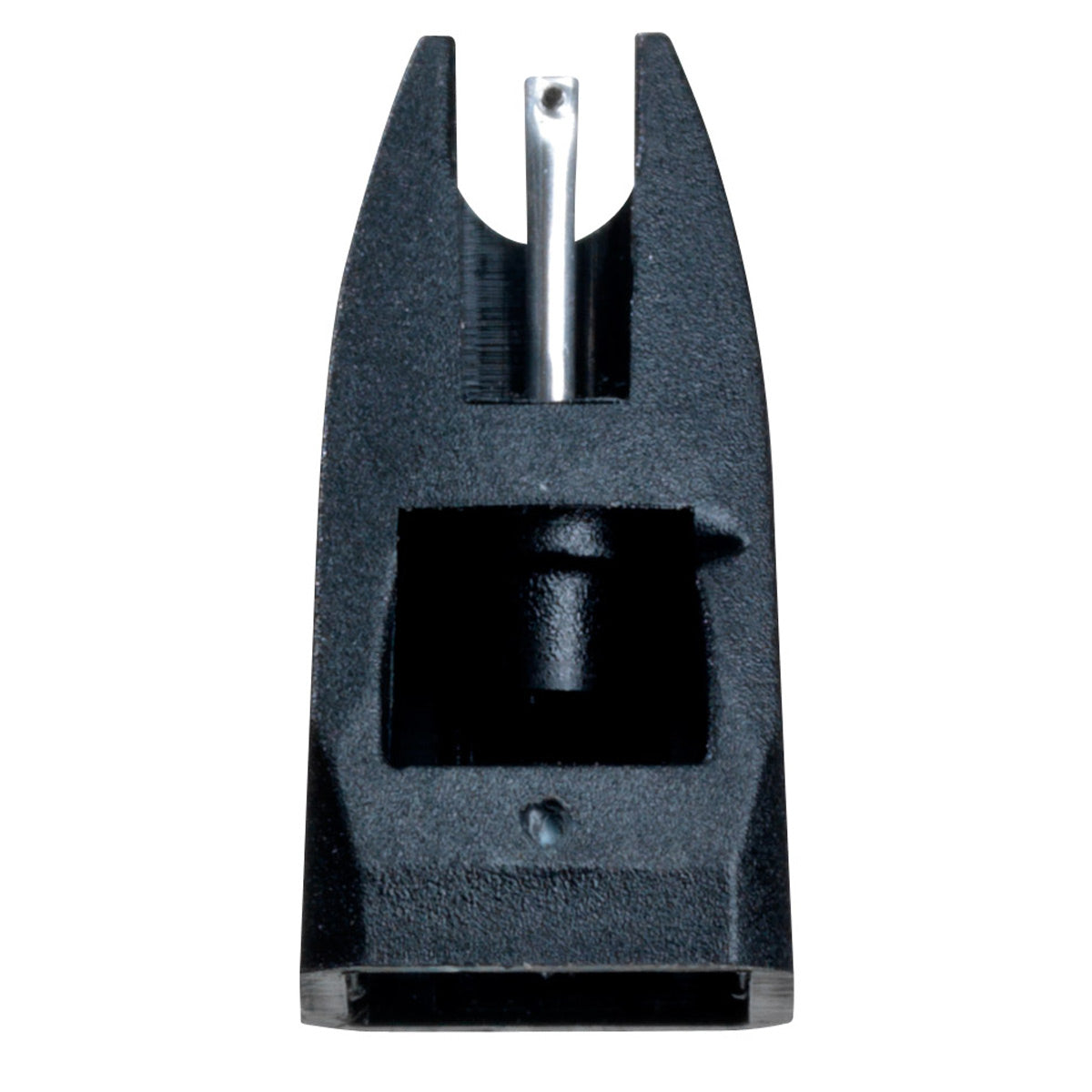

Ortofon Stylus 10 Replacement Stylus

$78.99
$78.99
$0.00 Save $-78.99 (%)
OR
World Wide Stereo 60-Day Returns World Wide Stereo Price Match Guarantee

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: 10STY | UPC: 5705796130065

Specifications

What's In The Box

Product Information
Model: 10STY | UPC: 5705796130065

Recommended for the following cartridges:

  • Super OM 10
  • OM 10
  • OMP 10 (p-mount)
  • OMB 10 (Bulk)
  • OMT 10
  • LM 10
  • Concorde 10
  • Concorde EC 10
  • Concorde STD
  • TM 10H
  • LMB 12
  • SMB 12
  • LMA 12

Specifications
  • Frequency response 20 Hz - 20 kHz: 3 /- 3 dB
  • Tracking ability at 315Hz at recommended tracking force: 60 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
  • Tracking force, recommended: 1.5 g (15 mN)
  • Tracking angle: 20°
  • Stylus color: Black

What's In The Box
  • Stylus 10 Replacement Stylus
