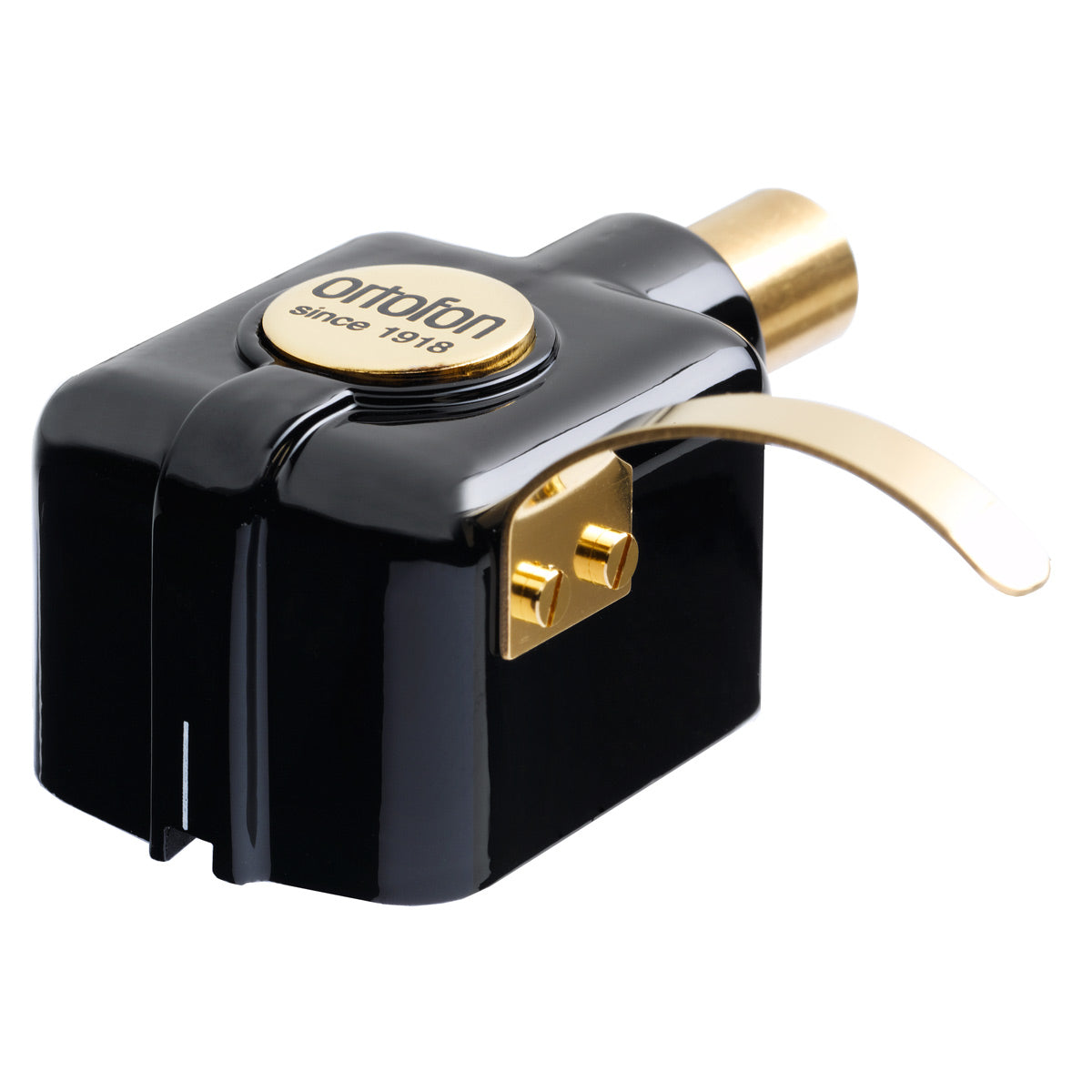

Ortofon SPU Synergy GM Moving Coil Cartridge (Black)

Now on demo at:

1 of 2

Ortofon SPU Synergy GM Moving Coil Cartridge (Black)

Regular price $2,549.99
Sale price $2,549.99 Regular price
$0.00 Save $-2,549.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: SYNERGYGM | UPC: 5705796240214

Specifications

What's In The Box

Product Information

Model: SYNERGYGM | UPC: 5705796240214

Optimum Compatibility and Sonic Purity

The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems. While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

Specifications

  • Output voltage at 1000Hz, 5cm/sec: 0.5mV
  • Channel balance at 1kHz: <1.5dB
  • Channel separation at 1kHz: >23dB
  • Channel separation at 15kHz > 15dB
  • Frequency response: 20 - 20,000Hz ± 2dB
  • Tracking ability at 315Hz at recommended tracking force: >70 µm
  • Compliance, dynamic, lateral: 8 µm/mN
  • Stylus type: Nude elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 2.5 - 3.5g (25 - 35mN)
  • Tracking force, recommended: 3.0g (30mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 2 ohm
  • Recommended load impedance: 10 - 50 ohm
  • Cartridge body material: Ground wood and resin composite
  • Coilwire material: High purity copper
  • Cartridge color: Shiny black
  • Cartridge weight: 30g

What's In The Box

  • SPU Synergy GM Moving Coil Cartridge
