Ortofon SPU Royal N Moving Coil Cartridge (Blue)

Model: ROYALN UPC: 5705796240177 Item: 169087

$1,679.00

In Stock
Shipping Information

More Product Details

Our product experts are here to help

Questions? We're here to help.

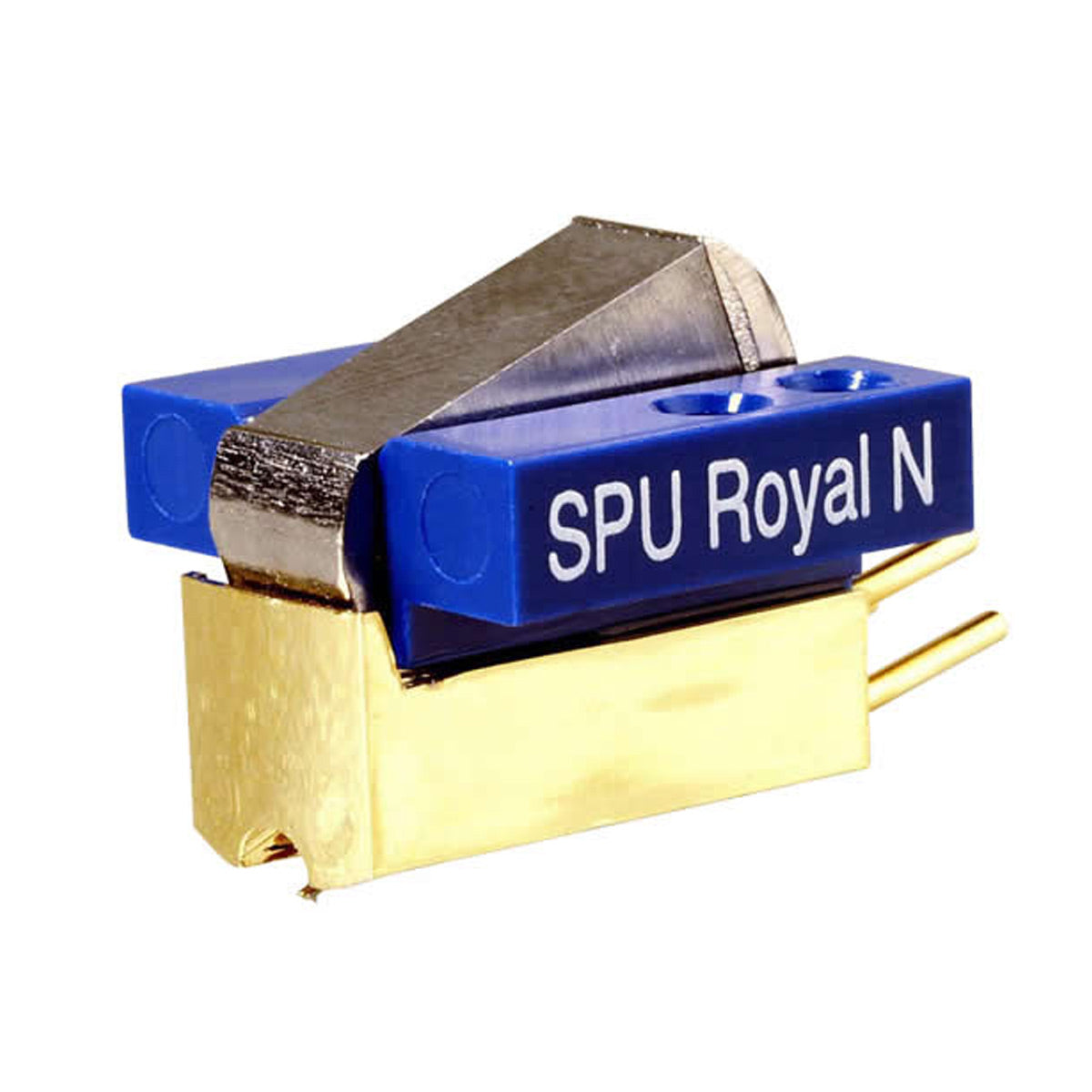

Ortofon SPU Royal N Moving Coil Cartridge Overview

Achieve exquisite sound reproduction with the Ortofon SPU Royal N Moving Coil Cartridge. As a proud match to Ortofon’s SPU Royal GM series, the SPU Royal N phono cartridge features the trademark Replicant 100 stylus. The reduced mass tip provides open and detailed sound reproduction that befits a luxury record needle. With electrum coils made of a gold and silver alloy, the SPU royal turntable cartridge uncolored and precise transmission of armature movements. Also featuring minor upgrades to the damping system, the turntable stylus opens listeners to reduced vibratory distortions and an increased armature reliability for more exceptional audio reproduction. Finally, high purity 6-nines copper wiring works to ensure audiences will never miss a beat, whisper, or microdynamic detail. (Note: the SPU Royal N is sold separately from the integrated headshell unit).

Product Information

Product highlights

  • Moving coil (MC) turntable cartridge delivers detail, accuracy and less distortion of sound
  • Designed with electrum coils made of gold and silver alloy for uncolored and precise transmission of armature movements
  • Record player needle features a modified dampening system reduces vibrations and achieves a higher level of linearity
  • Thin and light Replicant 100 diamond stylus with reduced tip mass for open and detailed sound reproduction
  • High purity 6–nines copper wire ensures impeccable signal transmission and microdynamic detail
  • Output voltage at 1000 Hz, 5 cm/sec. - 0.2 mV
  • Frequency response: 20 Hz to 20 kHz ± 1.5/-0 dB
  • Tracking ability (315 Hz, lateral): 70 micrometers
  • Tracking angle: 20 degrees
  • Mount SPU Royal N phono cartridges on standard headshells, as well as in a wider range of tonearms
  • SPU Royal N is sold without the integrated headshell unit; if desired, listeners can mount it on a traditional headshell using an SPU N adaptor
  • Dimensions: 0.75" H X 0.70" W
  • Weight: 0.46 oz.
  • Warranty: 1 Year - World Wide Stereo is an authorized dealer for every brand we sell
  • World Wide Stereo 60-day guarantee and expert product support

Specifications

Specifications

  • Output voltage at 1kHz, 5cm/sec.: 0.2mV
  • Channel balance at 1kHz: <1dB
  • Channel separation at 1kHz: >25dB
  • Channel separation at 15kHz: >10dB
  • Frequency response: 20Hz - 20kHz ±1.5/-0dB
  • Tracking ability at 315Hz at recommended tracking force: >70μm
  • Compliance, dynamic, lateral: 8μm/mN
  • Stylus type: Nude Ortofon replicant 100
  • Stylus tip radius: r/R 5/100μm
  • Tracking force range: 2.5g - 3.5g (25 - 35mN)
  • Tracking force, recommended: 3.0g (30mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 6 ohm
  • Recommended load impedance: > 100 ohm
  • Coilwire material: Electrum
  • Cartridge weight: 13g

What's in the Box

What's in the Box:

  • SPU Royal N Moving Coil Cartridge
