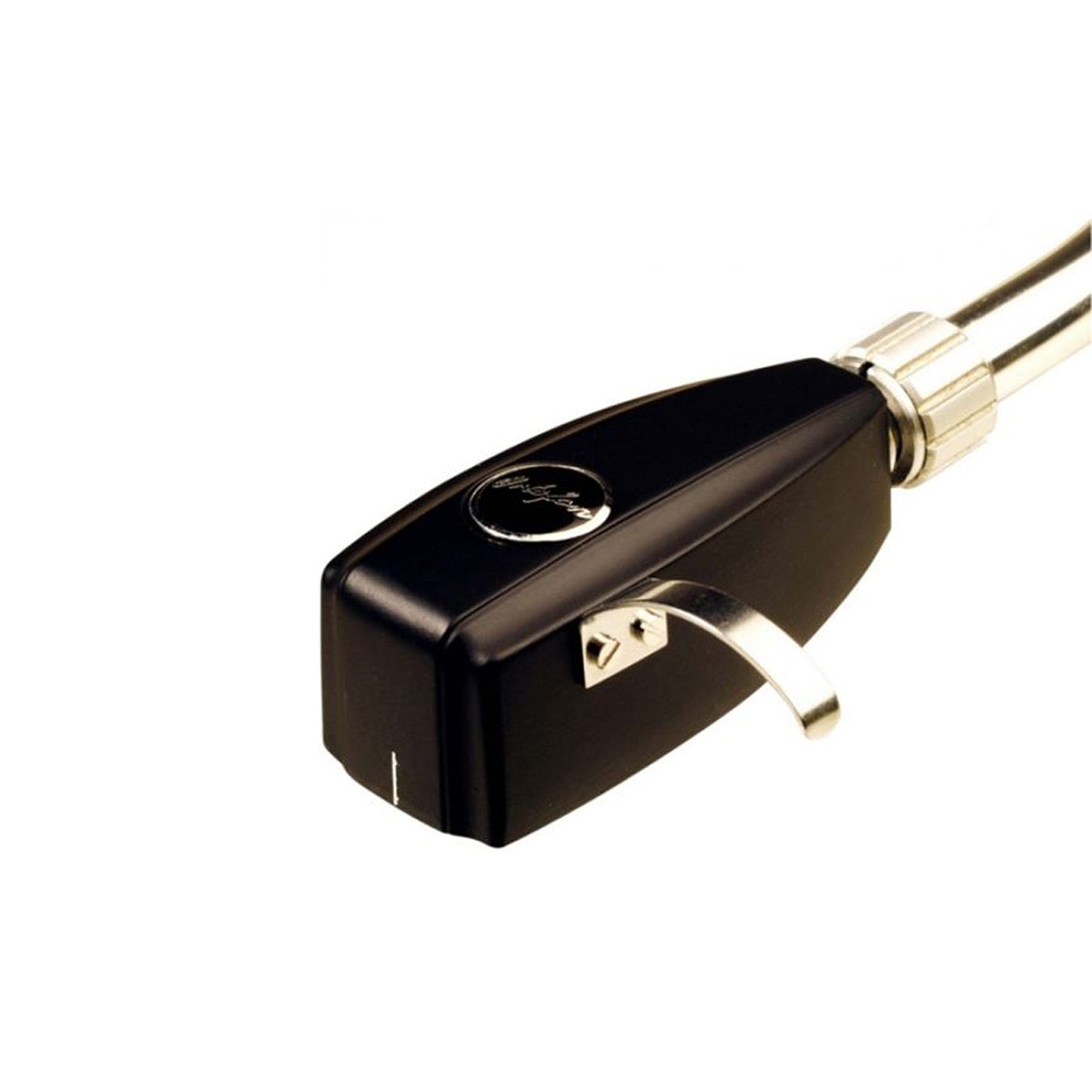

Ortofon SPU Mono CG 65 DI MKII Moving Coil Cartridge (Black)

Now on demo at:

1 of 2

Ortofon SPU Mono CG 65 DI MKII Moving Coil Cartridge (Black)

Regular price $1,237.99
Sale price $1,237.99 Regular price
$0.00 Save $-1,237.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: MCG65DMKII | UPC: 5705796240306

Specifications

What's In The Box

Product Information

Model: MCG65DMKII | UPC: 5705796240306

The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.

This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.

Specifications

  • Output voltage at 1000Hz, 5cm/sec: 1.5mV
  • Frequency response: 20 - 15,000Hz + 3/-1dB
  • Tracking ability at 315Hz at recommended tracking force: >60 µm
  • Compliance, dynamic, lateral: 7 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 65 µm
  • Tracking force range: 4.0 - 5.0g (40 - 50mN)
  • Tracking force, recommended: 4.5g (45mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 6 ohm
  • Recommended load impedance: >100 ohm
  • Cartridge body material: Ground wood and resin composite
  • Coilwire material: High purity copper
  • Cartridge color: Shiny black
  • Cartridge weight: 37g

What's In The Box

  • SPU Mono CG 65 DI MKII Moving Coil Cartridge
