Ortofon SPU GTX S Spherical Diamond MC Cartridge with Step-Up Transformer

Now on demo at:

1 of 7

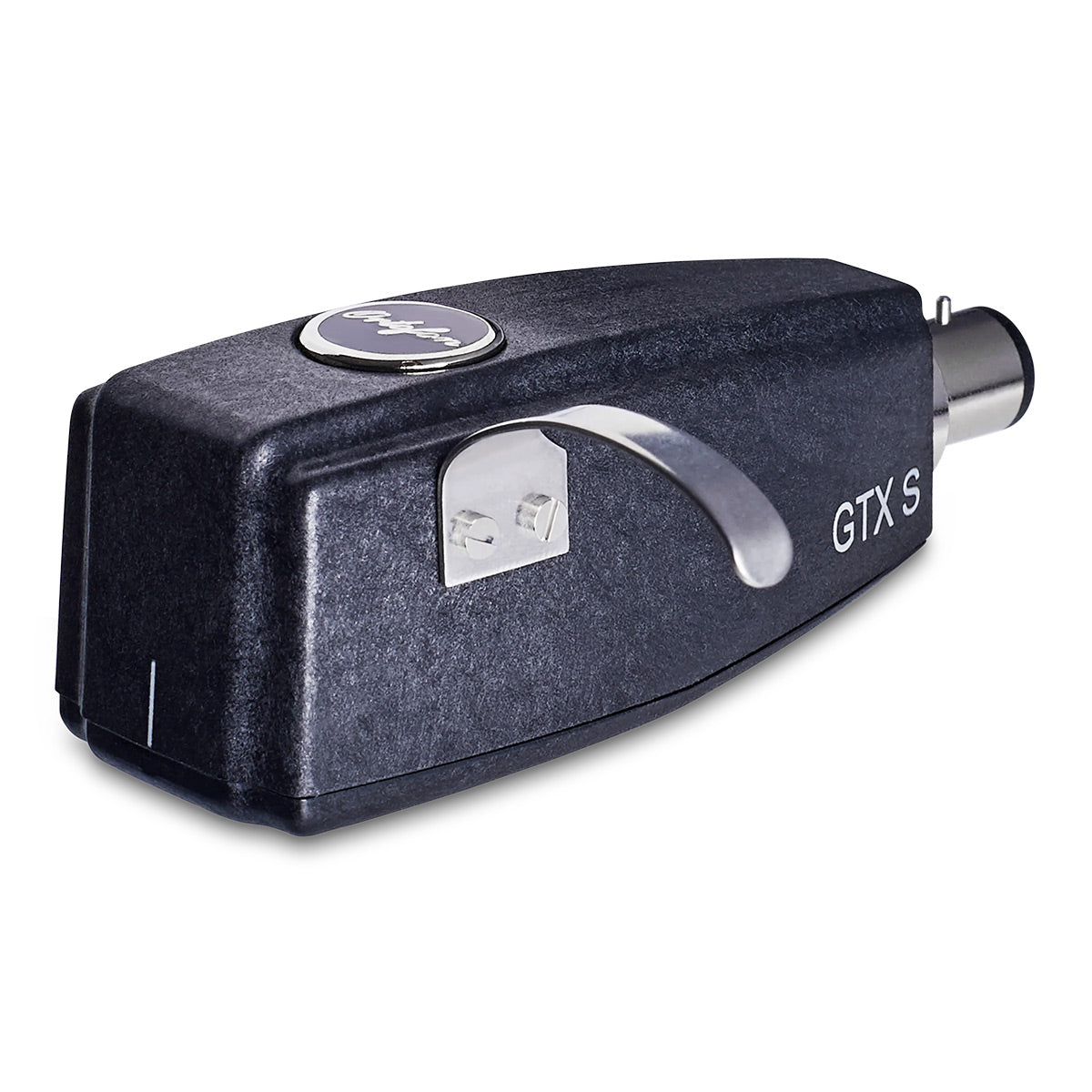

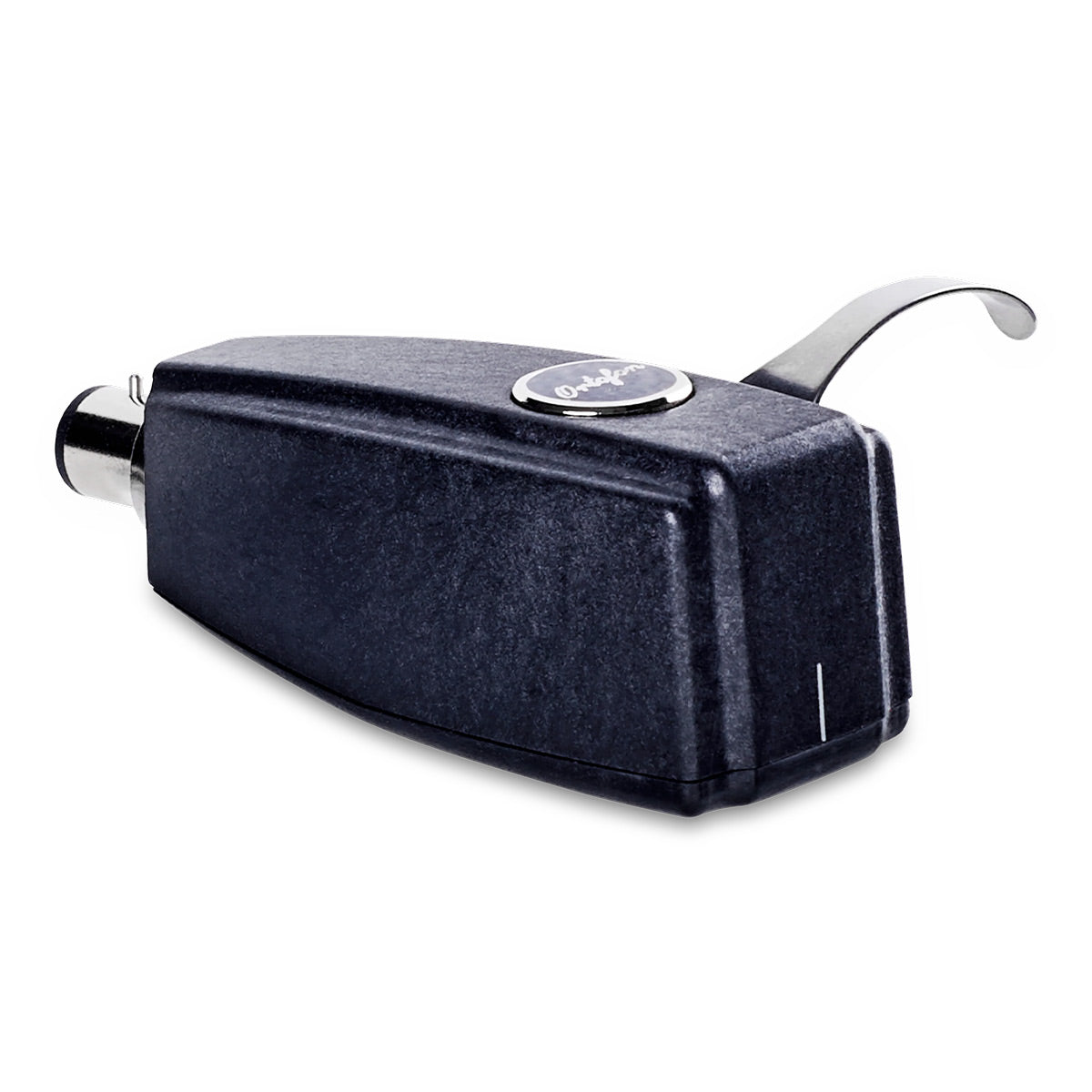

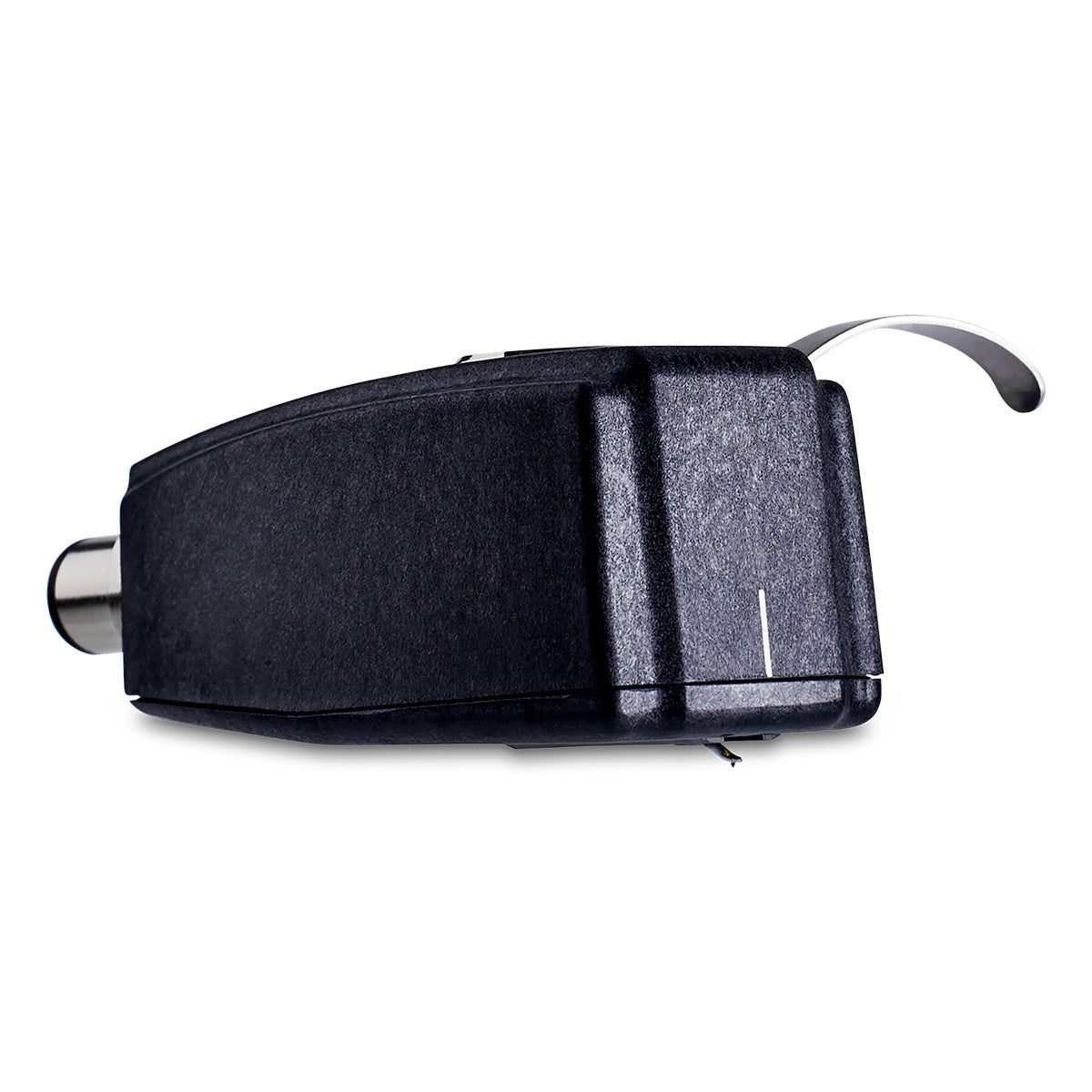

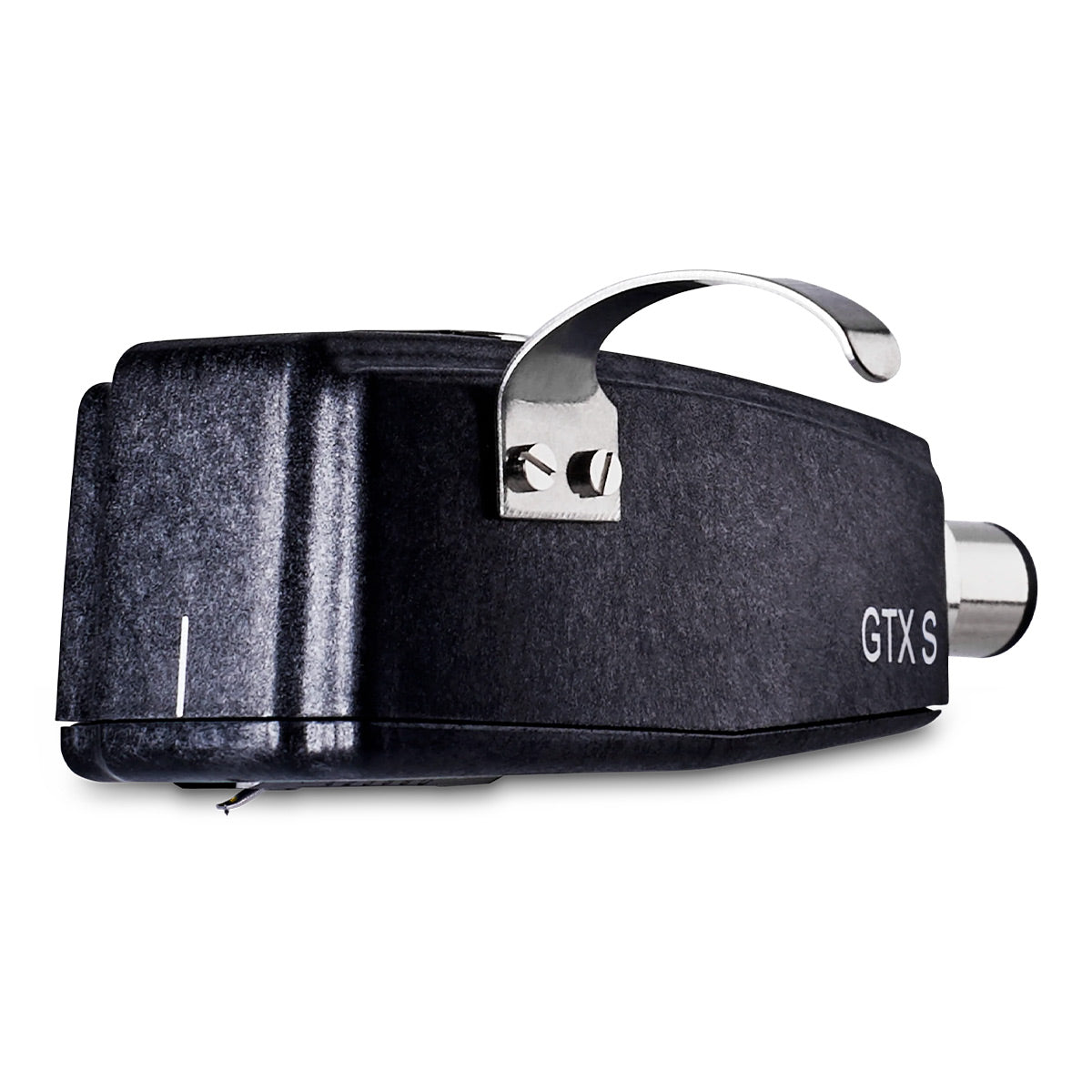

Ortofon SPU GTX S Spherical Diamond MC Cartridge with Step-Up Transformer

Regular price $1,174.99
Sale price $1,174.99 Regular price
$0.00 Save $-1,174.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Ortofon SPU GTX S Overview

Product Information

Model: SPUGTXS | UPC: 5705796240511

Specifications

What's In The Box

Product Information

Model: SPUGTXS | UPC: 5705796240511

The SPU GTX S delivers the best of both worlds, blending the musicality and rich tonal character that have defined Ortofon’s SPU series for decades with the latest innovations in audio technology. Rediscover the rich, vintage warmth of vinyl with the Ortofon SPU GTX S, featuring a spherical stylus. The spherical stylus is the most common stylus shape and has a rounded tip that contacts the groove walls of the record, offering a balanced, smooth sound. The built-in MC step-up transformer provides high-output, low-noise performance, preserving the classic SPU audio fidelity.

Features

  • Built-In Step-Up Transformer
  • Balanced, Smooth Sound
  • Hand-Built In Denmark
  • Glass-Fiber Reinforced Housing
  • High-Output, Low-Noise Performance
  • Classic SPU Audio Fidelity

Precision Engineering & Craftsmanship

SPU GTX cartridges are hand-built by experienced workers in Denmark. Their unibody housings are molded in one piece from a specially selected glass-fiber reinforced co-polymer, never before used for SPU cartridges. This ensures a form-factor stable, rigid, and low resonance housing for the fine generating system. The bottom cover is molded from the same new material, encapsulating the engine in a uniform material and design.

Built-In Step-Up Transformer

The SPU GTX Series is designed to simplify your setup without compromising sound quality. When developing the GTX series, Ortofon chose to develop the new step-up transformers in collaboration with the company Lundahl Transformers. Thanks to the built-in step-up transformer, these cartridges connect directly to any phono stage or amplifier with the ease of a moving magnet cartridge – no extra equipment needed.

Specifications

  • Channel Balance At 1 kHz: 1.5 dB
  • Output Voltage At 1 kHz, 5cm/sec: 4 mV
  • Channel Separation At 1 kHz: 20 dB
  • Frequency Response 20 Hz - 20 kHz: ±3 dB
  • Tracking Ability At 315 Hz: 60 μm
  • Compliance, Dynamic, Lateral: 10 μm/mN
  • Stylus Type: Spherical
  • Stylus Tip Radius: r/R 8/18 μm
  • Tracking Force, Recommended: 4 g
  • Tracking Angle: 20°
  • Internal Impedance, DC Resistance: 610 Ω
  • Coil Wire Material: OFC
  • Cartridge Colour: Black
  • Cartridge Weight: 0.084 lbs
  • Recommended Load Capacitance: 150 – 600 pF

What's In The Box

  • SPU GTX S Spherical Diamond MC Cartridge with Step-Up Transformer
