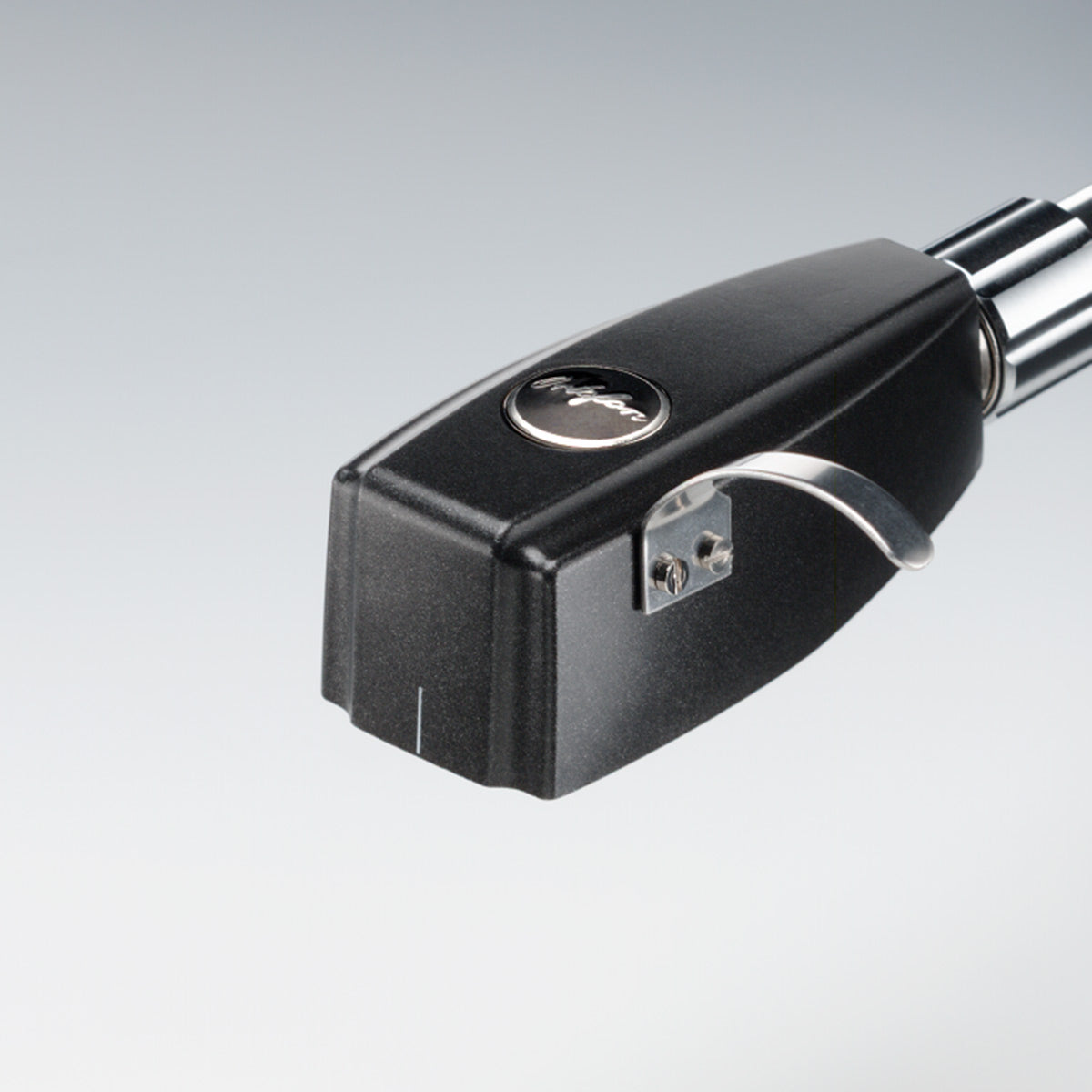

Ortofon SPU Classic GM MKII Moving Coil Cartridge (Black)

✕

Now on demo at:

1 2
ORTOFON

Ortofon SPU Classic GM MKII Moving Coil Cartridge (Black)

$1,300.99
$1,300.99
$0.00 Save $-1,300.99 (%)
OR
World Wide Stereo 60-Day Returns World Wide Stereo Price Match Guarantee

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: GMMKII | UPC: 5705796240245

Specifications

What's In The Box

Product Information
Model: GMMKII | UPC: 5705796240245

Dynamic and Powerful Sound Reproduction

The SPU Classic GM MkII is a moving coil cartridge with an 18 µm spherical stylus profile. The SPU Classic series embodies the essence of the original moving coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

Specifications
  • Output voltage at 1000Hz, 5cm/sec: 0.2mV
  • Channel balance at 1kHz: <1dB
  • Channel separation at 1kHz: >20dB
  • Channel separation at 15kHz > 10dB
  • Frequency response: 20 - 20,000Hz + 3/-3dB
  • Tracking ability at 315Hz at recommended tracking force: >65 µm
  • Compliance, dynamic, lateral: 8 µm/mN
  • Stylus type: Nude spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 3.0 - 5.0g (30 - 50mN)
  • Tracking force, recommended: 4.0g (40mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 2 ohm
  • Recommended load impedance: >10 ohm
  • Cartridge body material: Ground wood and resin composite
  • Coilwire material: High purity copper
  • Cartridge color: Shiny black
  • Cartridge weight: 30g

What's In The Box
  • SPU Classic GM MKII Moving Coil
