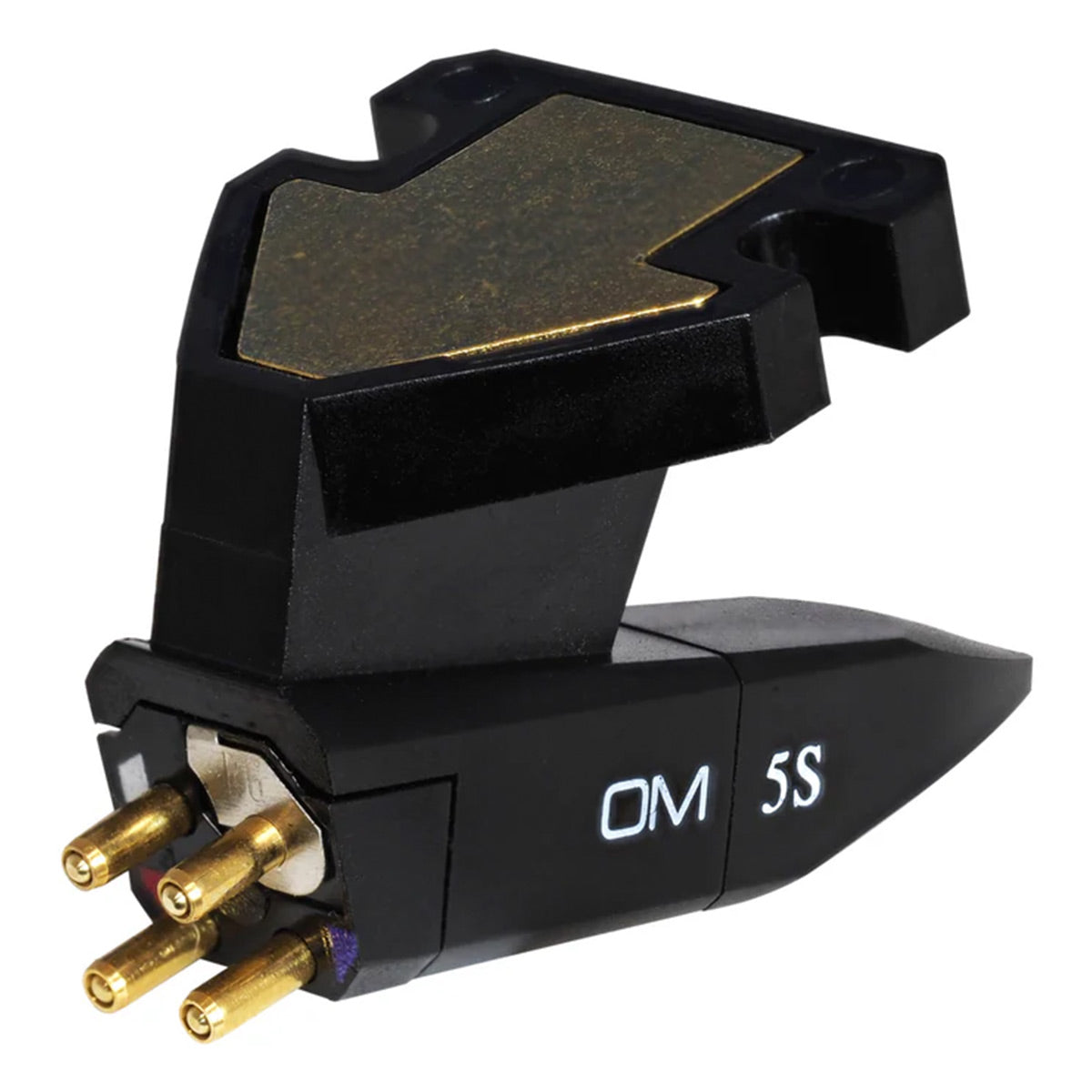

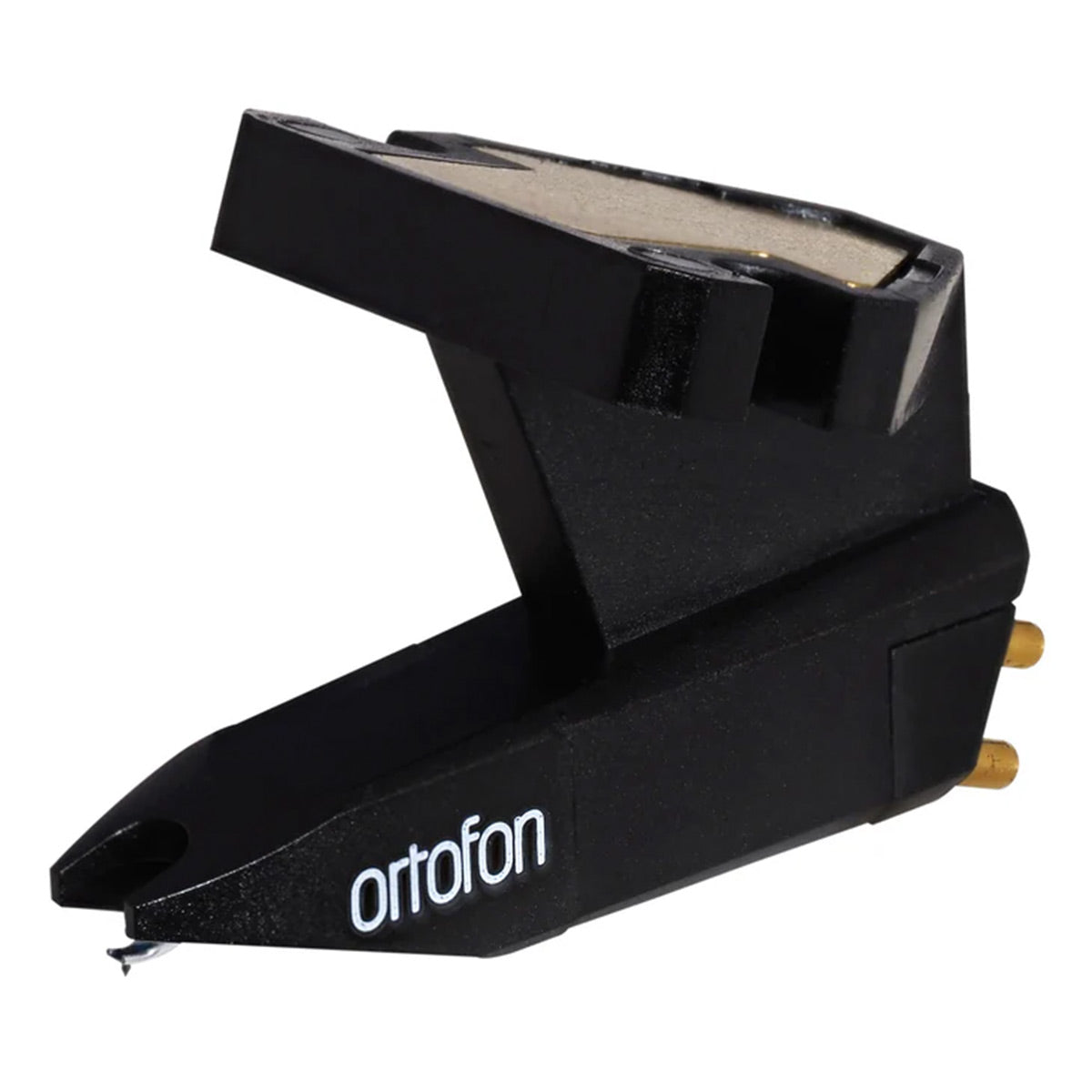

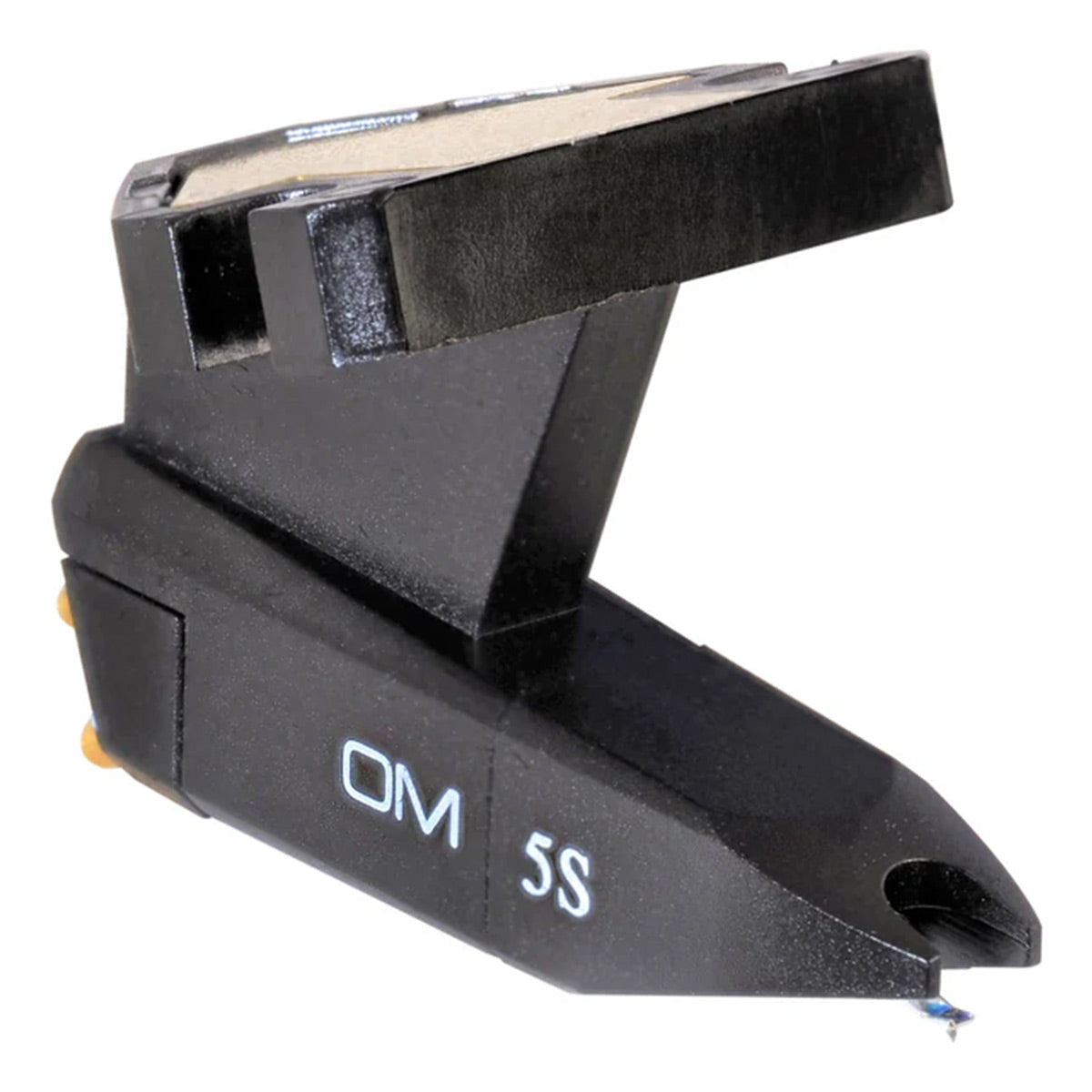

Ortofon OM 5S MM Phono Cartridge

Regular price $59.99
Sale price $59.99 Regular price
Save $-59.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon OM 5S MM Phono Cartridge Overview

Product Information

Model: OM5S | UPC: 5705796013832

Specifications

What's In The Box

Product Information

Model: OM5S | UPC: 5705796013832

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

Features

  • Improved Linearity, Higher Channel Separation, And Reduced Distortion
  • Removable Weight Plate
  • Lowest-Mass Range Of MM Cartridges Offered By Ortofon
  • Stylus Type: Spherical

Styli Types And Interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget. In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: 3E, 5E, 10, 20, 30, 40, 78, and D 25 M.

Specifications

  • Channel balance at 1 kHz: 2 dB
  • Output voltage at 1 kHz, 5cm/sec: 4.5 mV
  • Channel separation at 1 kHz: 20 dB
  • Channel separation at 15 kHz: 12 dB
  • Frequency response 20 Hz - 20 kHz: 20-20.000 Hz
  • Tracking ability at 315Hz at recommended tracking force: 60 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 18 µm
  • Tracking force range: 1.5-2.0 g (15-20 mN)
  • Tracking force, recommended: 1.75 g (17.5 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Cartridge color: Black/Black
  • Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 450 mH
  • Recommended load capacitance: 200-500 pF
  • Replacement stylus: Stylus 5S

What's In The Box

  • OM 5S MM Phono Cartridge
