Ortofon Stylus Elite MKII Concorde Elite Replacement Stylus

Now on demo at:

1 of 5

Ortofon Stylus Elite MKII Concorde Elite Replacement Stylus

Regular price $355.99
Sale price $355.99 Regular price
$0.00 Save $-355.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, May 11 – Mon, May 18

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: Stylus Elite | UPC: 5705796141191

Specifications

What's In The Box

Product Information

Model: Stylus Elite | UPC: 5705796141191

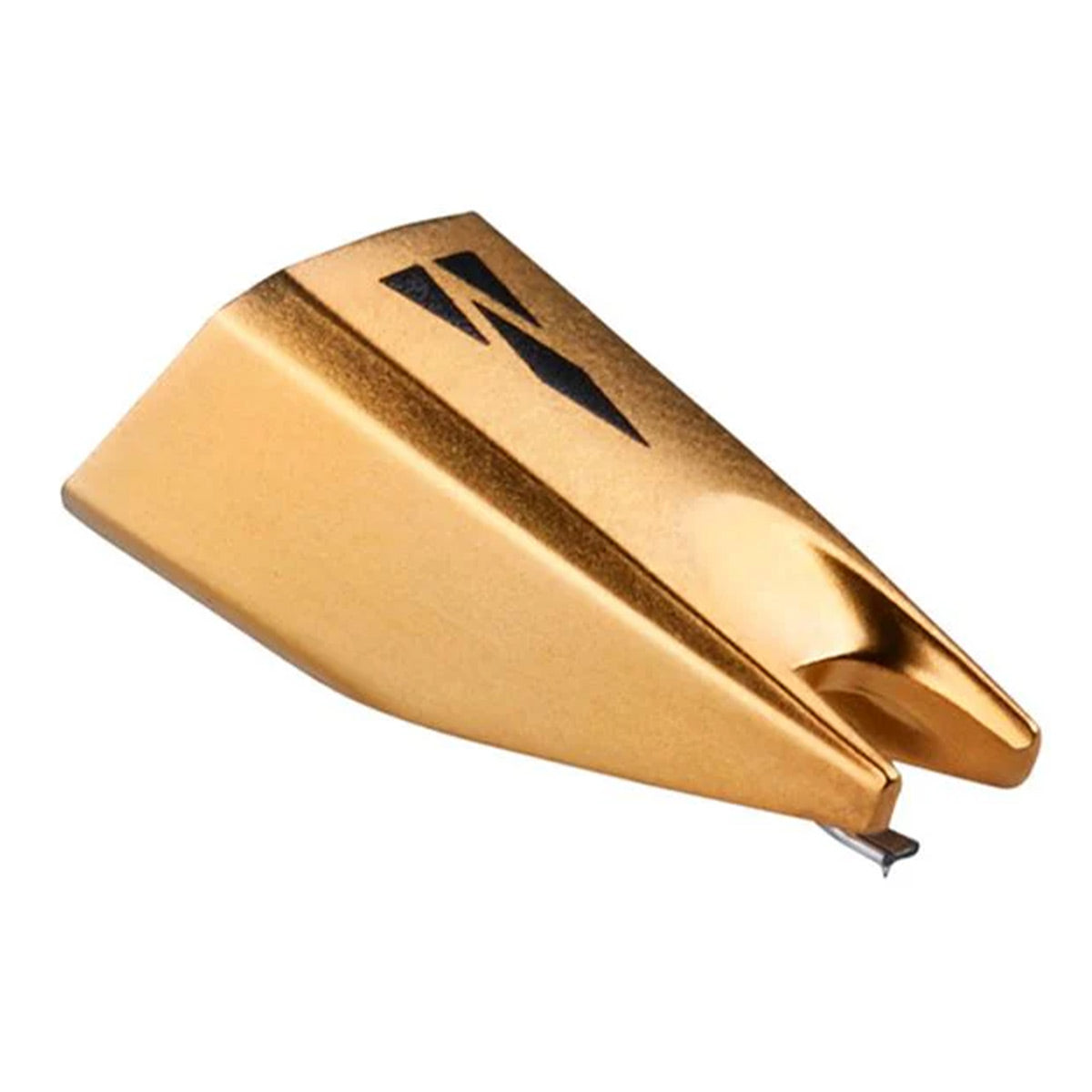

The Replacement Stylus for the Concorde Elite features a special-molded stylus body with real gold plating. Encased by the gold is a Nude Elliptical diamond mounted on a rigid Aluminum cantilever. The Nude Elliptical diamond stylus, normally used in HiFi cartridges, delivers a sound so powerful and detailed that you will experience a remarkable level of live performance.

The addition of a Nude Elliptical diamond allows a smaller moving mass, which guarantees an improved and detailed sound quality. The slim profile of the Nude Elliptical diamond makes it able to follow the groove oscillations more accurately, extract more intricate details, and track even the highest frequency information.

Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 8.5 mV
  • Channel separation at 1 kHz: 25 dB
  • Tracking ability at 315Hz: 100 μm
  • Compliance, dynamic, lateral: 13 μm/mN
  • Stylus type: Nude Elliptical
  • Stylus tip radius: r/R 8/18 μm
  • Tracking force range: 2.0–4.0 g
  • Tracking force, recommended: 3.0 g
  • Tracking angle: 20°
  • Cartridge weight: stylus = 1 g

What's In The Box

  • Stylus Elite MKII Concorde Elite Replacement Stylus

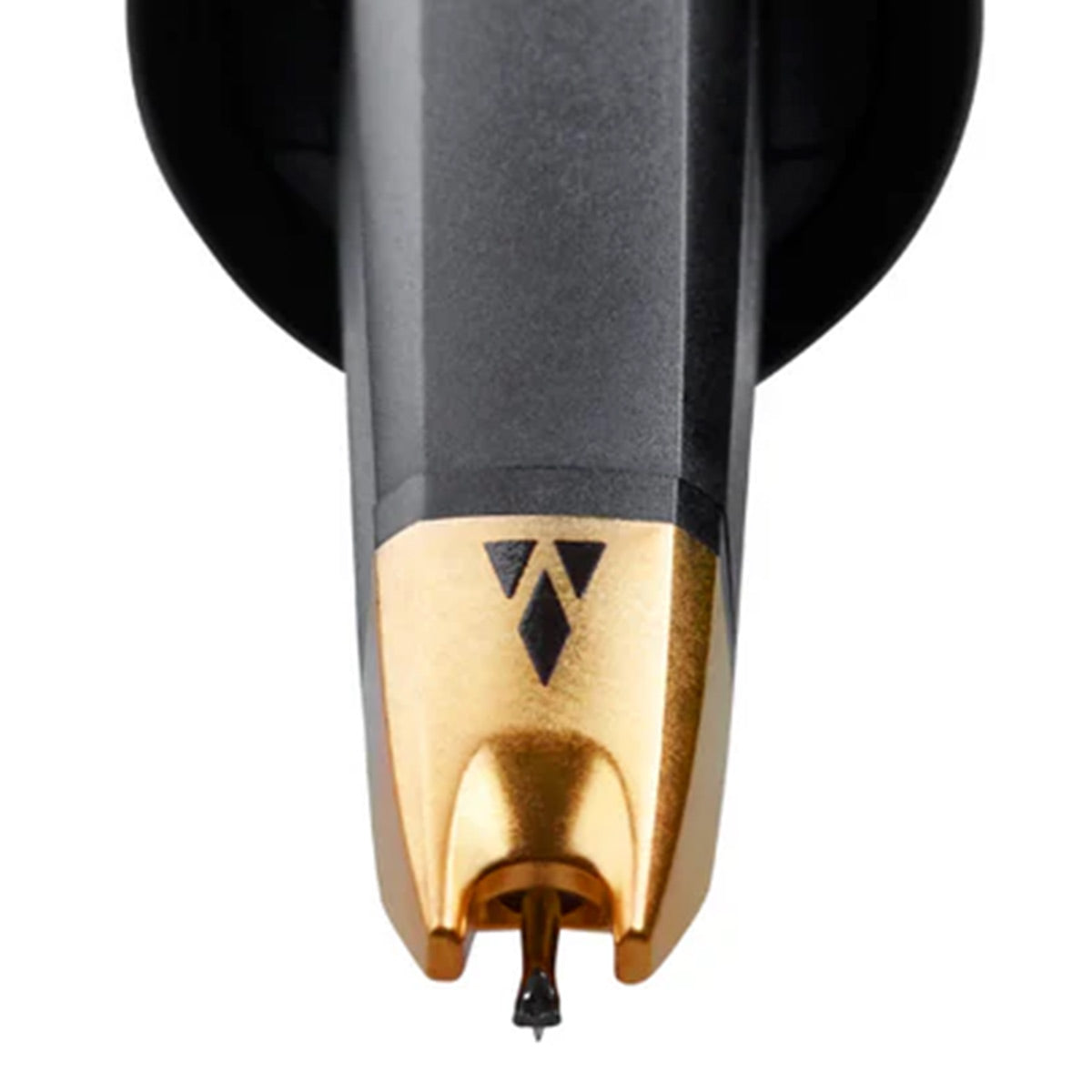

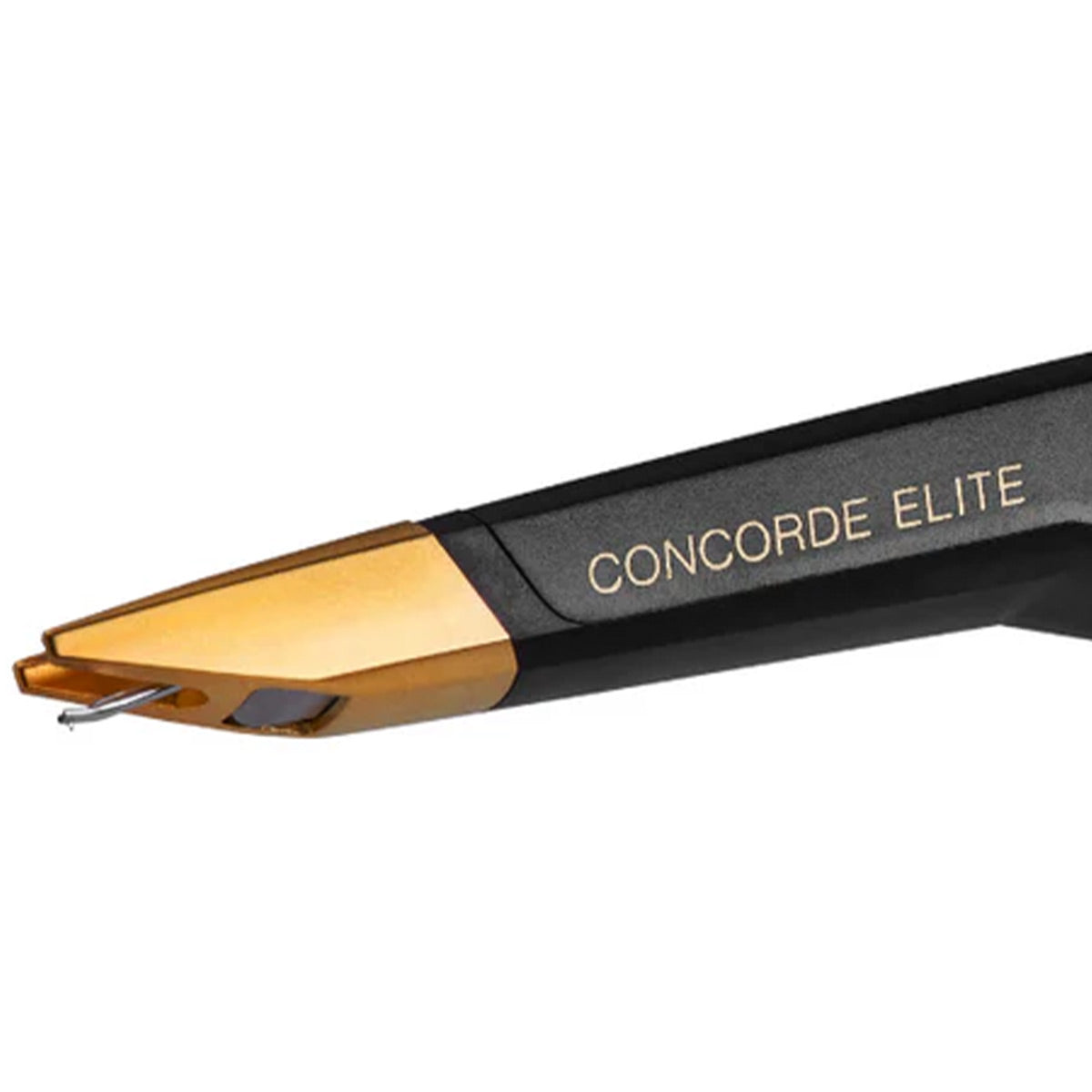

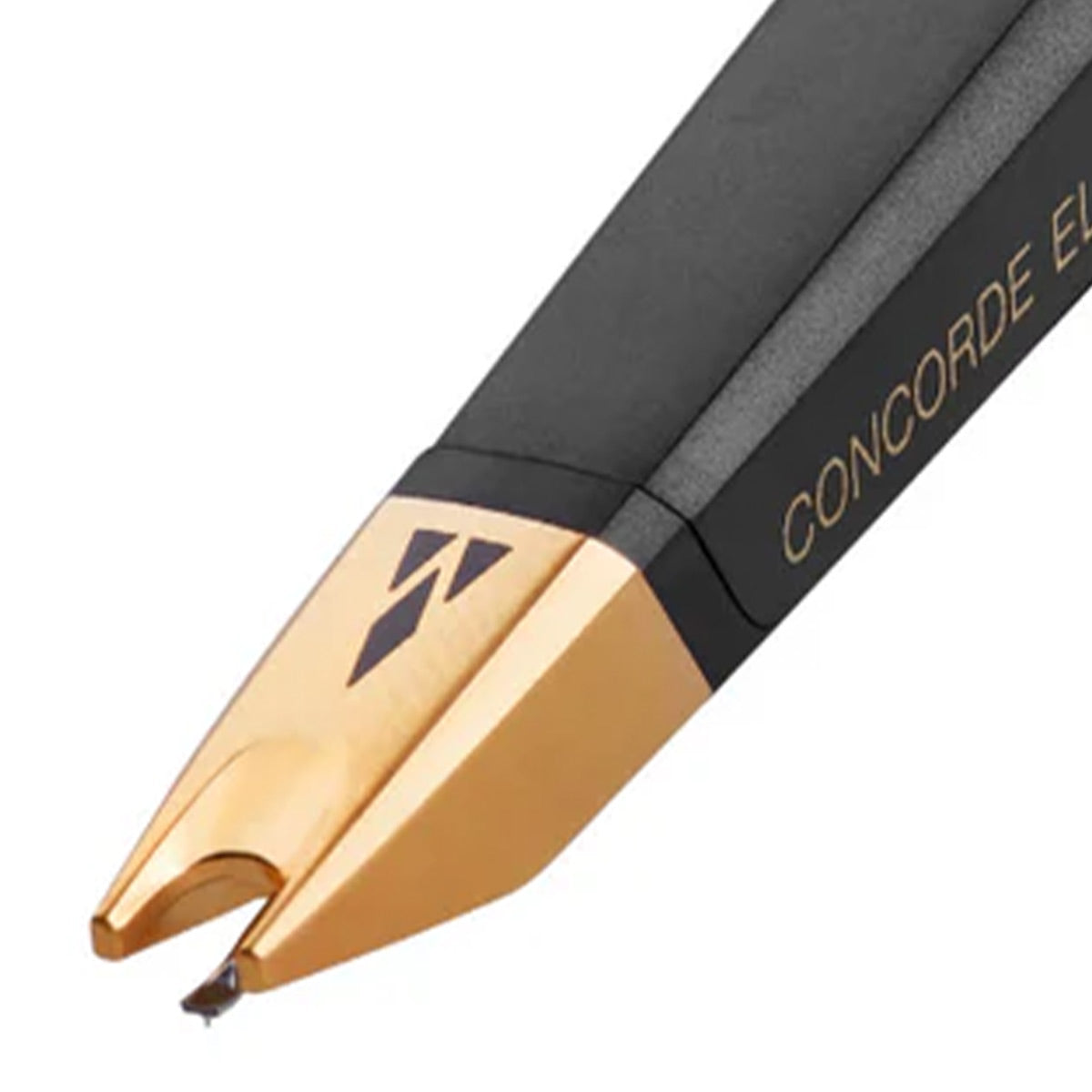

Please note: The MKII Elite Stylus replacement is pictured with a cartridge installed. Cartridge sold separately.
