Enter the Exclusive world of Ortofon’s famous moving coil sound!

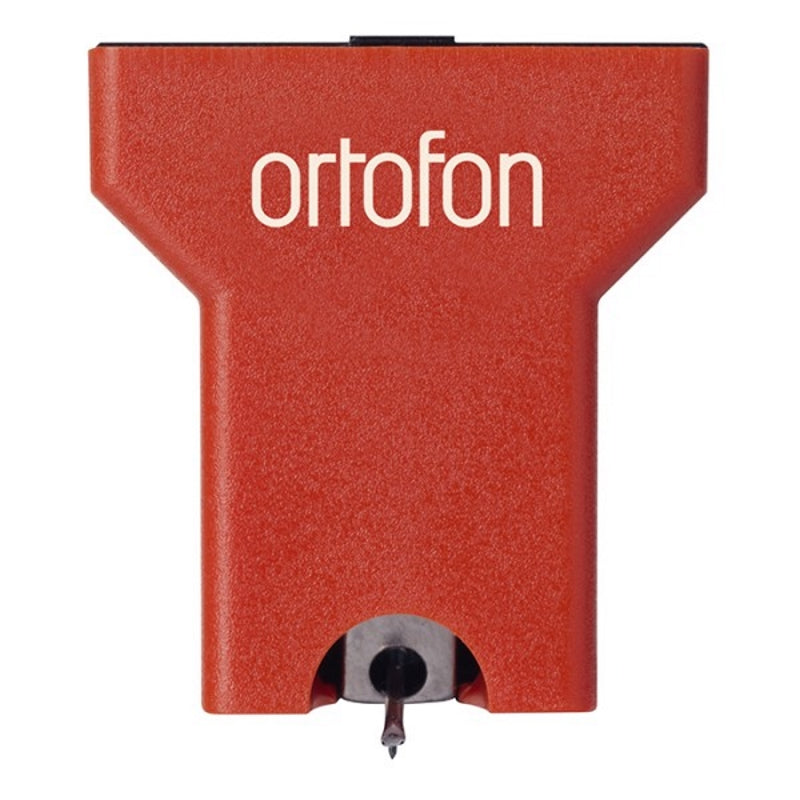

The Quintet Red is a perfect introduction to the world of Ortofon moving coils. It features an Elliptical diamond which is cut and polished to Ortofon’s standards. This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
MC Quintet Red Specifications:
- Output voltage at 1kHz 5cm/sec: 0.5 mV
- Channel balance: <1.5 dB
- Channel separation at 1 kHz: >21 dB
- Channel separation at 15 kHz: >14 dB
- Frequency range at -3 dB: 20-25.000 Hz
- Frequency response 20-20.000 Hz: +/- 2.5 dB
- Tracking ability at 315 Hz at recommended tracking force*: 65 micrometers
- Compliance, dynamic, lateral: 15 micrometers/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 micrometers
- Tracking force range: 2.1-2.5 g (21-25 mN)
- Tracking force recommended: 2.3 g (23 mN)
- Tracking angle: 20 degrees
- Internal impedance, DC resistance: 7 Ohm
- Recommended load impedance: >20 Ohm
- Cartridge body material: ABS/Aluminum
- Coil wire material: Copper
- Cartridge colour: Red
- Cartridge weight: 9g
* = typical value
