Product Information

Model: MCQUINTETMONO | UPC: 5705796271140

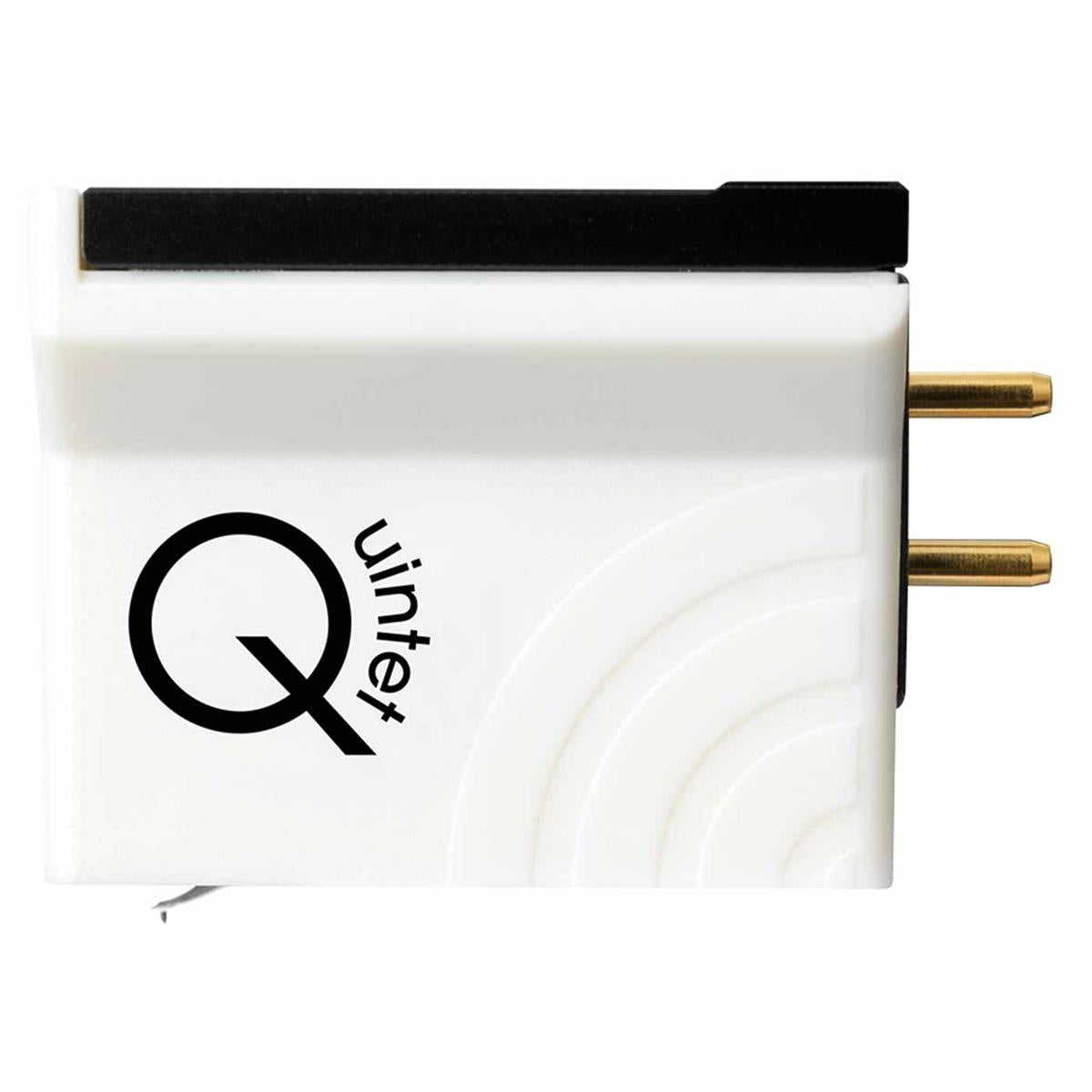

A True Mono From Ortofon

The MC Quintet Mono Moving Coil features Nude Elliptical r/R 8/18µm stylus that is a good solution for playing mono microgroove vinyl records. The Quintet Mono will track perfectly through even worn and damaged records and ensure the surface noise control.

Quintet Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Nothing demonstrates Ortofon's long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948, Ortofon has introduced about 100 different Moving Coil models. They believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.

The MC Quintet Series is a direct result of continued research and innovation, and it's congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

Highlights

  • A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This lightweight, impact-resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
  • Neodymium magnets are implemented to achieve an optimal output.
  • Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.

Specifications

  • Output voltage at 1kHz, 5cm/sec.: 0.3mV
  • Frequency range at -3dB: 20Hz - 25kHz
  • Frequency response: 20Hz - 20kHz, +/-2.0dB
  • Tracking ability at 315Hz at recommended tracking force: 70μm
  • Compliance, dynamic, lateral: 15μm/mN
  • Stylus type: Nude Elliptical
  • Stylus tip radius: r/R 8/18
  • Tracking force range: 2.1g - 2.5g (21 - 25mN)
  • Tracking force, recommended: 2.3g (25mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 5 ohm
  • Recommended load impedance: >20 ohm
  • Cartridge body material: ABS aluminum
  • Cartridge weight: 9g
