Ortofon MC Quintet Bronze Moving Coil (Bronze)

Now on demo at:

1 of 3

Ortofon MC Quintet Bronze Moving Coil (Bronze)

Regular price $849.99
Sale price $849.99 Regular price
$0.00 Save $-849.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Jul 30 – Thu, Aug 6

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: MCQUINTBR | UPC: 5705796271126

Specifications

What's In The Box

Product Documents

Product Information

Model: MCQUINTBR | UPC: 5705796271126

The Quintet Bronze Moves Into Higher League of Quintets

The slim profile of the Quintet Bronze Moving Coil's Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear. The sound will be very even-handed with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.

Ease of use

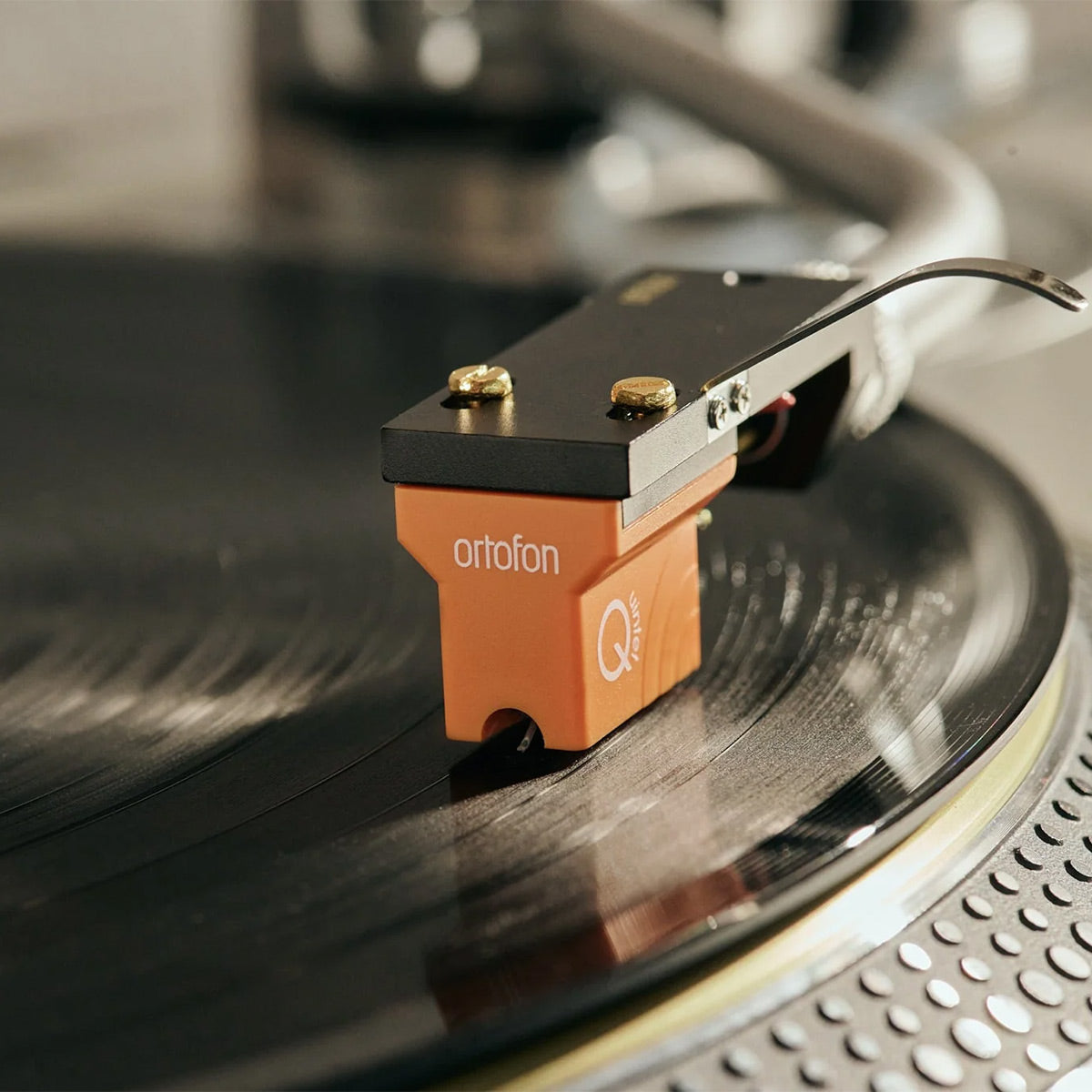

Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminum frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws depending on the thickness of the headshell. The Quintet series’ right angles, straight lines, stylus visibility and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

Specifications

  • Output voltage at 1000Hz, 5cm/sec.: 0.3mV
  • Channel balance at 1kHz: <1.2dB
  • Channel separation at 1kHz: >23dB
  • Channel separation at 15kHz: >15dB
  • Frequency range at -3dB: 20Hz - 25kHz
  • Frequency response: 20Hz - 20kHz +/-1.5
  • Tracking ability at 315Hz at recommended tracking force: 80μm
  • Compliance, dynamic, lateral: 15μm/mN
  • Stylus type: Nude Fine Line
  • Stylus tip radius: r/R 8/40μm
  • Tracking force range: 2.1g - 2.5g (21 - 25mN)
  • Tracking force, recommended: 2.3g (25mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 5 ohm
  • Recommended load impedance: >20 ohm
  • Cartridge body material: ABS aluminum
  • Coil wire material: Pure 4-nines copper
  • Cartridge weight: 9g

What's In The Box

  • MC Quintet Bronze Moving Coil (Bronze)

Product Documents
