Ortofon MC Quintet Black S (Black)

Now on demo at:

1 of 3

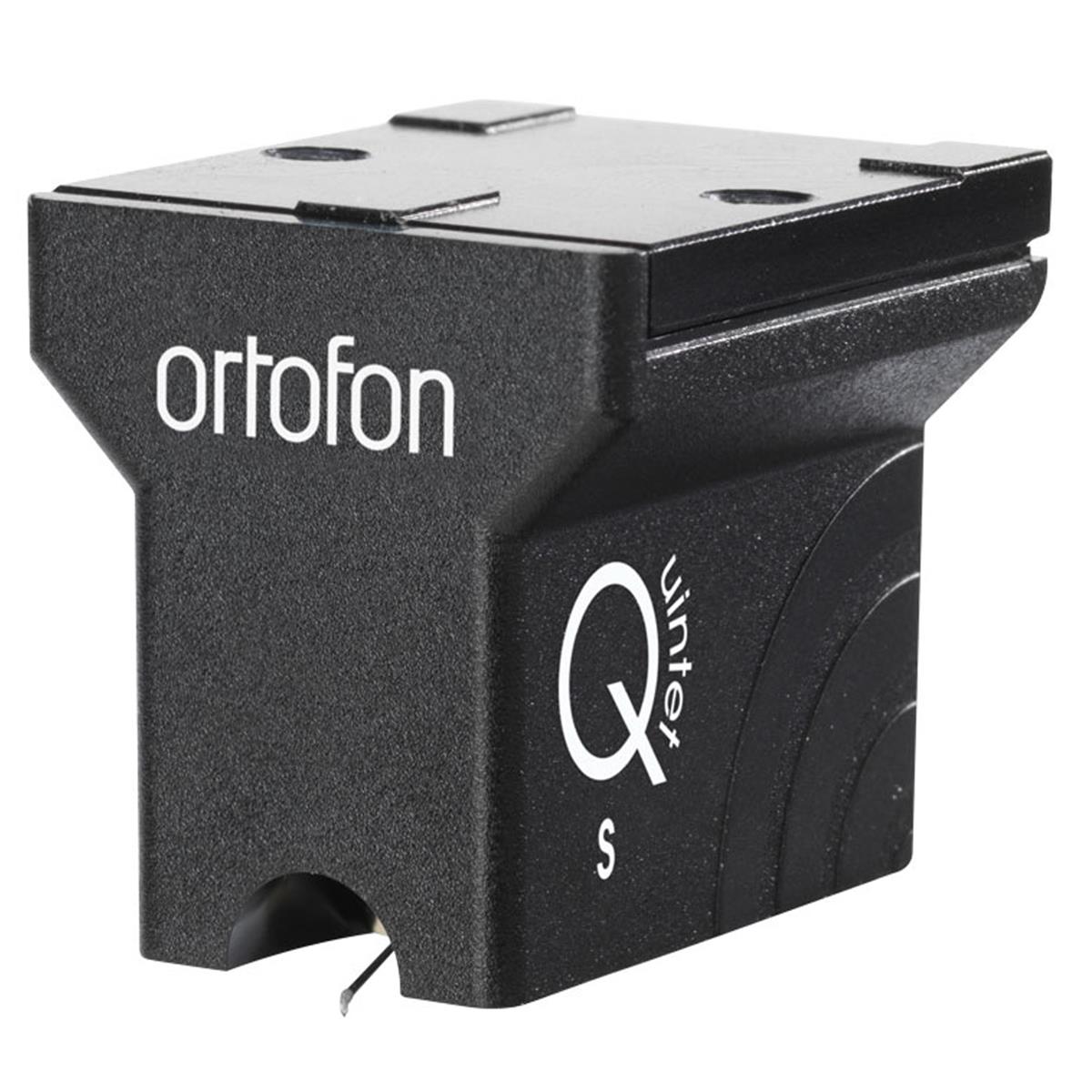

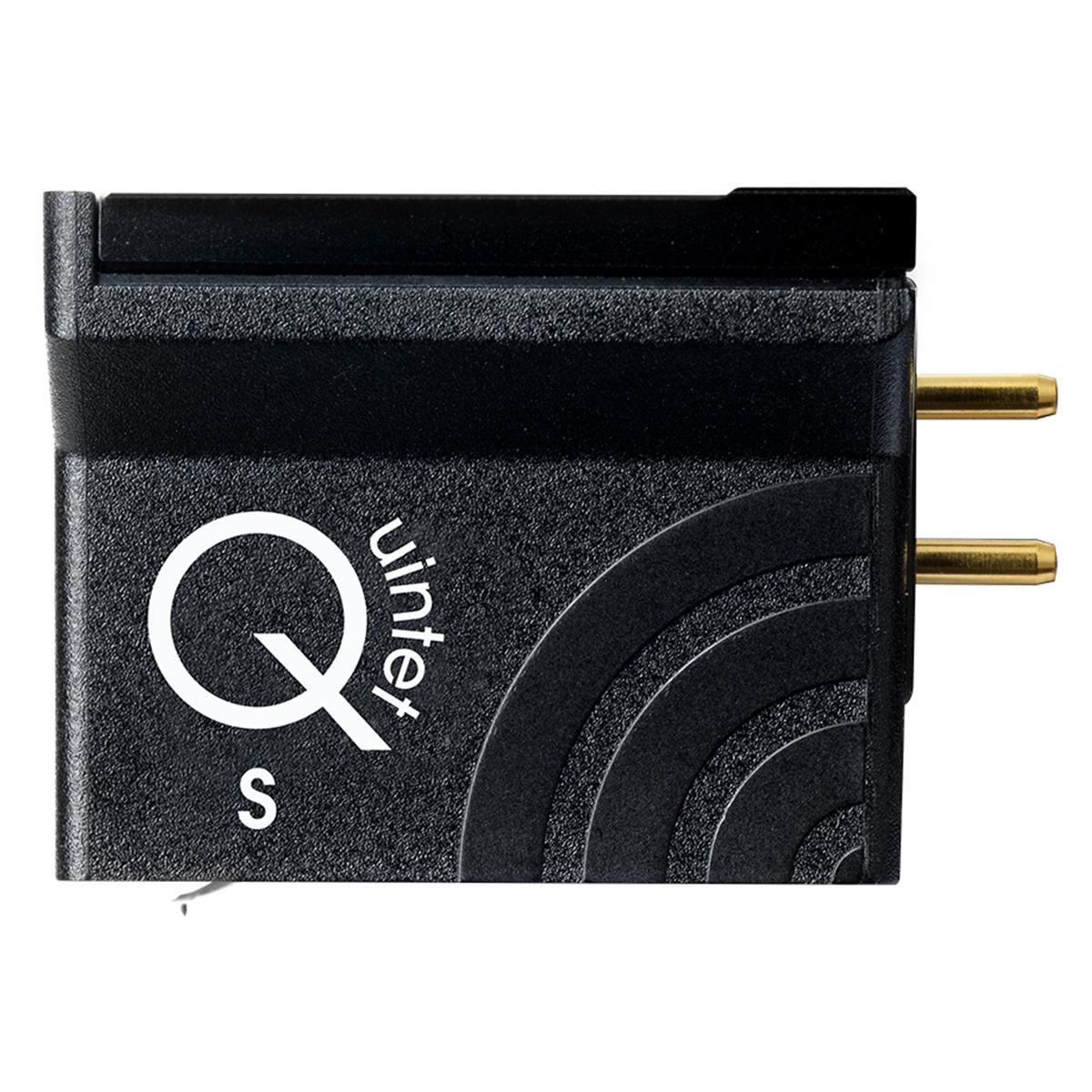

Ortofon MC Quintet Black S (Black)

Regular price $1,149.99
Sale price $1,149.99 Regular price
$0.00 Save $-1,149.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Jul 30 – Thu, Aug 6

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: MCQUINTBLK | UPC: 5705796271218

Specifications

What's In The Box

Product Documents

Product Information

Model: MCQUINTBLK | UPC: 5705796271218

The New Sapphire Cantilever Solution

The new MC Quintet Black S model is graced with Shibata stylus on the Sapphire cantilever. Sapphire is one of the best cantilever options that provides an excellent mechanical pulse transfer from the stylus to the coil system.

The Best Example of Overall Excellence

The Quintet Black S is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever.

The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction throughout the spectrum, including even the most high frequency groove information.

Ease of Use

Top-mounting of the Quintet cartridges is easy and secure using the screws supplied. The aluminum frame has threaded mounting holes and is fitted easily with the 5mm or 7mm screws, depending on the thickness of the headshell.

The Quintet series’ right angles, straight lines, stylus visibility, and ample distance between the record surface and the cartridge’s bottom will make it easy to mount and align the cartridge and tonearm correctly. The Quintet Series gives excellent results with most common tonearms.

Specifications

  • Output voltage at 1000Hz, 5cm/sec.: 0.3mV
  • Channel balance at 1kHz: <1.0dB
  • Channel separation at 1kHz: >23dB
  • Channel separation at 15kHz: >15dB
  • Frequency range at -3dB: 20Hz - 25kHz
  • Frequency response: 20Hz - 20kHz +/-1.5
  • Tracking ability at 315Hz at recommended tracking force: 80μm
  • Compliance, dynamic, lateral: 15μm/mN
  • Stylus type: Nude Shibata on Sapphire cantilever
  • Stylus tip radius: r/R 6/50μm
  • Tracking force range: 2.1g - 2.5g (21 - 25mN)
  • Tracking force, recommended: 2.3g (25mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 5 ohm
  • Recommended load impedance: >20 ohm
  • Cartridge body material: ABS aluminum
  • Coil wire material: Aucurum
  • Cartridge weight: 9g

What's In The Box

  • MC Quintet Black S Moving Coil (Black)
