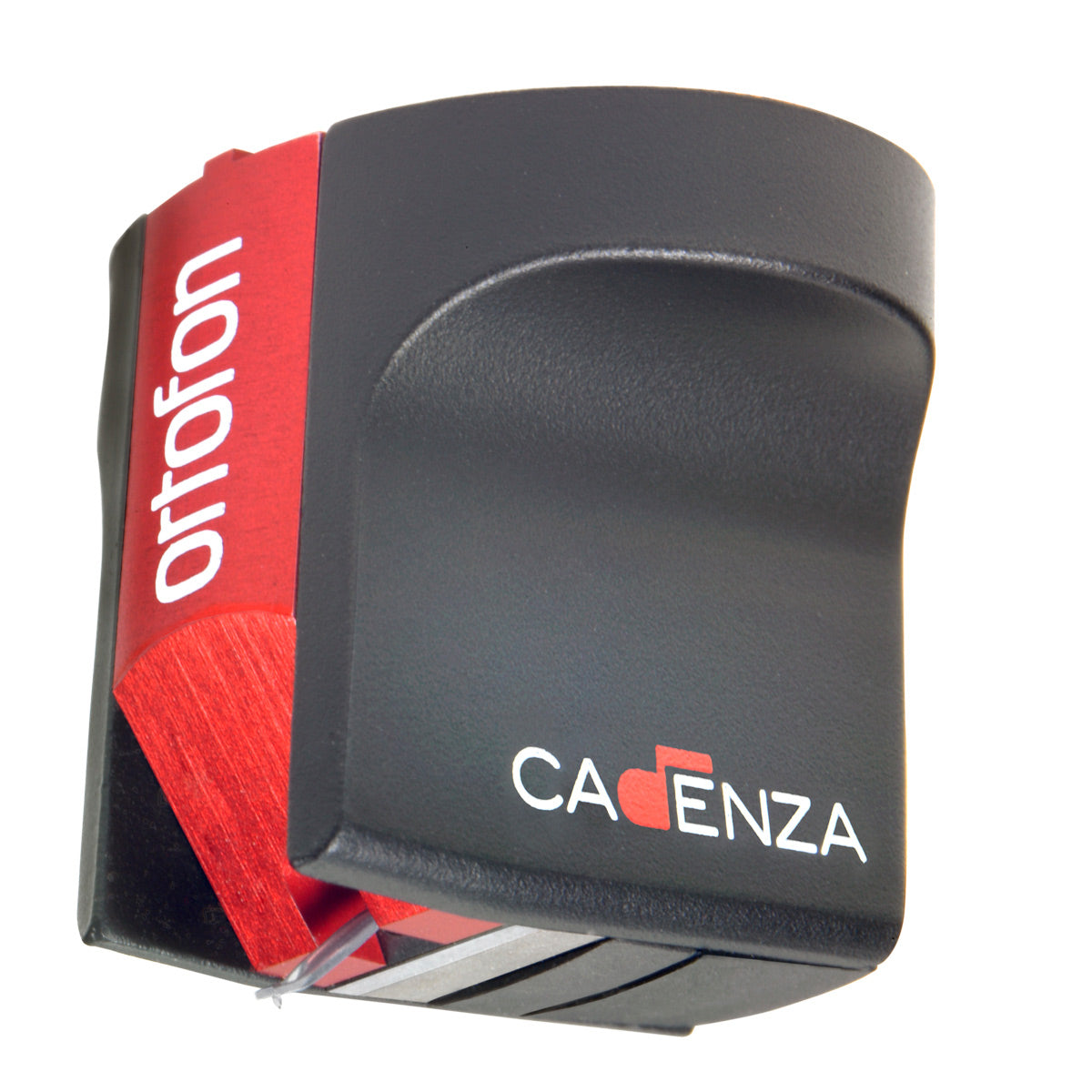

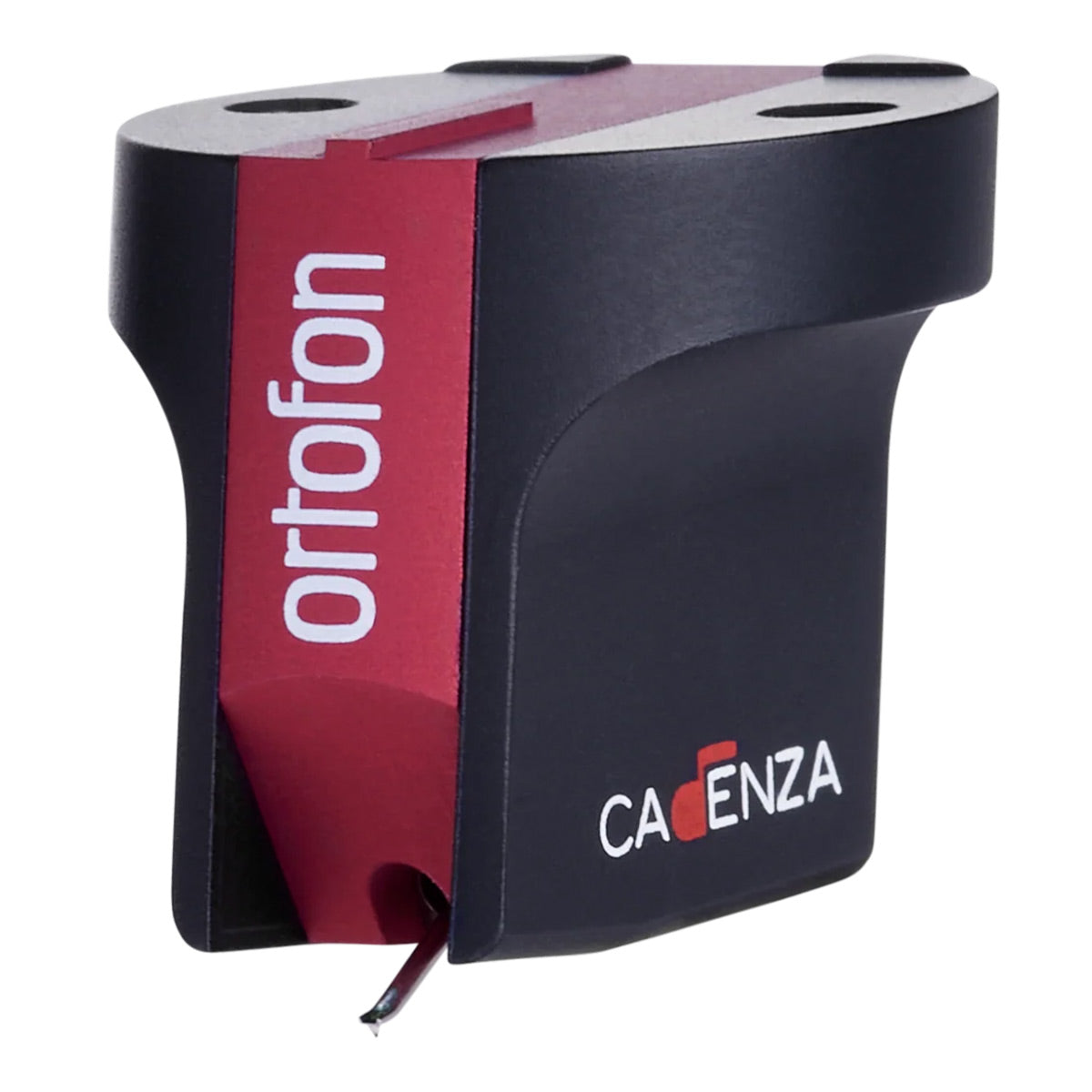

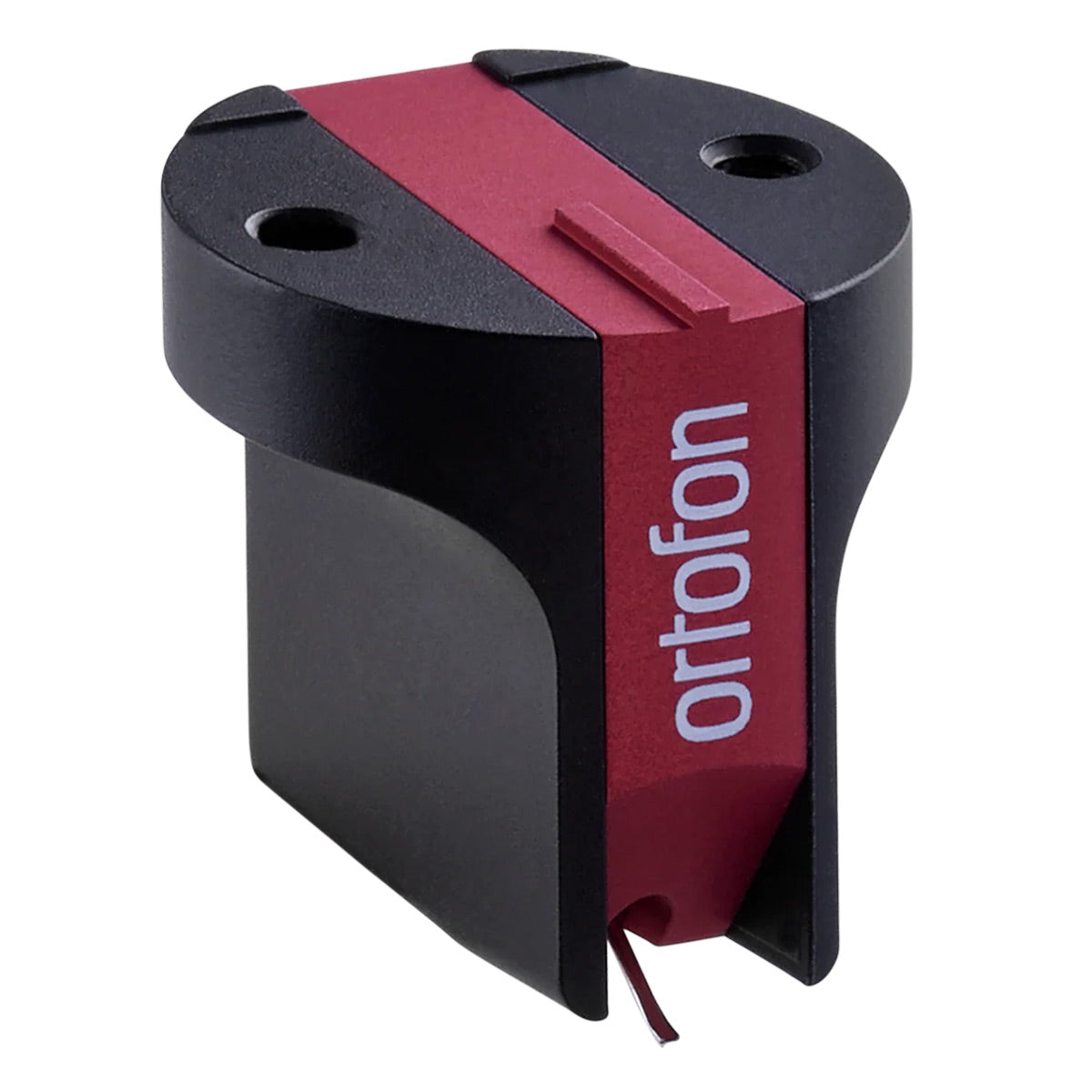

The Cadenza Red model uses a Nude Fine Line stylus with a cylindrical aluminium cantilever. The stylus tip radius is r/R 8/40 µm, the coils are made from 6NX (99.9999 %) pure silver wire. and an improved winding process on the armature allows a better channel balance.
Overview
Product Information
Specifications
What's In The Box
Product Information
Specifications
- Output voltage at 1kHz, 5cm/sec.: 0.45mV
- Channel balance: <1.5dB
- Channel separation at 1kHz: >23dB
- Channel separation at 15kHz: >15dB
- Frequency range at -3dB: 20Hz - 50kHz
- Frequency response: 20kHz - 20kHz -+3/-1
- Tracking ability at 315Hz at recommended tracking force: -80μm
- Compliance, dynamic, lateral: 12μm/mN
- Stylus type: Nude fine line on Alu cantilever
- Stylus tip radius: r/R 8/40μm
- Tracking force range: 2.2g - 2.7g (22 - 27mN)
- Tracking force, recommended: 2.5g (25mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 5 ohm
- Recommended load impedance: 50 - 500 ohm
- Cartridge body material: Stainless steel aluminum
- Cartridge weight: 10.7g
What's In The Box
- MC Cadenza Moving Coil Cartridge
