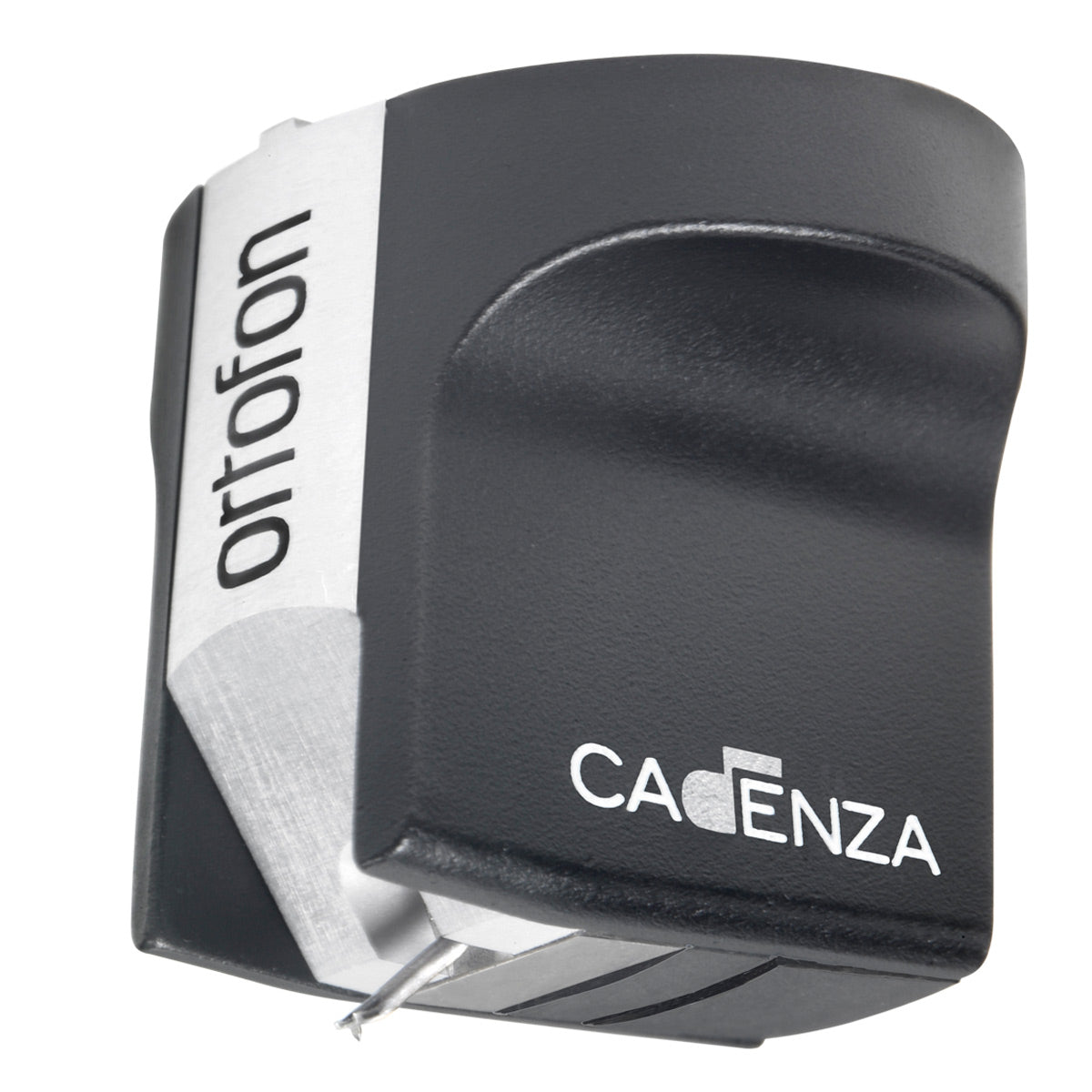

Ortofon MC Cadenza Mono Moving Coil Cartridge (Black/White)

Now on demo at:

1 of 2

Ortofon MC Cadenza Mono Moving Coil Cartridge (Black/White)

Regular price $1,599.99
Sale price $1,599.99 Regular price
$0.00 Save $-1,599.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Thu, Jul 30 – Thu, Aug 6

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: MCCADENZAM | UPC: 5705796230154

Specifications

What's In The Box

Product Information

Model: MCCADENZAM | UPC: 5705796230154

The Cadenza Mono model is made with a Nude Fine Line stylus and a cylindrical aluminum cantilever. The stylus radius is r/R 8/40 µm. The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. For easier usage, the pins are connected so you get the same signal from both pairs of connecting pins.

Sharing internal build with the Cadenza Red and with optimized adjustments for mono playback, the sound is relaxed, homogeneous, and moderate.

Specifications

  • Output voltage at 1kHz, 5cm/sec: 0.45mV
  • Frequency range at -3dB - 20Hz: 50Hz
  • Frequency response: 20 - 20,000Hz + 3/-1dB
  • Tracking ability at 315Hz at recommended tracking force: >70 µm
  • Compliance, dynamic, lateral: 12 µm/mN
  • Stylus type: Nude fine line on Alu cantilever
  • Stylus tip radius: r/R 8/40 µm
  • Tracking force range: 2.2 - 2.7g (22 - 27mN)
  • Tracking force, recommended: 2.5g (25mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 5 ohm
  • Recommended load impedance: 50 - 500 ohm
  • Cartridge body material: Stainless steel aluminum
  • Cartridge color: Natural black
  • Cartridge weight: 10.7g

What's In The Box

  • MC Cadenza Mono Moving Coil Cartridge
  • Stylus brush
  • Screwdriver
  • Leadwires, pair LW-6N
  • Screws
