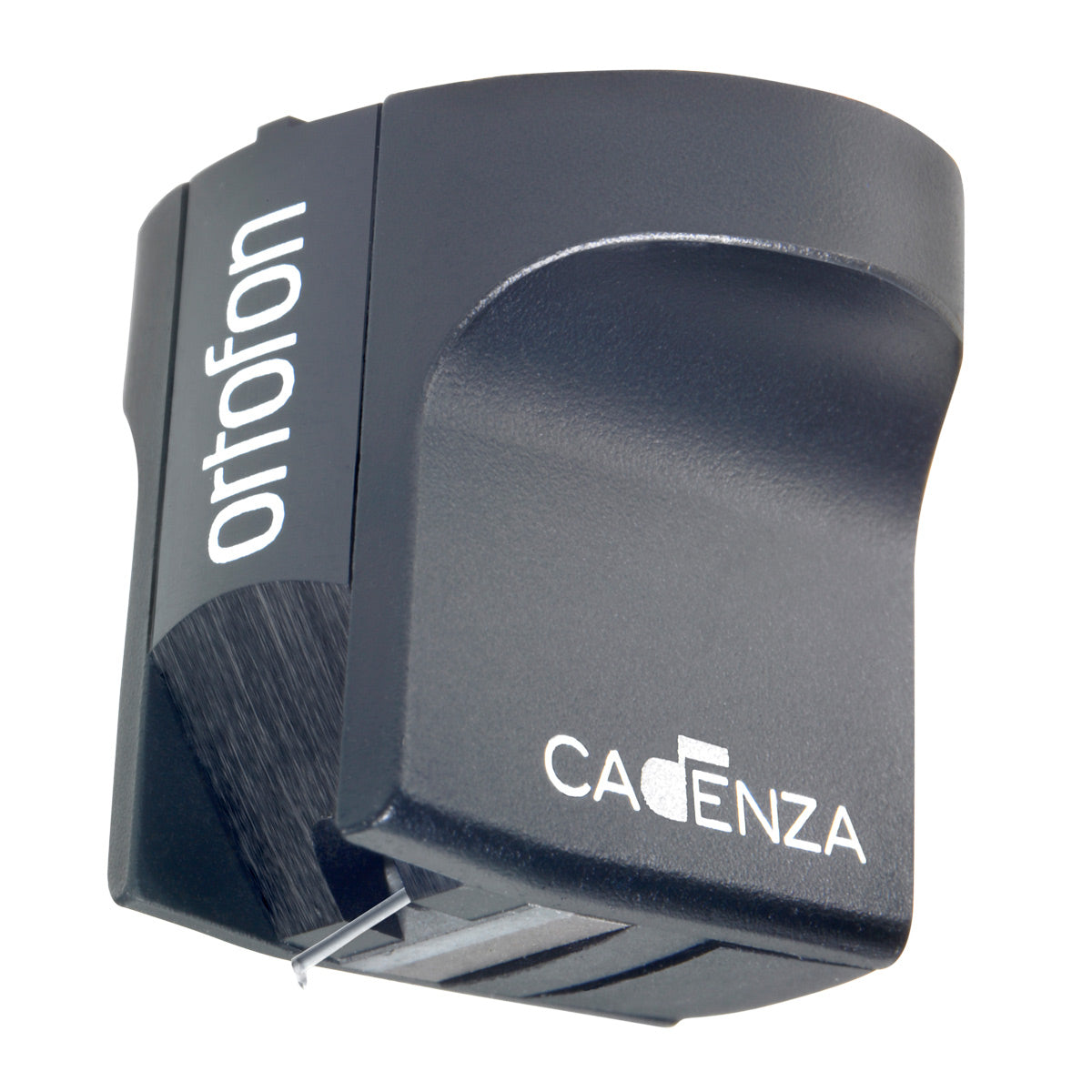

Ortofon MC Cadenza Black Moving Coil (Black)

Now on demo at:

1 of 2

Ortofon MC Cadenza Black Moving Coil (Black)

Regular price $3,199.99
Sale price $3,199.99 Regular price
$3,359.00 Save $159.01 (5%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, Jul 31 – Fri, Aug 7

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Ortofon MC Cadenza Overview

Product Information

Model: MCCADENZABLACK | UPC: 5705796230147

Specifications

What's In The Box

Product Documents

Product Information

Model: MCCADENZABLACK | UPC: 5705796230147

Optimized for an Amazing Tonal Neutrality, Dynamics, and Purity of Sound.

The Cadenza Black model uses a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminum. It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression, and MC A95 cartridges, controlling the high and low frequency damping separately. The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

The engineers at Ortofon are constantly looking for new technology to be used in their products and push the performance of existing technology. Thus they assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among their most popular cartridges. Nevertheless, Ortofon decided to develope a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminum housing in the models as well as other changes, Ortofon has been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support customers who have an extended interest in micro groove mono records.

Specifications

  • Output voltage at 1kHz, 5cm/sec.: 0.33mV
  • Channel balance at 1kHz: <0.8dB
  • Channel separation at 1kHz: >27dB
  • Channel separation at 15kHz: >20dB
  • Frequency range at -3dB: 20Hz - 60kHz
  • Frequency response: 20Hz - 20kHz -+1.5/-0
  • Tracking ability at 315Hz at recommended tracking force: 90μm
  • Compliance, dynamic, lateral: 16μm/mN
  • Stylus type: Nude Shibata on Boron cantilever
  • Stylus tip radius: r/R 6/50μm
  • Tracking force range: 2.0g - 2.5g (20 - 25mN)
  • Tracking force, recommended: 2.3g (23mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 5 ohm
  • Recommended load impedance: > 10 ohm
  • Cartridge body material: Stainless steel aluminum
  • Cartridge weight: 6g

What's In The Box

  • MC Cadenza Black Moving Coil
