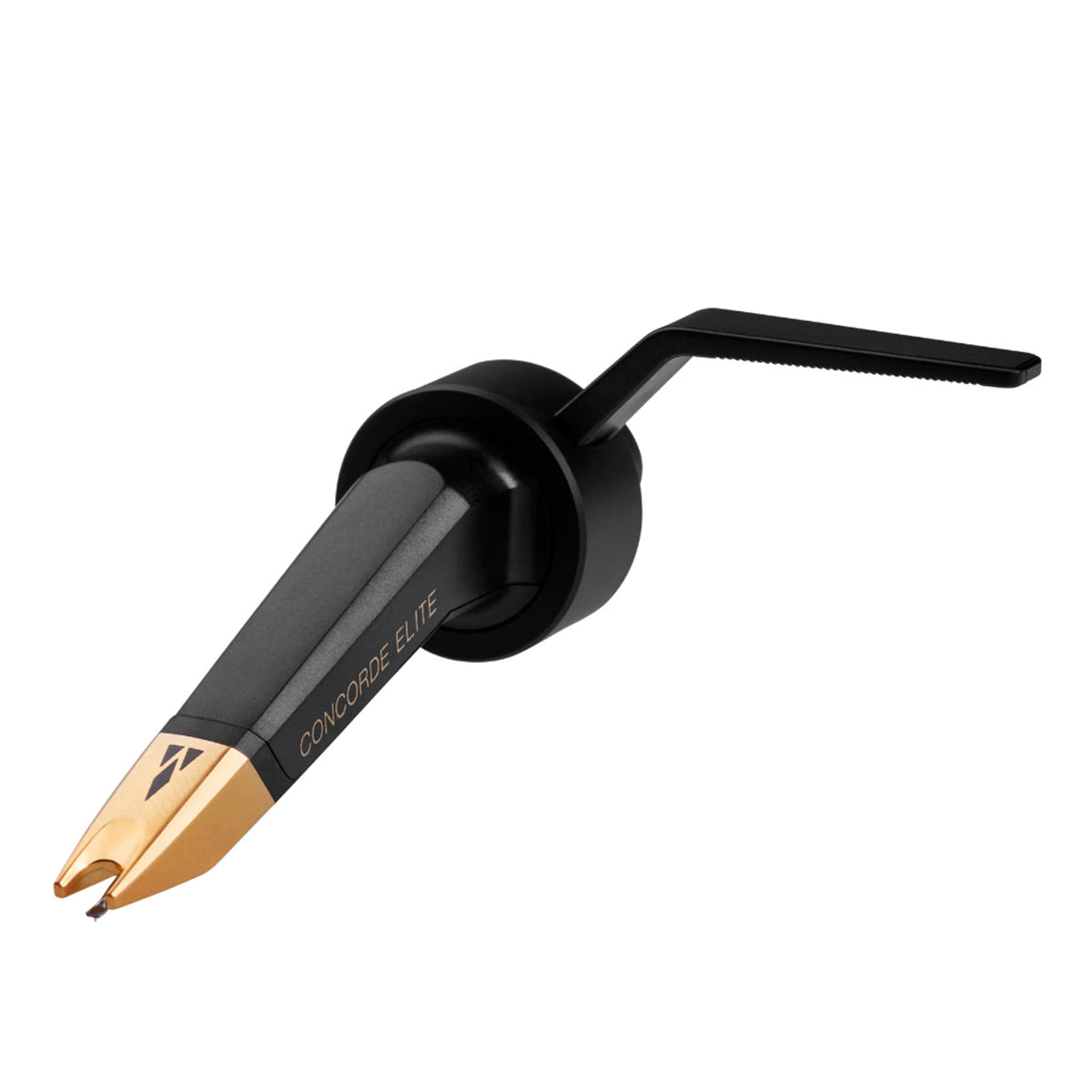

Ortofon Concorde Elite Mk II Studio & DJ Cartridge

Regular price $439.99
Sale price $439.99 Regular price
Save $-439.99 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: CONELITE2 | UPC: 5705796031737

Specifications

What's In The Box

Product Information

Model: CONELITE2 | UPC: 5705796031737

Experience Superior Sound Quality

The Concorde MKII Elite is a premium moving magnet cartridge from Ortofon, designed to deliver exceptional audio performance for discerning DJs and audiophiles. Building upon the renowned Concorde MkII Series, the Elite introduces several component upgrades that elevate its sound quality beyond traditional DJ cartridges.

Nude Elliptical Diamond Stylus

At the heart of the Elite is a nude elliptical diamond stylus mounted on a rigid aluminum-magnesium cantilever. This design, typically found in high-fidelity cartridges, ensures a powerful and detailed sound, capturing intricate nuances and delivering a live-performance feel. The slim profile of the stylus allows for precise tracking of groove oscillations, extracting even the highest frequency information.

Specialized Coil System for Enhanced Output

The Elite features a specially developed coil system within its armature, optimizing the transmission of the diamond's movements. This results in a robust, full-bodied sound with high output, catering to the demands of professional environments and ensuring an immersive listening experience.

Gold-Plated Design with Superior Tracking

Adding a touch of luxury, the Elite boasts a specially molded, gold-plated stylus body that enhances its aesthetic appeal while maintaining the iconic Concorde design. To ensure superior tracking performance, a new rubber suspension has been uniquely developed for the Elite, providing exceptional damping and reducing excess brightness for a richer, fuller sound.

Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 8,5 mV
  • Channel separation at 1 kHz: 25 dB
  • Tracking ability at 315Hz: 100 μm
  • Compliance, dynamic, lateral: 13 μm/mN
  • Cantilever material: Aluminum
  • Stylus type: Nude Elliptical diamond
  • Stylus tip radius: r/R 8/18 μm
  • Tracking force range: 2.0-4.0 g
  • Tracking force, recommended: 3.0 g
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.2 kOhm
  • Recommended load impedance: 150-400 pF
  • Cartridge color: Black/Gold
  • Cartridge weight: 18.5 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 800 mH

What's In The Box

  • Concorde Elite Mk II Studio & DJ Cartridge
