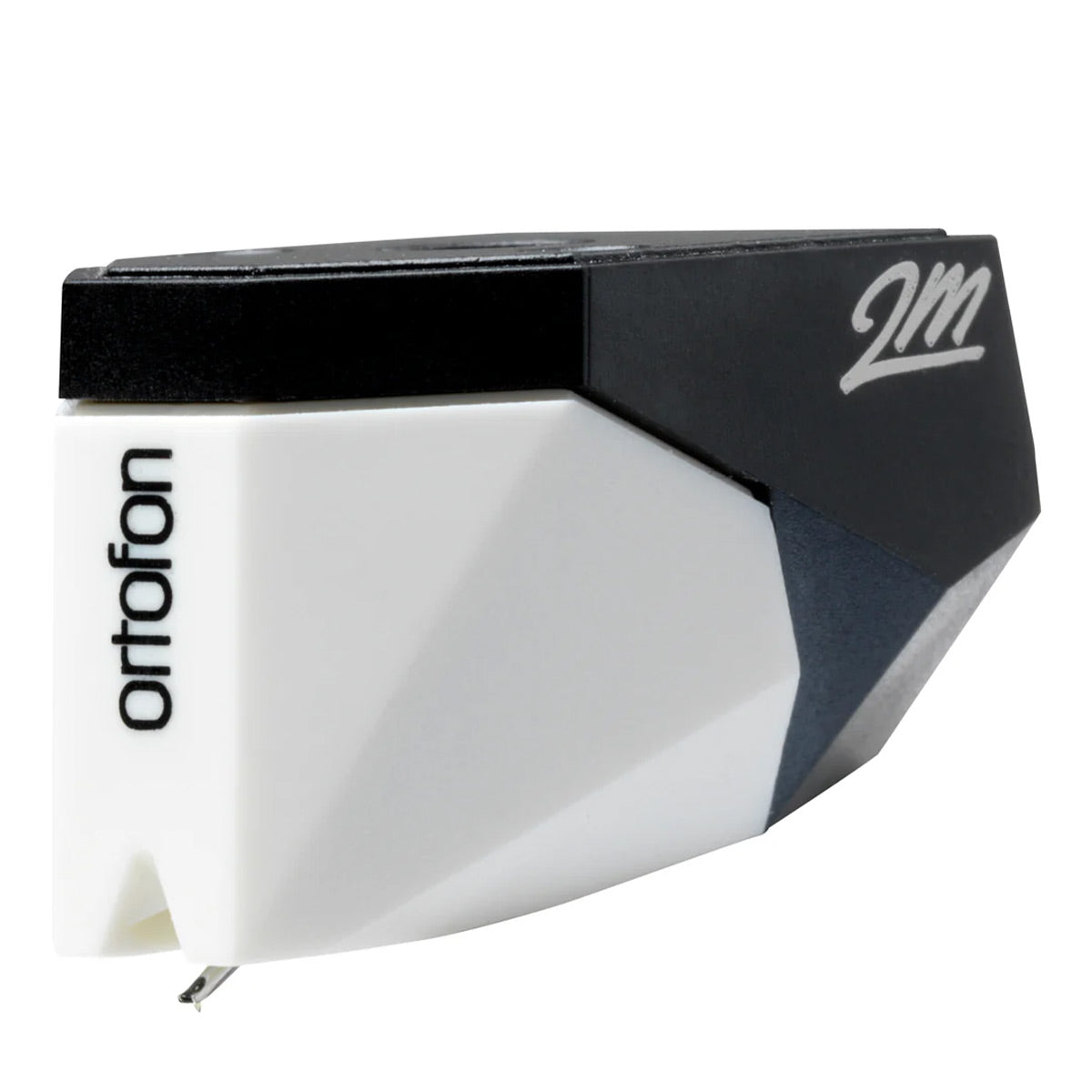

Ortofon 2M Mono Premounted MM Phono Cartridge

Regular price $485.00
Sale price $485.00 Regular price
Save $-485.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon 2M Mono on SH-4 Black Overview

Product Information

Model: 2MMONOSH4B | UPC: 5705796080360

Specifications

What's In The Box

Product Information

Model: 2MMONOSH4B | UPC: 5705796080360

An Era of Authenticity

Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Features

  • Optimal Solution For Playing Mono Microgroove LP Vinyl Records
  • Nude Spherical Diamond Stylus
  • Sturdy SH-4 Headshell

Stylus

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Output

The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Specifications

  • Output voltage at 1 kHz, 5cm/sec: 4 mV
  • Frequency response 20 Hz - 20 kHz: 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 70 µm
  • Compliance, dynamic, lateral: 18 µm/mN
  • Stylus type: Nude Spherical
  • Stylus tip radius: R18 µm
  • Tracking force range: 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 700 Ohm
  • Cartridge color: Black/White
  • Cartridge weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 350 mH
  • Recommended load capacitance: 150-300 pF

What's In The Box

  • 2M Mono Premounted MM Phono Cartridge
