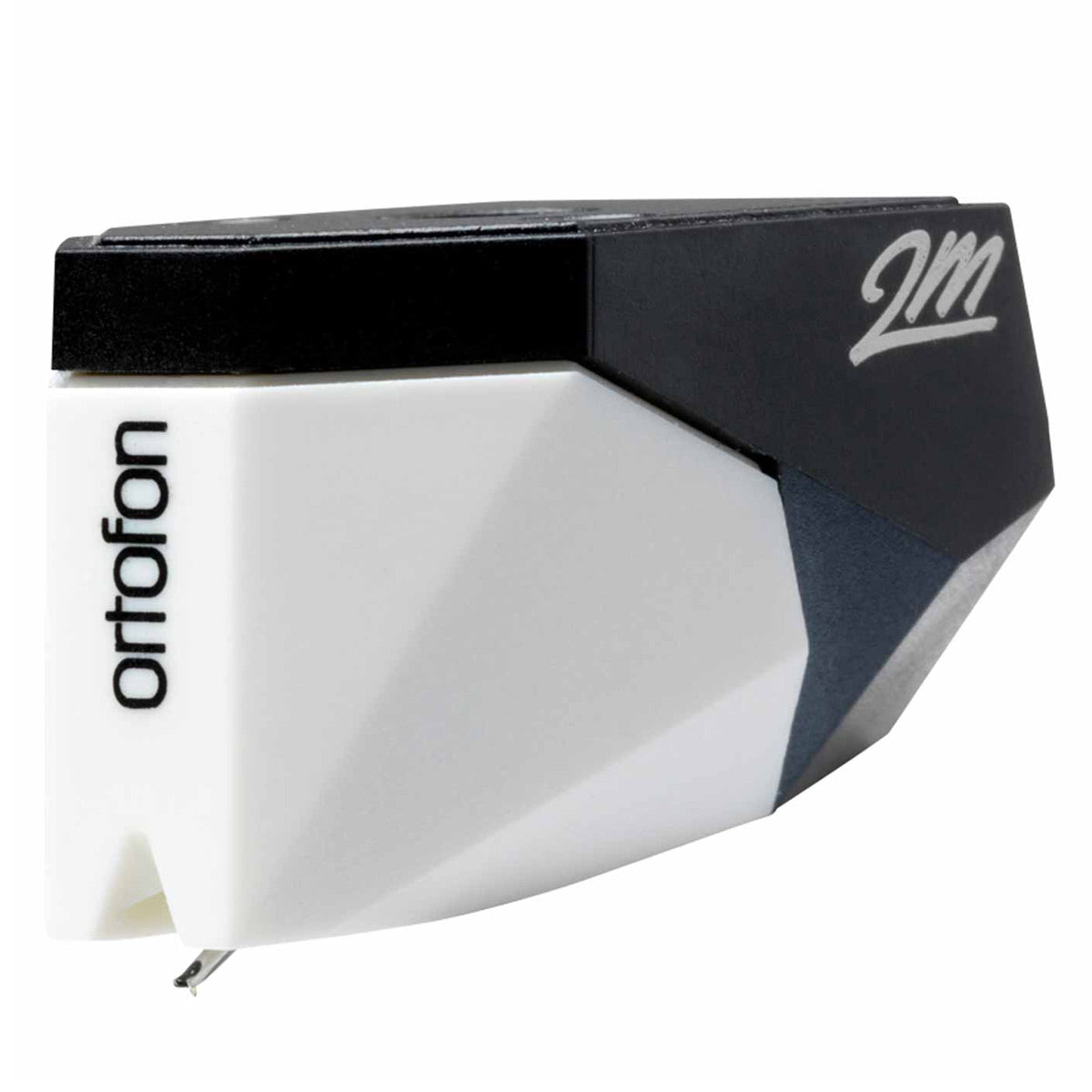

Ortofon 2M Mono Moving Magnet Cartridge (White)

Regular price $378.00
Sale price $378.00 Regular price
Save $-378.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 2MMONO | UPC: 5705796080056

Specifications

What's In The Box

Product Documents

Product Information

Model: 2MMONO | UPC: 5705796080056

Designed for Precise and Accurate Retrieval of Information

The 2M Mono headshell is a practical and elegant solution for customers who wish direct and easy mounting and replacement on their tonearm. The combination of 2M headshell and 2M Series cartridge adds unique distinction to the turntable!

Highlights

  • An improved engine, which provides a high level of sonic accuracy
  • R 18µ Nude Spherical stylus that is an optimal solution for playing mono microgroove LP vinyl records

Features

Advancements in Sound

The 2M Series features Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 and Ortofon OM Series.

Ease of Use

The weight and size of 2M Series have been optimized to fit the most common turntables on the market today. The cartridge body has also been streamlined to provide easy mounting and alignment. The name “2M” was chosen as it represents the abbreviation for moving magnet, MM. Moving magnet cartridges provide excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Stylus Types

All of the 2M cartridges feature diamonds that are polished to the highest standards of the industry.

The 2M Mono features a 18 µm Nude Spherical stylus that is an optimal solution for playing mono microgroove vinyl records. It also features an optimized engine for superior sound quality and uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it easily possible to enjoy true mono reproduction on any stereo playback system.



Specifications

  • Output voltage at 1kHz, 5cm/sec.: 4mV
  • Frequency range at -3dB: 20 - 22,000Hz
  • Frequency response: 20 - 20,000Hz +3/-1dB
  • Tracking ability at 315Hz at recommended tracking force: 70μm
  • Compliance, dynamic, lateral: 18μm/mN
  • Stylus type: Nude Spherical
  • Stylus tip radius: R 18μm
  • Tracking force range: 1.6g - 2.0g (16 - 20mN)
  • Tracking force, recommended: 1.8g (18mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 0.7kOhm
  • Internal inductance: 350mH
  • Recommended load resistance: 47kOhm
  • Recommended load capacitance: 150 - 300pF
  • Cartridge weight without screws: 7.2g

What's In The Box

  • 2M Mono Moving Magnet Cartridge
  • Stylus brush
  • Screwdriver
  • Screws
