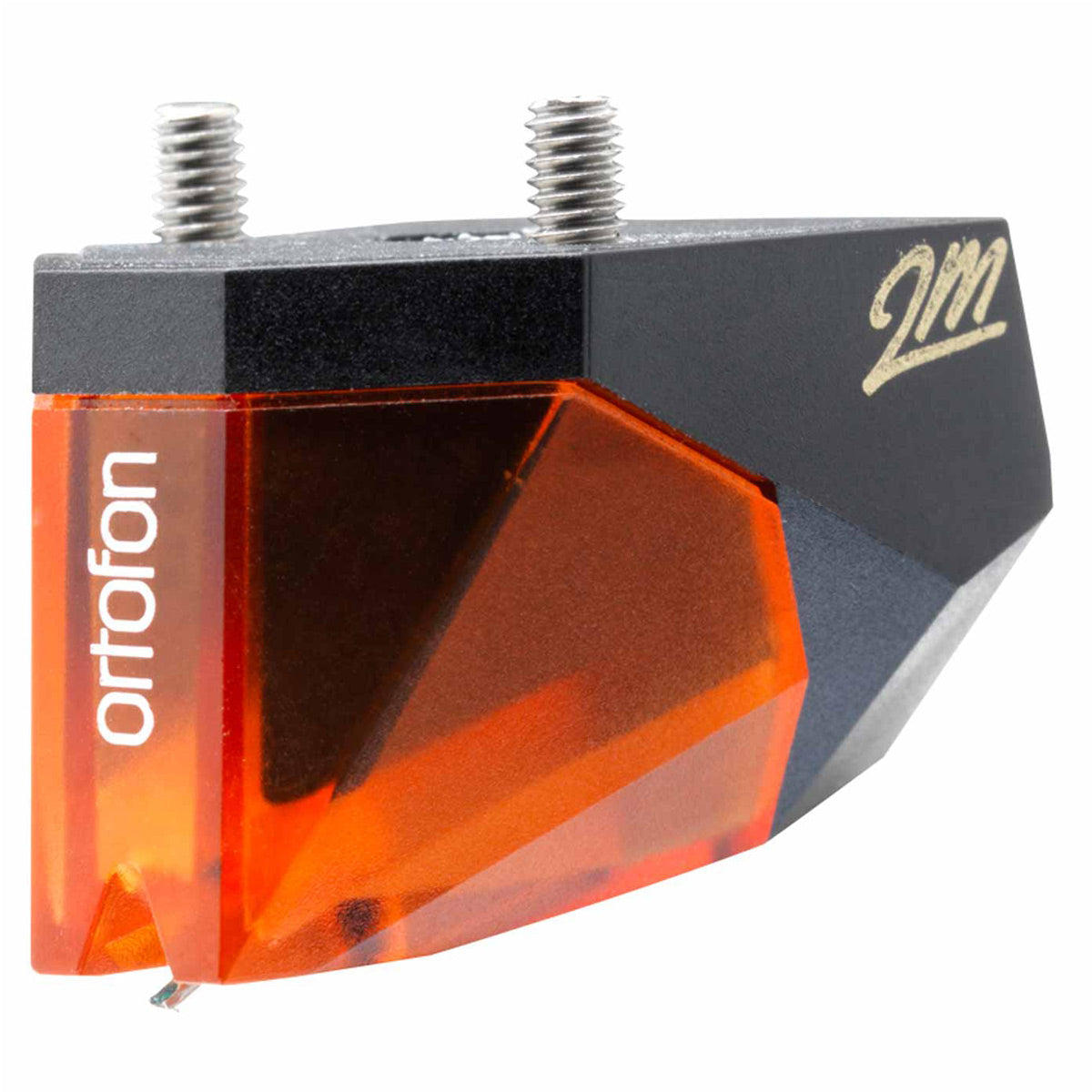

Ortofon 2M Bronze Verso Moving Magnet Cartridge (Bronze)

Now on demo at:

1 of 2

Ortofon 2M Bronze Verso Moving Magnet Cartridge (Bronze)

Regular price $489.99
Sale price $489.99 Regular price
$0.00 Save $-489.99 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Sep 23 – Wed, Sep 30
Man with brown hair and beard wearing glasses and a gray button-down shirt

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781
Sad face plus music note equals happy face graphic

Ortofon 2M Bronze Verso Overview

Product Information

Model: 2MBRONZEVERSO | UPC: 5705796080094

Specifications

What's In The Box

Product Documents

Product Information

Model: 2MBRONZEVERSO | UPC: 5705796080094

The 2M Bronze Verso is designed for bottom-mount headshells and turntables that require cartridge mounting from underneath. Its Nude Fine Line diamond stylus is engineered for precise tracking, enhanced detail, and an immersive listening experience.

Features

  • Bottom Mount Headshell Design
  • Nude Fine Line Stylus
  • High Precision Tracking
  • Split Pole Pin Technology
  • Silver-Plated OFC Coil Wire
  • Universal Turntable Compatibility

Accuracy Level

The 2M Bronze is designed to reproduce records with a high level of precision and detail, giving familiar music a fresh listening experience.

Stylus

The Nude Fine Line diamond is designed for demanding playback applications. Its slim profile tracks high-frequency information with precision.

Design

A specialized cartridge engine uses Ortofon split pole pin technology combined with silver-plated copper wire.

Compatibility

The 2M Series is designed around mounting, weight, and size requirements common to many turntables. The Verso configuration is specifically intended for bottom-mount headshells.

Specifications

  • Output voltage at 1kHz, 5cm/sec.: 5mV
  • Channel balance at 1kHz: 1dB
  • Channel separation at 1kHz: 26dB
  • Channel separation at 15kHz: 15dB
  • Frequency range at -3dB: 20 - 29,000Hz
  • Frequency response: 20 - 20,000Hz +2/0dB
  • Tracking ability at 315Hz at recommended tracking force: 80μm
  • Compliance, dynamic, lateral: 22μm/mN
  • Stylus type: Nude Fine Line
  • Stylus tip radius: R 40μm
  • Tracking force range: 1.4g - 1.7g (14 - 17mN)
  • Tracking force, recommended: 1.5g (15mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 1.2kOhm
  • Internal inductance: 630mH
  • Recommended load resistance: 47kOhm
  • Recommended load capacitance: 150 - 300pF
  • Cartridge weight without screws: 7.2g

What's In The Box

  • 2M Bronze Verso Moving Magnet Cartridge
  • Stylus Brush
  • Stylus pressure gauge
  • Allen key Torx 6
  • Allen key Torx 8
  • Screws
