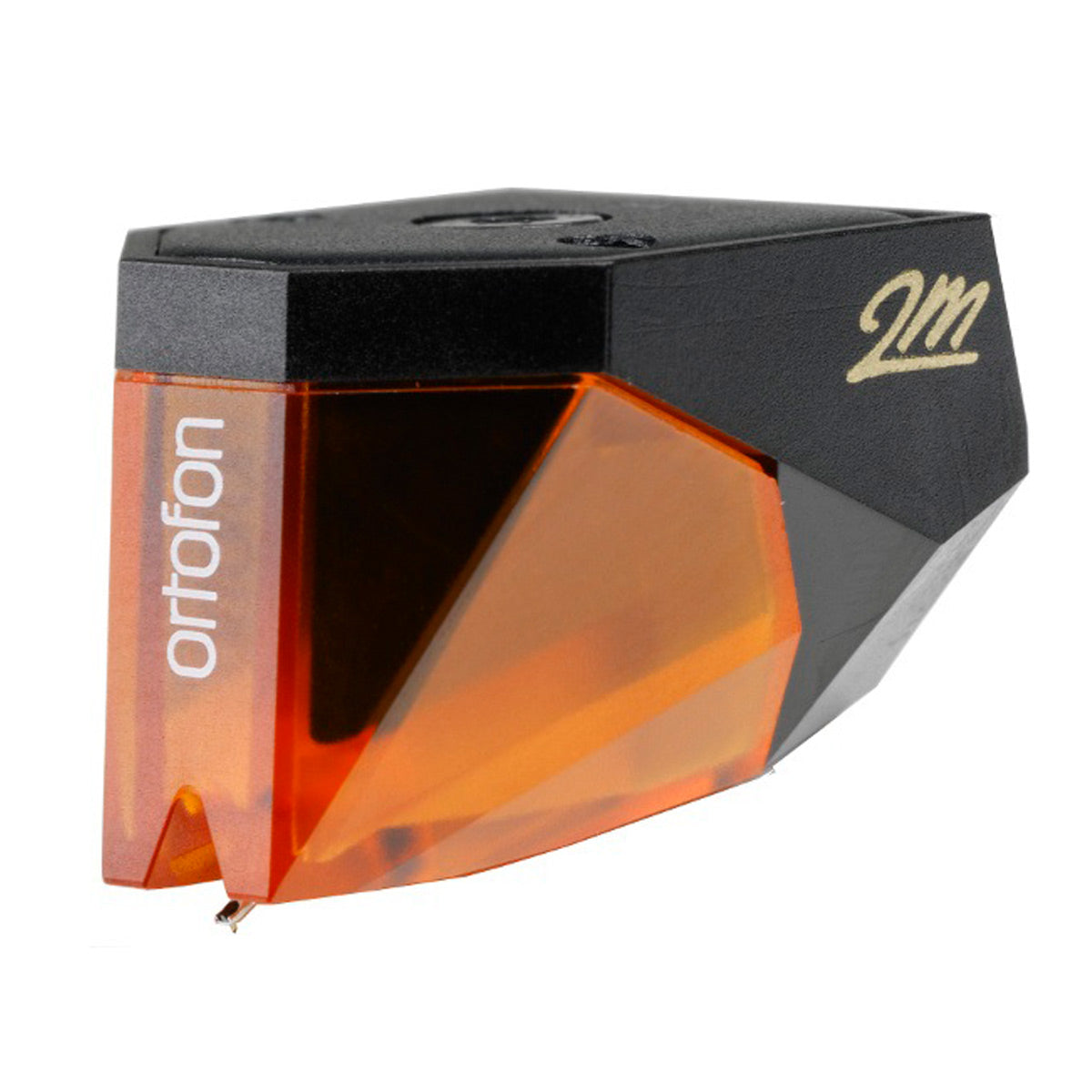

Ortofon 2M Bronze HiFi Cartridge With Nude Fine Line Diamond Stylus

Regular price $429.00
Sale price $429.00 Regular price
Save $-429.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 2MBRONZE | UPC: 5705796080032

Specifications

What's In The Box

Product Documents

Product Information

Model: 2MBRONZE | UPC: 5705796080032

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Ortofon's philosophy is to play the record sound as accurate as possible, without coloring the sound.

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

2M Black Specifications:

  • Output voltage at 1000 Hz, 5cm/sec: 5mV
  • Channel balance at 1kHz: 1 dB
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at - 3 dB: 20-29.000 Hz
  • Frequency response: 20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 micrometers
  • Compliance, dynamic, lateral: 22 micrometers/mN
  • Stylus type: Nude Fine Line
  • Stylus tip radius: r/R 8/40 micrometers
  • Tracking force range: 1,4-1,7g (14-17 mN)
  • Tracking force, recommended: 1,5 g (15 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 1,2 kOhm
  • Internal inductance: 630 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Bronze
  • Cartridge weight: 7.2g
  • Replacement stylus unit: 2M Bronze (interchangeable with 2M Black)
  • Stylus protection guard: 2M Bronze

What's In The Box:

  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7
  • 1 x Stylus pressure gauge

Specifications

  • Output voltage at 1000Hz, 5cm/sec: 5mV
  • Channel balance at 1kHz: 1dB
  • Channel separation at 1kHZ: 26dB
  • Channel separation at 15kHz: 15dB
  • Frequency range: -3dB: 20 - 29,000Hz
  • Frequency response: 20 - 20,000 + 2 /-0dB
  • Tracking force range: 1.4 - 1.7g (14 - 17mN)
  • Tracking force, recommended: 1.8g (18mN)
  • Tracking angle: 20°
  • Internal impedance: DC resistance: 1.2k-ohm
  • Internal inductance: 630mH
  • Recommended load resistance: 47k-ohm
  • Recommended load capacitance: 150 - 300pF
  • Cartridge weight: 7.2g

What's In The Box

  • 2M Bronze Hi-Fi Cartridge With Nude Fine Line Diamond Stylus
  • Manual
