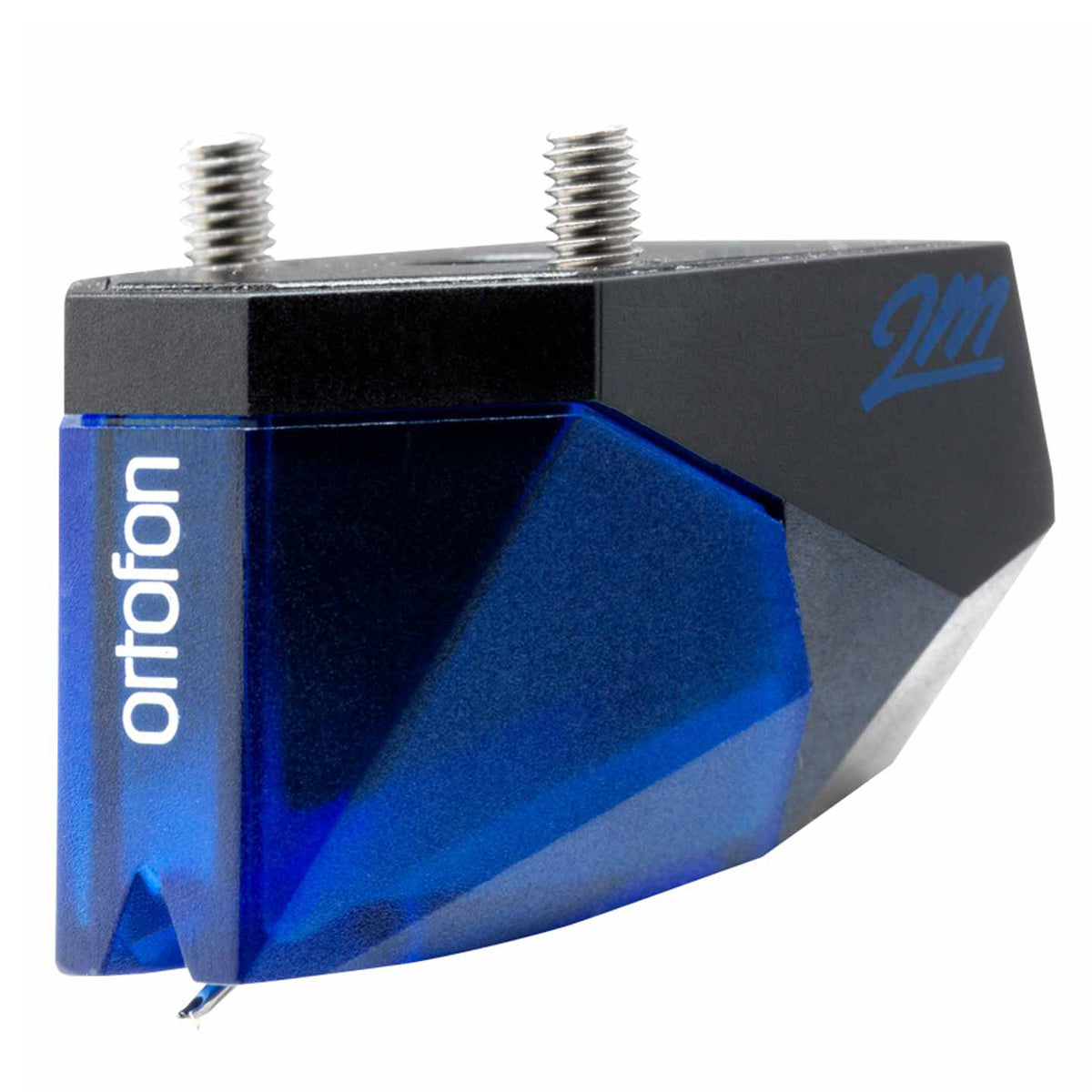

Ortofon 2M Blue Verso Moving Magnet Cartridge (Blue)

Regular price $275.00
Sale price $275.00 Regular price
Save $-275.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 2MBLUEVERSO | UPC: 5705796080087

Specifications

What's In The Box

Product Documents

Product Information

Model: 2MBLUEVERSO | UPC: 5705796080087

An Alternative Product for Bottom Mount Tonearms

In addition to the range of acclaimed 2M top-mount models, Ortofon is proud to present the new 2M Verso configuration for bottom mounting. Every 2M model is now also available in “Verso” configuration to allow easy mounting on tonearms which do not allow the screws to pass through the top of the headshell.

Features

Advancements in Sound

The 2M Series features Ortofon’s trademark split pole pins, an invention which enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 and Ortofon OM Series.

Ease of Use

The weight and size of 2M Series have been optimized to fit the most common turntables on the market today. The cartridge body has also been streamlined to provide easy mounting and alignment. The name “2M” was chosen as it represents the abbreviation for moving magnet, MM. Moving magnet cartridges provide excellent compatibility in an assortment of playback systems and with a wide variety of phono preamps.

Stylus Types

All of the 2M cartridges feature diamonds that are polished to the highest standards of the industry.



Specifications

  • Output voltage at 1kHz, 5cm/sec.: 5.5mV
  • Channel balance at 1kHz: 1.5dB
  • Channel separation at 1kHz: 25dB
  • Channel separation at 15kHz: 15dB
  • Frequency range at -3dB: 20 - 25,000Hz
  • Frequency response: 20 - 20,000Hz +2/-1dB
  • Tracking ability at 315Hz at recommended tracking force: 80μm
  • Compliance, dynamic, lateral: 20μm/mN
  • Stylus type: Nude Elliptical
  • Stylus tip radius: R 18μm
  • Tracking force range: 1.8g (18mN)
  • Tracking force, recommended: 1.5g (15mN)
  • Tracking angle: 20º
  • Internal impedance, DC resistance: 1.3kOhm
  • Internal inductance: 700mH
  • Recommended load resistance: 47k Ohm
  • Recommended load capacitance: 150 - 300pF
  • Cartridge weight without screws: 7.2g

What's In The Box

  • 2M Blue Verso Moving Magnet Cartridge
  • Stylus brush
  • Allen key Torx 6
  • Allen key Torx 8
  • Screws
