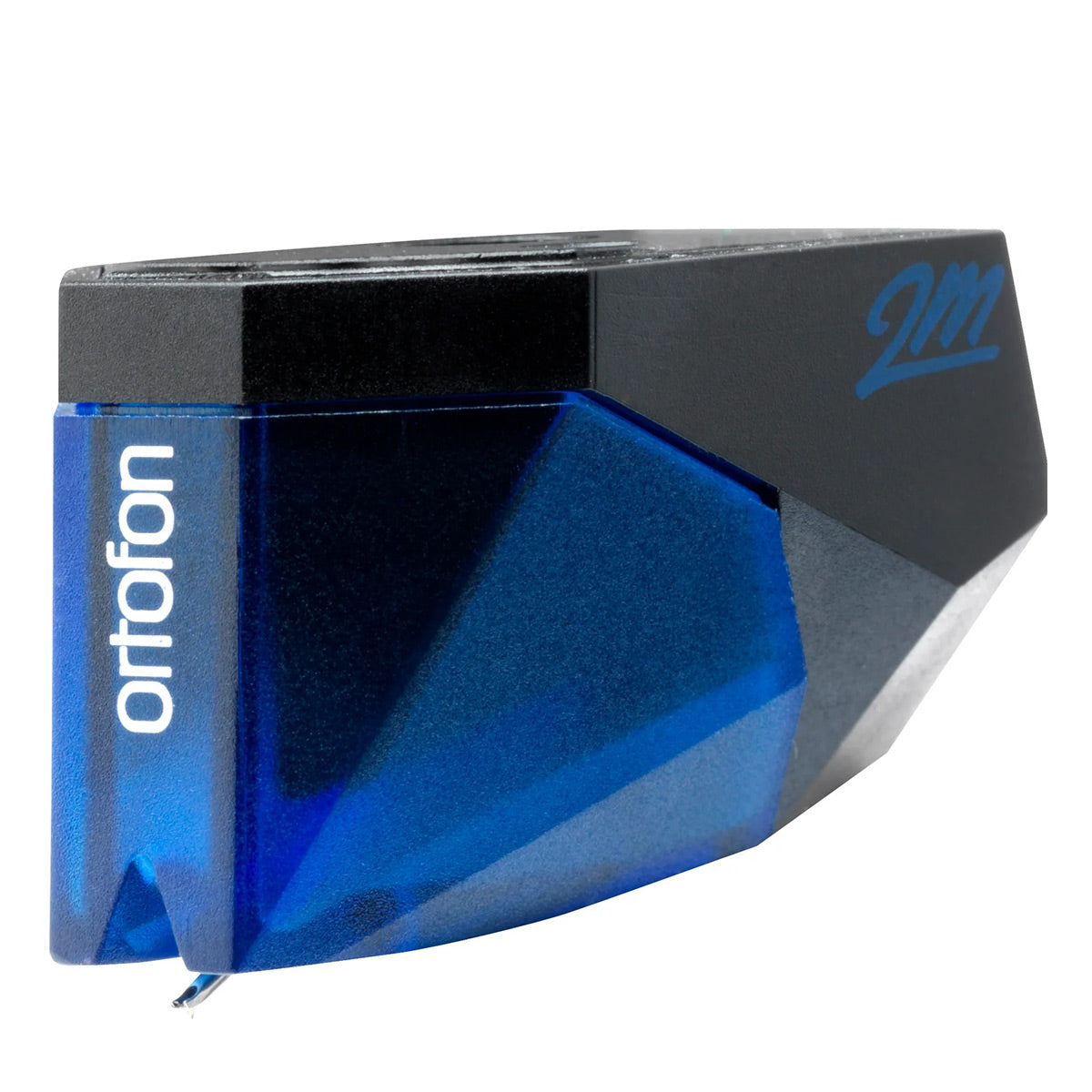

Ortofon 2M Blue Premounted MM Phono Cartridge

Regular price $229.00
Sale price $229.00 Regular price
Save $-229.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Jun 18 – Tue, Jun 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon 2M Blue on SH-4 Black Overview

Product Information

Model: 2MBLUESH4B | UPC: 5705796080483

Specifications

What's In The Box

Product Information

Model: 2MBLUESH4B | UPC: 5705796080483

Next Level Authenticity

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Features

  • Open, Dynamic Sound
  • Split Pole Pin Technology
  • Optimized Sound Reproduction

Accuracy Level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Compatibility

The 2M Premounted is for customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Split Pole Pin Technology

The 2M Blue features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

SH-4 Headshell

The 2M is mounted on a classic Ortofon SH-4 headsheel and is for customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Output

The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.

Specifications

  • Channel balance at 1 kHz: 1.5 dB
  • Output voltage at 1 kHz, 5cm/sec: 5.5 mV
  • Channel seperation at 1 kHz: 25 dB
  • Channel seperation at 15 kHz: 15 dB
  • Frequency response 20 Hz - 20 kHz: + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Nude Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.3 kOhm
  • Cartridge color:: Black/Blue
  • Cartridge Weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 700 mH
  • Recommended load capacitance: 150-300 pF

What's In The Box

  • 2M Blue Premounted MM Phono Cartridge
