Ortofon

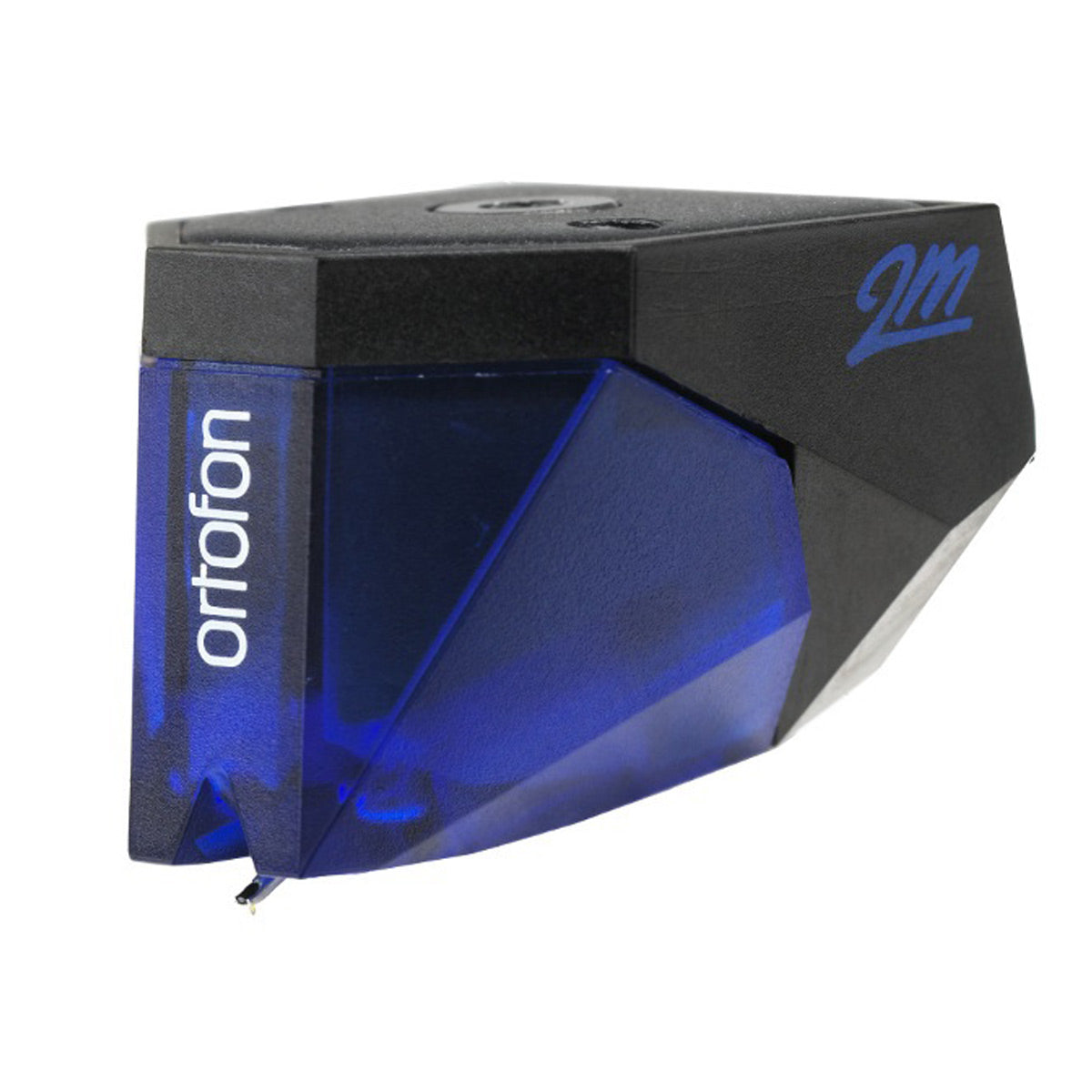

Ortofon 2M Blue HiFi Cartridge With Nude Elliptical Diamond Stylus

Regular price $239.00
Sale price $239.00 Regular price
Save $-239.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Mon, Mar 4 – Mon, Mar 11

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 2MBLUE | UPC: 5705796080025

Specifications

What's In The Box

Product Documents

Product Information

Model: 2MBLUE | UPC: 5705796080025

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Ortofon's philosophy is to play the record sound as accurate as possible, without coloring the sound.

The name 2M was selected from several ideas. Ortofon wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Blue Series Features:

  • an improved engine, which provides an increased output of 5.5mV
  • Nude Elliptical diamond and split pole pins with a copper wire

2M Blue Series Specifications:

  • Output voltage at 1000 Hz, 5cm/sec: 5mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1 kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at - 3 dB: 20-25.000 Hz
  • Frequency response: 20-20.000 + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 micrometers
  • Compliance, dynamic, lateral: 20 micrometers/mN
  • Stylus type: Nude Elliptical
  • Stylus tip radius: r/R 8/18 micrometers
  • Tracking force range: 1,6-2,0g (16-20 mN)
  • Tracking force, recommended: 1,8 g (18 mN)
  • Tracking angle: 20 degrees
  • Internal impedance, DC resistance: 1,3 kOhm
  • Internal inductance: 700 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Blue
  • Cartridge weight: 7,2g
  • Replacement stylus unit: 2M Blue (interchangeable with 2M Red)
  • Stylus protection guard: 2M Blue

What's In The Box:

  • 1 x Stylus brush
  • 1 x Screwdriver
  • 2 x Screw M2,5 x 5
  • 2 x Screw M2,5 x 7

Specifications

  • Output voltage at 1000Hz, 5cm/sec: 5.5mV
  • Channel balance at 1kHz: 1.5dB
  • Channel separation at 1kHZ: 25dB
  • Channel separation at 15kHz: 15dB
  • Frequency range: -3dB: 20 - 20,000Hz
  • Frequency response: 20 - 20,000 + 2 /-0dB
  • Tracking force range: 1.6 - 2.0g (16 - 20mN)
  • Tracking force, recommended: 1.8g (18mN)
  • Tracking angle: 20°
  • Internal impedance: DC resistance: 1.3k-ohm
  • Internal inductance: 700mH
  • Recommended load resistance: 47k-ohm
  • Recommended load capacitance: 150 - 300pF
  • Cartridge weight: 7.2g

What's In The Box

  • 2M Blue Hi-Fi Cartridge With Nude Elliptical Diamond Stylus
  • Manual
