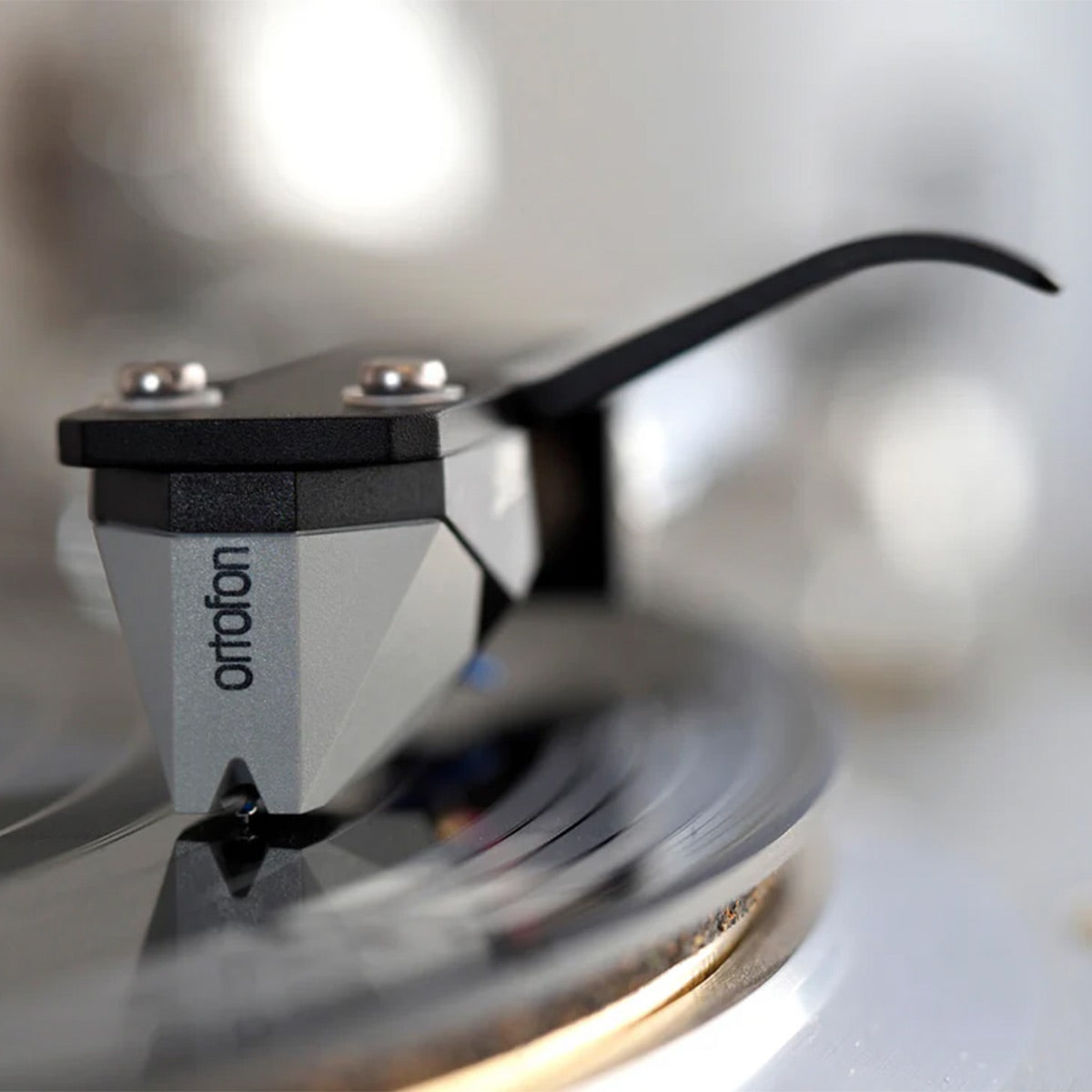

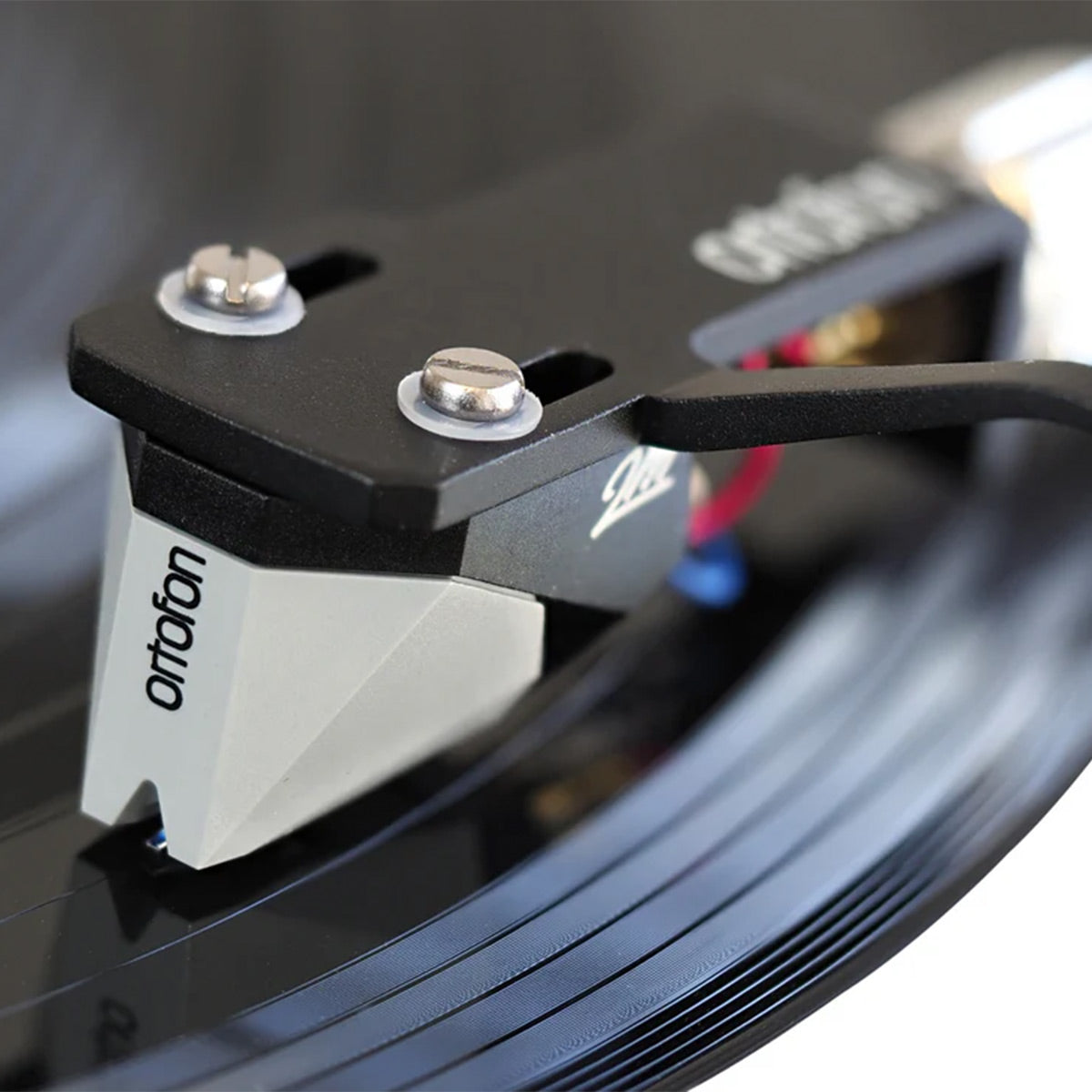

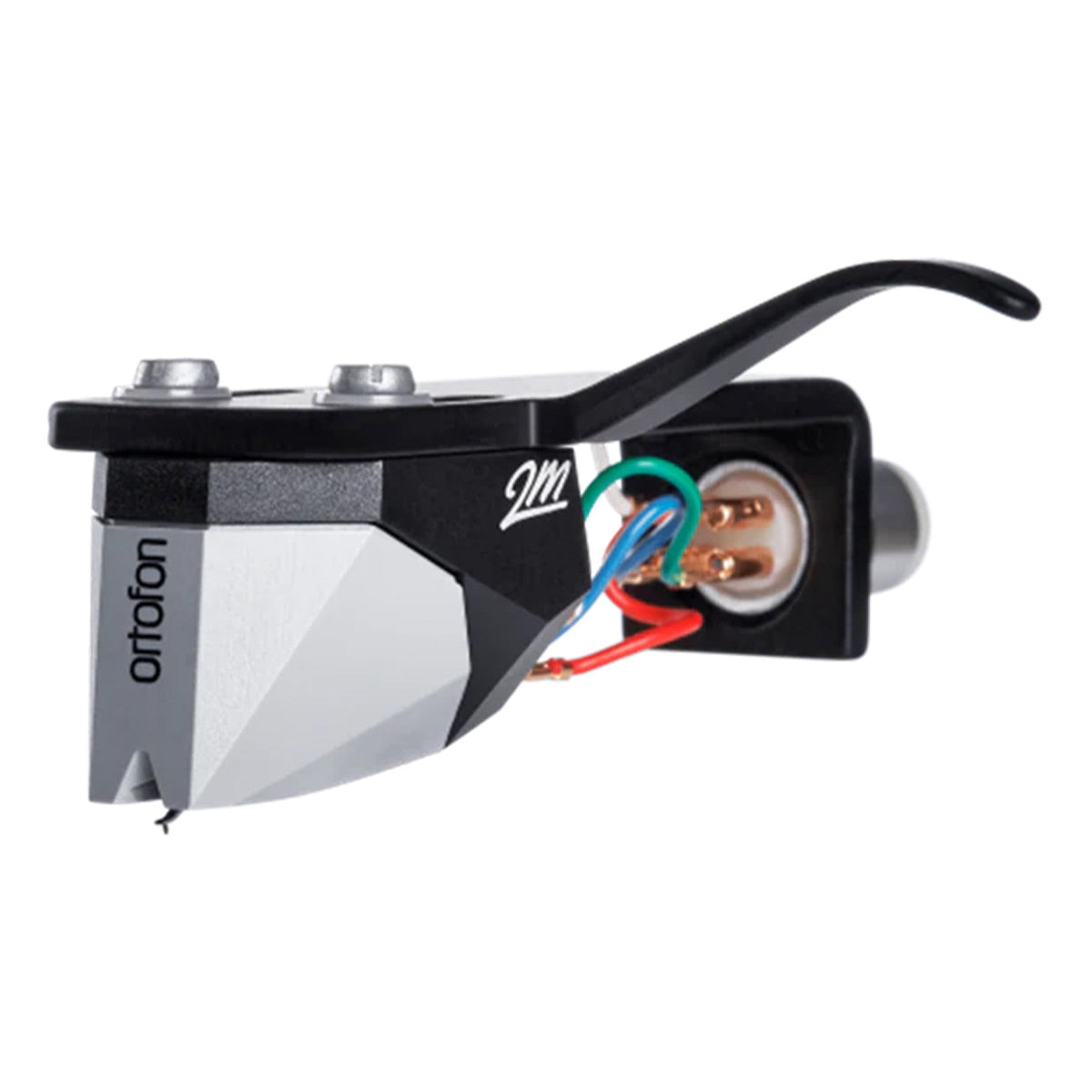

Ortofon 2M 78 Premounted MM Phono Cartridge

Regular price $225.00
Sale price $225.00 Regular price
Save $-225.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Jun 18 – Tue, Jun 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Ortofon 2M 78 on SH-4 Black Overview

Product Information

Model: 2M78SH4B | UPC: 5705796080353

Specifications

What's In The Box

Product Information

Model: 2M78SH4B | UPC: 5705796080353

Authentic Nostalgia

Journey back in time with the 2M 78 Mono Premounted Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono vinyl records, brought to life with unparalleled precision and fidelity.

Features

  • Spherical Stylus with Larger Profile
  • Designed For Playing 78 RPM Shellac Records
  • Robust SH-4 Headshell

Compatibility

Experience the convenience of the 2M 78 Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Stylus

The 2M 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2M 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.

Enjoy True Mono

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Specifications

  • Output voltage at 1 kHz, 5cm/sec: 4 mV
  • Frequency response 20 Hz - 20 kHz: 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 70 µm
  • Compliance, dynamic, lateral: 18 µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 65 µm
  • Tracking force range: 1.6-2.0g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 700 Ohm
  • Cartridge color: Black/Grey
  • Cartridge weight: 7.2 g
  • Premounted cartridge weight: 16.7 g
  • Recommended load resistance: 47 kOhm
  • Internal inductance: 350 mH
  • Recommended load capacitance: 150-300 pF

What's In The Box

  • 2M 78 Premounted MM Phono Cartridge
