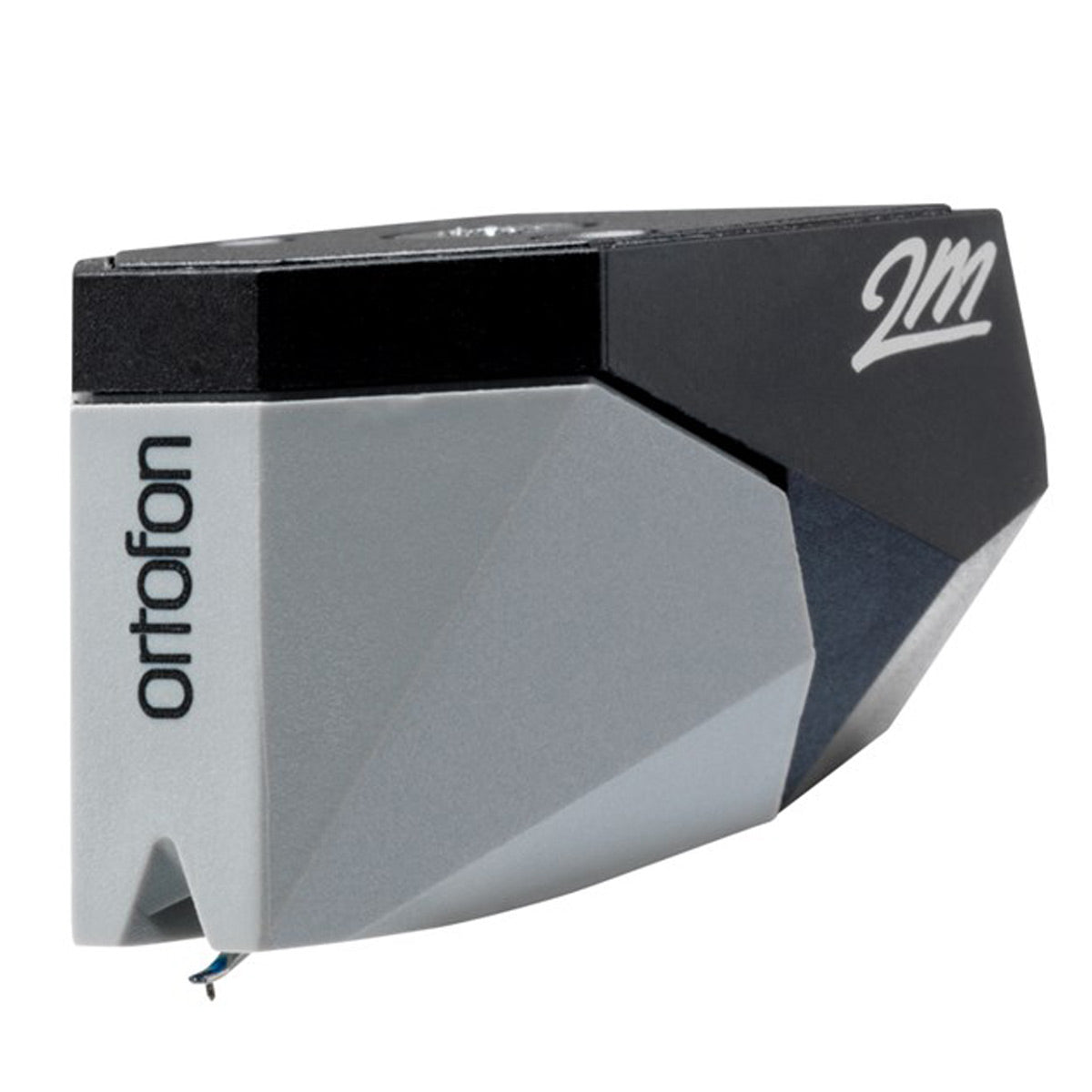

Ortofon 2M 78 Moving Magnet Cartridge (Black/Silver)

Regular price $165.00
Sale price $165.00 Regular price
Save $-165.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Fri, May 24 – Fri, May 31

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 2M78 | UPC: 5705796080063

Specifications

What's In The Box

Product Documents

Product Information

Model: 2M78 | UPC: 5705796080063

2M 78 Stylus

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Features

  • An improved engine, which provides a high level of sonic accuracy
  • Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile



Specifications

  • Output voltage at 1,000Hz, 5cm/sec: 4mV
  • Frequency range at -3dB: 20 - 20,000Hz
  • Frequency response: 20 - 20,000Hz 3/-1dB
  • Tracking ability at 315Hz at recommended tracking force - 70µm
  • Compliance, dynamic, lateral: 18µm/mN
  • Stylus type: Spherical
  • Stylus tip radius: R 65 µm
  • Tracking force range: 1.6 - 2g (16 - 20mN)
  • Tracking force, recommended - 1.8g (18mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 700 ohm
  • Internal inductance: 300mH
  • Recommended load resistance: 47kOhm
  • Recommended load capacitance: 150 - 300pF

What's In The Box

  • 2M 78 Stylus
