NAD Electronics

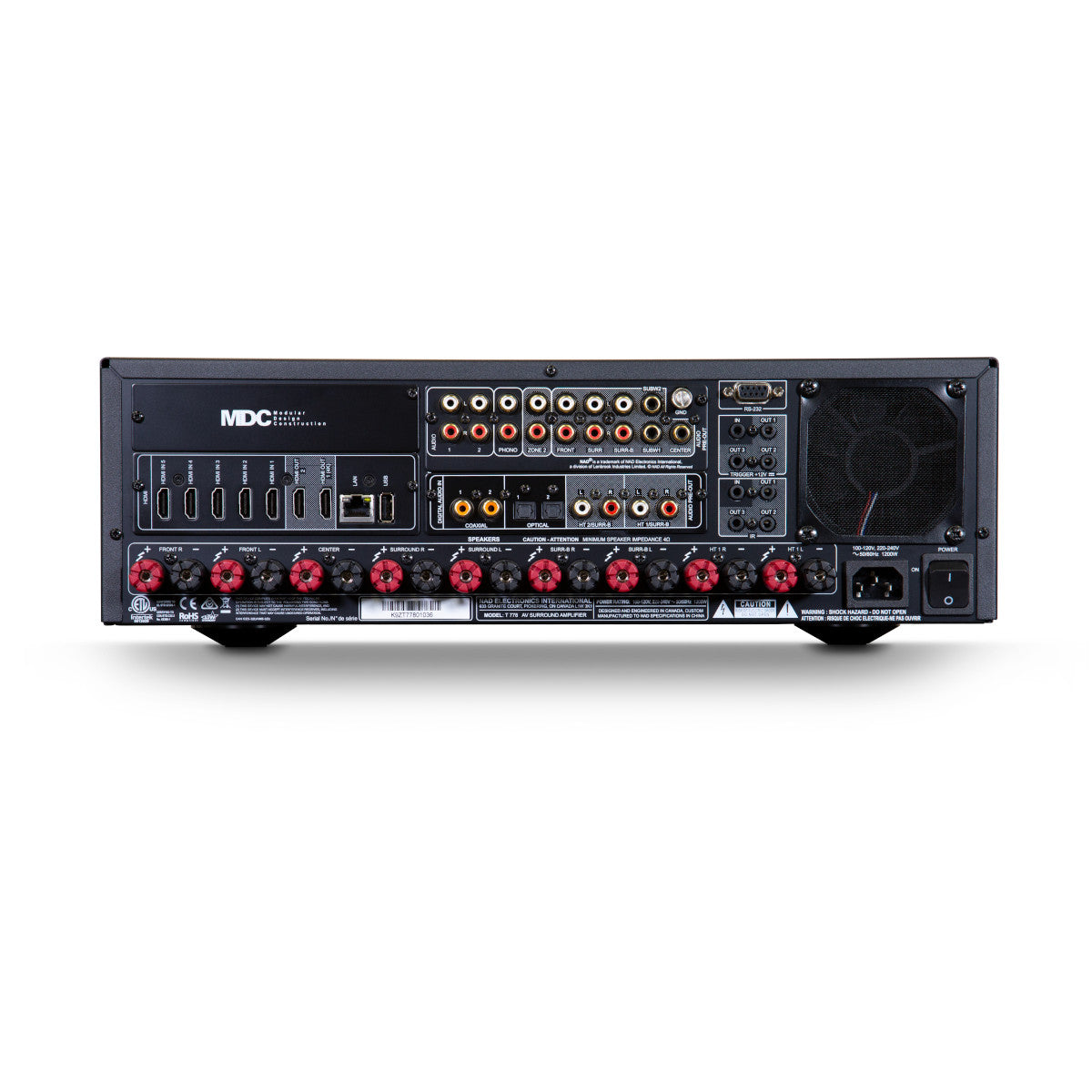

NAD Electronics T778 7.2.4 Channel Home Theater AV Receiver

Regular price $3,499.00
Sale price $3,499.00 Regular price
Save $-3,499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Mar 20 – Wed, Mar 27

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: T 778 | UPC: 786357000114

Specifications

What's In The Box

Product Information

Model: T 778 | UPC: 786357000114

Features

  • 9 channels of NAD’s latest Hybrid Digital Amplifier Technology
  • New touch screen and improved ergonomics for user-friendly operation
  • 4K UHD video pass-through
  • High-Res BluOS enabled Network Streaming
  • Dirac Live Room Correction
  • AirPlay2
  • MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
  • CI friendly- RS232 Serial Control Port. Trigger In/Out.
  • IR In with learning function

BluOS Enabled 4K Ultra HD Receiver with Immersive Sound

NAD’s reference Audio Video Receiver (AVR) is a cutting-edge powerhouse for state of the art music and home theater. Well known for our high value/ high performance reputation in the AVR category, the brand’s reference model builds on that legacy with an expansion of unwavering philosophy of real-world performance, simplicity of operation, and future upgradeability.

Efficient Distortion-free Amplification

The T 778 features the latest developments in NAD’s Hybrid Digital technology to create 9 high current/high power channels of amplification with improved efficiency. Designed with NAD’s full disclosure approach to power ratings, the NAD AVR conservatively delivers 80W FDP and 9 x 160W FTC, all channels driven at rated distortion. For flexibility, the amp channels are configurable to be used for surround or second zone audio. The silent black background and explosive dynamics afforded by this amplifier technology adds lifelike realism, drama and excitement to all your music and movies.

Fully Featured Surround

The T 778 is second-to-none in terms of flexibility and up-to-the-minute digital technology. Only NAD offers Modular Design Construction (MDC), the company’s proven method for preventing premature obsolescence. 7.1.4 Dolby® Atmos™, DTS® Master Audio combine with Dirac Live™ room correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect 4K UHD video pass-through and the T 778 delivers the most accurate sound and image experience you’ve ever had. Musical performance is outstanding with High Res Multi-room streaming via BluOS.

Complete and Compact

As with all NAD components, the company’s latest offering continues their ‘simple is better’ design philosophy. This sensible approach contributes to ease of use and maximizes performance where it counts. A perfect example is the striking new touch screen and ergonomic refinements that simplify operation and ease of access. The T 778 features NAD’s legendary sound quality along with complete compatibility with all the latest features and formats to ensure lifelike music and movie enjoyment.

Specifications

  • FTC 140W (21.5 dBW) (1% THD, two channels driven, 8 ohms)
  • 170W (22.3 dBW) (1% THD, two channels driven, 4 ohms)
  • Full Disclosure Power (all channels driven simultaneously 9x85W (19.3dBW) (20Hz-20kHz, all channels driven, 4 ohms and 8 ohms) at full bandwidth at rated distortion)
  • IHF dynamic power;
    • 8 Ohms 165W (22.2 dBW)
    • 4 Ohms 280W (24.5 dBW)
  • Total harmonic distortion at rated power <0.08% (20Hz-20kHz)
  • IM distortion at 1/3 rated power <0.03% (20Hz-20kHz)
  • Damping factor >300 (20Hz-1kHz, 8 ohms)
  • Input sensitivity and impedance 1.12V (ref. 8 Ohms, VOL at 0dB for 85W)
  • Frequency response ±0.3 dB/-0.8 dB (ref. 1kHz, 20Hz-20kHz)
  • Signal/noise ratio >100 dB (ref. rated power at 8 Ohms, A-WTD) >85 dB (ref. 1W at 8 Ohms, A-WTD)
  • Frequency response ±0.5dB (ref. 20Hz – 20kHz)
  • Signal-to-noise ratio >100dB (ref. 2V, A-WTD)
  • Total harmonic distortion <0.01%
  • Input sensitivity 245 mVrms (ref. 2V)
  • Maximum output level >4.5Vrms
  • Phono Input
    • Input Sensitivity 6.2 mVrms (2V output)
    • Signal/noise ratio >80 dB (2Vrms, A-WTD)
    • Maximum input level >90 mVrms (1 kHz)
  • BluOS Section
    • Supported audio file format MP3, AAC, WMA, OGG, FLAC, ALAC, WMA-L, MQA, WAV, AIFF
    • Supported cloud services Spotify, Amazon Music, WiMP, Qobuz, IDAGIO, Deezer, Murfie, nugs.net, TIDAL, Napster, Bugs, KKBOX, Taihe Music ZONE, SOUNDMACHINE
    • Supported Operating Systems Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
    • Free internet radio* TuneIn, iHeartRadio, Calm Radio, Radio Paradise, Slacker Radio
    • User interface Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
    • Integration partners Control4, RTI, Crestron, URC, push, iPort, ELAN, Lutron, Roon, AirPlay2
    • Voice control integrations Amazon Alexa and Google Assistant Skills
  • Standby power <0.5W (full standby) <8W (network standby)
  • Idle Power >70W (120V version only) >63W (230V version only)
  • Unit Dimensions (W x H x D) 17 3/16 x 5 9/16 x 16 15/16 inches
  • Net Weight 12.1 kg (26.7 lbs)

What's In The Box

  • T 778 AV Receiver
  • Remote control
  • Power Cable
  • Startup Guide
