NAD Electronics PP 2e Phono Preamplifier with Gold-Plated Input Sockets

Regular price $219.00
Sale price $219.00 Regular price
Save $-219.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, May 28 – Tue, Jun 4

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: PP2e | UPC: 5703120210179

Specifications

What's In The Box

Product Documents

Product Information

Model: PP2e | UPC: 5703120210179

The PP 2e Phono Preamplifier offers superb performance in a clean and simple package for a very reasonable cost. Perfect for the budget-conscious audiophile, the PP 2e's moving coil/moving magnet input selector provides different phono cartridge options. Our PP 2e is incredibly easy-to-use and is certain to bring years of enjoyment to any lover of vinyl LPs. The PP 2e's Auto Power Down feature saves energy by automatically powering the PP 2e to OFF when not in use.

Features

  • Low noise, wide band MM & MC phono stage
  • Connect your turntable to almost all amplifiers and receivers
  • External 24 volt power supply

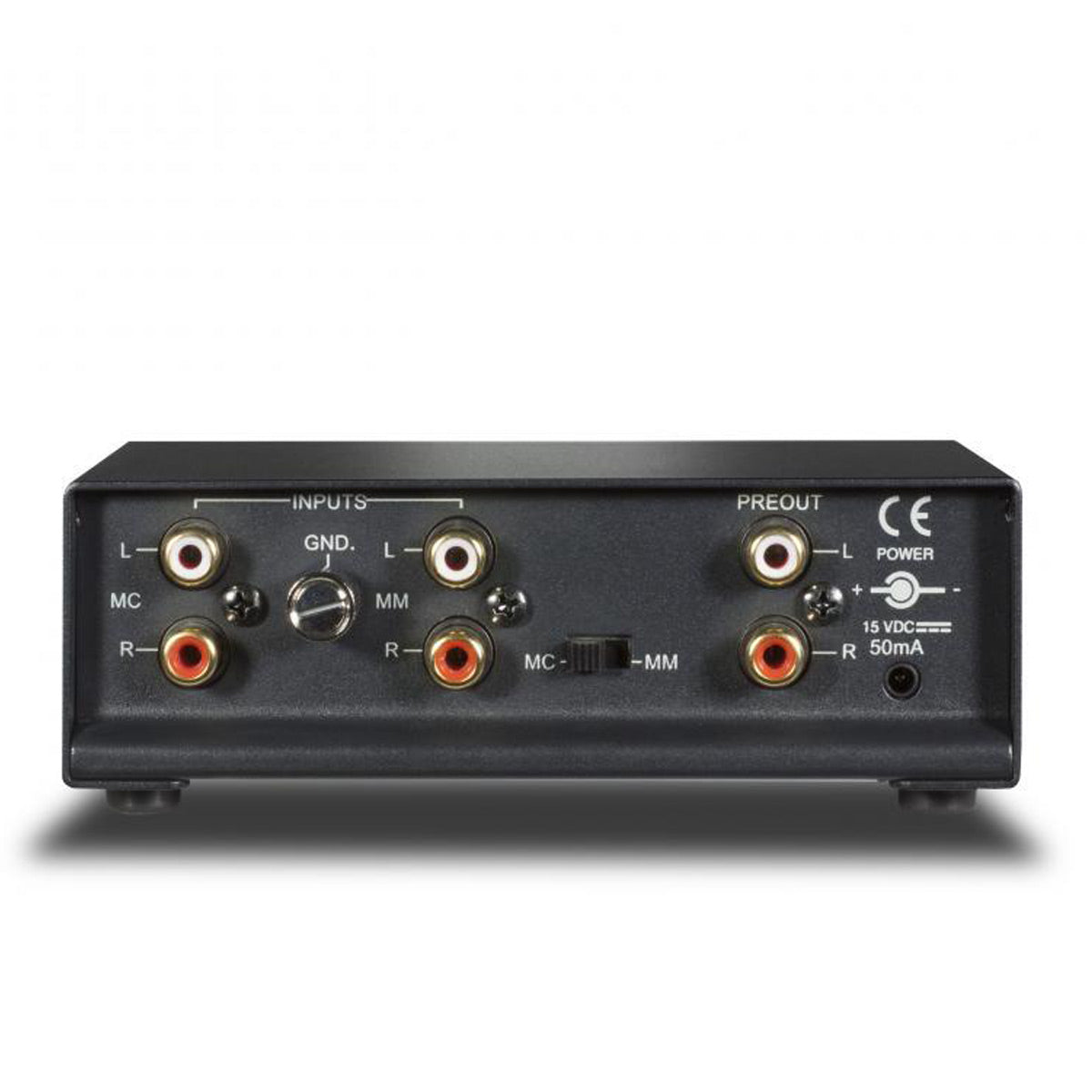

  • Gold plated input sockets
  • High quality components

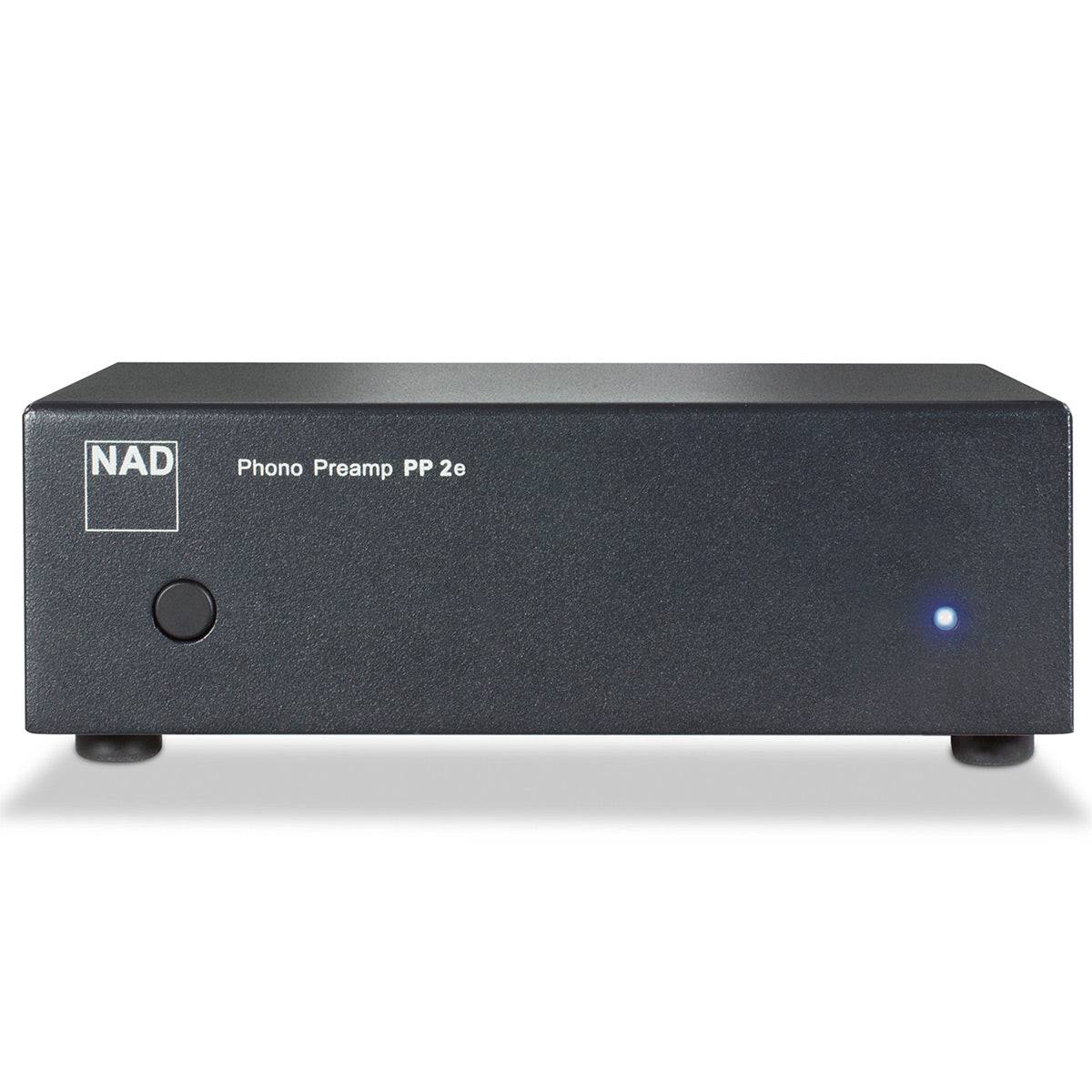

  • LED power indicator

Specifications

  • MC
    • Input impedance: 100 ohm + 180pF
    • Gain at 1kHz: 60dB
    • Input sensitivity: 0.3mV
    • Signal-to-noise ratio: 78dB
    • Input overload: 0.8/9/84mV
    • Rated distortion: <0.03%
    • RIAA response accuracy: ±0.3dB
  • MM
    • Input impedance: 47 kilohm + 200pF
    • Gain at 1kHz: 35dB
    • Input sensitivity: 2.5mV
    • Signal-to-noise ratio: 80dB
    • Input overload: 10/102/950mV
    • Rated distortion: <0.03%
    • RIAA response accuracy: ±0.3dB
  • Line Out
    • Output impedance: 100 ohms
    • Maximum output level: 5.3V
  • General
    • AC supply: External 23.5V DC
    • Dimensions (W x H x D): 5 5/16" x 1 15/16" x 2 7/8"

What's In The Box

  • PP 2e Phono Preamplifier
  • Power Cord
  • Manual
