NAD Electronics CI SA 2-120 2 Zone BluOS Streaming Amplifier

Now on demo at:

1 of 6

NAD Electronics CI SA 2-120 2 Zone BluOS Streaming Amplifier

Regular price $1,899.00
Sale price $1,899.00 Regular price
$0.00 Save $-1,899.00 (%)
OR

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

NAD CI SA 2-120 Overview

Product Information

Model: CISA2-120 | UPC: 786357003160

Specifications

What's In The Box

Product Information

Model: CISA2-120 | UPC: 786357003160

The NAD CI SA2-120 BluOS Streaming Amplifier is designed to deliver high-quality amplification and networked music streaming in a single, compact solution for custom installation systems. Combining 240 watts of NAD DirectDigital™ amplification with dual stereo outputs and the BluOS multi-room platform, it can be used in single or dual zone configurations. Purpose-built for professional environments, CI SA2-120 simplifies system design while maintaining the sound quality, reliability, and control expected from NAD. It is an ideal solution for distributed audio, retrofit projects, and zones where space and efficiency are critical.

Features

  • DirectDigital™ Amplification
  • BluOS Multi-Room Streaming
  • Dirac Live Ready
  • Dynamic Power Management
  • Thermostatic Fan Cooling
  • Two-Way Bluetooth

Amplification & Streaming in One Platform

The CI SA2-120 combines power and streaming into a single component, eliminating the need for separate streamers and amplifiers at the zone level. With a total 240 watts of continuous power available into 8ohms, it can confidently drive architectural and standalone speakers while delivering consistent performance. This integrated approach reduces rack space, simplifies wiring, and shortens installation time, making it an efficient solution for both new builds and retrofit projects.

BluOS Multi-Room Streaming

Built on the BluOS platform, the CI SA2-120 provides access to high-resolution music streaming, internet radio, and local music libraries. BluOS allows zones to operate independently or as part of a larger multi-room system, all controlled through the BluOS app or integrated with automation platforms. Designed for reliability and responsiveness, BluOS ensures a consistent user experience.

DirectDigital Power with CI Efficiency

NAD’s DirectDigital amplification technology delivers clean, controlled power while maintaining high efficiency and low heat output. This design supports continuous operation and stable performance, even in space-constrained installations. By balancing power and efficiency, the CI SA2-120 delivers dependable sound quality across a wide range of listening levels without the thermal challenges of traditional amplification designs.

Built For Flexibility

The CI SA2-120 integrates easily into racks, and can also be discretely hidden away in cabinets, or behind a TV. Connectivity includes Ethernet or Wi Fi for networking and control via BluOS or via 3rd party control system, HDMI eARC and Bluetooth for digital audio sources when used in a room. It can be used a powerful single zone stereo system in a media room or to drive two independent BluOS zones as part of a larger BluOS ecosystem, the CI SA2-120 provides installers with a streamlined, reliable solution for modern distributed audio systems.

Specifications

  • Audio
    • Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
    • Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
    • Supported Multi-Channel Audio Formats: Dolby Digital® Downmixing to stereo PCM
    • Native Sampling Rates: up to 192 KHz
    • Bit Depth: 16-24
    • Audio Controls & EQ: BluOS Control App
    • Signal-to-Noise Ratio: >102dBA
    • Distortion: THD+N, 0.005%
    • Amplification: DirectDigital™
    • Rated Power Output: 60W (8 & 4 Ohms)
    • IHF Dynamic Power: 150w (8 & 4 Ohms)
  • Software & Integrations
    • Operating System: BluOS
    • App Controller Operating System: iOS, Android, Windows, macOS
    • Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
    • Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
    • Album Art Supported: JPG, PNG
    • Music Services & Internet Radio: 23+
    • 3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect
    • Room Correction Software: Dirac Live Ready (Zone 1 only, calibration mic not included)
    • Control System Integrations: Creston, Control4, RTI, Nice, URC, Lutron, Gira, Rako, Rithum, Free@Home, Josh.AI
    • Voice Control Integrations: Amazon Alexa Skills

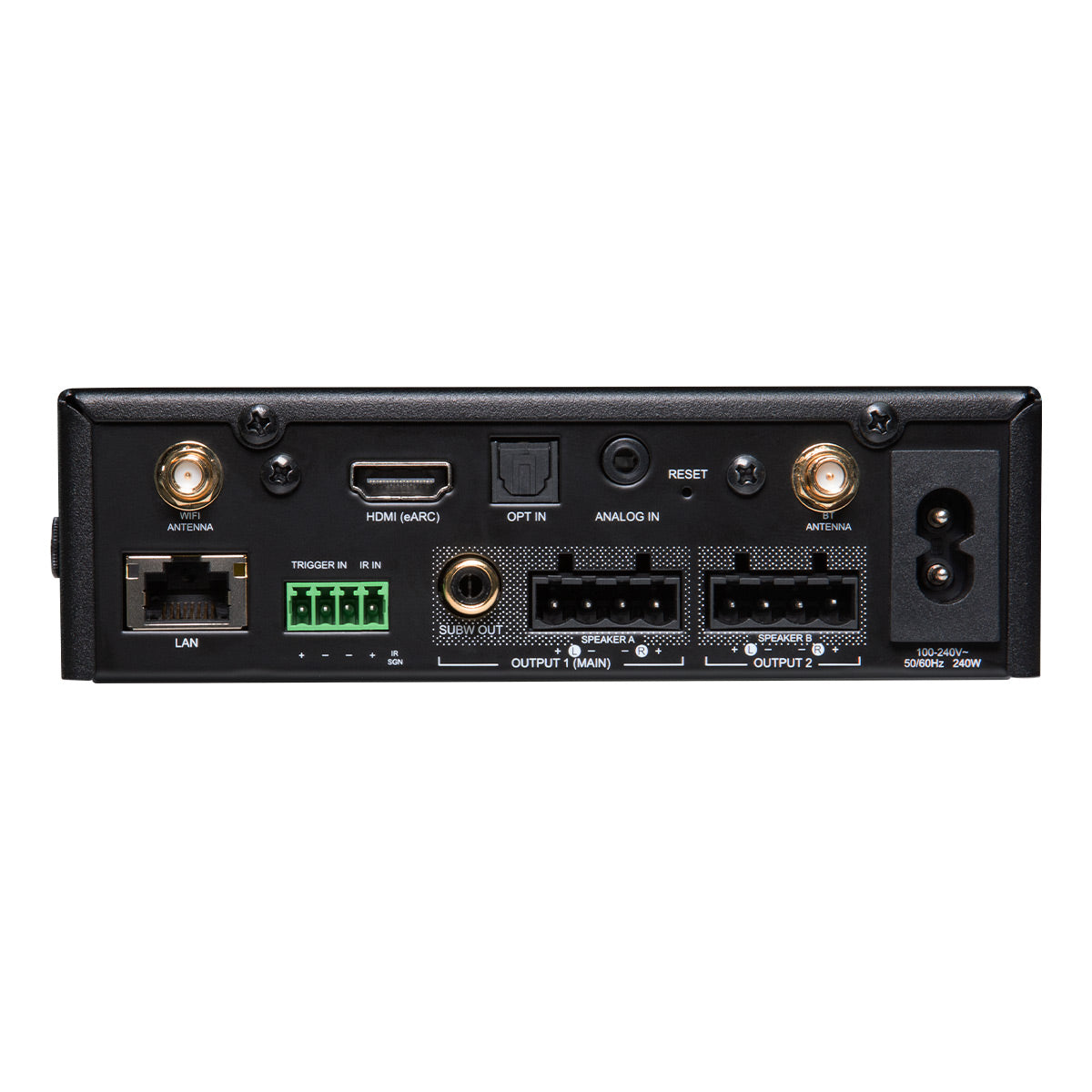

  • Connections
    • Power Supply: Universal 2-pin AC cord input (100-240AC)
    • Ethernet/LAN: Ethernet RJ45, Gigabit 1000Mbps
    • Wi-Fi: Built In WiFi 5 (802.11ac), dual-band
    • Bluetooth Quality: Bluetooth 5.2 aptX HD
    • Bluetooth Connectivity: Two-Way (Zone 1 only)
    • IR Optical Built In: No
    • IR Input: 2-pin PHX connector (IR extender kit required)
    • Optical/Analog Input: Toslink Optical, 3.5mm Analog (Zone 1 Only)
    • HDMI Input: HDMI eARC (Zone 1 Only)
    • USB In: Type A (Fat32, NTFS Formatted) - External Storage Only Local Server Mode
    • Dual Speaker Outputs: Yes, Output 1 = Zone 1, Output 2 = Zone 2
    • Main Zone/Sub Zone Capability: Yes (independent volume control over Speaker Output 2 when activated)
    • Subwoofer Output: RCA x 1; Wireless to PULSE SUB+ (Linked to Output1/Zone 1 only)
    • Speaker Terminals: 2x 4-PIN Snap On PHX 5.08mm Connector, supports up to 12AWG
    • Headphone Output: None
    • 12v Trigger Input: x1 Configurable Smart Trigger Input
    • 12v Trigger Output: None

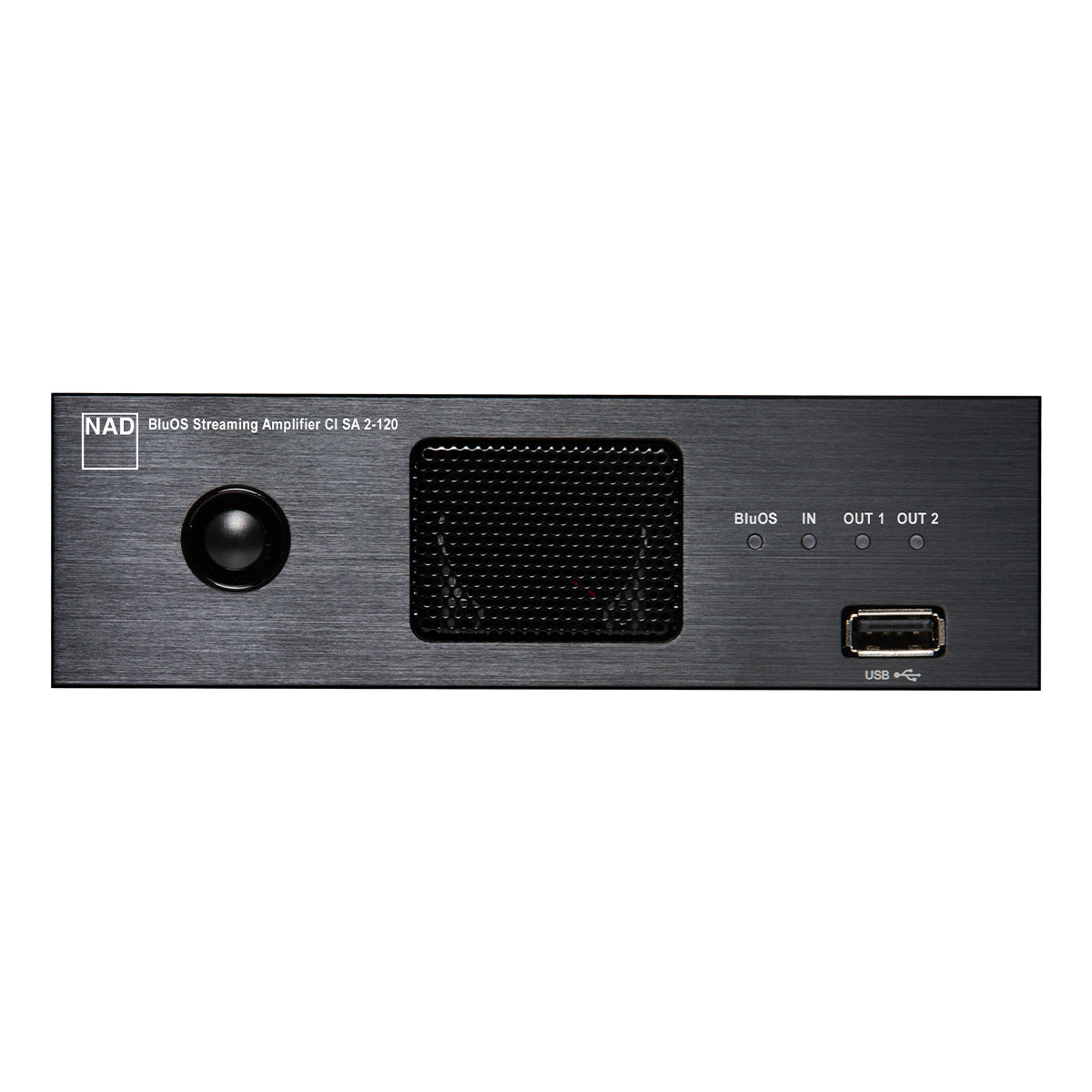

  • User Interface & Control
    • Status Indicator: BluOS Status LED
    • Source Status Indicator: x2, BluOS/Connected Input Live
    • Output Status Indicator: x2, Output pair 1, Output Pair 2
  • General
    • Finish: Black
    • Max Power Consumption: 240w

What's In The Box

  • Ci Sa2-120 BluOS Streaming Amplifier Module
  • (2) Short Rack Ears
  • (2) Long Rack Ears
  • (2) 4-PIN Snap On PHX 5.08mm Speaker Connectors
  • (2) 4-PIN PHX Connector for 12v trigger + IR In
  • Wi-Fi Antenna
  • Bluetooth Antenna
  • Power Cord
  • Manual
