NAD Electronics CI 580 V2 Rack Mount BluOS Network Audio Streamer

Regular price $1,799.00
Sale price $1,799.00 Regular price
Save $-1,799.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Apr 30 – Wed, May 7

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

NAD CI 580 V2 Overview

Product Information

Model: CI 580 V2 | UPC: 786357000299

Specifications

What's In The Box

Product Information

Model: CI 580 V2 | UPC: 786357000299

Unleashing the power of BluOS® to its fullest potential, the CI 580 V2 Network Music Player combines four stereo BluOS zones into one compact 1U rack space to provide the most flexible and cost-effective BluOS package.

Features

  • Supports 24-bit/192kHz High-Resolution Audio
  • Up to Four Stereo Zones
  • Integrates Seamlessly with BluOS
  • Rack-Mountable (1U)

Design

Designed for use in a centralized audio system, the CI 580 V2 can be the backbone of your whole home music platform. With only one power supply and one Ethernet port for 4 zones you can simplify the rack wiring and power requirements.

Analog or Digital

Each CI 580 V2 has the option of analogue or digital outputs for each zone as well as single analogue and digital inputs which can be shared across the 4 zones, connectivity can be expanded via sister brand’s Bluesound HUB.

Flexibility

Using the CI 580 V2 as a source gives you the flexibility to either manage all of the additional audio inputs and groupings through the BluOS Controller app and pair with an amplifier, giving the freedom to choose the amplifier power and quality that’s best suited for the project.

BluOS Controller App

Using the BluOS Controller app, you can stream from over 20 popular music services with playback of music at up to 24/192, all in one place, or you can cast directly from a mobile device via Apple AirPlay 2, Spotify Connect or Tidal Connect.

Smart Home Integration

Smart Home Professionals can also integrate the CI 580 V2, or any other BluOS enabled devices with any of the major control systems, so access and playback to music can be done in multiple ways.

Adaptability

Stack multiple CI 580 V2s (up to 64 zones) in the rack and match with NAD rack mount amplifiers to create a multi-room, multi-source audio system which combines ‘fit and forget’ reliability with breathtaking quality and value. Mix these rack mountable players with other BluOS enabled devices, such as Bluesound speakers, NAD stereo integrated amplifiers or AV Receivers as needed to create an audio system that’s perfectly tailored to each project and maximizes the value and performance in every room.

Specifications

  • Key Features
    • 4 Stereo Zone Source Component
    • Fixed or Variable Line Output
    • 1U Rack Chassis
    • 1 Ethernet Connection for All Zones
    • Ethernet In
    • USB Input
    • Uses Standard Network Protocols
    • Universal Voltage (100 ~ 240)
  • BluOS Features
    • Supported File Formats: MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA
    • Supported Cloud Services: WiMP, Slacker Radio, Qobuz, HighResAudio, JUKE, Deezer, Murfie, HDTracks, Spotify, TIDAL, Napster, Microsoft Groove (with OneDrive), Classics Online, KKBox.
    • Supported Operating Systems: Microsoft Windows 7 SP1 or higher, Apple Macintosh OSX 10.7.5 or higher
    • Free Internet Radio: TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
    • Integration Partners: Control 4, RTI, Crestron, URC, Lutron, PUSH, iPort, ELAN, Josh.ai
  • Audio
    • Rated Distortion: ≤0.005%
    • Signal-to-Noise Ratio: 110dB
    • Sample Rate: 32 – 192kHz
    • Bit Depth: 16 – 24
  • Input
    • Analogue: RCA Stereo
    • SPDIF: Optical (TOSLINK)
    • USB
      • Type A (for USB memory stick and supported peripherals – FAT 32 formatted)
      • Type B (for computer audio interface)
    • +12V Trigger IN: 12V ±20%
    • IR Input: Phoenix Connector
    • System Interrupt: For doorbell /alarms

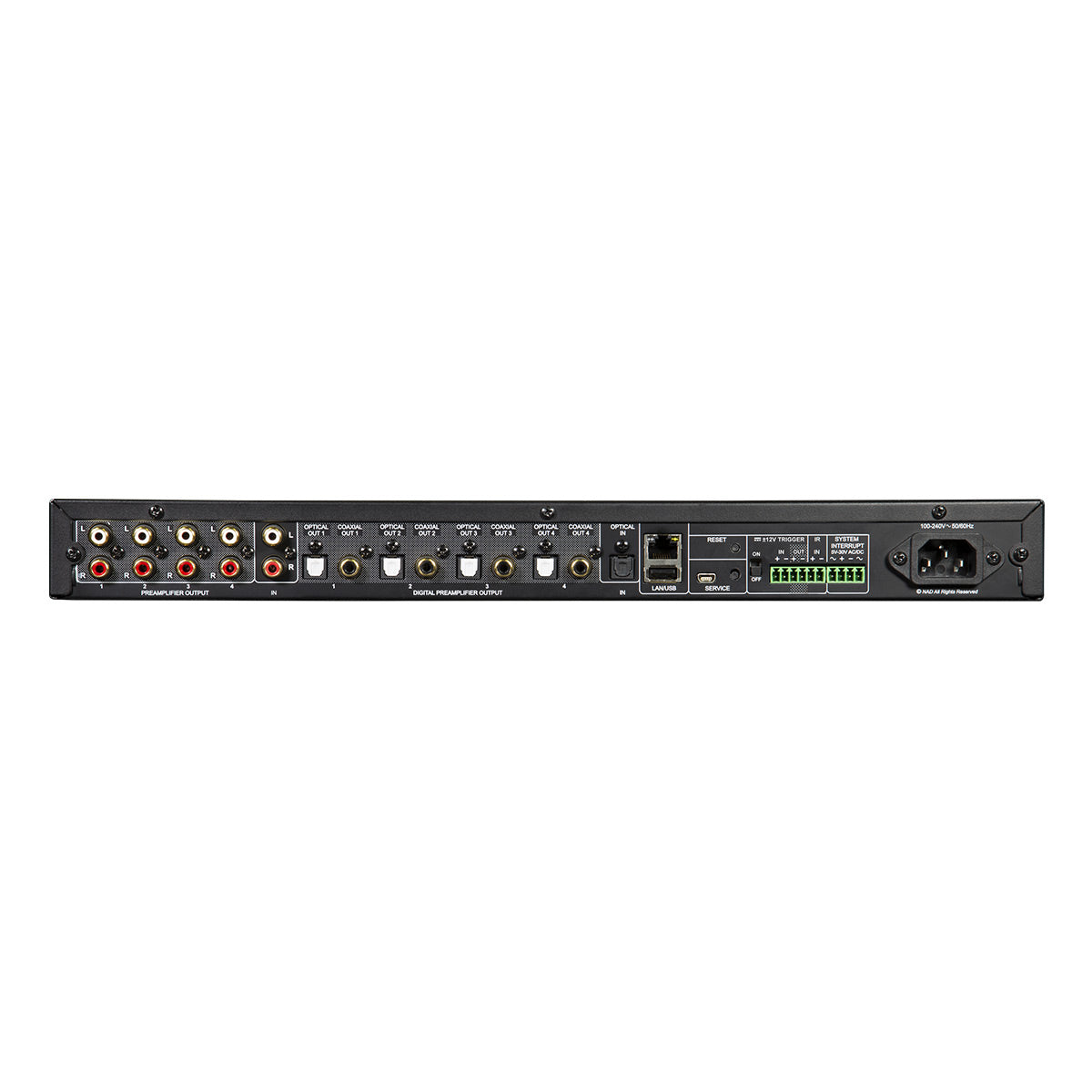

  • Output
    • Analogue: RCA Stereo x 4
    • SPDIF
      • Optical x 4 (TOSLINK)
      • Coaxial x 4
    • +12V Trigger OUT: 12V ±20%
  • Network
    • Ethernet/LAN: Ethernet RJ45, GigE
  • General
    • AC Power Supply: 100-240V 50/60Hz
    • Standby Power: 6W (Network Standby Mode)
    • Dimensions (W x H x D): 18-7/8 x 1-13/16 x 9-1/4”
    • Net Weight: 5.9 lbs.

What's In The Box

  • CI 580 V2 Rack Mount BluOS Network Audio Streamer
  • 6-Position Terminal Block (for +12V TRIGGER/IR IN)
  • 4-Position Terminal Block (for System Interrupt)
  • Power Cord
  • Manual
