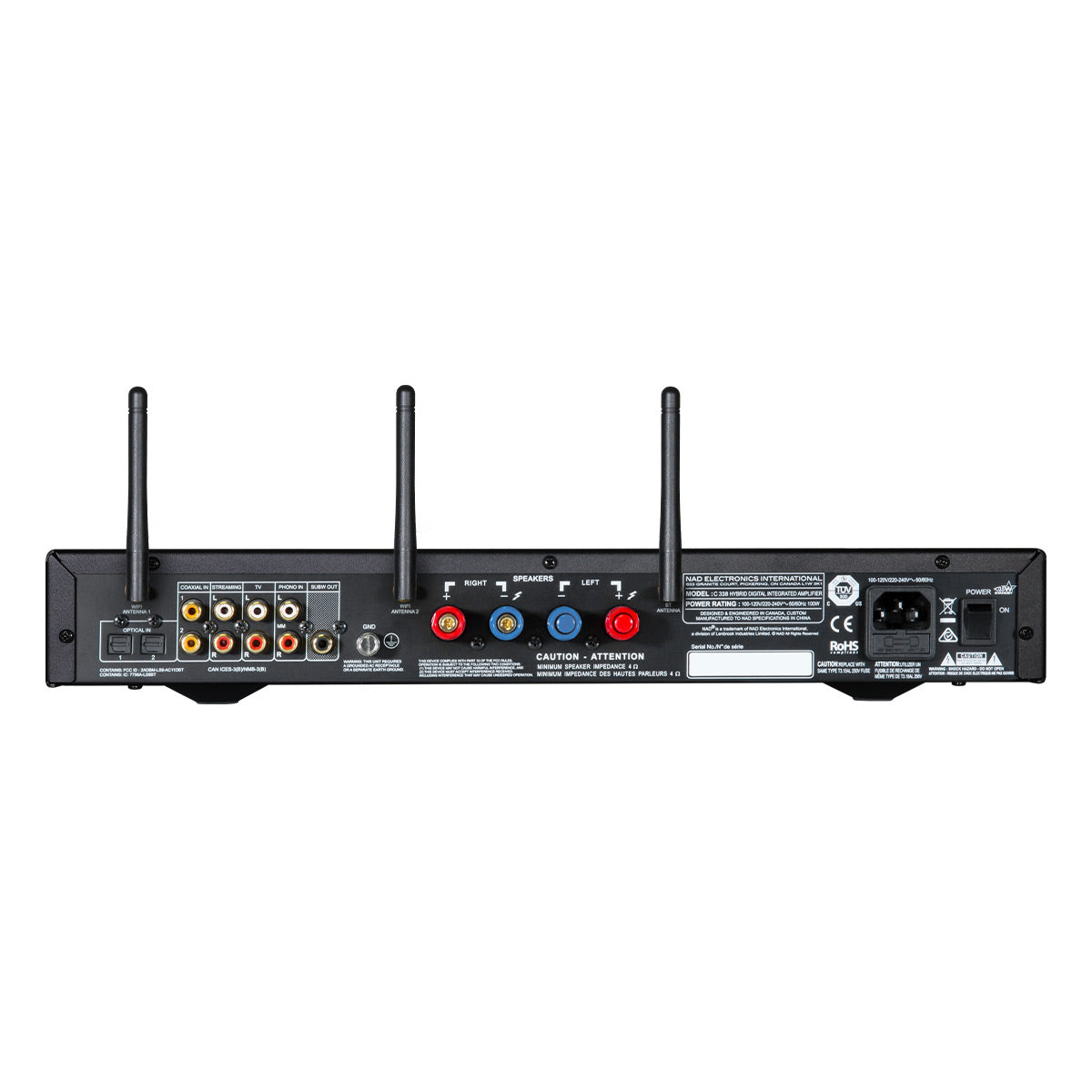

NAD Electronics C 338 Hybrid Digital Integrated Amplifier

Regular price $899.00
Sale price $899.00 Regular price
Save $-899.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: C 338 | UPC: 5703120230474

Specifications

What's In The Box

Product Information

Model: C 338 | UPC: 5703120230474

Intelligent, Powerful, Efficient

The C 338 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. With Spotify Connect®, Bluetooth®, and the first-ever hi-fi amplifier to have built-in Chromecast®, the C 338 allows you to stream and cast music directly from any music streaming app, letting you enjoy your music wirelessly. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD’s HybridDigital™ amp technology.

Features

  • Chromecast Built-In for Seamless Streaming
  • HybridDigital™ Amplification Technology
  • Comprehensive Connectivity Options
  • Built-In Phono Stage for Vinyl Enthusiasts

Getting the Basics Right

Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.

HybridDigital™ Amp Technology

The search for a high-performance Class D solution led NAD to HybridDigital™, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.

Efficient Class D Power

NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customised Hypex® UCD output stage to pump out 50 watts continuously and over 200 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.

Always Ready for Streaming

The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Spotify Connect® lets you discover millions of songs and stream them directly to your C 338 using the Spotify® app for a rich, wireless music experience. With the added flexibility of Bluetooth®, your music streaming possibilities are truly limitless with the C 338.

Built-in Phono Stage for Vinyl Listening

Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

Flexible Connectivity

With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.

Specifications

  • Preamplifier
    • Line In/Subwoofer Out
    • THD (20Hz - 20kHz): <0.005% at 2V out
    • Signal-to-noise ratio: >106dB (IHF; A-weighted, 500mV out, unity gain)
    • Input impedance (R and C): 56 kilohm + 100pF
    • Maximum input signal: >4.5Vrms (ref. 0.1% THD)
    • Output impedance: Source Z + 200 ohm
    • Input sensitivity: 50mV (100Hz ref. 500mV out, volume maximum)
    • Maximum voltage output - IHF load: >4.5V (ref. 0.1% THD)
  • Line In/Headphone Out
    • THD (20Hz - 20kHz): <0.005% at 1V out
    • Signal-to-noise ratio: >105dB (IHF, A-weighted, 32 ohm loads, ref. 2V out, unit gain)
    • Frequency response: ±0.3dB (20Hz - 20kHz)
    • Channel separation: >56dB at 1kHz
    • Output impedance: 0.5 ohms
  • General
    • Line In/Speaker Out
    • Continuous output power into 4 ohms and 8 ohms (Stereo): >50W (at rated THD, 20 - 20kHz, both channels driven)
    • IHF Dynamic power
      • 2 ohm - 210W
      • 4 ohm - 150W
      • 8 ohm - 80W
    • THD (20Hz - 20kHz): <0.3% (250mW to 50W, 8 ohm and 4 ohm)
    • Signal-to-noise ratio: >94dB (A-weighted, 500mV input, ref. 1W out in 8 ohm)
    • Clipping power: >60W (at 1kHz 0.1% THD)
    • Peak output current: >18A (in 1 ohm, 1ms)
    • Damping factor: >300 (ref. 8 ohm, 20Hz to 6.5kHz)
    • Frequency response: ±0.3dB (20Hz - 20kHz)
    • Channel separation
      • 1kHz - >75dB
      • 10kHz - >65dB
    • Input sensitivity (for 50W in 8 ohm)
    • Line In: 380mV
    • Digital In: 18% FS
    • Support bit rate/sample rate: Up to 24bit/192kHz
    • Standby power: <0.5W
    • Phono In/Speaker Out
    • THD (20Hz - 20kHz): <0.03% at 50W out
    • Signal-to-noise ratio
      • >82dB (200 ohm source, A-weighted, ref. 500mV out)
      • >76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
    • Input sensitivity: 4.1mV (ref 50W 1kHz 4 ohm out, volume maximum)
    • Frequency response: ±0.3dB (20Hz - 20kHz)
    • Input impedance (R and C): 47 kilohm + 100pF
    • Maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)
  • Dimensions/Weight
    • Dimensions (W x H x D): 17 1/8" x 2 13/16" x 11 1/4"
    • Weight: 10.7 lbs.

What's In The Box

  • C 338 Hybrid Digital Integrated Amplifier
  • Remote Control
  • Power Cable
  • Manual
