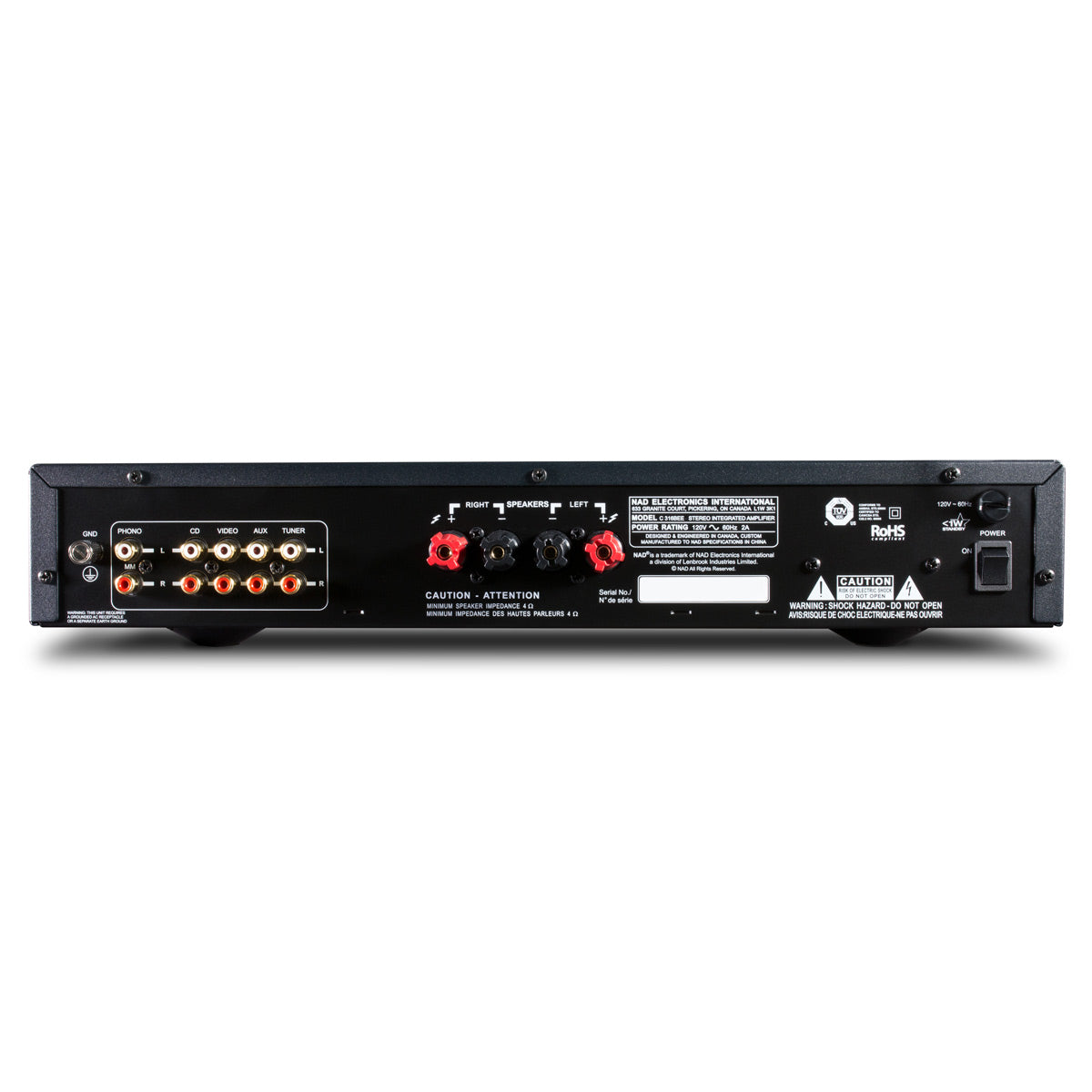

NAD Electronics C 316BEE V2 Stereo Integrated Amplifier

Regular price $499.00
Sale price $499.00 Regular price
Save $-499.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Mar 18 – Tue, Mar 25

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: C 316BEE V2 | UPC: 5703120232584

Specifications

What's In The Box

Product Documents

Product Information

Model: C 316BEE V2 | UPC: 5703120232584

The NAD C 316BEE V2 is a stereo integrated amplifier that delivers high-fidelity sound in an affordable and straightforward package. Designed for music enthusiasts seeking quality audio without unnecessary features, this amplifier offers a compelling blend of performance and simplicity.

Features

  • PowerDrive™ Technology
  • High-Precision MM Phono Input
  • Six Versatile Inputs
  • Defeatable Tone Controls
  • Compact and Elegant Build

Exceptional Audio Performance

Equipped with NAD's renowned PowerDrive™ technology, the C 316BEE V2 provides a robust 40 watts per channel of continuous power, ensuring dynamic and distortion-free sound reproduction. Its high current design adeptly handles complex speaker loads, delivering impressive dynamic power exceeding 100 watts when needed.

Vinyl-Ready with Precision Phono Stage

Catering to vinyl enthusiasts, this amplifier includes a high-precision MM phono input. The sophisticated RIAA phono stage combines low noise with high overload margins to eliminate noise and distortion, ensuring accurate playback of your cherished records.

User-Friendly Design

The C 316BEE V2 focuses on essential features to enhance user experience. It offers six inputs, including five line-level inputs and a front-panel 3.5mm input for portable media players. A full-function remote control, defeatable tone controls, and a front-panel headphone jack provide added convenience.

Eco-Conscious Engineering

Demonstrating a commitment to environmental responsibility, the amplifier boasts improved power efficiency and consumes less than 0.5 watts in standby mode. Its construction utilizes lead-free solder and is free from hazardous materials, reflecting NAD's dedication to eco-friendly design.

Specifications

  • Line In/Headphone Out
    • THD (20Hz - 20kHz): <0.03% in 300 ohms at 2V out
    • Signal-to-noise ratio: >100dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
    • Frequency response: ±0.3dB (20Hz - 20kHz)
    • Output impedance: 68 ohms
  • Line In/Speaker Out
    • Continuous output power into 8 ohms and 4 ohms: 40W (ref. 20Hz - 20kHz at rated THD, both channels driven)
    • THD (20Hz - 20kHz): <0.03% (250mW to 40W, 8 ohms and 4 ohms)
    • Signal-to-noise ratio
      • >95dB (A-weighted, 500mV input, ref. 1W out in 8 ohms)
      • >97dB (A-weighted, 500mV input, unity gain in 32 ohms)
    • Clipping power (at 1kHz 0.1% THD)
      • >45W in 8 ohms
      • >60W in 4 ohms
    • IHF dynamic power
      • 8 ohms: 90W
      • 4 ohms: 120W
      • 2 ohms: 170W
    • Damping factor: >200 (ref. 8 ohms, 1kHz)
    • Frequency response: ±0.3dB (20Hz - 20kHz)
    • Treble: ±5dB at 10kHz
    • Bass: ±8dB at 100Hz
    • Channel separation: >70dB (1kHZ)
    • Maximum input level: 4.3V (1kHz THD 0.1%)
    • Input sensitivity (for 40W in 8 ohms): 200mV
    • Standby power: <0.5W
  • Phono In/Speaker Out
    • THD (20Hz - 20kHz): <0.03% (1W to 40W, 8 ohms and 4 ohms)
    • Signal-to-noise ratio: >75dB with IHF MM cartridge (A-weighted, ref. 5mV input 1kHz and 1W output in 8 ohms)
    • Frequency response (RIAA deviation): ±0.3dB (20Hz - 20kHz, Tone Defeat ON)
    • Maximum input level: 71mV (1kHZ THD 0.1%)
    • Input sensitivity (for 40W in 8 ohms): 2.95mV
  • Dimensions and Weight
    • Dimensions (W x H x D): 17 1/8" x 3 9/16" x 11 1/4"
    • Weight: 12.1 lbs.

What's In The Box

  • C316BEE V2 Stereo Integrated Amplifier
  • Remote
  • Manual
