Michi Prestige X430 Integrated Amplifier with Built-In DAC

Now on demo at:

1 of 6

Michi Prestige X430 Integrated Amplifier with Built-In DAC

Regular price $4,999.00
Sale price $4,999.00 Regular price
$0.00 Save $-4,999.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Michi Prestige X430 Overview

Product Information

Model: X430 | UPC: 672563303111

Specifications

What's In The Box

Product Information

Model: X430 | UPC: 672563303111

The Michi Prestige X430 Integrated Amplifier delivers a commanding 340 Watts of Class AB power into 4 ohms (210 Watts into 8 ohms) with exceptional control and ultra-low distortion. Precision-engineered with an ESS SABRE ES9039Q2M 32-bit DAC, premium power supply driven by an in-house manufactured transformer, and a stunning full-color display, the X430 redefines modern elegance and high-end performance.

Features

  • 2 x 340 Watts of Robust Power, 4 ohms
  • Bluetooth with aptX™ HD & ACC
  • Certified Roon Tested
  • ICESS SABRE ES9039Q2M 32-bit DAC

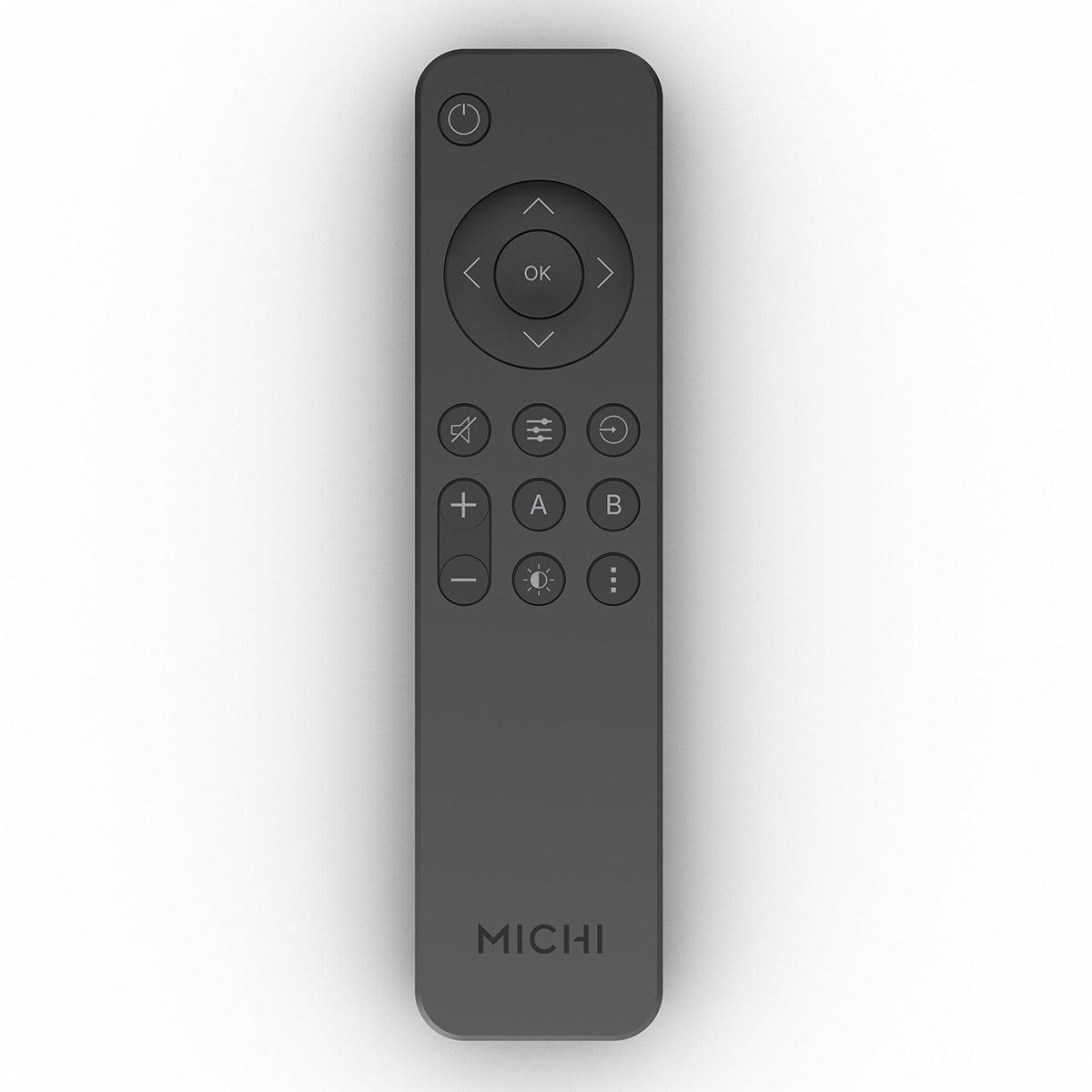

  • Michi Remote Control Included

2 X 340 Watts of Robust Power, 4 Ohms

The Michi Prestige X430 Integrated Amplifier represents uncompromising power, precision engineering, and refined craftsmanship. The X430 delivers a formidable 340 Watts per channel into 4 ohms loudspeakers (210 Watts into 8 ohms). The Class AB output stages utilize custom tuned push-pull high-current output transistors, revealing dynamics with impeccable control that can drive even the most demanding loudspeakers.

ESS Premium 32-Bit Digital to Analog Converter

At the heart of the X430 is a premium ESS SABRE ES9039Q2M 32-bit DAC, ensuring exceptional transparency and musical accuracy. Digital connectivity includes 3 Coaxial, 3 Toslink Optical, PC-USB (PCM 32-bit/384kHz, DSD 256/4X with DoP) plus aptXTM HD / AAC wireless Bluetooth streaming.

HDMI ARC

The HDMI ARC input conveniently connects directly to your TV, delivering movies, sports, and games in high fidelity as a seamless 2.1 audio system featuring dual subwoofer outputs and two sets of A-B user-selectable speaker terminals.

Moving Magnet Phono Input

For vinyl enthusiasts, the X430 also features a Moving Magnet Phono input, as well as three RCA inputs, to ensure compatibility with all legacy audio sources.

Massive, In-House-Manufactured Toroidal Transformer

A massive, in-house-manufactured toroidal transformer in a noise-rejecting enclosure drives proprietary power supplies delivering ultra-low noise, minimal distortion, and outstanding dynamics. Critical circuits are physically and electrically isolated throughout the audio path, further enhancing signal integrity.

Mechanical Excellence With Visual Elegance

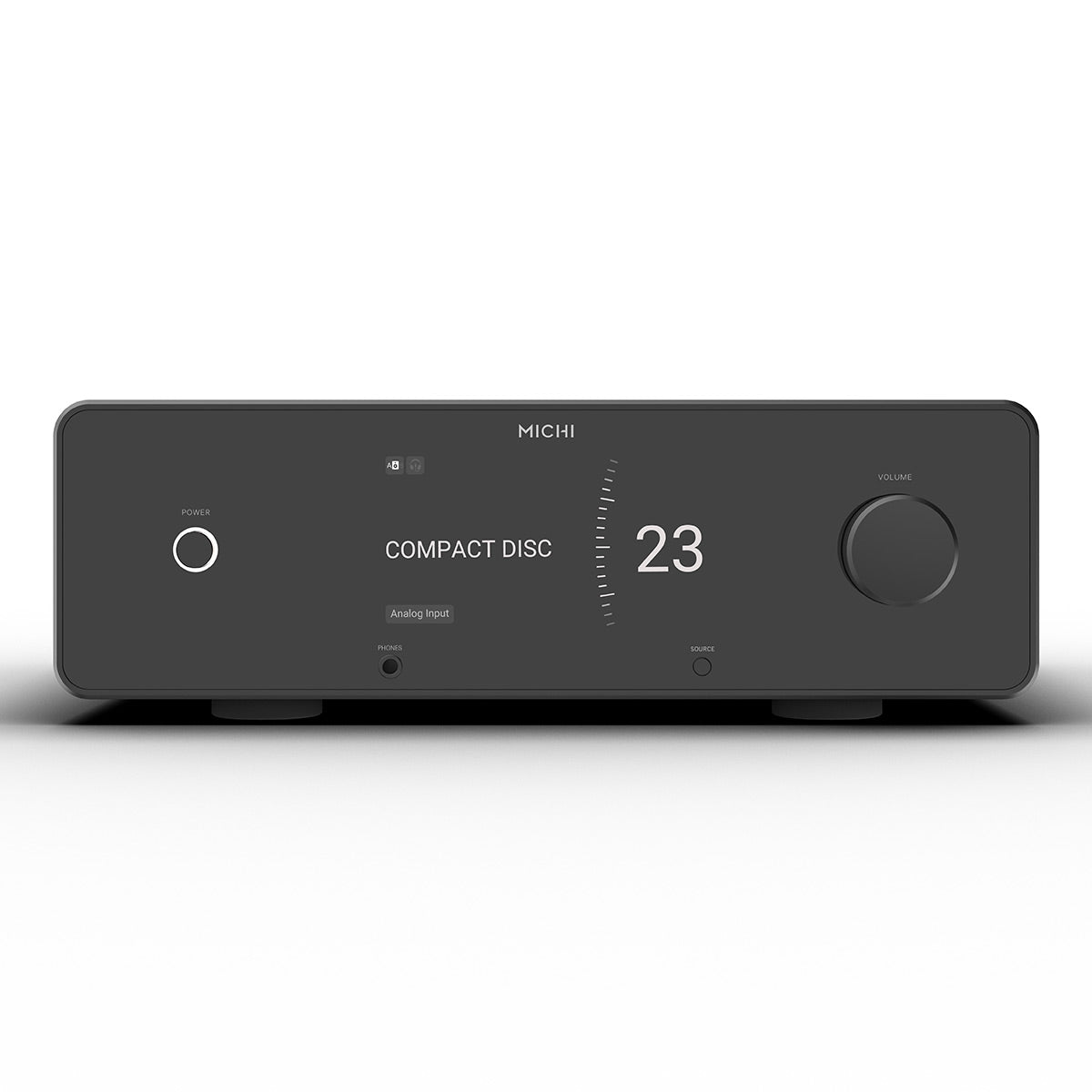

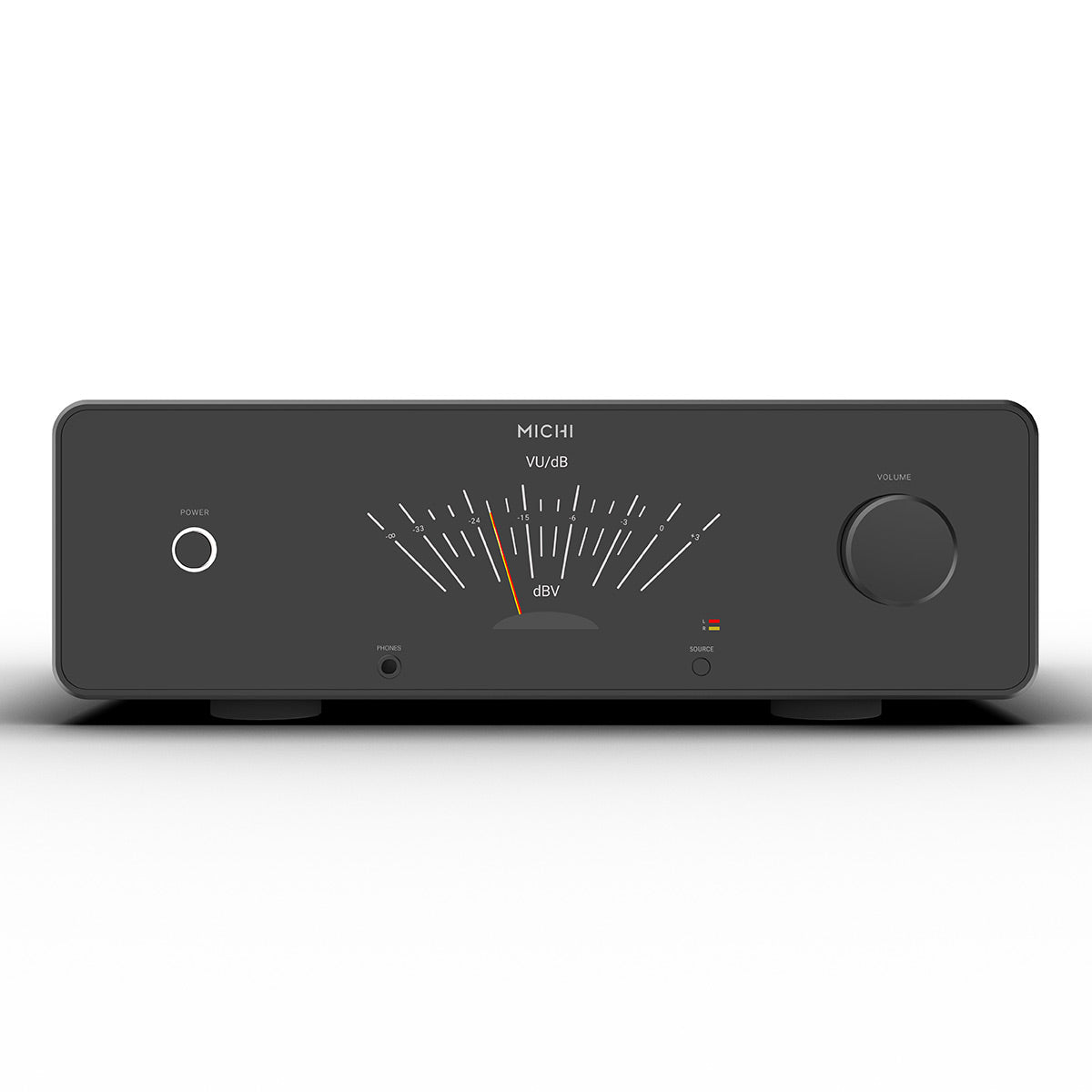

The Michi X430 pairs mechanical excellence with visual elegance. Its anodized aluminum faceplate, top cover, and knurled volume knob are precision-machined for durability and a premium feel. A solid glass front panel with a large, high-resolution color display is user-customizable, featuring both spectrum and VU meter modes for an even more engaging listening experience with a modern finish.

Specifications

  • Amplifier Performance
    • Power Output (FTC): 220 watts/channel (8 ohms)
    • Maximum Power Output (Non FTC): 340 watts/channel (4 ohms)
    • Continuous Power Output (Non FTC): 210 watts/channel (8 ohms)
    • Total Harmonic Distortion: < 0.03%
    • Intermodulation Distortion (60 Hz : 7 kHz, 4:1): < 0.03%
    • Damping Factor (20 Hz - 20kHz, 8 ohms): 260
  • Frequency Response
    • Frequency Response - Phono Input: 20 Hz-20k Hz (+0 dB, -0.5 dB)
    • Frequency Response - Line Level Inputs: 10 Hz-100k Hz (+0 dB, -0.5 dB)
    • Digital Section - Frequency Response: 10 Hz - 20k Hz (+0,-0.4 dB, Max)
  • Input Sensitivity / Impedance
    • Input Sensitivity / Impedance - Phono Input (MM): 5.56 mV / 47k ohms
    • Input Sensitivity / Impedance - Line Level Inputs (RCA): 356 mV / 100k ohms
    • Input Sensitivity / Impedance - Line Level Inputs (XLR): 743 mV / 50k ohms
    • Digital Section - Input Sensitivity/Impedance: 0 dBFs / 75 ohms
  • Input Overload
    • Input Overload - Phono Input (MM): 66 mV
    • Input Overload - Line Level Inputs (RCA): 4 V
    • Input Overload - Line Level Inputs (XLR): 10 V
  • Signal To Noise Ratio
    • Signal To Noise Ratio (IHF “A” weighted) - Phono Input: > 80 dB
    • Signal To Noise Ratio (IHF “A” weighted) - Line Level Inputs (RCA): > 105 dB
    • Signal To Noise Ratio (IHF “A” weighted) - Line Level Inputs (XLR): > 100 dB
    • Digital Section - Signal To Noise Ratio (IHF “A” weighted): > 110 dB
  • Preamplifier / Tone Controls / Separation
    • Preamplifier Output Level / Impedance: 1.92 V / 100 ohms
    • Digital Section - Preamplifier Output Level: 1.15 V (at -20 dB Volume Position)
    • Tone Controls - Bass: ±10 dB at 100 Hz
    • Tone Controls - Treble: ±10 dB at 10k Hz
    • Channel Separation - Phono Input: > 55 dB
    • Channel Separation - Line Level Inputs: > 55 dB
  • Digital Audio
    • Digital To Analog Converter: ESS ES9039Q2M DAC
    • Coaxial/Optical Digital Signals: SPDIF LPCM (up to 192kHz 24 bit)
    • PC-USB: USB Audio Class 2.0 (up to 384kHz 32-bit)
    • PC-USB Note: *Driver installation required
    • PC-USB DSD/DoP Support: Support DSD (up to 4X, 11.2MHz) and DoP (up to 2X, 5.6MHz)
    • PC-USB Certification: Roon Tested
  • HDMI
    • HDMI: Support CEC with ARC function
    • HDMI Audio: 2-channel PCM only (up to 48 kHz, 24-bit)
  • Power
    • Power Requirements - Europe: 230 V, 50 Hz
    • Power Requirements - USA: 120 V, 60 Hz
    • Power Consumption: 520 watts
    • Standby Power Consumption - Normal: < 0.5 watts
    • Standby Power Consumption - Network Wakeup: < 2 watts
    • BTU (4 ohms, 1/8th power): 1476 BTU/h
  • Dimensions & Weight
    • Dimensions (W x H x D): 17 x 6 x 16 1/2 ins
    • Front Panel Height: 5 1/4 ins
    • Weight (net): 37.3 lbs.

What's In The Box

  • Prestige X430 Integrated Amplifier
  • Remote
  • Power Cord
  • Manual
