Michi P430 Overview

Product Information

Model: P430 | UPC: 672563305115

Specifications

What's In The Box

Product Information
Model: P430 | UPC: 672563305115

Connect more deeply to your music with greater clarity, depth, and control. The Michi Prestige P430 Pre-amplifier brings TV audio, vinyl, computer audio, Bluetooth, and premium source components together in one dedicated control center, combining an integrated 32-bit DAC, ultra-low-noise power supply, and refined signal architecture for immersive two-channel listening.

Features

  • ESS Premium 32-Bit DAC
  • Balanced XLR Inputs And Outputs
  • Moving Magnet Phono Stage
  • Certified Roon Tested
  • Bluetooth With aptX HD
  • HDMI ARC TV Audio

Pure, Transparent Signal Path

The Michi Prestige P430 Pre-amplifier delivers a clean, transparent signal path with exceptional control and musical insight. Its ultra-low-noise architecture, isolated power regulation, and balanced signal path preserve resolution, dynamics, and soundstage precision.

Versatile Connectivity & Premium DAC

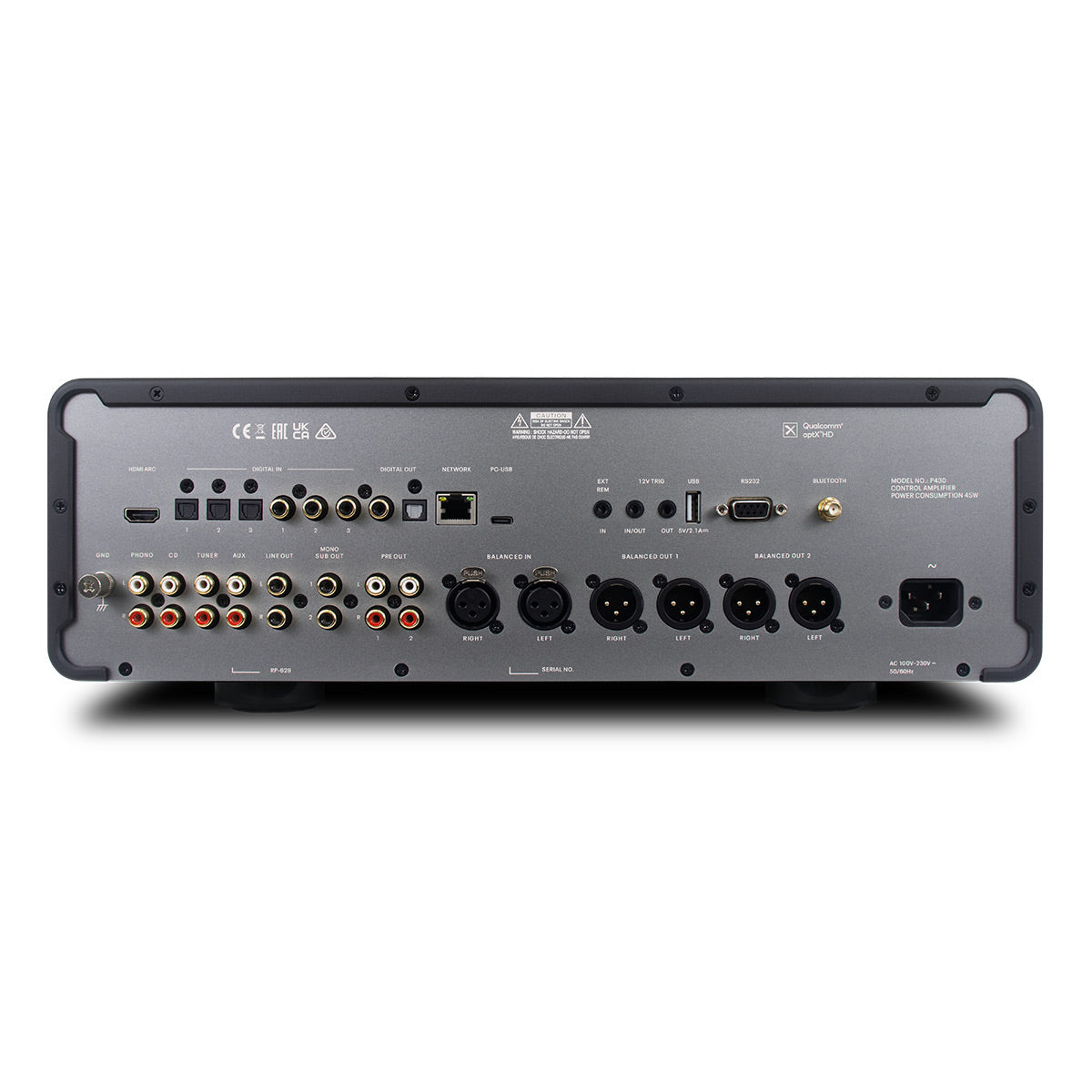

Connectivity includes XLR and RCA analogue inputs and outputs, coaxial and optical digital inputs, HDMI ARC for TV audio, PC-USB computer audio with DSD256 support, and wireless Bluetooth with aptX™ HD and AAC. At its heart is an ESS SABRE ES9028PRO 8-channel DAC with advanced clocking for jitter-controlled performance.

Refined Michi Prestige Design

The refined industrial design, intuitive controls, and distinct character of Michi Prestige come together to deliver a precise, premium listening experience.

Specifications

Specifiations

  • General
    • Dimensions (W x H x D): 17 x 5 5/6 x 16"
    • Front Panel Height: 5 1/6"
    • Power Requirements: 120 V, 60 Hz
    • Power Consumption: 45 W
    • Standby Power Consumption: Normal < 0.5 W; Network wakeup < 2 W
    • Net Weight: 23.8 lbs.
    • BTU Rating: 98 BTU / h
  • Audio Performance
    • Total Harmonic Distortion: < 0.002%
    • Frequency Response - Line Level Inputs (RCA): 10 Hz - 100 kHz, 0 ± 0.3 dB
    • Frequency Response - Line Level Inputs (XLR): 10 Hz - 100 kHz, 0 ± 0.3 dB
    • Frequency Response - Digital Inputs: 20 Hz - 20 kHz, 0 ± 0.3 dB
    • Frequency Response - Phono Input: 20 Hz - 20 kHz, 0 ± 0.3 dB
    • Signal to Noise Ratio (A Weighted) - Line Level Inputs (RCA): 110 dB
    • Signal to Noise Ratio (A Weighted) - Line Level Inputs (XLR): 106 dB
    • Signal to Noise Ratio (A Weighted) - Digital Inputs: 103 dB
    • Signal to Noise Ratio (A Weighted) - Phono Input: 82 dB
    • Intermodulation Distortion (60 Hz:7 kHz, 4:1): < 0.002%
    • Tone Controls: ± 10 dB at 100 Hz / 10 kHz
  • Output Specifications
    • Output Level - Line Level (RCA): 1 V
    • Output Level - Balanced (XLR): 2 V
    • Output Impedance - Line Level (RCA): 100 ohms
    • Output Impedance - Balanced (XLR): 200 ohms
  • Input Specifications
    • Input Sensitivity - Line Level Inputs (RCA): 160 mV
    • Input Sensitivity - Line Level Inputs (XLR): 320 mV
    • Input Sensitivity - Digital Inputs: 0 dBfs
    • Input Sensitivity - Phono Input (MM): 2.5 mV
    • Input Impedance - Line Level Inputs (RCA): 33k ohms
    • Input Impedance - Line Level Inputs (XLR): 55k ohms
    • Input Impedance - Digital Inputs: 75 ohms
    • Input Impedance - Phono Input (MM): 47k ohms
    • Input Overload - Line Level Inputs (RCA): 4.1 V
    • Input Overload - Line Level Inputs (XLR): 12 V
    • Input Overload - Phono Input (MM): 69 mV
  • Digital Audio
    • Digital to Analog Converter: ESS ES9028PRO DAC
    • Coax/Optical Digital Input Signals: SPDIF LPCM (Up to 24-bit/192 kHz)
  • HDMI & USB Audio
    • HDMI: Support CEC with ARC function; 2-channel PCM only (up to 24-bit/48 kHz)
    • PC-USB: USB Audio Class 2 (up to 32-bit/384 kHz)
    • PC-USB Driver: Driver installation required
    • DSD Support: Support DSD (up to 4X, 11.2 MHz)
    • DoP Support: DoP (up to 2X, 5.6 MHz)
  • Compatibility
    • Roon: Support Roon Tested

What's In The Box
  • P430 Prestige Preamplifier with Built-In DAC
  • Power Cord
  • Manual
