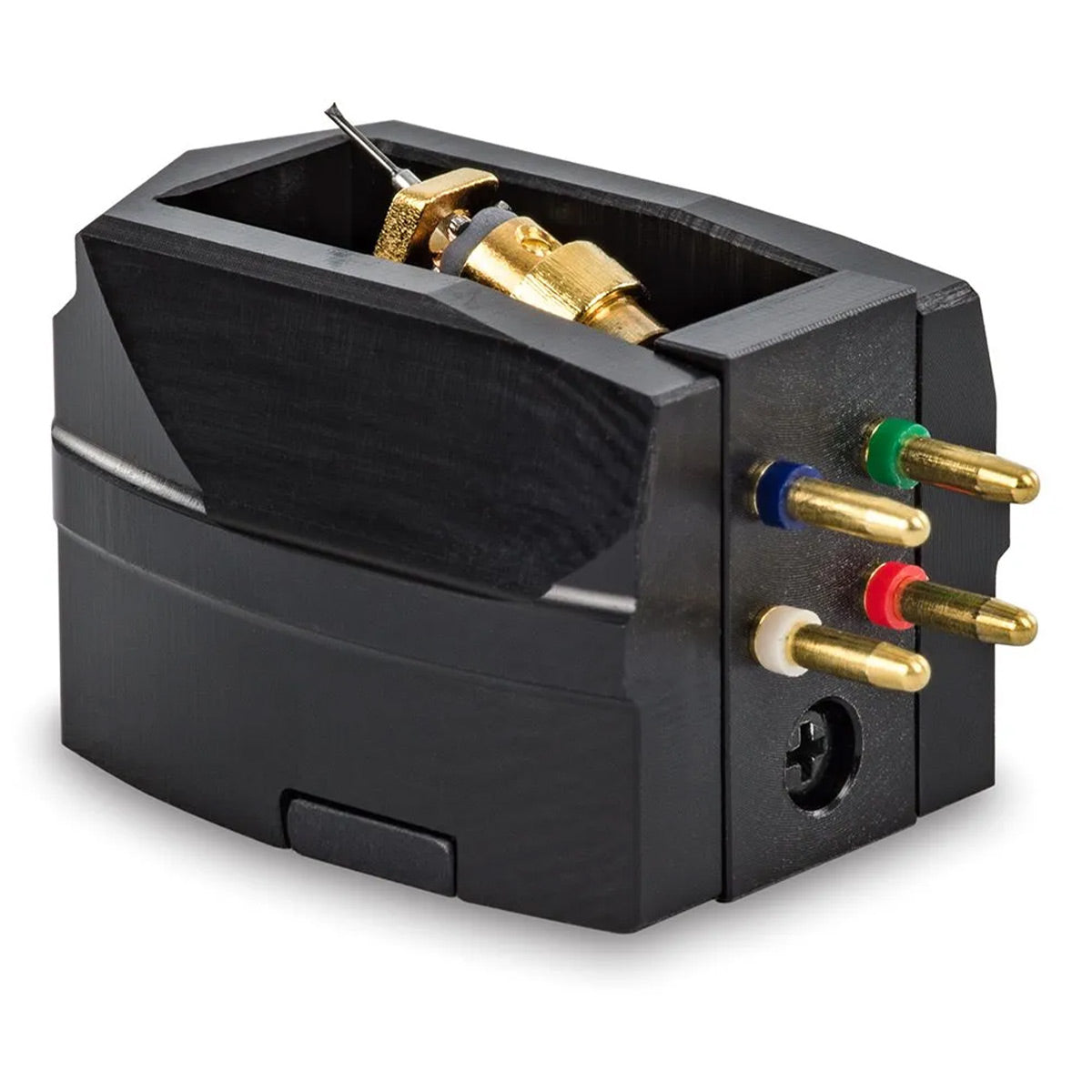

Michell Cusis S Moving Coil Cartridge with Shibata Stylus

Regular price $1,999.00
Sale price $1,999.00 Regular price
Save $-1,999.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Mar 5 – Tue, Mar 12

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: MACUSISS | UPC: 81020239999

Specifications

What's In The Box

Product Information

Model: MACUSISS | UPC: 81020239999

The Cusis S offers extended frequency response and incredible detail retrieval whilst retaining a level of musicality that is second to none.

Features

  • Shibata stylus
  • Boron cantilever
  • Extended frequency response
  • Large aluminium chassis
  • High density Acetyl body

Samarium-Cobalt Magnet

All of Michell's Cusis cartridges share the same moving coil design. At the heart of the cartridge is a samarium-cobalt magnet which is combined with pure iron to create a very stable magnetic field within the cartridge.

Specially Designed Damper

30μ pure copper wire is used to precision wind the cartridge coils onto an ultra-lightweight armature, which is mounted onto a specially designed damper. The damper has been specifically designed to give the stylus assembly the perfect support, which ensures the stylus tracks the groove precisely.

Vibration Reduction

The construction of the cartridge has been carefully designed to eliminate vibration and resonance. The aluminum chassis is designed to absorb unwanted vibration and give a rigid platform to mount the cartridge parts. The body materials, shapes and exterior patterns have also been designed to further reduce vibration and resonance, resulting in truly unrivalled levels of detail and neutrality.

Specifications

  • Model: Cusis S
  • Tracking Force: 2.0g
  • Loading: 100 Ω
  • Frequency Response: 20-35000hz
  • Output Voltage: 0.4mV
  • Weight: 8.9g
  • Cantilever Material: Boron
  • Stylus Profile: Shibata
  • Channel Balance: <1dB
  • Channel Separation: 25dB
  • Compliance: 8x10-6cm/dyne
  • Tracking Ability: 70µ / 2.0g
  • Internal Impedance: 4.5 Ω
  • Type: Moving Coil
  • Coil Material: Pure 30µ Copper
  • Run-in Period: > 40 Hours
  • Body Material: Acetyl

What's In The Box

  • Cusis S Moving Coil Cartridge with Shibata Stylus
