McIntosh MSA5500 Streaming Integrated Amplifier

Regular price $8,000.00
Sale price $8,000.00 Regular price
Save $-8,000.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Feb 19 – Wed, Feb 26

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

McIntosh MSA5500 Overview

Product Information

Model: MSA5500 | UPC: 842548114241

Specifications

What's In The Box

Product Information

Model: MSA5500 | UPC: 842548114241

Introducing the MSA5500 Streaming Integrated Amplifier: a compact yet powerful device that seamlessly combines high-quality music streaming with robust amplification. Whether you're new to high-fidelity audio, expanding your existing setup, or seeking premium sound for your office or vacation home, the MSA5500 is designed to meet your needs.

Features

  • Seamless Streaming Versatility
  • High-Performance Bluetooth Connectivity
  • Audiophile-Grade Digital-to-Analog Conversion (DAC)
  • Powerful Amplification
  • Comprehensive Connectivity
  • Exclusive McIntosh Technologies

Seamless Music Streaming

The MSA5500 supports a wide range of streaming platforms, including Apple AirPlay, Bluetooth, Google Cast, Spotify Connect, and TIDAL Connect. This versatility allows you to effortlessly stream music directly from your smart device without the need for specialized apps or technical expertise. Experience your favorite tracks with newfound clarity and depth.

Advanced Bluetooth Connectivity

Equipped with Bluetooth 5.0, the MSA5500 ensures high-resolution audio playback through support for Advanced Audio Coding (AAC), Qualcomm aptX HD, and Qualcomm aptX Adaptive. Dual Wi-Fi 6 antennas and a dedicated Bluetooth antenna provide stable wireless connections, with an Ethernet port available for those who prefer wired connectivity.

Superior Sound Quality

At the heart of the MSA5500 is a state-of-the-art, Quad Balanced, 8-channel, 32-bit digital-to-analog converter (DAC). This audiophile-grade component delivers exceptional dynamic range and minimal distortion, ensuring pristine sound reproduction across all digital formats.

Comprehensive Connectivity Options

Beyond its streaming capabilities, the MSA5500 offers seven digital and five analog audio inputs, including a dedicated Moving Magnet phono input for turntables. The digital inputs support high-resolution audio playback, with the USB input accommodating DSD512 and DXD up to 384kHz, and the coaxial and optical inputs handling up to 24-bit/192kHz.

Enhanced TV Audio Experience

Featuring an HDMI (ARC) input, the MSA5500 can connect to your compatible TV, transforming your viewing experience with superior sound quality compared to standard TV speakers or soundbars. It adeptly converts popular multi-channel audio formats from Dolby and DTS into two-channel audio for optimal playback.

Robust Amplification

Delivering 100 watts per channel into 8-ohm speakers and 160 watts into 4-ohm speakers, the MSA5500 provides ample power for a variety of speaker configurations. Its iconic McIntosh blue watt meters offer real-time power output visualization, reflecting the amplifier's performance.

Built to Last with McIntosh Technologies

The MSA5500 incorporates several proprietary McIntosh technologies to ensure durability and reliability:

  • Power Guard®
  • Sentry Monitor™
  • Monogrammed Heatsinks™
  • Home Theater PassThru
  • Solid Cinch™ Speaker Binding Posts
  • High Drive Headphone Amplifier with HXD®
  • Power Control

Adaptable to Your Evolving Audio Needs

As your audio preferences and requirements grow, the MSA5500 is designed to adapt. Should you require more power in the future, you can bypass its internal amplifier and connect an external one, all while utilizing the MSA5500's streaming and preamplifier functionalities.

Timeless McIntosh Design

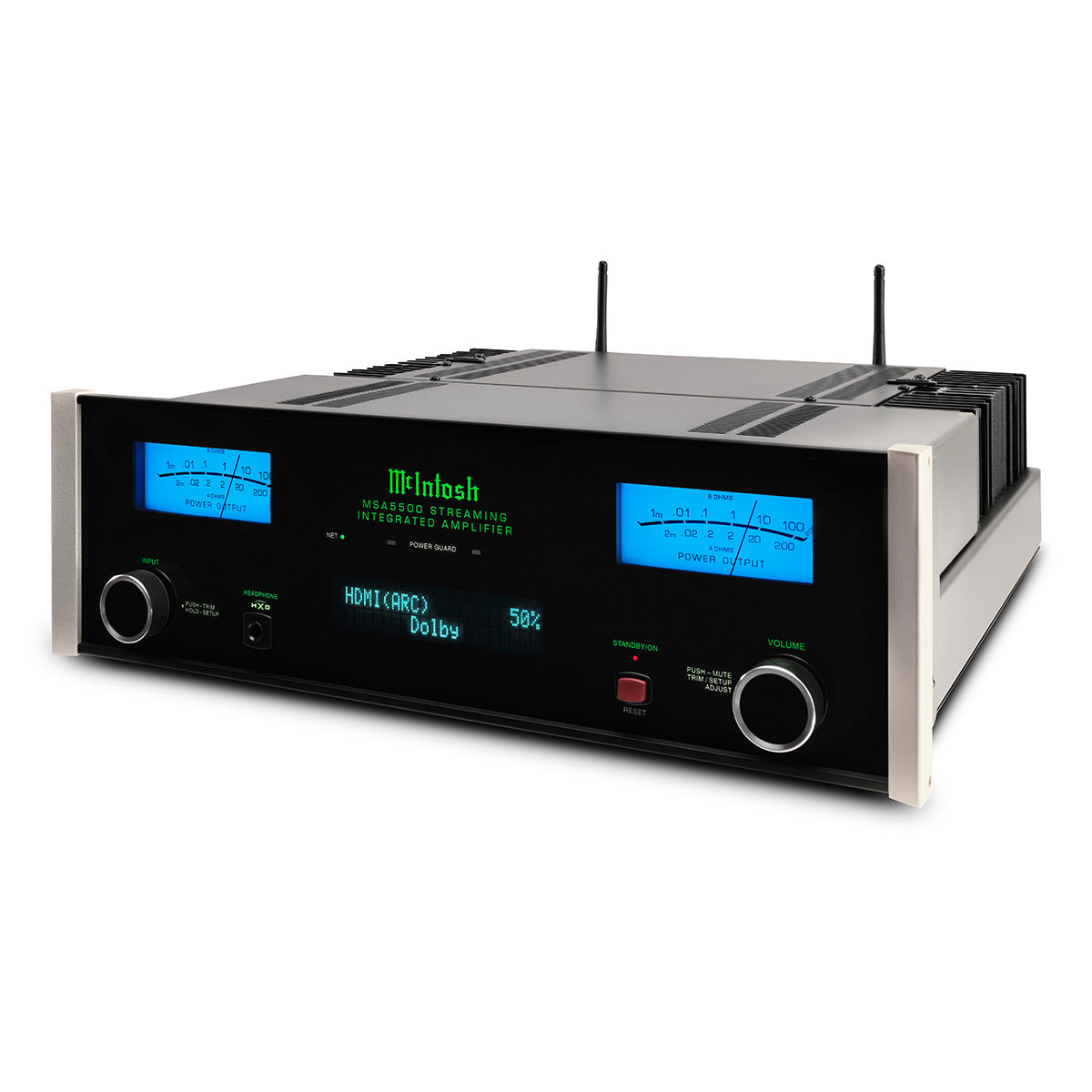

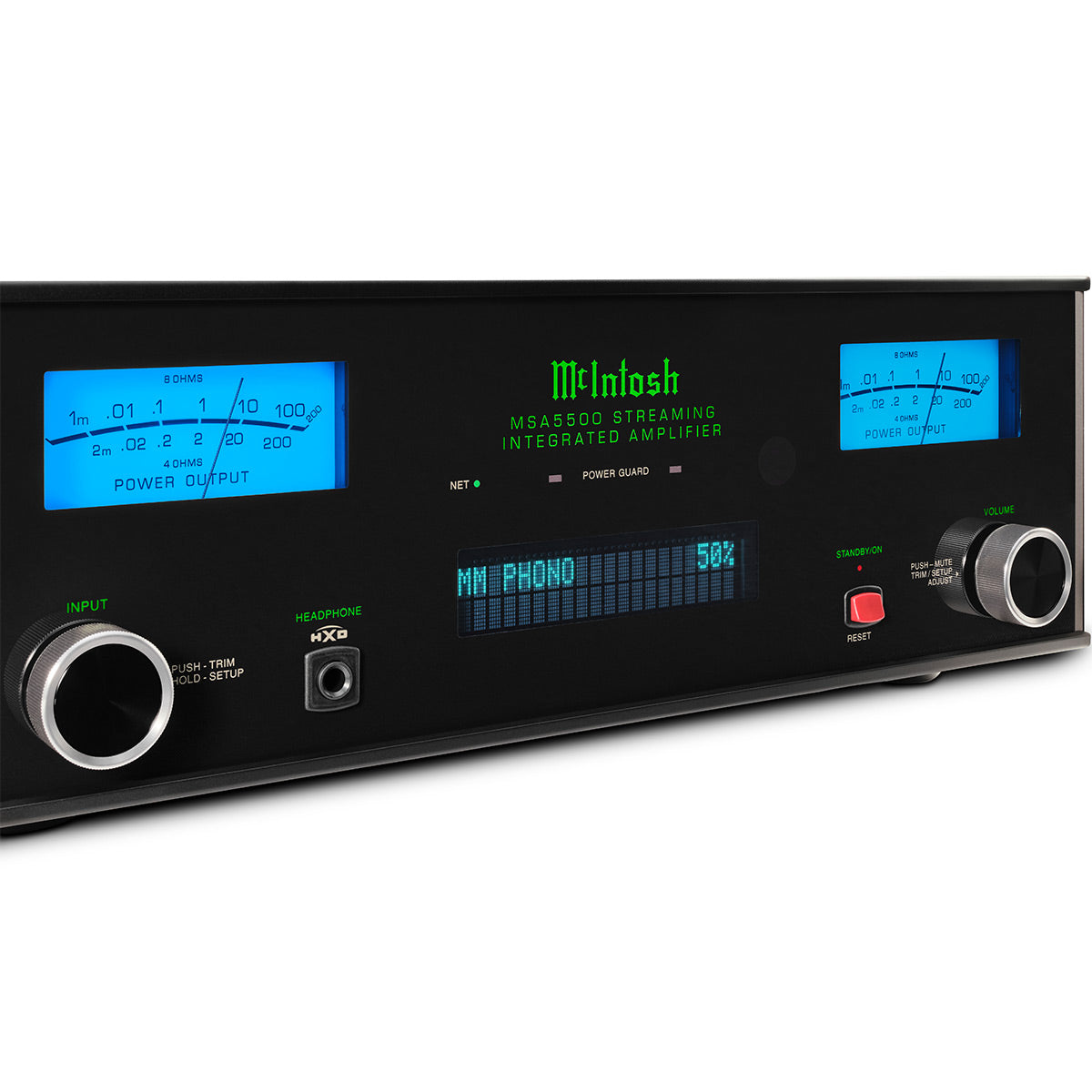

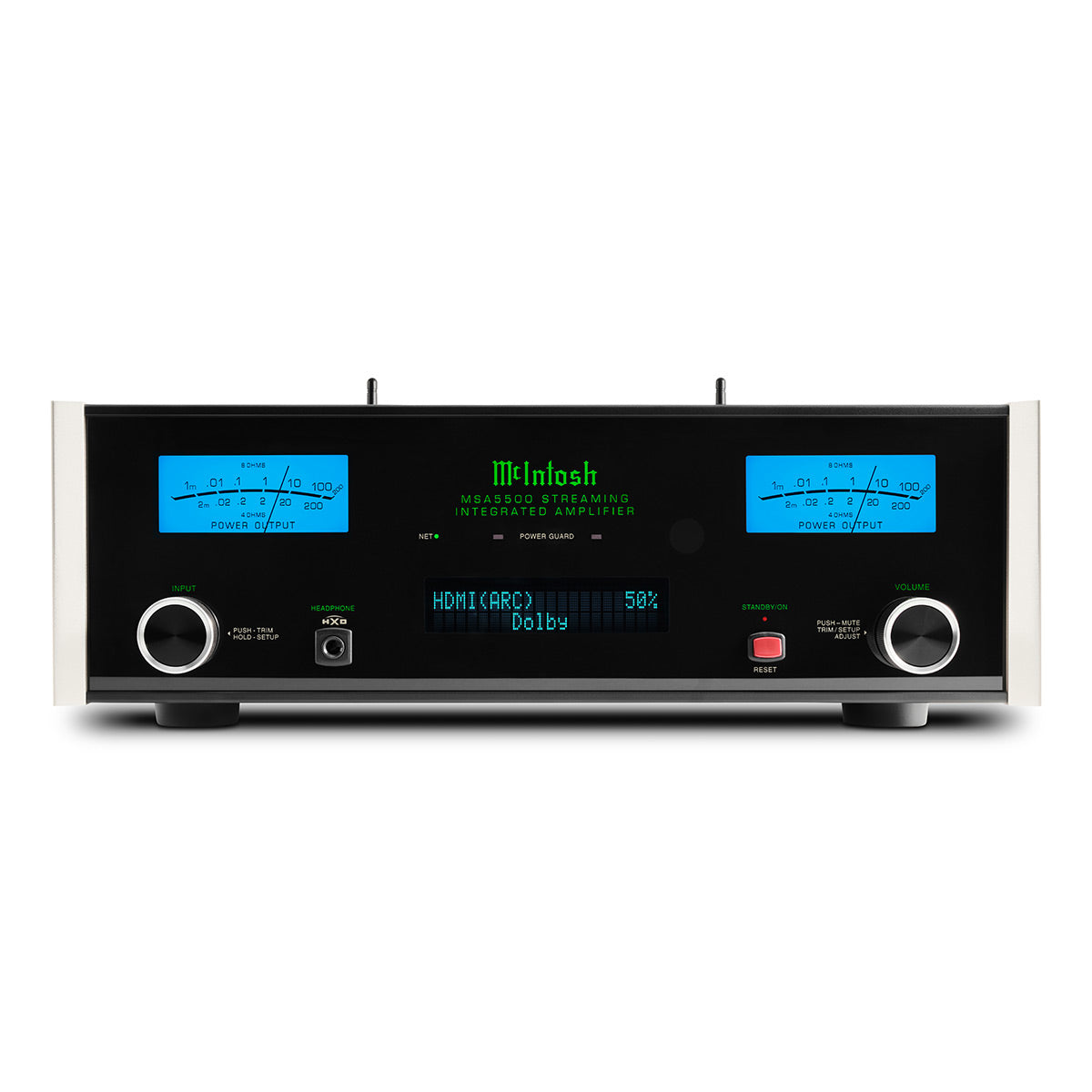

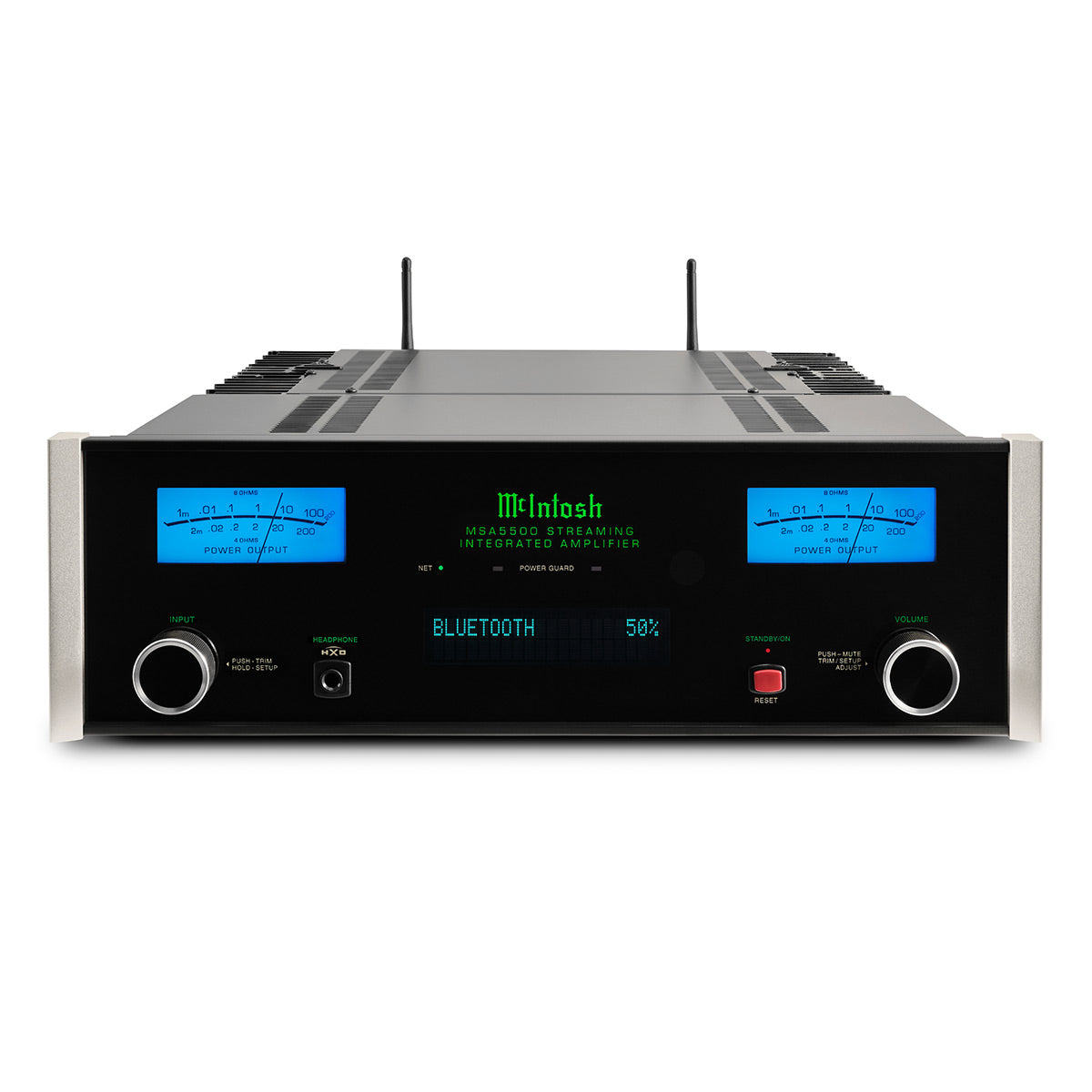

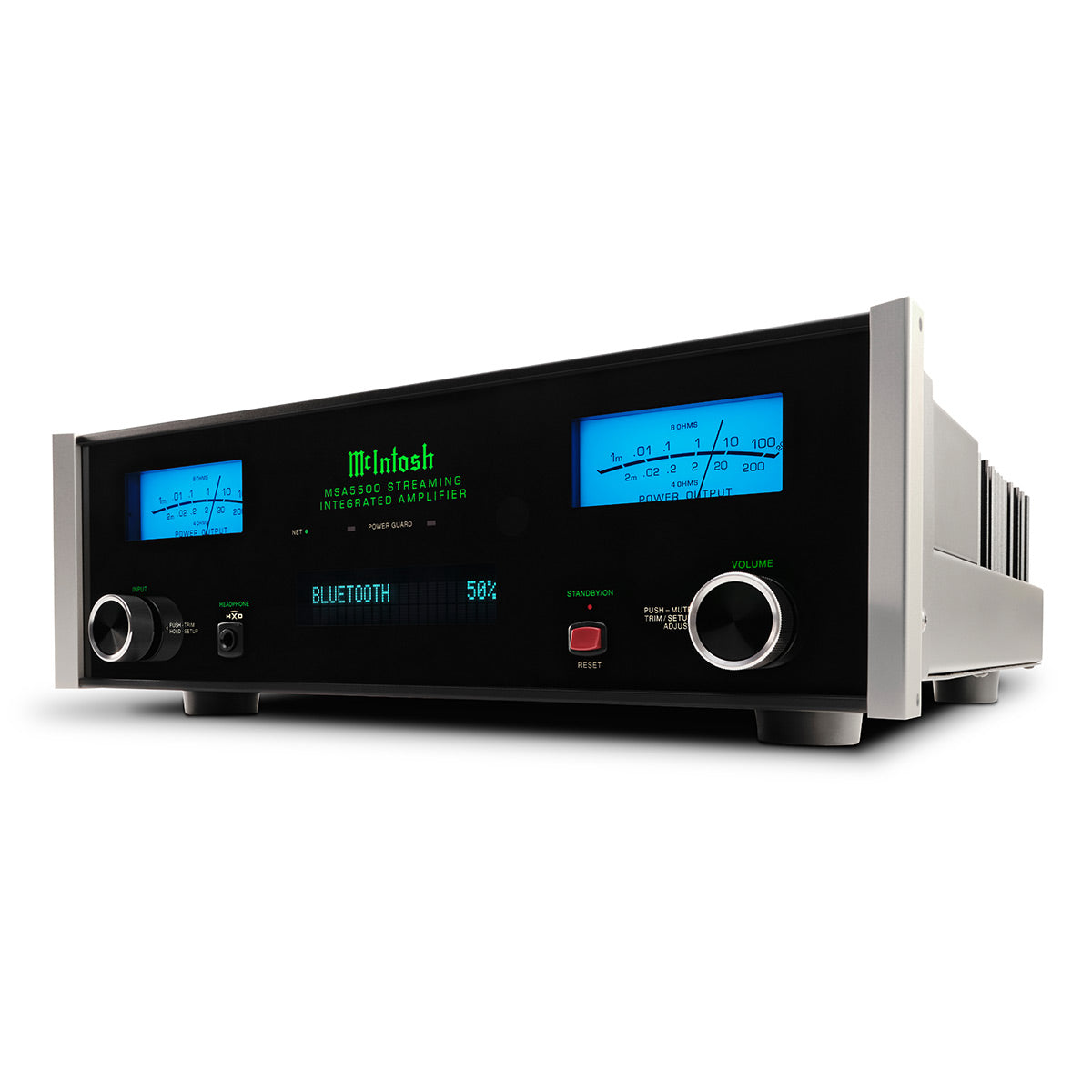

Embodying classic McIntosh aesthetics, the MSA5500 features blue watt meters, a sleek black glass front panel with aluminum end caps, rotary control knobs, and an illuminated logo. Its impeccable build quality reflects McIntosh's commitment to audio excellence.

Specifications

  • Electronic
    • FTC Power Output Rating: 100 W
    • Power Output per Channel
    • 100 W into 8 ohms
    • 160 W into 4 ohms
    • Number of Channels: 2
    • Rated Power Band: 20Hz to 20kHz
    • Total Harmonic Distortion: 0.005%
    • Dynamic Headroom: 1.8dB
    • Frequency Response +0,-0.5dB: 20Hz to 20kHz
    • Frequency Response, +0, -3dB: 10Hz to 100kHz
    • Sensitivity Phono (Moving Coil): N/A
    • Sensitivity Phono (Moving Magnet): 2.5mV
    • Sensitivity High Level (Balanced / Unbalanced): 0.5V/0.25V
    • Sensitivity (Power Amp input): 1V
    • Signal To Noise Ratio (Moving Coil): N/A
    • Signal To Noise Ratio (Moving Magnet): 82dB
    • Signal To Noise Ratio (High Level): 95dB
    • Signal To Noise Ratio (Power Amp input): 110dB
    • Input Impedance (Balanced / Unbalanced): 20K/20K
    • Damping Factor
    • 8 ohms: >200
    • 4 ohms: >100
    • Maximum Output (Balanced / Unbalanced): 8V Unbalanced

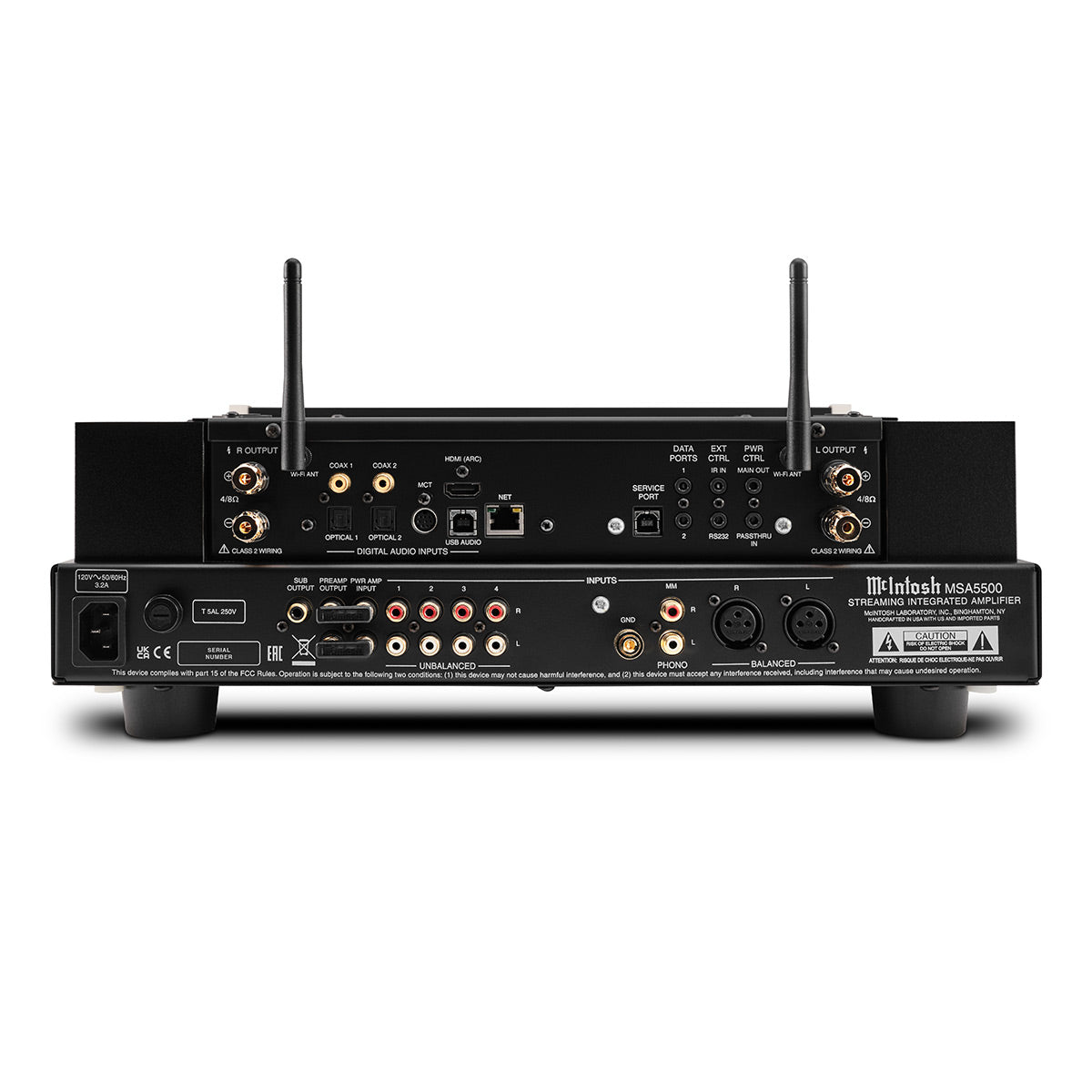

  • Connectivity
    • Balanced Input: 1
    • Unbalanced Input: 4
    • Phono Input Moving Coil: 0
    • Phono Input Moving Magnet: 1 (fixed loading)
    • Upgradeable Digital Audio Module: No
    • Digital Coaxial Input: 2
    • Digital Optical Input: 2
    • Digital MCT Input: 1
    • Digital USB Input: 1
    • HDMI (ARC) Input: 1
    • Balanced Variable Output: 0
    • Unbalanced Fixed Output: 0
    • Unbalanced Variable Output: 1
    • Headphone Output: 1/4" High Drive with Headphone Crossfeed Director (HXD®)
    • Subwoofer Output: 1
    • AM/FM Tuner option: No
    • Home Theater PassThru: Yes
    • Unbalanced Analog Connector Type: Standard
    • Speaker Binding Post Type: Standard
    • Service Port: 1
  • Digital Audio
    • Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
    • Digital Coaxial Input Sample Rate: 24-bit/44.1kHz to 192kHz
    • Digital Optical Input Sample Rate: 24-bit/44.1kHz to 192kHz
    • Digital MCT Input Sample Rate
    • 16-bit/44.1kHz (CD)
    • DSD64 (SACD)
    • Digital USB Input Sample Rate
    • 32-bit/44.1kHz to 384kHz (PCM)
    • DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
  • Control
    • Tone Controls: Bass and Treble
    • Tone Bypass and Input Assign: Yes
    • RS232 Control Input: Yes
    • Power Control Output: 1 Main
    • Rear Panel Data Port: 2
    • Rear Panel IR Sensor Input: Yes
    • Input Level Match: Yes
  • General
    • Vacuum Tube or Solid State: Solid State
    • Output Type: Direct Coupled
    • Output Meters: Yes
    • Dual Layer Chassis: Yes
    • Chassis Finish: Black painted steel
    • McIntosh Monogrammed Heatsinks™: Yes
  • Power Requirement
    • 100 Volts, 50/60Hz at 3.7 amps
    • 110 Volts, 50/60Hz at 3.4 amps
    • 120 Volts, 50/60Hz at 3.2 amps
    • 220 Volts, 50/60Hz at 1.8 amps
    • 230 Volts, 50/60Hz at 1.6 amps
    • 240 Volts, 50/60Hz at 1.6 amps
    • Standby Power Requirement: <0.25 Watts
  • Weights & Dimensions
    • Unit Dimensions
    • With Vertical Antenna (W x H x D): 17-1/2" x 8-1/8” x 18-3/4”
    • With Horizontal Antenna (W x H x D): 17-1/2" x 8-1/8” x 22-1/4"
    • Unit Weight: 38 lbs. (17.2 kg)

What's In The Box

  • MSA5500 Streaming Integrated Amplifier
  • Power Cord
  • Manual
