Specifications
Specifications
- FM Specifications
- Tuning Range: 88.1MHz - 107.9MHz (USA)
- Antenna Input: 75 Ohms, Type “F” Coax connector
- Useable Sensitivity (26dB SNR): 1μV
- Signal To Noise Ratio
- Mono: 70dB
- Stereo: 68dB
- Frequency Response: ±1dB 20 to 18,000Hz
- Harmonic Distortion
- Mono: 0.1%
- Stereo: 0.3%
- Channel Selectivity: 70dB Adjacent Channel
- Stereo Separation: 45dB
- AM Specifications
- Tuning Range: 530kHz - 1700kHz (USA)
- Antenna Input: RAA2 (supplied) Type “RJ45” connector
- Sensitivity: 350μV/m
- Signal To Noise Ratio: 55dB
- Frequency Response
- ±1dB 20Hz - 15kHz
- -6dB 3kHz
- Harmonic Distortion: 0.1%
- Selectivity: 45dB Adjacent Channel

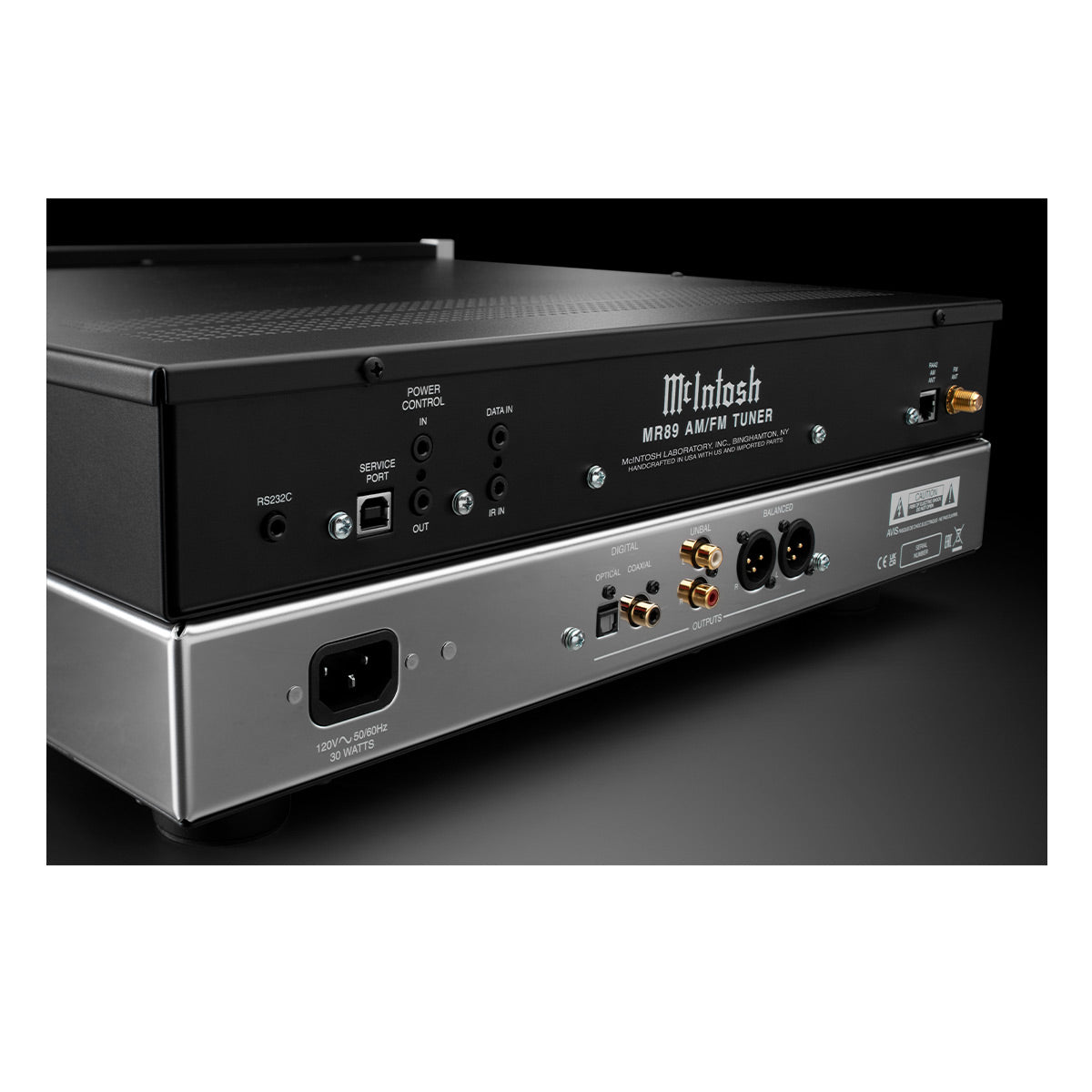

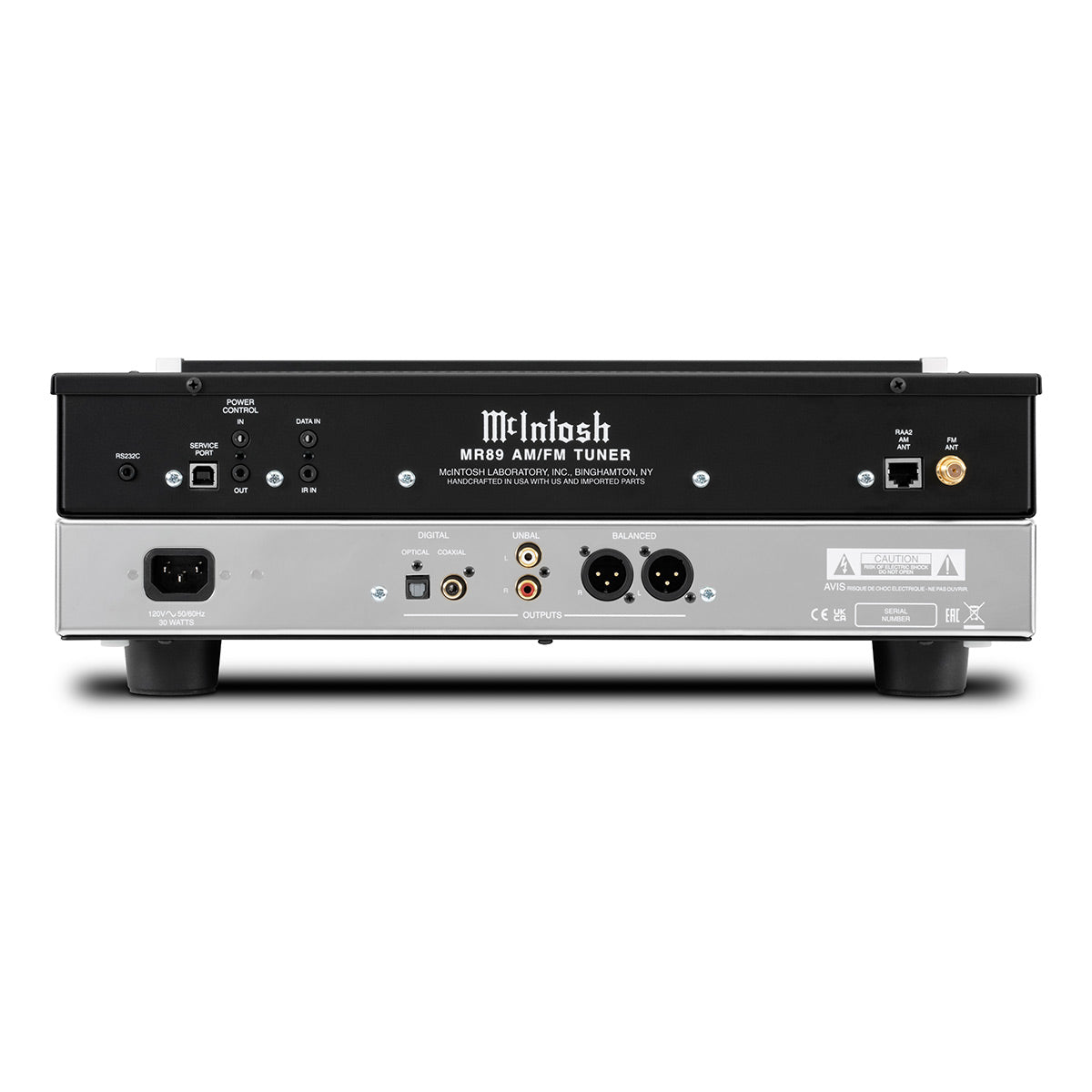

- Connectivity
- Balanced Fixed Output: 1
- Unbalanced Fixed Output: 1
- Digital Coaxial Output: 1
- Digital Optical Output: 1
- AM Antenna Input: 1
- FM Antenna Input: 1
- Service Port: 1
- Control
- Rear Panel Data Input: 1
- Rear Panel IR Sensor Input: 1
- Power Control Input: 1
- Power Control Output: 1
- RS232 Control Input: 1
- General Specifications
- Rated Output: 1Vrms Unbalanced, 2Vrms Balanced
- Output Impedance: 100 ohms Unbalanced or Balanced
- Digital Output
- Optical: -15dbm to -21dbm (PCM)
- Coaxial: 0.5Vp-p/75 ohm (PCM)
- Sampling Frequency: 48kHz (PCM)
- AM Antenna Input: Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)
- RAA2 Remote AM Antenna Overall Dimensions (W x H x D): 6” x 2.5” x 1.5”
- Power Requirements (Refer to the rear panel of the MR89 for the correct voltage)
- 100V ~ 50/60Hz, 30 watts 220V ~ 50/60Hz, 30 watts
- 110V ~ 50/60Hz, 30 watts 230V ~ 50/60Hz, 30 watts
- 120V ~ 50/60Hz, 30 watts 240V ~ 50/60Hz, 30 watts
- Dimensions
- Overall (W x H x D): 17.5” x 6” x 18”
- Weight: 23.0 pounds (11.6 kg)
What's in the Box
What's in the Box

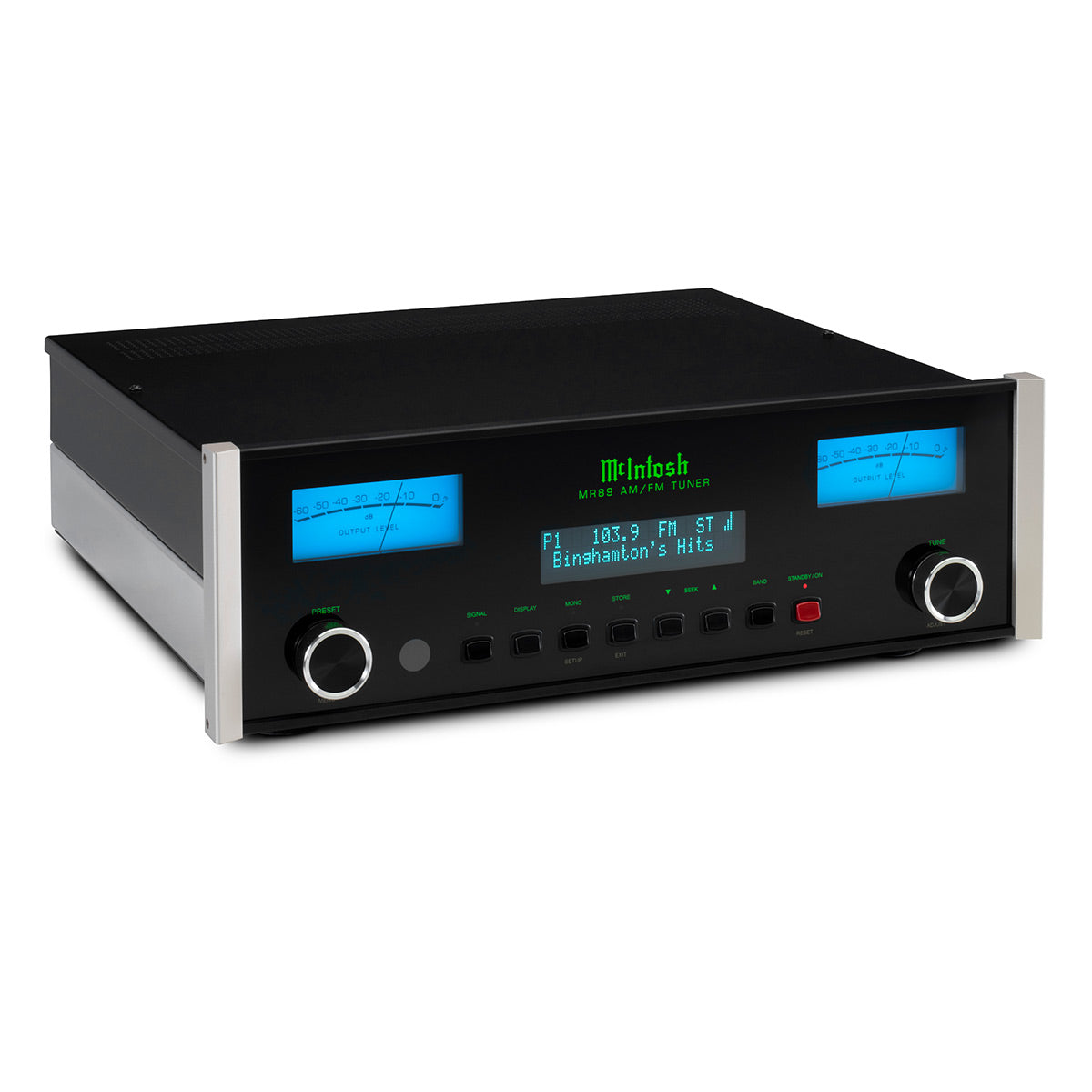

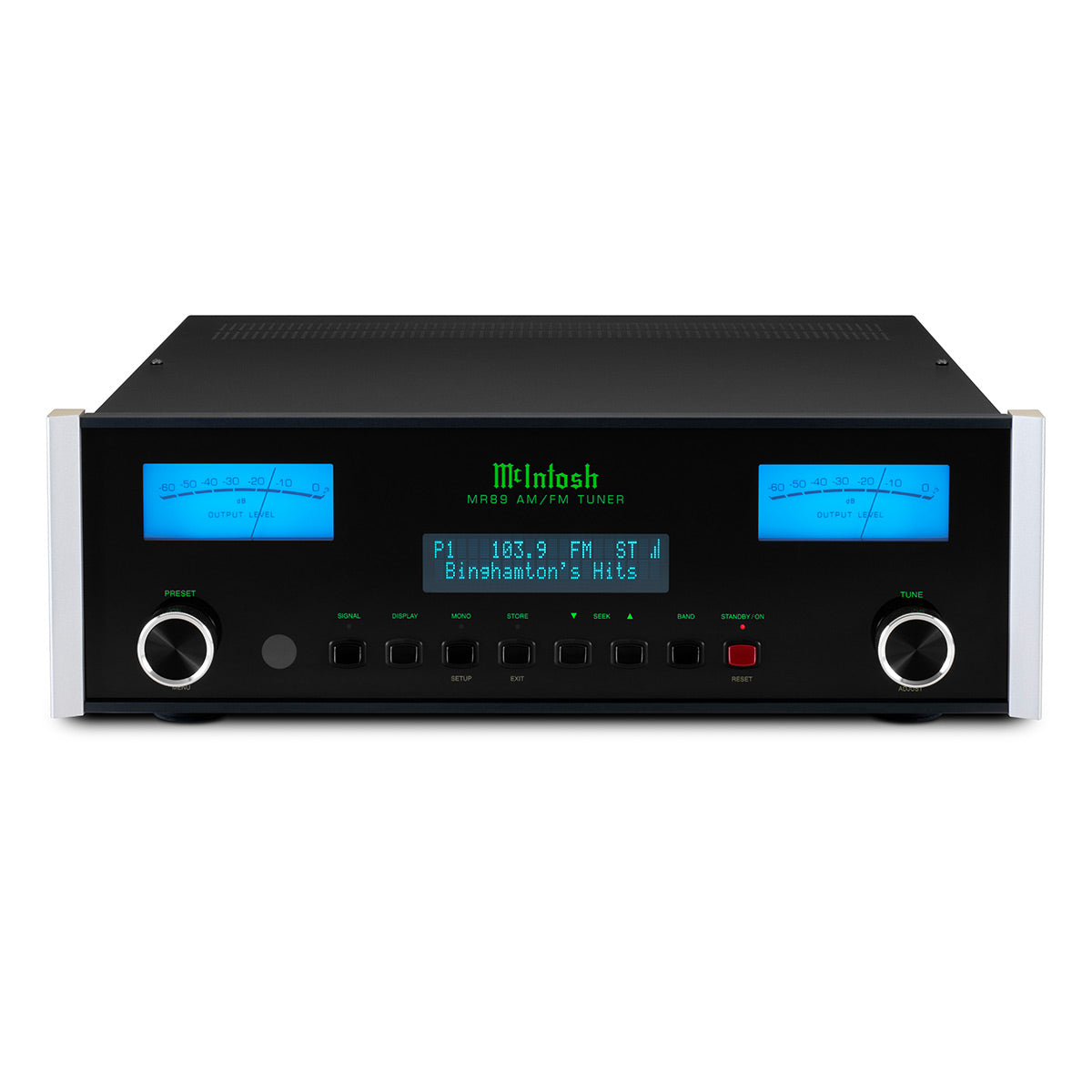

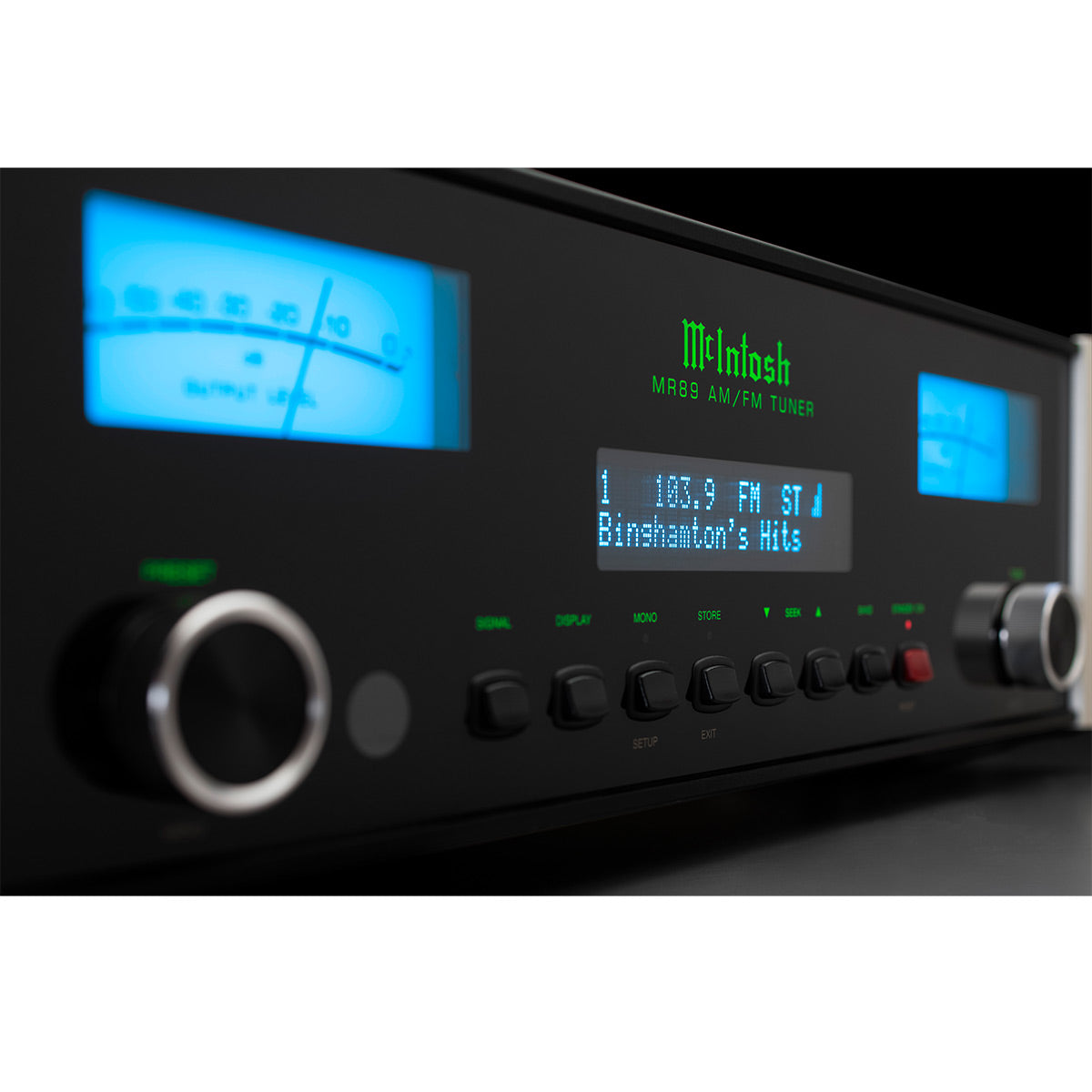

- MR89 AM/FM Tuner

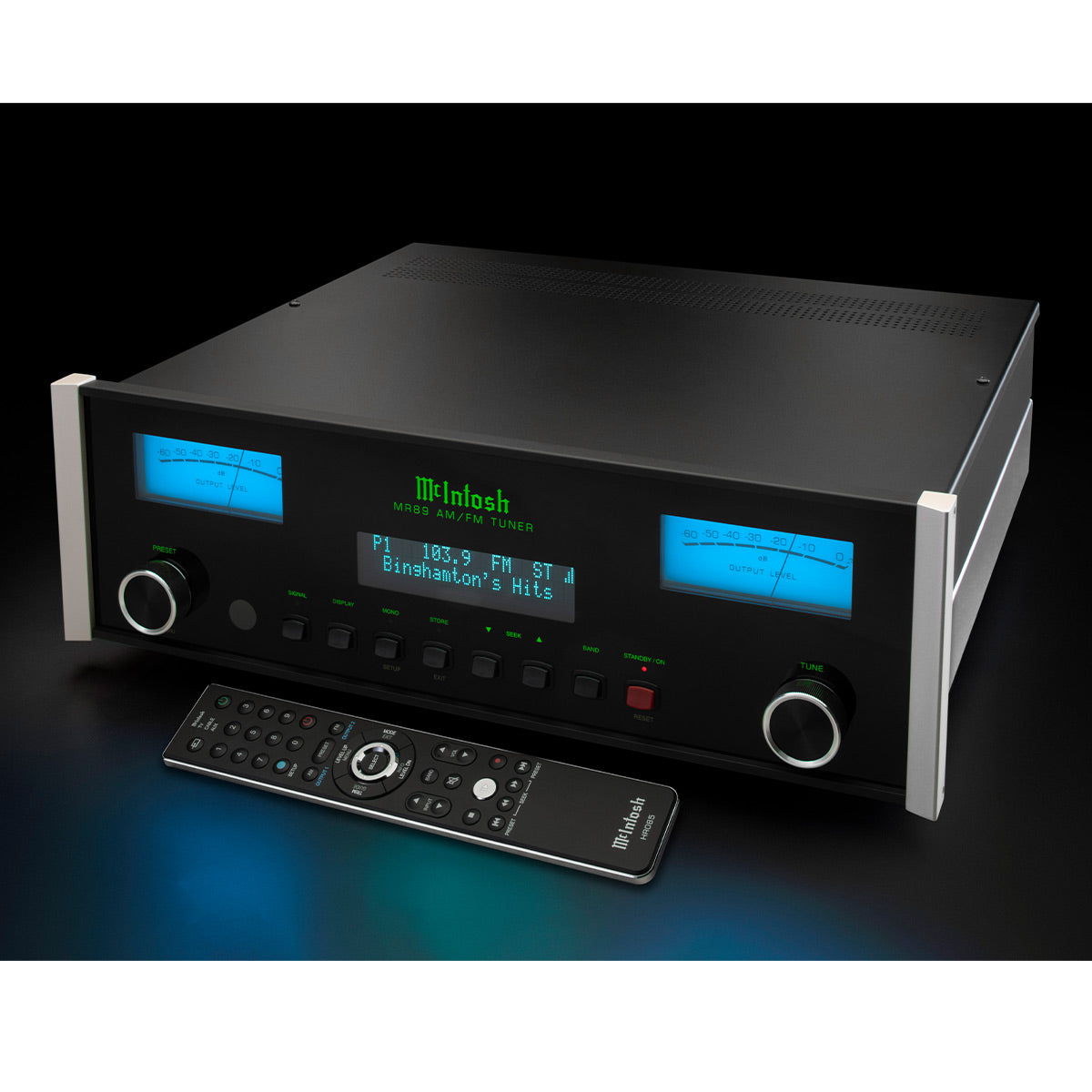

- HR085 Remote Control
- RAA2 AM Antenna
- Shielded Antenna Cable
- Power Cord
- Manual
- Warranty Info
