McIntosh MPC500 Power Controller

Regular price $3,000.00
Sale price $3,000.00 Regular price
Save $-3,000.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: MPC500 | UPC: 842548108455

Specifications

What's In The Box

Product Documents

Product Information

Model: MPC500 | UPC: 842548108455

Protecting your valuable audio equipment from power inconsistencies is crucial to maintaining performance and longevity. The McIntosh MPC500 Power Controller offers comprehensive surge protection, ensuring your system remains safe from electrical disturbances.

Features

  • Advanced Surge Protection
  • Secondary Surge Defense for Low Voltage Devices
  • Over/Under Voltage Protection
  • Customizable Receptacle Control
  • Real-Time Monitoring & Display

Comprehensive Surge Protection

The MPC500 safeguards your equipment against power line surges, such as those caused by lightning strikes, using a thermally protected metal-oxide varistor (TPMOV) for Line to Neutral protection. This advanced technology is safer than traditional MOVs, providing robust defense for your audio components.

Secondary Surge Defense

Beyond primary surge protection, the MPC500 shields low voltage devices from secondary surges and spikes that can occur after the initial event. It employs Gas Discharge Tubes (GDT), Positive Temperature Coefficient (PTC) thermistors, and Transient Voltage Suppression (TVS) components to protect your ethernet, coaxial, and other low voltage connections.

Voltage Monitoring and Control

Equipped with electromagnetic interference (EMI) filtering and over/under voltage protection, the MPC500 monitors your AC line. If voltage levels deviate from safe parameters, it automatically switches off the rear receptacles, preventing your connected devices from operating under harmful conditions.

Customizable Power Management

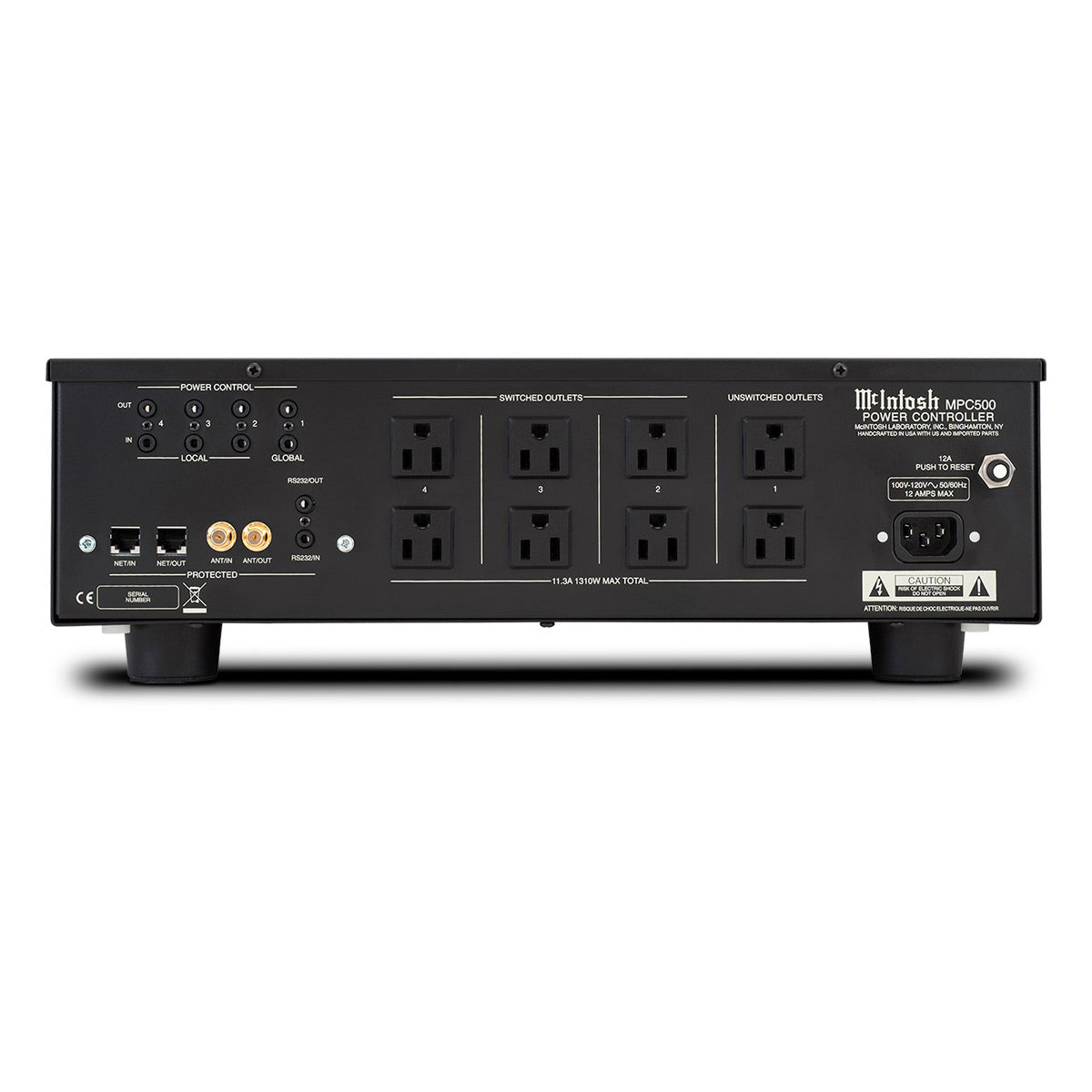

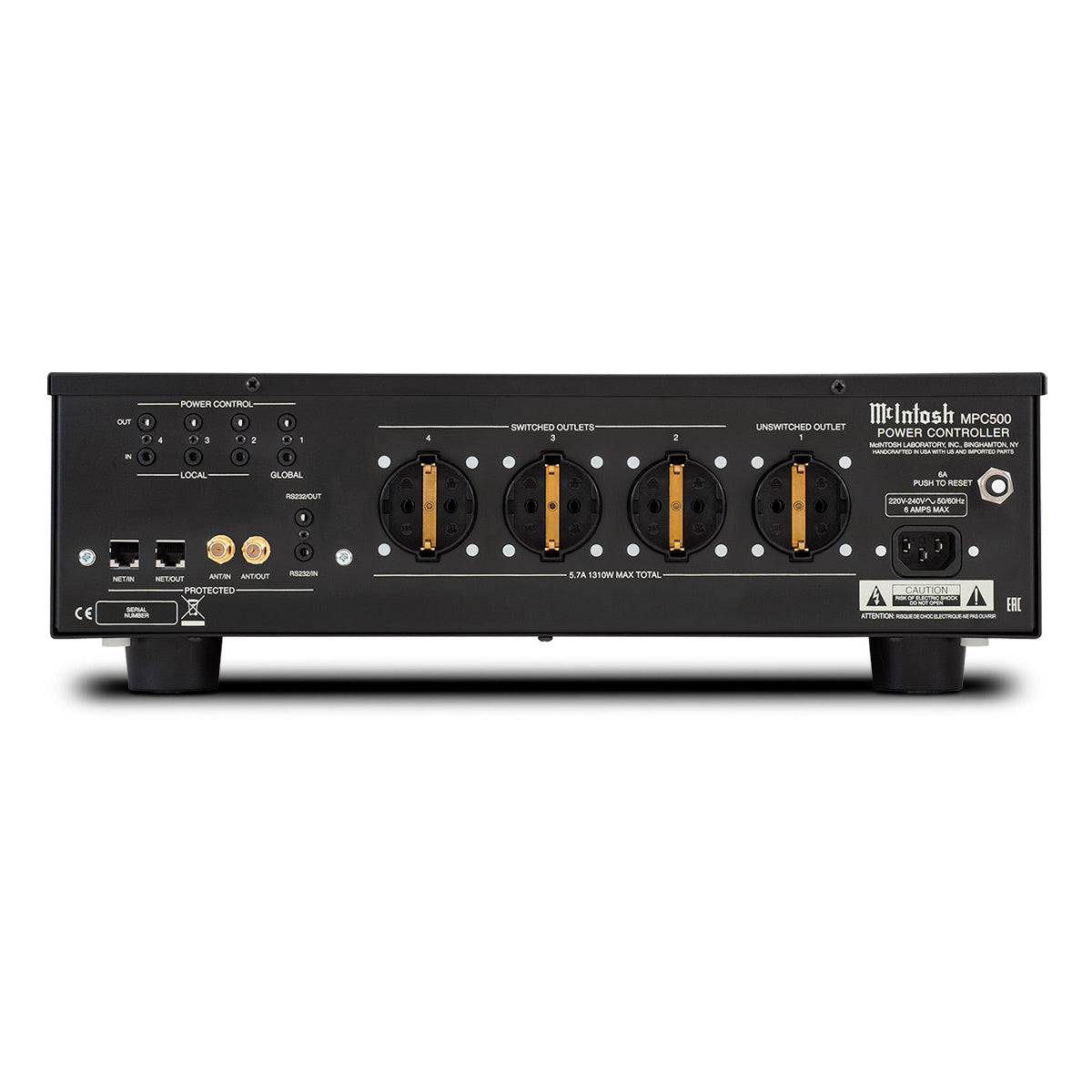

The MPC500 features either 8 Type B (NEMA 5-15R) or 4 Type F (CEE 7/3 or "Schuko") receptacles, depending on regional compatibility. You can configure the control of each receptacle to suit your preferences via the rear panel Power Control ports or through the front panel setup menus, offering tailored power management for your system.

User-Friendly Interface

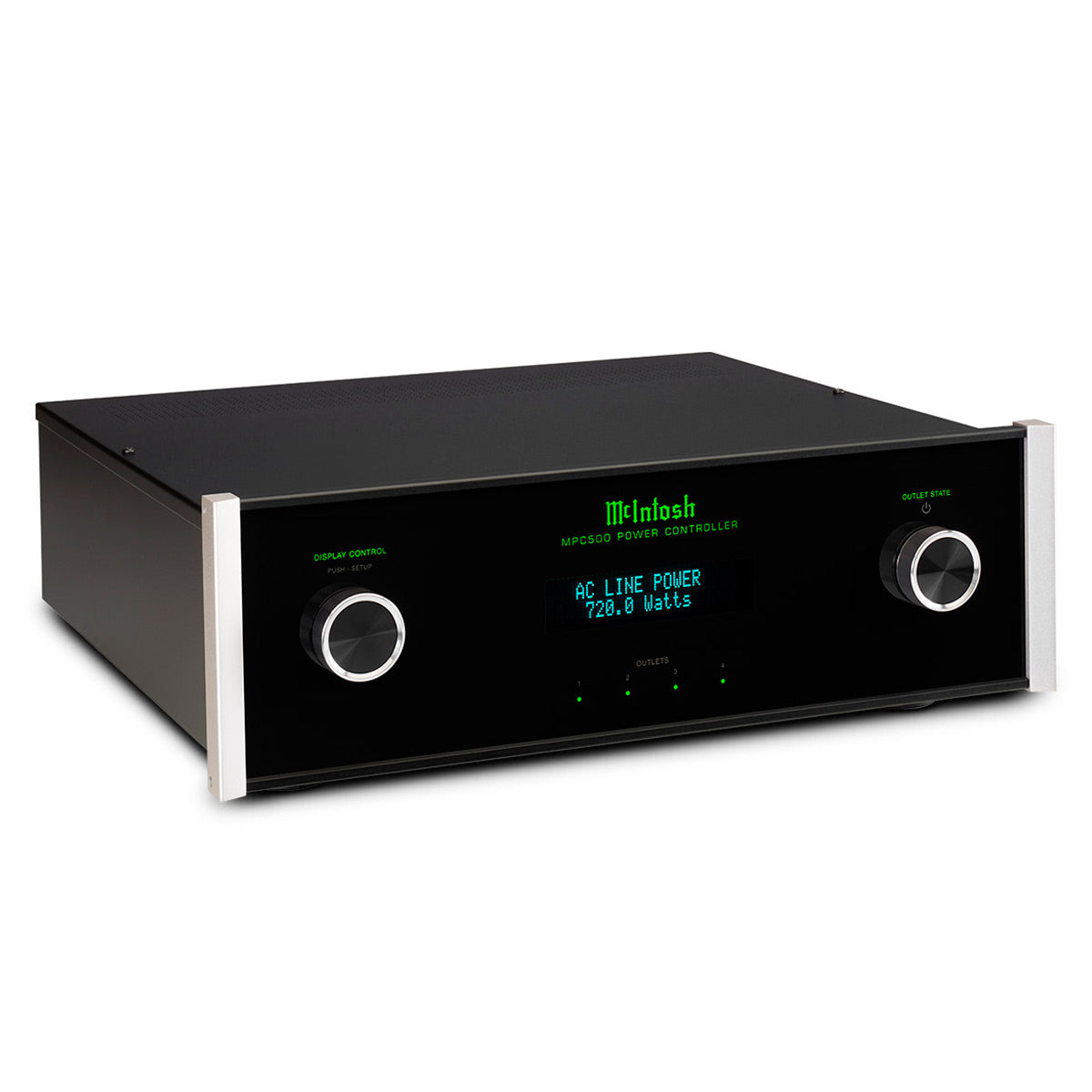

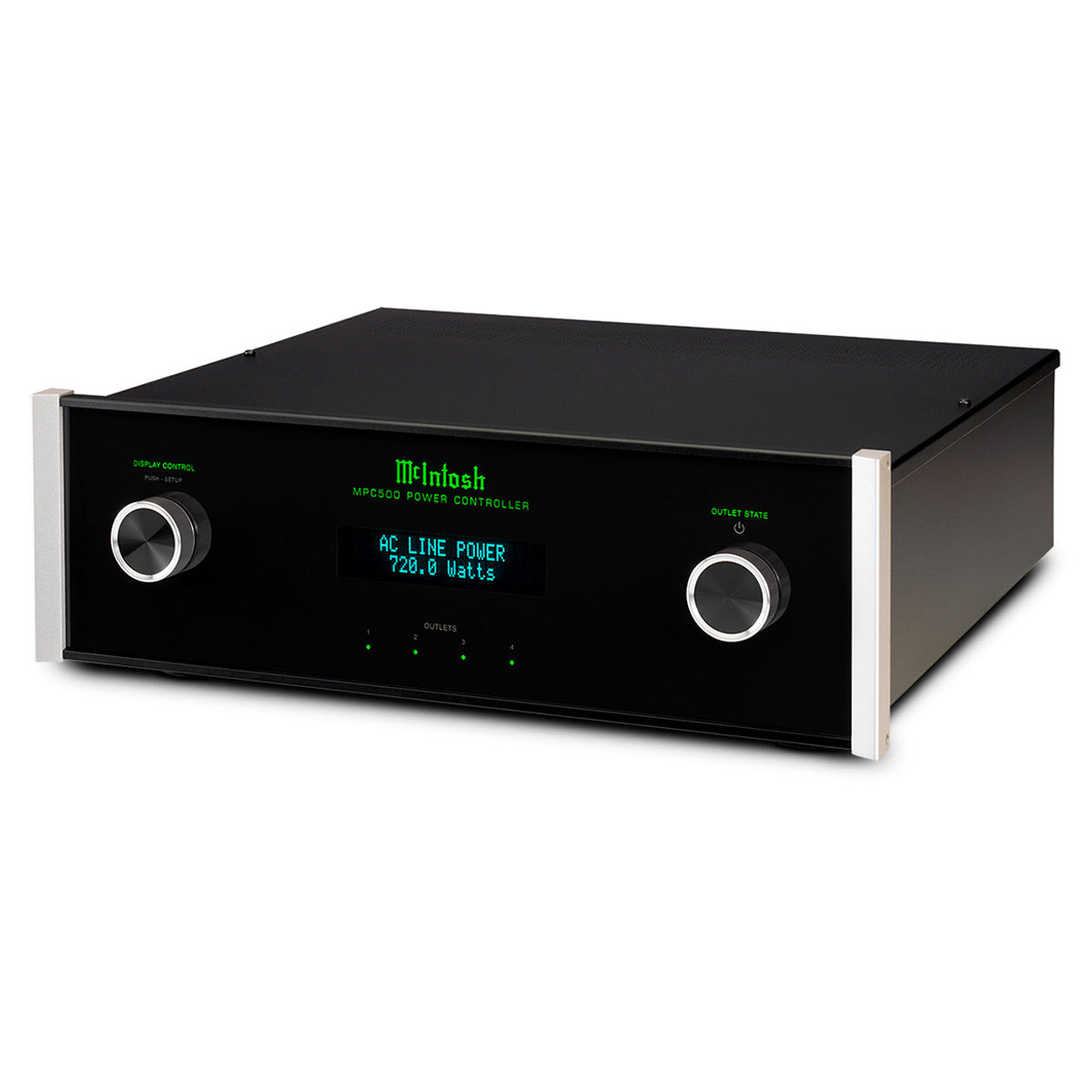

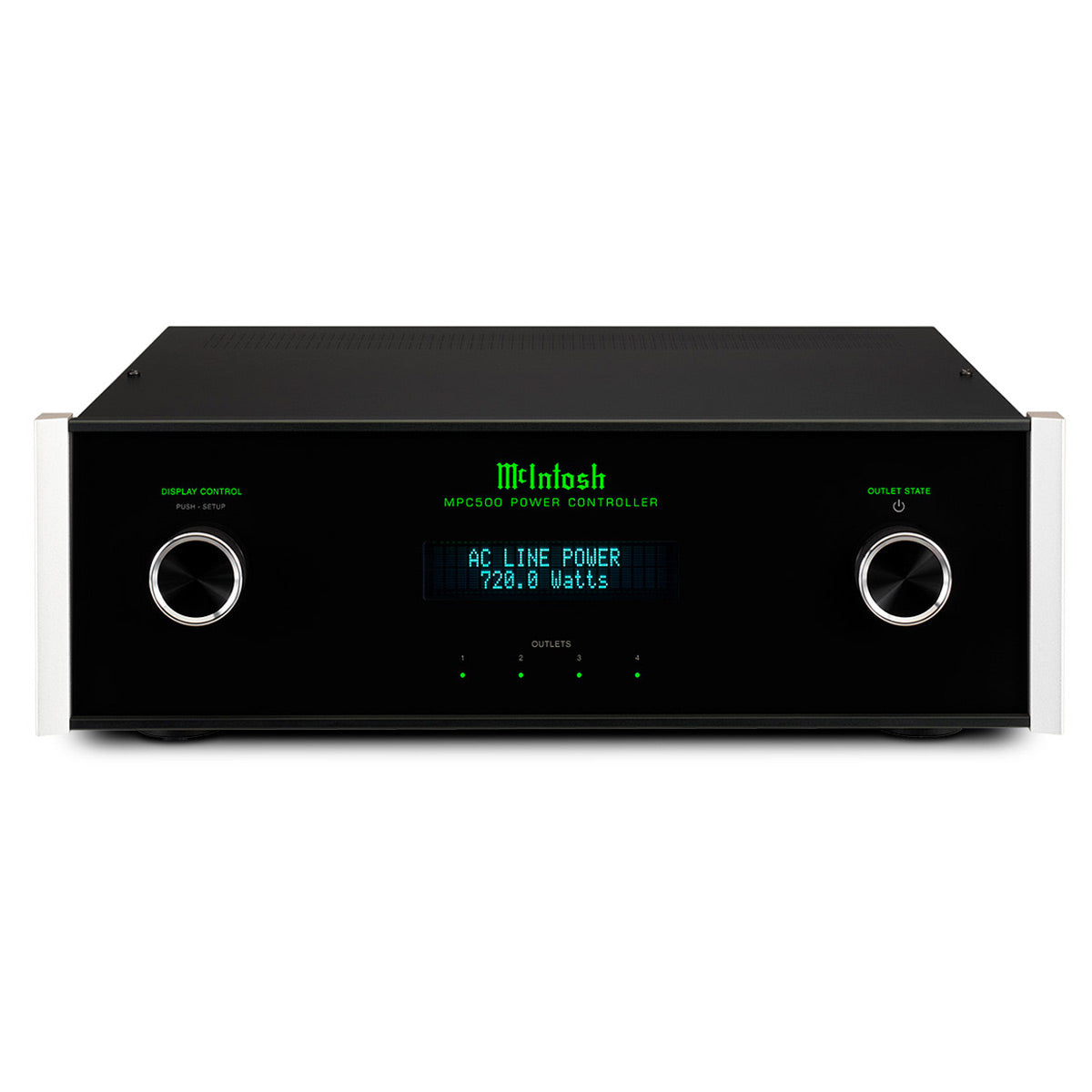

The front panel display provides real-time information, including input voltage, current draw through the receptacles, and total apparent power. This transparency allows you to monitor your system's power status easily, ensuring optimal performance.

Elegant Design

True to McIntosh's aesthetic, the MPC500 boasts a black glass front panel, illuminated logo, control knobs, and aluminum end caps. This timeless design complements any audio setup, combining functionality with elegance.

Specifications

  • Output voltage
    • Type B receptacles: 120V AC nominal
    • Type F receptacles: 240V AC nominal
  • Power requirement
    • With Type B receptacles
      • 120V, 50/60Hz
      • 12 amps (max)
      • 1440 watts (max)
    • With Type F receptacles
      • 240V, 50Hz
      • 6 amps (max)
      • 1440 watts (max)
  • AC power line protection: 3 thermally protected metal-oxide varistors
  • Surge suppression type
    • AC power line: 3 thermally protected metal-oxide varistors
    • Secondary surges: GDTs, PTC thermistors, TVS components
  • Number of receptacles
    • With Type B receptacles: 8
    • With Type F receptacles: 4
  • Number of always ON receptacles
    • With Type B receptacles: 2
    • With Type F receptacles: 1
  • Number of programmable receptacles
    • With Type B receptacles: 3 pairs
    • With Type F receptacles: 3
  • Dimensions (W x H x D): 17 1/2" x 6" x 19"
  • Weight: 18.5 lbs.

What's In The Box

  • MPC500 Power Controller
  • Power Cord
  • Manual
