McIntosh MP100 Phono Preamplifier

Regular price $2,000.00
Sale price $2,000.00 Regular price
Save $-2,000.00 (%)

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live


Product Information

Model: MP100P | UPC: 842548104075


What's In The Box

Product Documents

Product Information

Model: MP100P | UPC: 842548104075

MP100 Phono Preamplifier

The MP100 Phono Amplifier is the first dedicated phono preamplifier from McIntosh designed to help both new and experienced vinyl lovers get the most fidelity, performance, and – most importantly – enjoyment from their albums.

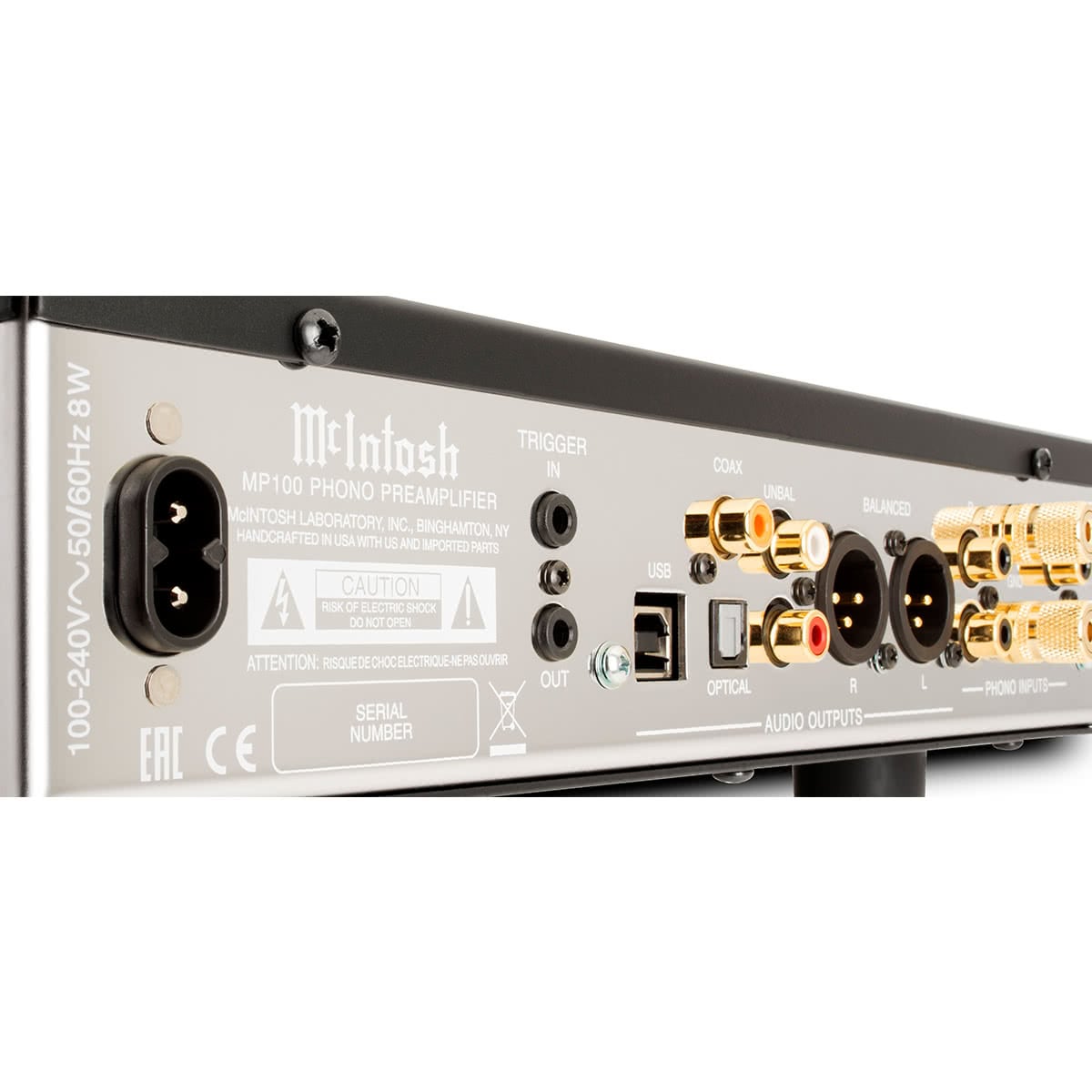

Like all McIntosh products, the MP100 is packed with features designed specifically for the vinyl lover including: Moving Coil and Moving Magnet inputs; Moving Coil and Moving Magnet adjustable loading (6 settings each); balanced and unbalanced analog outputs; optical, coax and USB digital outputs; and a Mono switch for when playing mono records to decrease noise and play the signal correctly.

There are many ways to integrate the MP100 into your audio system. If you’re new to vinyl and just building your system, it can become the main part of your setup. Or if you already have a system with an older preamp you don’t want to part with, the MP100 is an excellent way to add modern phono features. If you’ve got a home theater system and would like to add a turntable, the MP100 is an easy way to add full phono preamp capabilities without having to get a full-sized stereo preamp that would undoubtedly duplicate many of your home theater processor’s features.

While spinning vinyl on a turntable is a great and unique way to enjoy music, there’s no denying the convenience of having digital versions of the albums. When used with a properly configured conversion program, the MP100 can “rip” the records to a computer via USB to produce high quality digital files. The digital outputs are fixed at 24-bit/96kHz to capture the full dynamic range of a record while optimizing digital file size. If an album has a very loud section, the clipping indicator will alert you so you can lower the digital output in order to produce a distortion-free recording.



  • Total Harmonic Distortion: 0.05%
  • Frequency response: +0, -0.5dB from 20Hz to 20,000Hz - +0, -3dB from 15Hz to 100,000Hz
  • Maximum volts out (balanced/unbalanced): 16/8 V RMS
  • Phono voltage gain:
    • Moving magnet: 40dB
    • Moving coil: 60dB
  • High level voltage gain:
    • To main output: 15dB
    • To fixed output: 0dB
  • Signal to noise ratio:
    • Moving coil: 78dB
    • Moving magnet: 80dB
  • Maximum input signal:
    • Moving coil: 8mV
    • Moving magnet: 80mV
  • Sensitivity phono:
    • Moving coil: 1mV
    • Moving magnet: 10mV
  • Rated output: 2V balanced, 1V unbalanced
  • Output impedance: 200 ohms balanced, 100 ohms unbalanced


  • Outputs balanced: 1
  • Outputs unbalanced: 1
  • Phono moving coil input: 1
  • Phono moving magnet input: 1
  • Digital coaxial output: 1
  • Digital USB audio output: 1


  • Power control input: 1
  • Power control output: 1

Digital Audio Specifications

  • Digital output sample rate:
    • Optical: PCM - 24Bit - 96kHz
    • Coaxial: PCM - 24Bit - 96kHz
    • USB: PCM - 24Bit - 96kHz


  • Power consumption: 8 watts
  • Dimensions (W x H x D): 11.5" x 3.78" x 16.75"
  • Weight: 8.6 lbs.

What's In The Box

  • MP100 Phono Preamplifier
