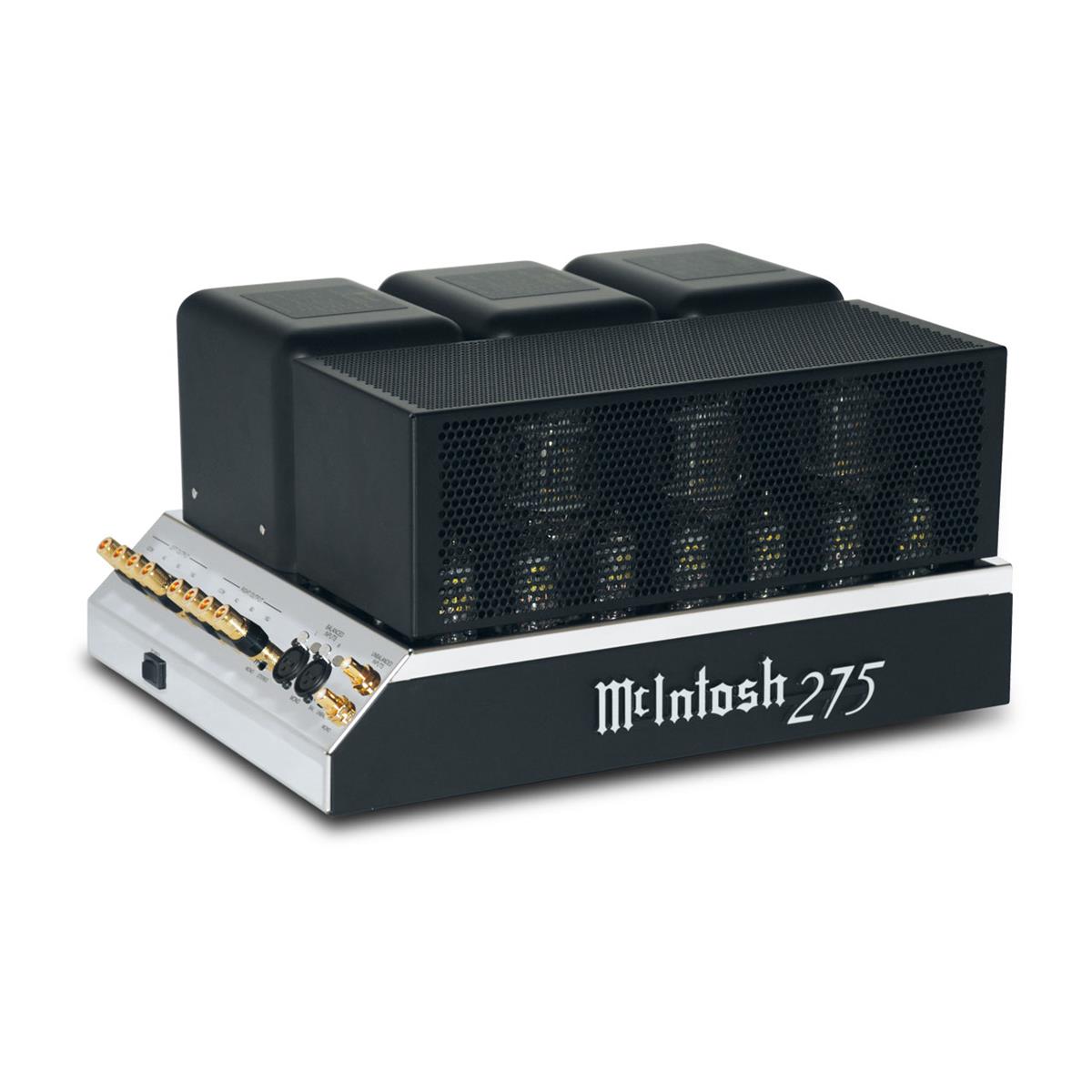

McIntosh MC275 2 Channel Vacuum Tube Power Amplifier

The McIntosh MC275B is a classic vacuum-tube stereo amplifier that delivers 75 W per channel (150 W mono) through patented Unity-Coupled transformers for stable performance across 4 Ω, 8 Ω, or 16 Ω speakers. It uses reliable KT88-based tubes for rich, warm analog sound, while balanced and unbalanced inputs plus Solid Cinch™ binding posts give flexible connectivity. Built-in protection via Sentry Monitor guards against overload and shorts, and the unit’s LED-illuminated status tubes and stainless-steel chassis embody the timeless McIntosh design aesthetic.

Features

• 75W Per Channel (Stereo) / 150W Mono Output
• Patented Unity Coupled Transformers for Full Power at 4/8/16Ω
• Vacuum-Tube Warmth & Classic KT88-Based Tube Design
• Balanced & Unbalanced Inputs Plus Solid Cinch Speaker Posts
• Sentry Monitor Protection Against Shorts & Overload

Design Evolution & Performance Enhancements

Now in its sixth generation, the MC275 has many subtle enhancements from the previous releases that have greatly improved performance. Combined with the widest bandwidth McIntosh output transformer design, the MC275 features tauter bass control and thermally quiet circuit design. The result is pure music. This vacuum tube power amplifier has all the features to meet the needs of today’s music enthusiast, while preserving the qualities that have made the MC275 the most revered McIntosh vacuum tube amplifier.

Power, Operating Modes, & Output Transformers

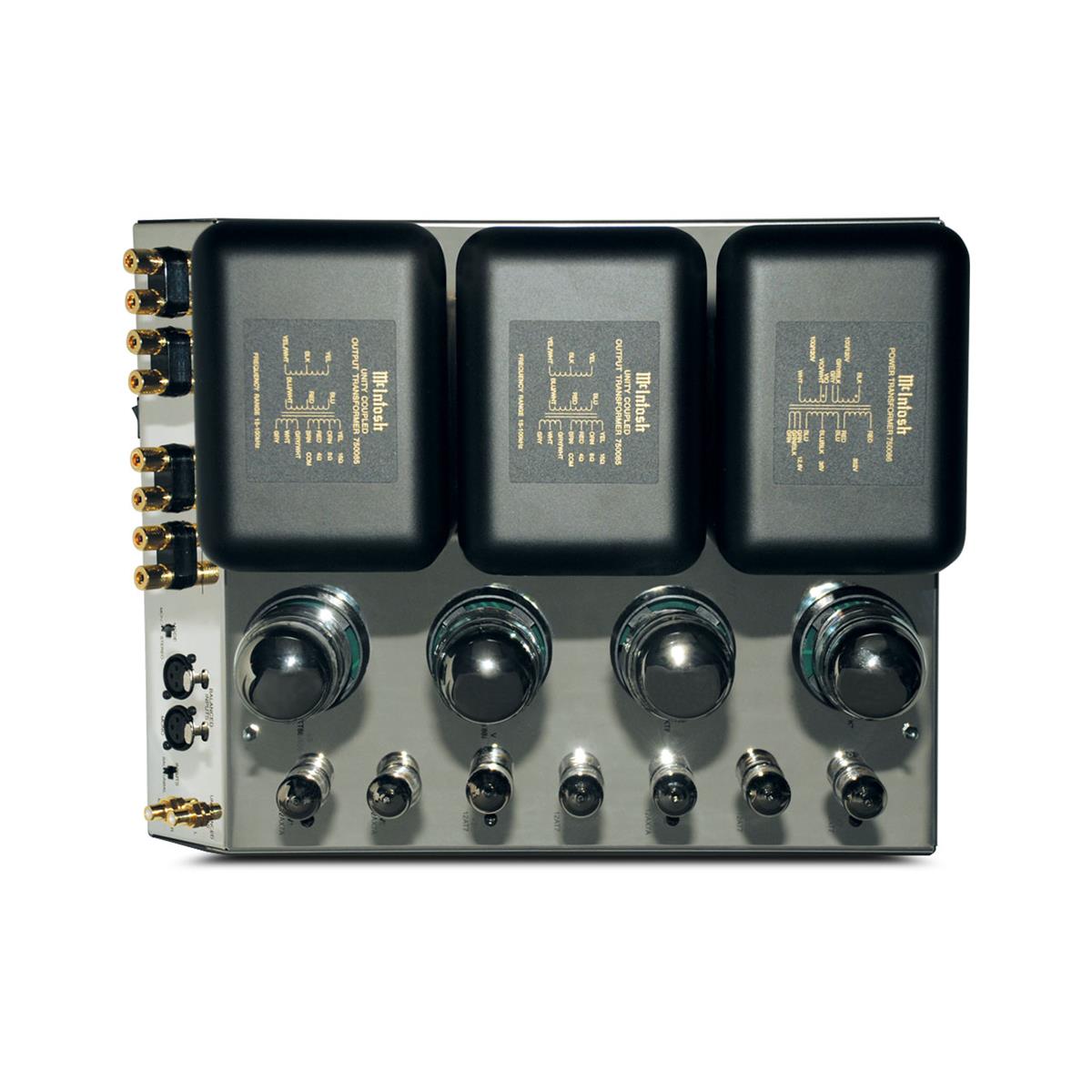

The MC275 can be used in either stereo or mono mode. When used as a stereo amplifier, it will deliver 75 Watts per channel to 4, 8 or 16 Ohm speakers; in mono mode it will output 150 Watts to a single speaker with an impedance of 2, 4 or 8 Ohms. The MC275's full power can be delivered regardless of the speaker impedance thanks to our patented Unity Coupled Circuit output transformer technology – the same technology McIntosh was founded on in 1949. The two Unity Coupled Circuit output transformers are located next to the power transformer.

Tube Complement, Protection, &Connectivity

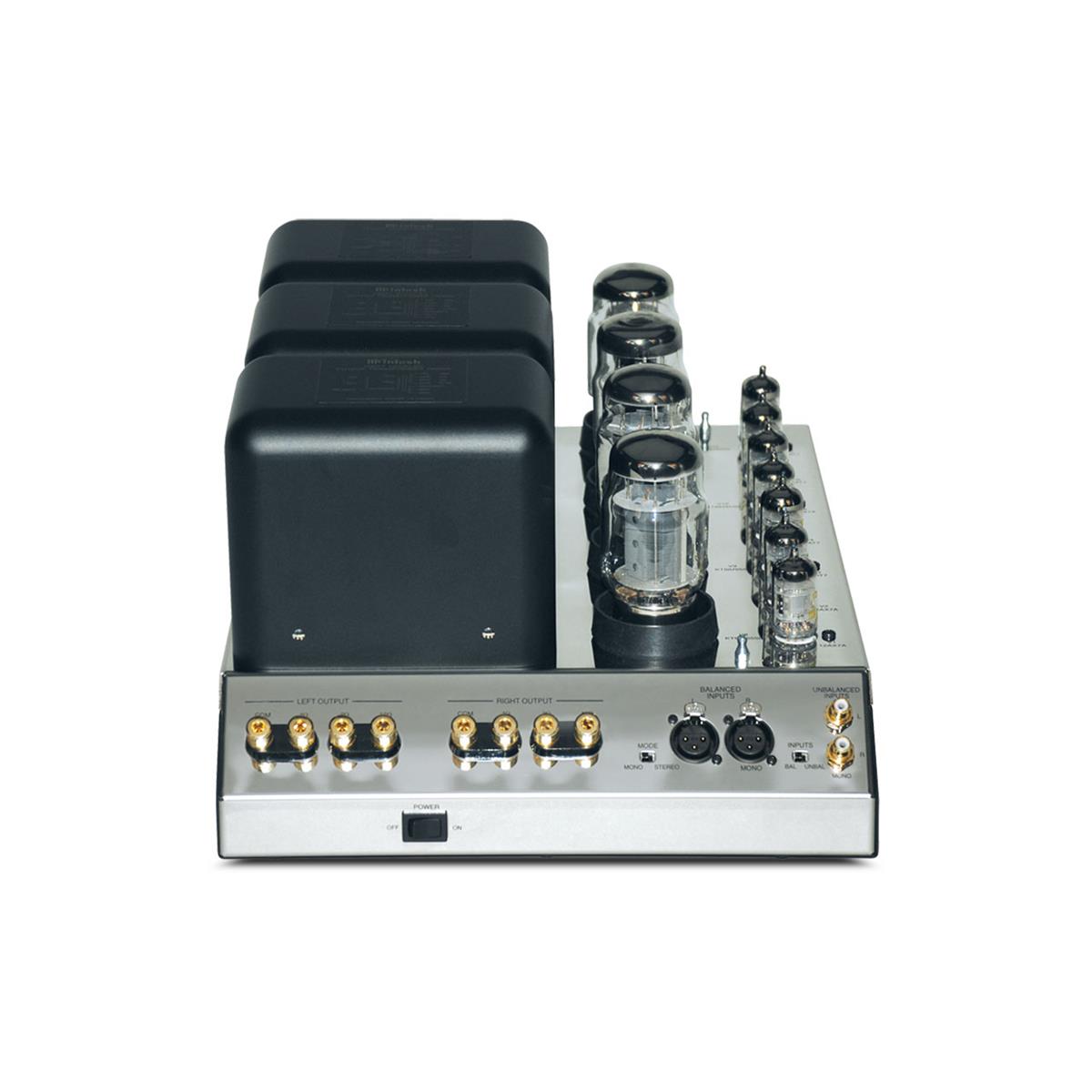

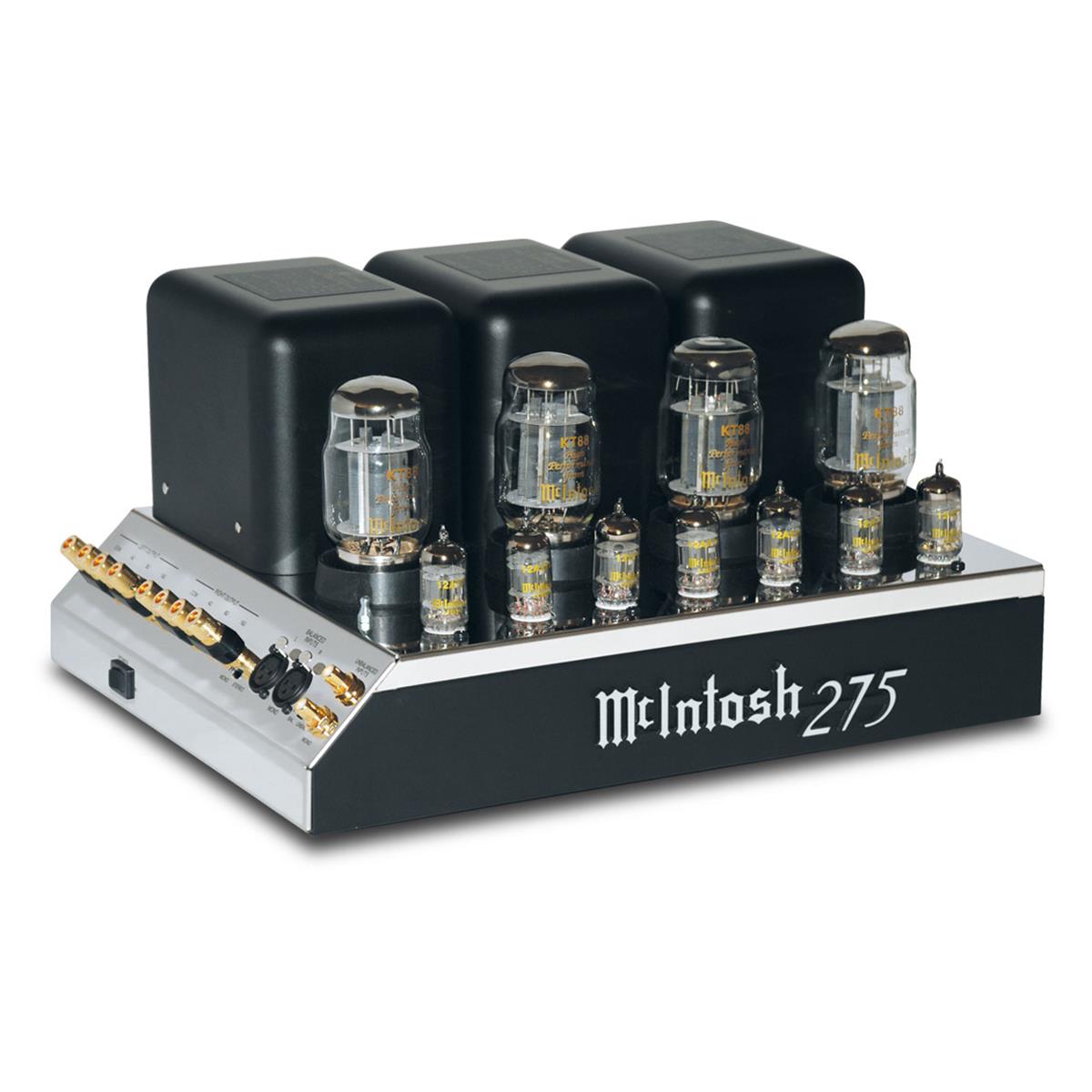

Four KT88 vacuum tubes power the output section while four 12AT7 and three 12AX7A smaller vacuum tubes are used for the Input, Voltage, and Driver amps. The MC275 offers both balanced and unbalanced inputs to connect to your preamplifier and home audio system. It comes with our fuse-less Sentry Monitor™ short-circuit protection that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal. McIntosh’s patented gold-plated Solid Cinch™ speaker binding posts assure the best connection to all speaker cables.
