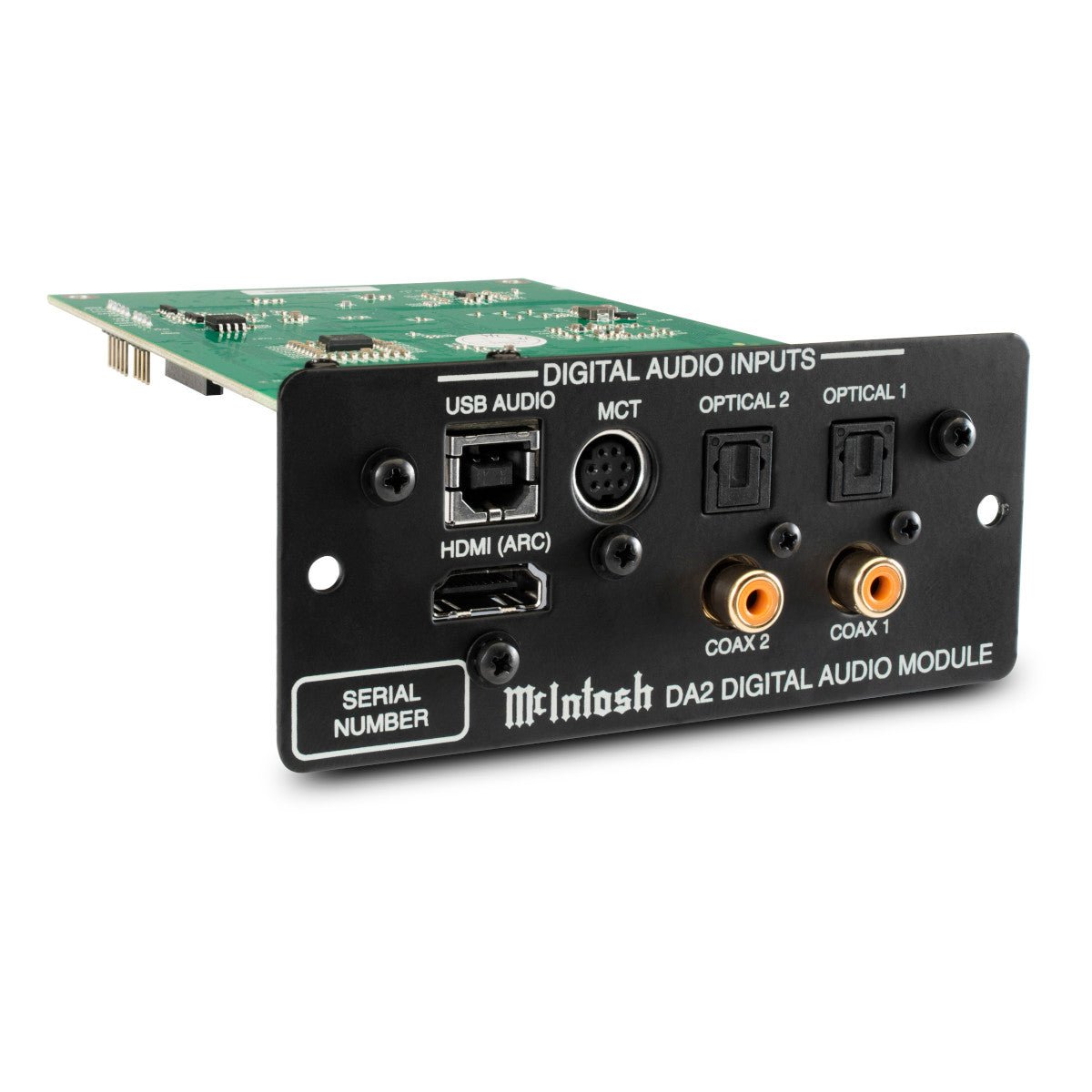

The DA2 Digital Audio Module is McIntosh's latest advancement in digital audio processing, designed to elevate your listening experience with enhanced features and superior sound quality. As an upgrade from the DA1 module, the DA2 offers expanded capabilities, making it a valuable addition for audiophiles seeking to keep their systems current with the latest digital audio technologies.
Features
- Advanced Digital-to-Analog Conversion
- Enhanced HDMI ARC Connectivity
- Expanded High-Resolution Audio Support
- Exclusive MCT Input for SACD Playback
Enhanced Connectivity Options
The DA2 includes all the connections found in the DA1—two coaxial, two optical, one USB, and one MCT input—and introduces a new audio-only HDMI Audio Return Channel (ARC) connection. This addition allows seamless integration with TVs that have a compatible HDMI (ARC) output, enabling you to enjoy your TV's audio through your high-quality home stereo system. The ARC functionality supports popular multi-channel audio formats from Dolby® and DTS®, converting them to 2-channel audio for optimal playback. With Consumer Electronics Control (CEC) enabled on both the DA2-equipped unit and your TV, you can control the power and volume of your McIntosh system using your TV remote.
Superior Digital-to-Analog Conversion

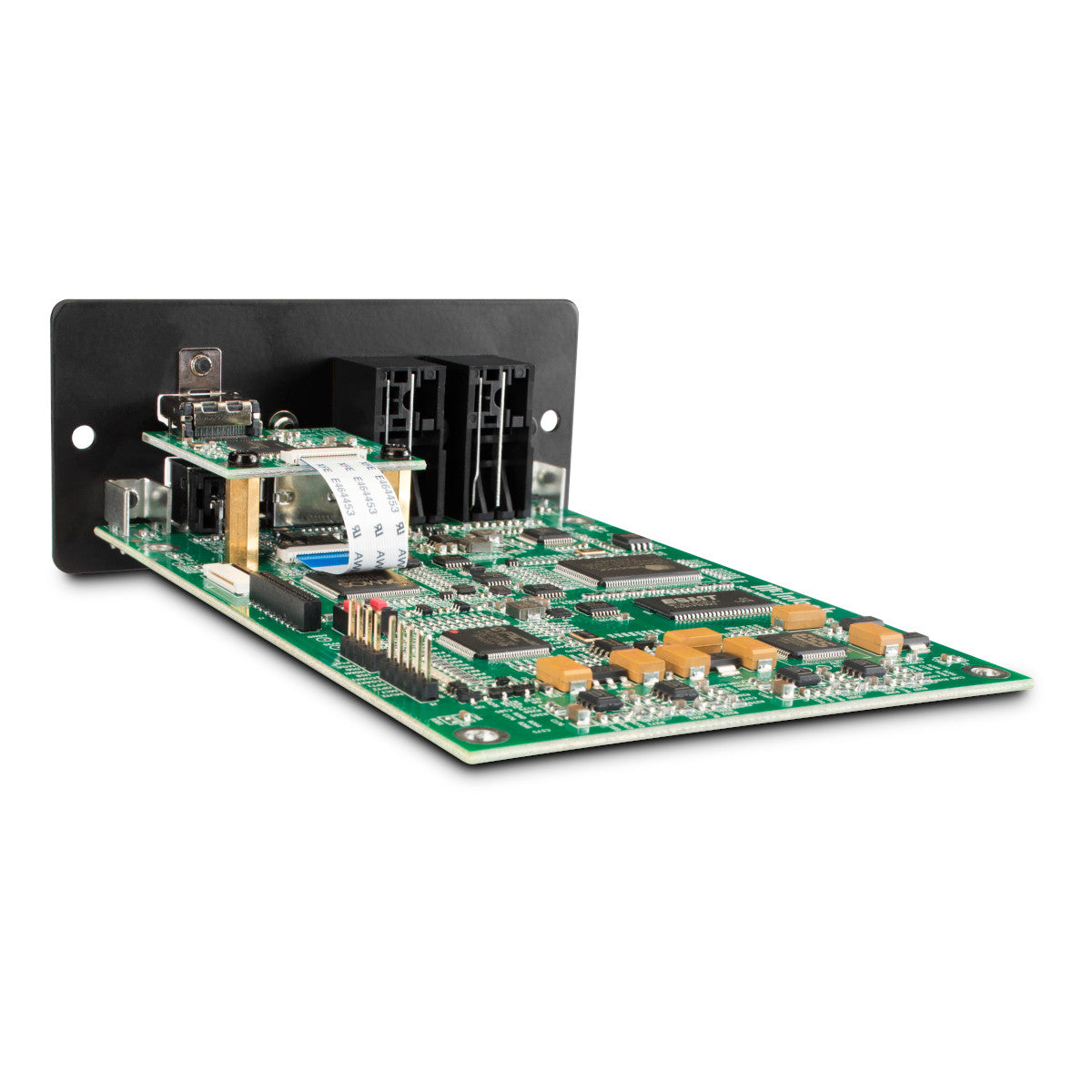

At the heart of the DA2 is a next-generation, Quad Balanced, 8-channel, 32-bit Digital-to-Analog Converter (DAC). This audiophile-grade DAC offers improved dynamic range and reduced total harmonic distortion compared to its predecessor, ensuring your digital music is reproduced with exceptional clarity and precision. The USB input now supports native playback of up to DSD512, surpassing the DA1's DSD256 limit, and also accommodates DXD up to 384kHz. Additionally, the coaxial and optical inputs can decode digital music up to 24-bit/192kHz, facilitating high-resolution audio playback.
Seamless Integration with SACD/CD Transports
The DA2 features a proprietary MCT input that provides a secure, custom DSD connection for high-definition audio playback from SACDs. When paired with McIntosh's MCT series of SACD/CD Transports, such as the MCT500 or MCT80, the DA2 ensures you experience the best possible sound quality from your SACD collection.
Upgrade Availability and Installation

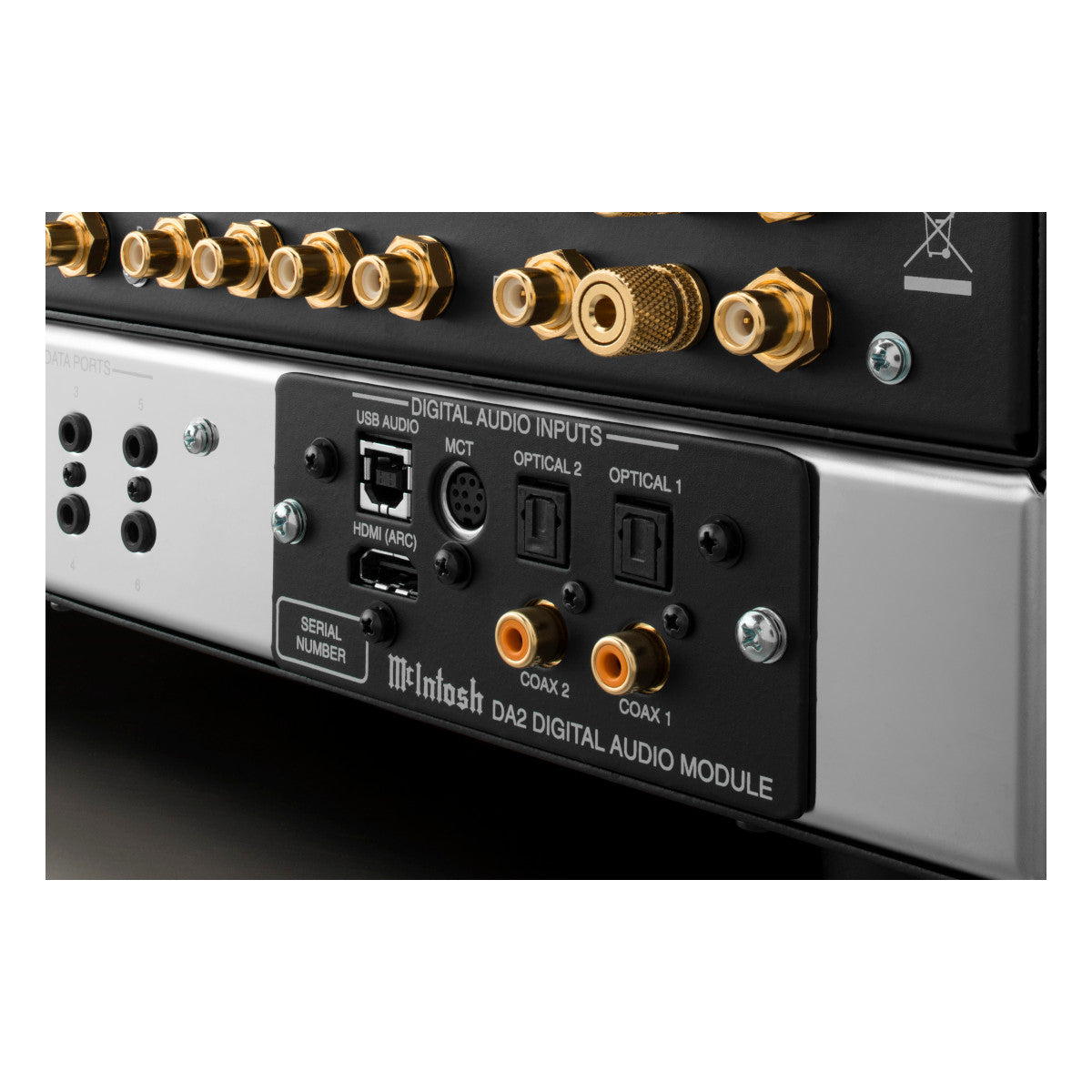

The DA2 comes standard in several McIntosh models, including the C53 and C2700 Preamplifiers, as well as the MA12000, MA9500, and MA8950 Integrated Amplifiers. For existing McIntosh units equipped with the DA1, an upgrade to the DA2 is available for models such as the MA9000, MA8900, MA7200, MA5300 Integrated Amplifiers; MAC7200 Receiver; and C49 Preamplifier. Please note that this upgrade is an optional, dealer-installed enhancement that must be performed by an Authorized McIntosh Dealer or Authorized McIntosh Service Agency to ensure optimal performance and to maintain warranty coverage.
