Marantz VS3003 3 in/1 out HDMI Switcher

$199.00 OR

In Stock

More Product Details

Our product experts are here to help

Questions? We're here to help.

Model: VS3003 UPC: 747192136147 Item: 177277

Product Information

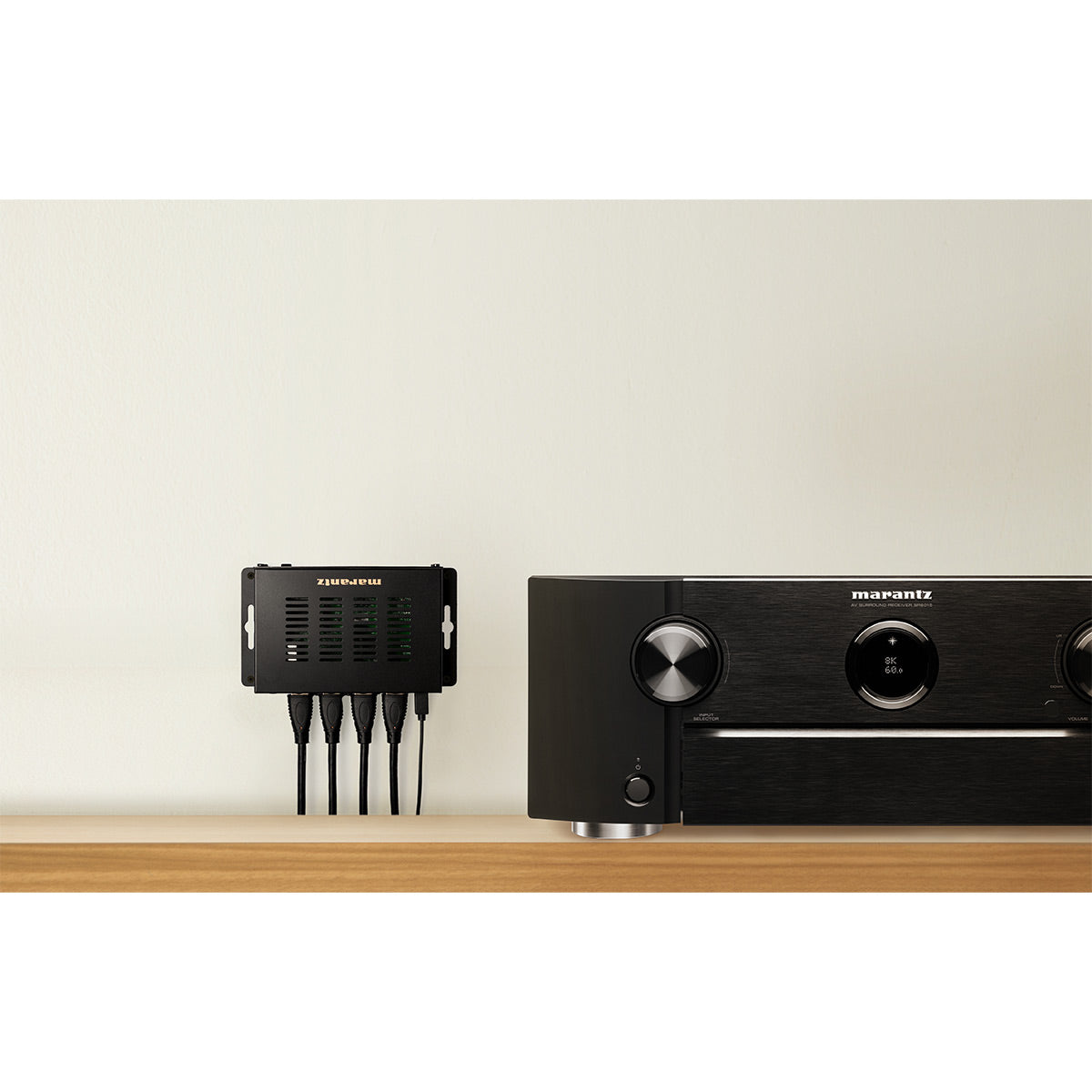

The Marantz VS3003 3 in / 1 out HDMI Switcher allows up to three 8K devices to connect to select Marantz 8K AV receivers. Comes compact sized for easy placement and includes a handy remote control. Supports automatic power-on and input switching by HDMI CEC for ease of use. The VS3003 has detachable wall-mount brackets for custom integration and IR repeater capability if both the AVR and the Switcher are in a rack system or behind a cabinet blocking IR reception. The unique “AVR Control” feature allows changing the HDMI Switcher’s inputs using the AVR’s IR remote.

Features:

  • Upgrade your AVR by expanding the number of 8K compatible inputs from 1 to 3
  • Prepare your current Marantz AV receiver for the growing number of 8K and 4K/120Hz devices by extending it to three connections for 8K-compatible source devices
  • Compact size and brushed aluminum faceplate to fit anywhere and look great
  • Wired IR remote repeater connectivity for when the system is not accessible (installed behind a cabinet, in the rack system, etc.)
  • Custom-install friendly so it can be mounted on a wall, in a rack system, or behind a cabinet
  • A detachable wall-mount bracket is included to allow mounting the HDMI Switcher on the wall

Connect Up to Three 8K Compatible Source Devices

The current generation of class-leading Marantz AV receivers come with one dedicated HDMI input for 8K or 4K/120Hz source devices. Prepare for the growing number of such devices by upgrading your beloved AV receiver with the Marantz VS3003. It allows up to three 8K devices to be connected to Marantz 8K AV receivers, tripling the input capability.

Compact Size and Elegant Look

No bigger than a Blu-ray case in width and depth, the VS3003 can fit just about anywhere. It also features a premium look thanks to a brushed black Aluminum front plate.

Total Ease-of-Use

Use HDMI-CEC to power on and switch inputs automatically on both the HDMI Switcher and the AV receiver. The unique “AVR Control” feature allows switching the VS3003’s inputs using the AVR’s IR remote.

Custom-Install Friendly

A wall-mount bracket is included to allow mounting the HDMI Switcher on a wall. It also features wired IR remote repeater connectivity in case the VS3003 and AVR are in a rack system or behind a cabinet blocking IR reception.

What's in the Box

What's in the Box

  • HDMI switcher (VS3003)
  • Quick Start Guide
  • Safety Instructions
  • Cautions on Using Batteries
  • Remote control unit (RC046, with battery (CR2032))
  • HDMI cable (40 Gpbs, approx. 1.5 m / 4'10")
  • Power supply cable (USB type, Approx. 1.5 m / 4'10")
  • AC adapter
  • AC adapter plugs (5 types)
  • Wall-mount bracket
  • Mounting screws (4 pieces)

Reviews

We'd love to hear your thoughts! Please leave a review.

Customer Reviews for Marantz VS3003 3 in/1 out HDMI Switcher

3.3 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
2
0
0
1
1
Rated 5 out of 5
SR6015 Finally Works!
I had all but given up hope on my investment in the SR6015 lasting for a good number of years to come with the heartache around the HDMI 2.1 port issues. Marantz made good on delivering the SPK618 adapter after I submitted a request for one right when they were made available, but that did not work in making my Nvidia RTX 3090 work completely through the receiver. I was able to adjust settings to where I wanted them to be, but the adapter introduced random awful audio drops, making it completely useless.

When I saw World Wide Stereo, a reliable retailer, make the VS3003 available stateside, I figured one last try in the investment of the receiver was worth a shot. Because the SPK618 didn't work, and this HDMI switcher is supposed to be built around the same chip as the adapter, I was indeed skeptical, but I decided on giving it a shot.

After connecting everything together, I started up the PC and went immediately to the Nvidia Control Panel to toggle all of the settings (seen in the attached photo) to where the RTX 3090 would shine through HDMI 2.1. First test, playing some music. No audio drops were happening, but I was still skeptical. After playing an entire album and experiencing no audio issues, the excitement started to run high. Gaming was the next test. Sure enough, I cranked up some AAA gaming titles to their max settings at 4K resolution and 120hz refresh. It just WORKED. HDR enabled in Windows 11 (tested in Windows 10, too), and in games that support HDR, a thing of beauty! I've been doing these same tests for the last couple of weeks, and now I can say with confidence that this switcher by Marantz IS THE CURE to their HDMI 2.1 snafu.

Is it a shame that we have to pay for it rather than Marantz sending it to all impacted owners? Sure, but a small additional investment that cures the ailments, expands your HDMI 2.1 inputs to three instead of one, and now sets your XX15 receiver series investment for a good number of years to come is totally worth it.

So if you've been on the fence about buying this switcher, take my own experience as your confidence to make the investment. The XX15 series of receivers do outstanding in the audio department, and now we owners can have some peace of mind to keep them for years to come.

Thank you World Wide Stereo for the outstanding customer service and for bringing this switcher to U.S. buyers!
Nvidia Control Panel resolution settings
Nvidia Control Panel resolution settings
April 2, 2022
Rated 1 out of 5
World Wide Stereo is great; Sound United is not.
HDMI 2.1 has been a wild ride. I was an early adopter and purchased Marantz’s NR1711 HDMI 2.1 receiver, accepting that I would only get a single HDMI 2.1 input given the early state of the technology.

It turned out, of course, that the NR1711 and all of Sound United’s HDMI 2.1 receivers would black-screen if you actually attempted to use the promised 48Gbps bandwidth of the HDMI 2.1 port. About a year later, Sound United announced their “solution”—an additional box, with a separate power supply, lying between the input and the receiver, which “solved” the problem by downgrading the bandwidth of the HDMI 2.1 signal. Shortly thereafter, they announced that new receiver units would include a fixed HDMI 2.1 chip, and I was lucky enough to exchange my original receiver for the fixed version and finally use the HDMI 2.1 features after a year of twiddling my thumbs.

I eventually ended up wanting additional HDMI 2.1 inputs, and waited patiently through the months between the announcement of the VS3003 to its availability in the USA. While the VS3003 was yet another box to add to what is supposed to be a slimline receiver, I accepted it based on Marantz seemingly promising that the HDMI switcher could be seamlessly controlled via the AVR controls, allowing me to hide the switcher in my media cabinet.

I was disappointed, mostly in my own research, when I received the VS3003 and discovered that it requires line of sight to the AVR remote for the promised integration to work, rather than using HDMI Control or CEC as I had assumed, forcing me to have the VS3003 and it’s cables crammed onto my already crowded media stand.

I decided I could work around this, but then discovered a more pressing issue. The micro-USB port used to power the VS3003 was faulty, and the device’s power would not come on or flicker on and off rapidly unless the micro-USB cable was inserted at a very particular and delicate angle that would be undone with the slightest vibration, making the unit basically unusable. I contacted WWS and since it had been too long since I ordered the unit originally, I could not exchange it. I was pointed to Marantz customer support, who suggested several troubleshooting methods I had already taken and stopped responding when I asked them to honor their warranty and fix or replace my unit.

I understand that there are chip shortages, and that HDMI 2.1 is still somewhat bleeding edge, but for the price I have been sorely disappointed in Sound United’s product quality and customer service.
March 23, 2022
Rated 2 out of 5
Some issues, not as advertised
It works partially, I have a Marantz sr7015 and Xbox series x and Ps5 connected to it. The receiver gets confused and leaves the tv showing no signal. Tried using AVR control and cec hdmi control and it doesn’t work smoothly. Maybe with an update the issues are solved. The tv is a Sony XR 90j. When it works it does display 4K 120hz and VRR
March 17, 2022
Purchased
11 months ago
Rated 5 out of 5
Everything I was Hopping for so Far
The Fact that Marantz did this for us is Amazing! After investing heavily on SR8015, this ensures that the investment continues giving, even when I upgrade to 8K in the future. From a sound perspective now I can let the receiver do its job and process content from PS5 and XSX accordingly, I do not have to rely on e-ARC anymore. To top it all now I can also enjoy DTS-X from the Xbox. Lastly and yes it gives me all the options when it comes to visual quality and enhancements like VRR. 120hz, 2.1.

Highly recommended!!!
January 7, 2022
Purchased
1 year ago
