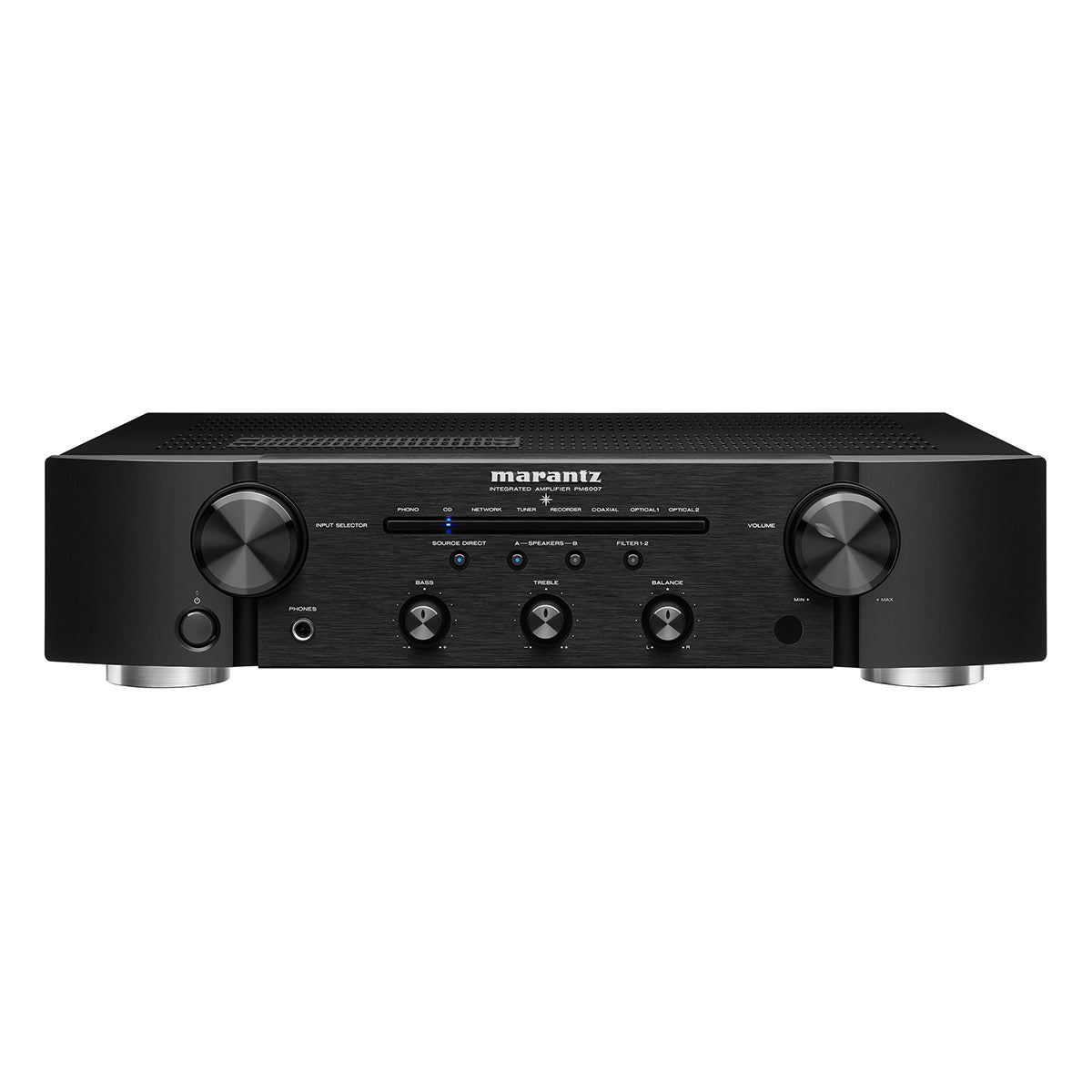

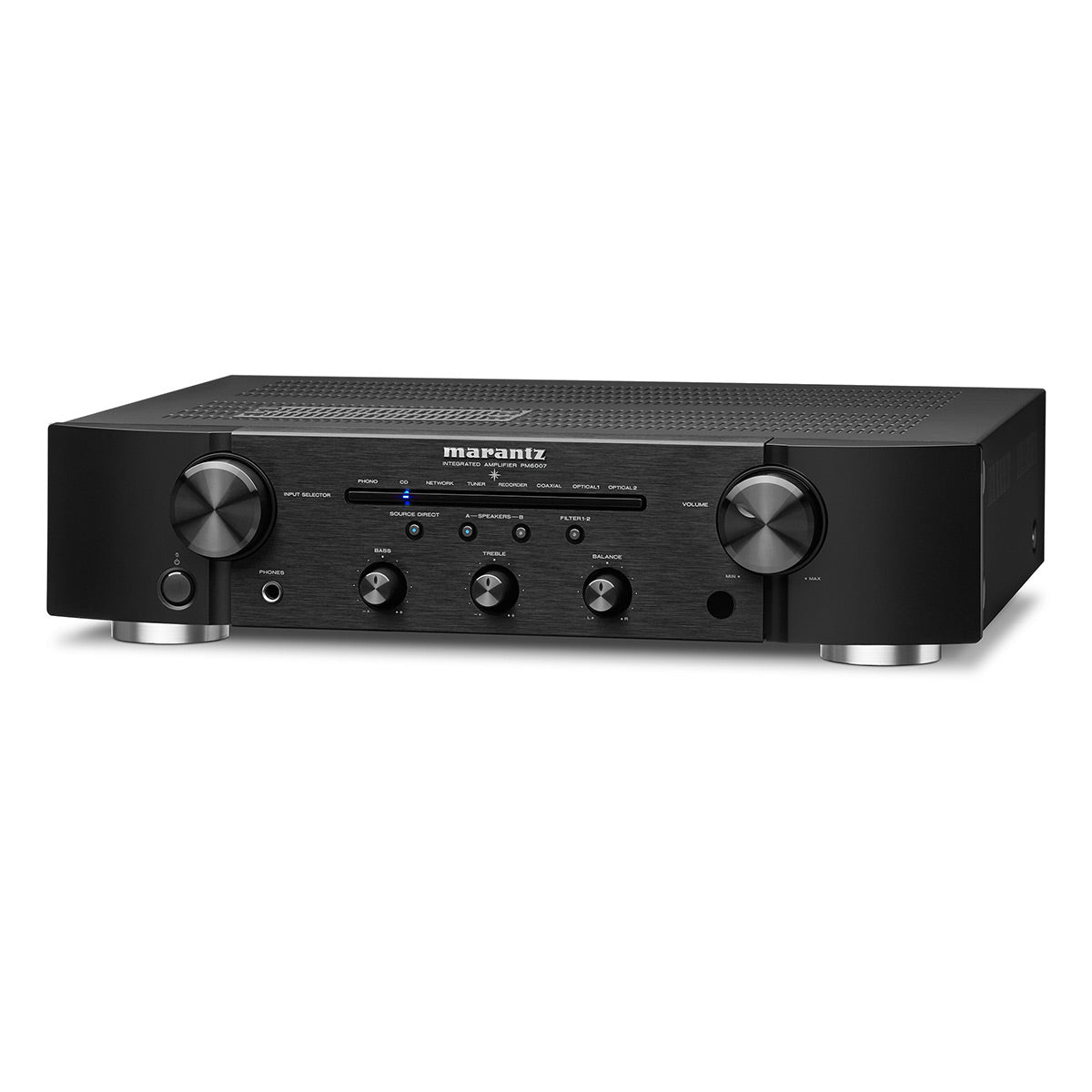

Marantz PM6007 Integrated Amplifier with Digital Connectivity

Regular price $699.00
Sale price $699.00 Regular price
Save $-699.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: PM6007 | UPC: 699927111953

Specifications

What's In The Box

Product Information

Model: PM6007 | UPC: 699927111953

The PM6007 delivers Marantz’s most musical sound and is an ideal choice for those ready to take the next step in their 2-channel Hi-Fi system. Powered by a Toroidal power transformer and customized block capacitors, the PM6007 integrated amplifier delivers 45 watts (8ohm, 20Hz-20kHz). You can easily connect both analog and digital sources or connect your turntable to the built-in phono MM pre-amp with FET input.

Features

  • The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz)
  • Experience Hi-Res audio files exactly as intended through the following gold-plated inputs: 5 analog inputs, one coaxial input, and two optical digital inputs
  • Newly updated, high-quality DAC AK4490 offers a cleaner sound for your enjoyment
  • Digital filter modes for Optical/Coaxial input
  • A fully-shielded DAC unit, copper screws, and the rigid feet provide a true-to performance sound
  • Marantz proprietary HDAM-SA3 circuit
  • Advanced Thermal Compensation
  • Customized components for a more refined sound
  • Integrated phono input

Current Feedback Amplifier

The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007's amplifier holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.

Reference Quality D/A Conversion for Digital Input

The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.

High Current Power Supply

The power supply supports high current, high-speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provides a wide dynamic range and low impedance drive capability.

Toroidal Transformer

A Toroidal Transformer has several advantages over a normal EI core transformer. The highly efficient design delivers more power compared to the same size EI core transformer. In addition, the shape of the Toroidal Transformer delivers low electromagnetic radiation and mechanical vibration for better sound quality.

Marantz HDAM-SA3 Technology

Marantz has developed their own discrete circuit boards to replace standard IC's. These HDAM's (Hyper Dynamic Amplifier Module) consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-amps, but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the PM6007, the HDAM-SA3 circuit improves on its previous module and the idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.

Reference Quality D/A Conversion for Digital Input

The PM6007 features a new Hi-Res D/A conversion. It is equipped with the reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with Hi-Res audio file types.

Expanded Connectivity for Digital Inputs (2 Optical, 1 Coax) with Hi-Res Audio Support

One Coaxial digital and two Optical digital inputs are now available to connect digital devices and play back Hi-Res audio (up to 192-kHz/24-bit PCM) through the PM6007's advanced audio circuitry. The complete digital section is fully shielded by an extra metal housing unit to ensure that the digital stage has no effect on the analog signal.

Digital Filter for Optical/Coaxial input

The PM6007 introduces a new digital filter for Optical and Coaxial inputs. This two-mode filter (Filter1/Filter2) allows optimized reproduction of digital music content using the new AK4490 D/A converter to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging and Filter 2 is a sharp roll-off filter for more precise imaging reproduction.

Subwoofer Output

The PM6007 supports an optional external subwoofer with a fixed low pass cut off frequency at 150Hz. Enjoy accurate bass with no audible peaks or dips, no matter where you place your subwoofer.

Improved Integrated Phono Input

Marantz integrated amplifiers have historically featured high-quality phono stages. The PM6007 remains faithful to that legacy, leveraging the newly designed circuit introduced with the PM7000N — one that integrates a FET (field-effect transistors) in the input stage. This technology delivers high input impedance, eliminates the need for AC coupling capacitors, simplifies the signal path, and lowers distortion and noise which vastly the overall signal purity.

Audio-Grade Sound Parts

Marantz maintains a steadfast reputation for choosing the best possible components for its Hi-Fi products, and the PM6007 is built with that same performance-first Hi-Fi approach. Marantz engineers selected and improved the PM6007 versus the previous PM6006 through extensive listening in dedicated Marantz facilities in Europe and Japan using Hi-Fi tuned sound parts. For example, increasing the size of the power supply capacitors by 20% improved stability during high demand listening sessions.

The Most Musical Sound

Engineered and extensively tuned by a team drawing on more than 65 years of Hi-Fi expertise, the PM6007 provides exceptional performance for your audio collection. Whether digital or analog, enjoy the most musical sound from any source.

Specifications

Features

  • Channels: 2
  • Current Feedback Topology: Yes
  • Full balanced circuitry architecture: No
  • Double Mono Power Amp construction: No
  • Phono EQ
    • Standard: Yes
    • Marantz Musical: No
    • Marantz Musical Premium: No
  • Digital in
    • USB-B: No
    • Optical: 2
    • Coaxial: 1
    • USB-A: No
  • Sample Rate digital In: 192 kHz / 24-bit
  • USB-A: DSD / WAV / FLAC / AIFF / ALAC: No
  • USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6: No
  • USB-B PCM sample rate: No
  • DAC chip: AK4490
  • Asynchronous mode rear USB: No
  • Bit-perfect transmission: No
  • Ground isolator for DAC Mode operation: No
  • Tuner: FM / AM Bluetooth / aptX / NFC: No
  • Streaming audio from PC: No
  • Wi-Fi / Wired LAN: No
  • Internet radio: No
  • AirPlay 2: No
  • Roon Tested: No
  • Spotify Connect / Tidal / Deezer / others: No
  • Amazon Prime Music / Pandora: No
  • HEOS Multiroom and Streaming: No
  • Voice Control - Works with Amazon Alexa: No
  • Voice Control - Google Assist / Apple Siri: No
  • Voice Control - Microphone built-in: No
  • DSD-Audio network streaming: No
  • Lossy formats: MP3 / WMA / AAC: No
  • Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF: No
  • Gapless Playback: No
  • Remote APP: iDevice / Android: No
  • Analog Mode: No
  • HDAM version: SA3
  • Power Transformer
    • Toroidal: Yes
    • El: No
  • High-Grade Audio Components: Yes
  • Customized Components: Yes
  • Symmetric PCB Layout: No
  • Aluminum extrusion heat sink: Yes
  • Copper plated chassis: No
  • Tri-Tone Control (Bass / Mid / Treble): No
  • Balance: Yes
  • Bass: Yes
  • Treble: Yes
  • Loudness: No

Other

  • Marantz Musical Digital Filtering: Yes
  • Linear Drive Power Supply: Yes
  • Linear volume control: Yes
  • BI-AMP and Multichannel option Shottky diodes: Yes
  • Input buffer amp
    • All inputs: No
    • CD only: No
  • System block shielding
    • Copper: No
    • Metal: No
    • None: Yes
  • Double Layer Bottom Plate: No
  • Low Noise OLED display: No
  • Low noise LCD display: No
  • Source Direct: Yes
  • Power Amp Direct: No
  • 5mm aluminum top plate: No

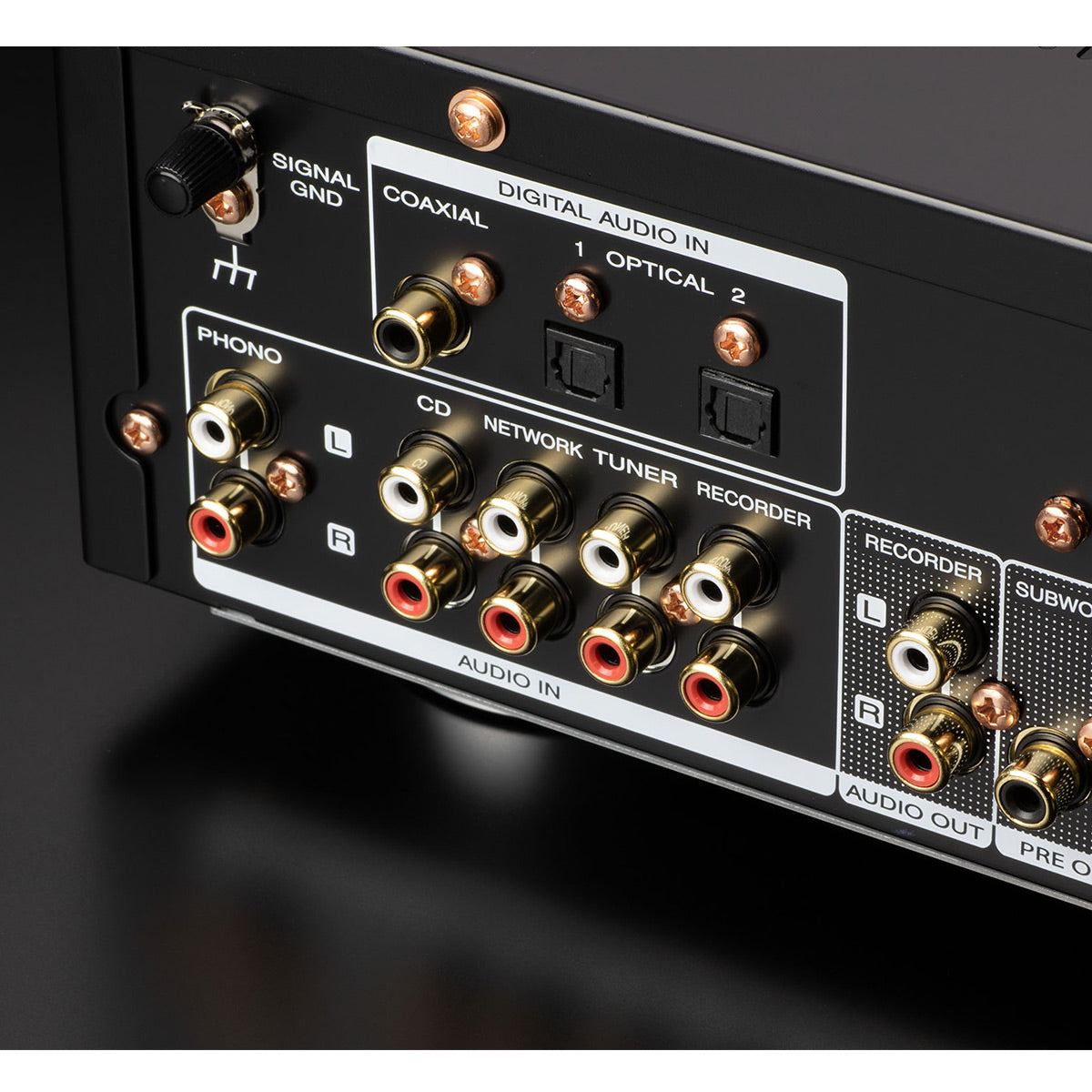

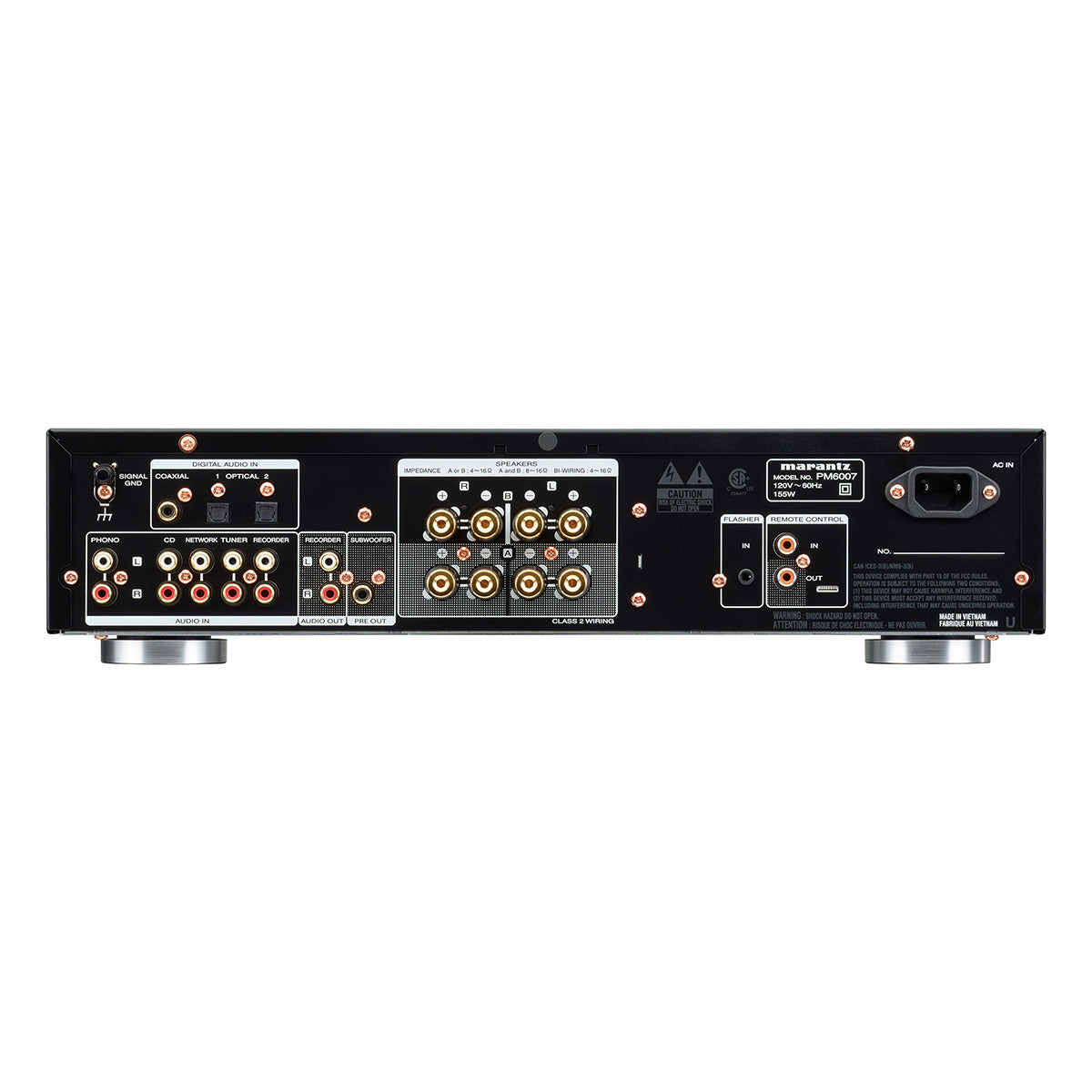

Inputs / Outputs

  • Audio Inputs: 5
  • Digital in:
    • USB-B /
    • optical /
    • coaxial /
    • USB-A - / 2 / 1 / -
  • Phono Input
    • MM: Yes
    • MC: No
  • Audio Outputs: 1
  • Balanced In / Out: No / No
  • Pre-out / Main-in: Subwoofer / No
  • Power Amp Direct IN: No
  • HDMI: inputs / outputs: No
  • Gold Plated Cinch: Yes

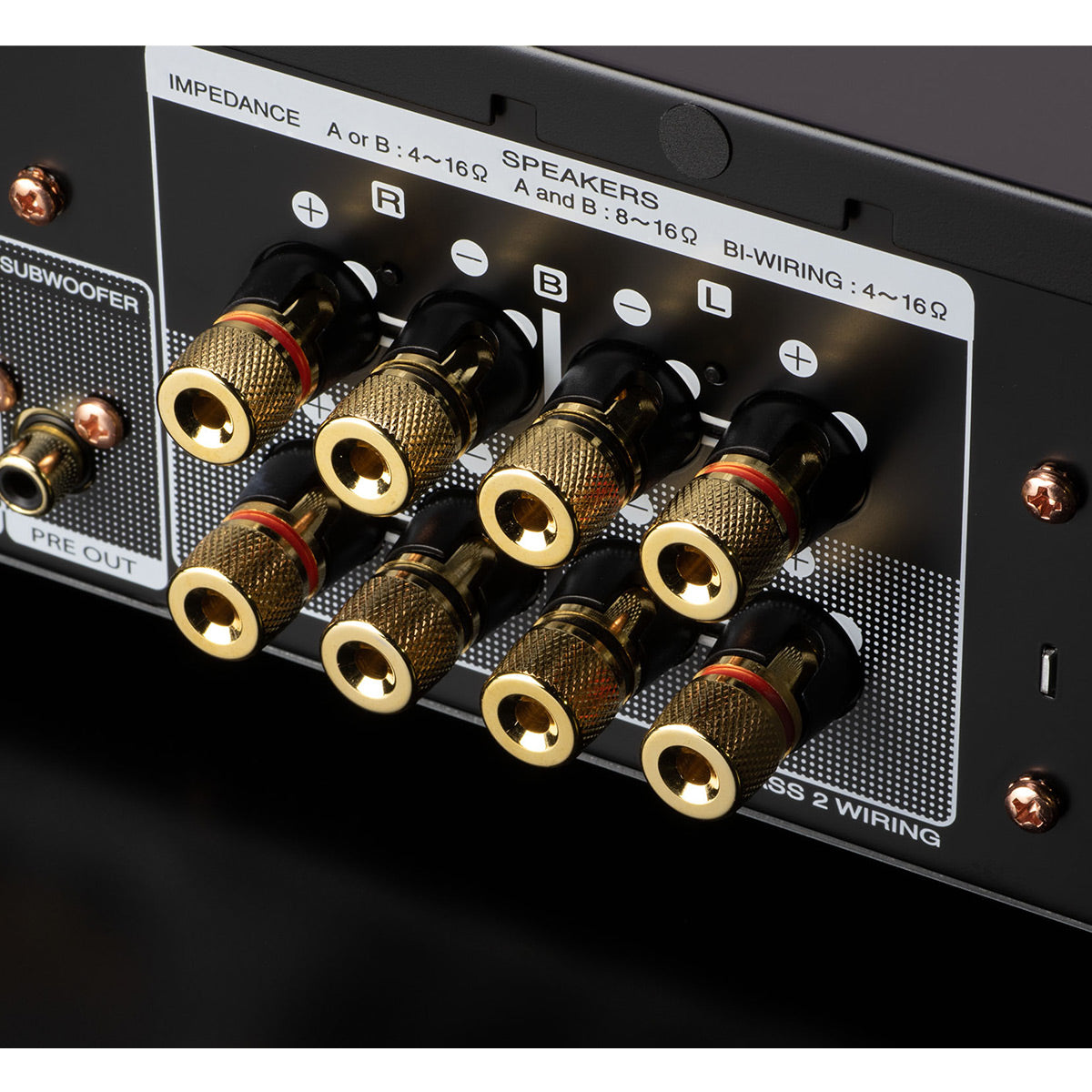

  • Speaker A / B: Yes
  • Speaker Terminals: Metal (Gold) Screw
  • Number of terminals 4
  • D-Bus: Yes
  • Floating Control Bus (3.5 mm mono jack x 2): No
  • Headphone Out: Yes
  • Headphone Gain Control (low / mid / high): No

Specifications

  • Power Output (8 / 4 Ohm RMS): 45 W / 60 W
  • Frequency Response: 10 Hz - 70 kHz
  • Total Harmonic Distortion: 0.08 %
  • Damping Factor: 100
  • Input Sensitivity: MM: 2.2 mV / 47 kOhm
  • Input Sensitivity: MC –
  • Signal to Noise Ratio: MM/MC: 83 dB / -
  • Input Sensitivity: High level: 200 mV / 20 kOhm
  • Input Sensitivity: Balanced High level: -
  • Signal to Noise Ratio: High level: 102dB(2V input)
  • Input Sensitivity: Power Amp Direct IN: -
  • Signal to Noise Ratio: Power Amp Direct IN -

General

  • Metal Front Panel: Yes
  • Power Consumption: 155W
  • Standby Consumption: 0.3W
  • Auto Power-off: Yes
  • Detachable Power Cable: Yes
  • Remote Control: RC004MCD
  • System Remote Function: Yes
  • Maximum Dimensions (W x D x H): 17.3" x 14.6" x 4.1"
  • Weight: 16.8lbs

What's In The Box

  • PM6007 Integrated Amplifier
  • Remote Control
