Marantz MODEL 50 Pure Analog Stereo Integrated Amplifier (Silver)

Regular price $1,800.00
Sale price $1,800.00 Regular price
Save $-1,800.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Apr 16 – Tue, Apr 23
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Marantz MODEL50SG 120V Overview

Product Information

Model: MODEL50SG | UPC: 747192141127

Specifications

What's In The Box

Product Information

Model: MODEL50SG | UPC: 747192141127

An Evolution 70 Years in The Making

For those who choose every component carefully, a pure and powerful amplifier is essential. MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current feedback power and HDAM SA-3 circuitry, MODEL 50 drives loudspeakers with total control. Six analog inputs, including a high-quality MM Phono stage, make it the centerpiece of streamlined and complex stereo systems alike.

Features

  • Powerful and Precise Class A/B Amplifier
  • Six Analog Inputs including MM Phono
  • Subwoofer and Stereo Preamp Out
  • Five-Year Warranty

Powerful Yet Precise

With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analog Purity and Simplicity

Analog is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry.

Connect Anything. Hear Everything.

With six analog inputs, including for your turntable, MODEL 50 can reveal the musicality in all your stereo source components.

Exquisite Style

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design yet always pays homage to icons of our past.

Stereo Preamp Out

MODEL 50 grows with you. Stereo preamp outputs leverage discrete HDAM design with external amplification.

Subwoofer Out

Want more bass? Simply connect a powered subwoofer to the dedicated RCA output.

Specifications

  • Features
    • Channels: 2
    • Current Feedback Topology: Yes
    • Phono EQ: Standard / Marantz Musical / Marantz Musical Premium: No / Yes / No
    • Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
    • HDAM version: SA2, SA3
    • Power Transformer: Toroidal / El Yes / No
    • High-Grade Audio Components: Yes
    • Customized Components: Yes
    • Symmetric PCB Layout: Yes
    • Aluminum extrusion heat sink: Yes
    • Balance / Bass / Treble / Loudness: Yes / Yes / Yes / No
  • Inputs/Outputs
    • Audio Inputs: 6
    • Digital in: USB-B / optical / coaxial / USB-A: No / No / No / No
    • Phono Input (MM / MC): Yes / No
    • Audio Outputs: 1
    • Pre-out / Main-in: Yes + subwoofer / No
    • Power Amp Direct In: Yes
    • Gold-Plated Cinch: Yes
    • Speaker A / B: Yes
    • Speaker Terminals: Marantz SPKT-1+
    • Number of terminals: 4
    • D-Bus: Yes
    • Headphone Out: Yes
  • Other
    • Linear Drive Power Supply: Yes
    • Linear volume control: Yes
    • Schottky diodes: Yes
    • Input buffer amp (all inputs / CD only): No / Yes
    • Solid Heat Sinks: Yes
    • System block shielding (Copper / metal / none): No / No / Yes
    • Double Layer Bottom Plate: Triple
    • Low Noise OLED display: Yes
    • Source Direct: Yes
    • Power Amp direct: Yes
  • Streaming Services
    • Power Output (8 / 4 Ω RMS): 70W / 100W
    • Frequency Response: 5 Hz–10 kHz
    • Total Harmonic Distortion: 0.02 %
    • Damping Factor: 100
    • Input Sensitivity (MM): 1.4mV / 47 kΩ
    • Signal to Noise Ratio (MM/MC): 87 dB / No
    • Input Sensitivity (High level): 185 mV / 16 kΩ
    • Signal to Noise Ratio (High level): 116 dB (2V input)
    • Input Sensitivity (Power Amp Direct In): 1.5V / 15 kΩ
    • Signal to Noise Ratio (Power Amp Direct In): 125 dB
    • Treble Control: ± 10 dB at 15 kHz
    • Bass Control: ± 10 dB at 50 Hz
  • General
    • Metal Front Panel: Yes
    • Power Consumption: 220W
    • Standby Consumption: 0.3W
    • Auto Power off: Yes
    • Detachable Power Cable: Yes

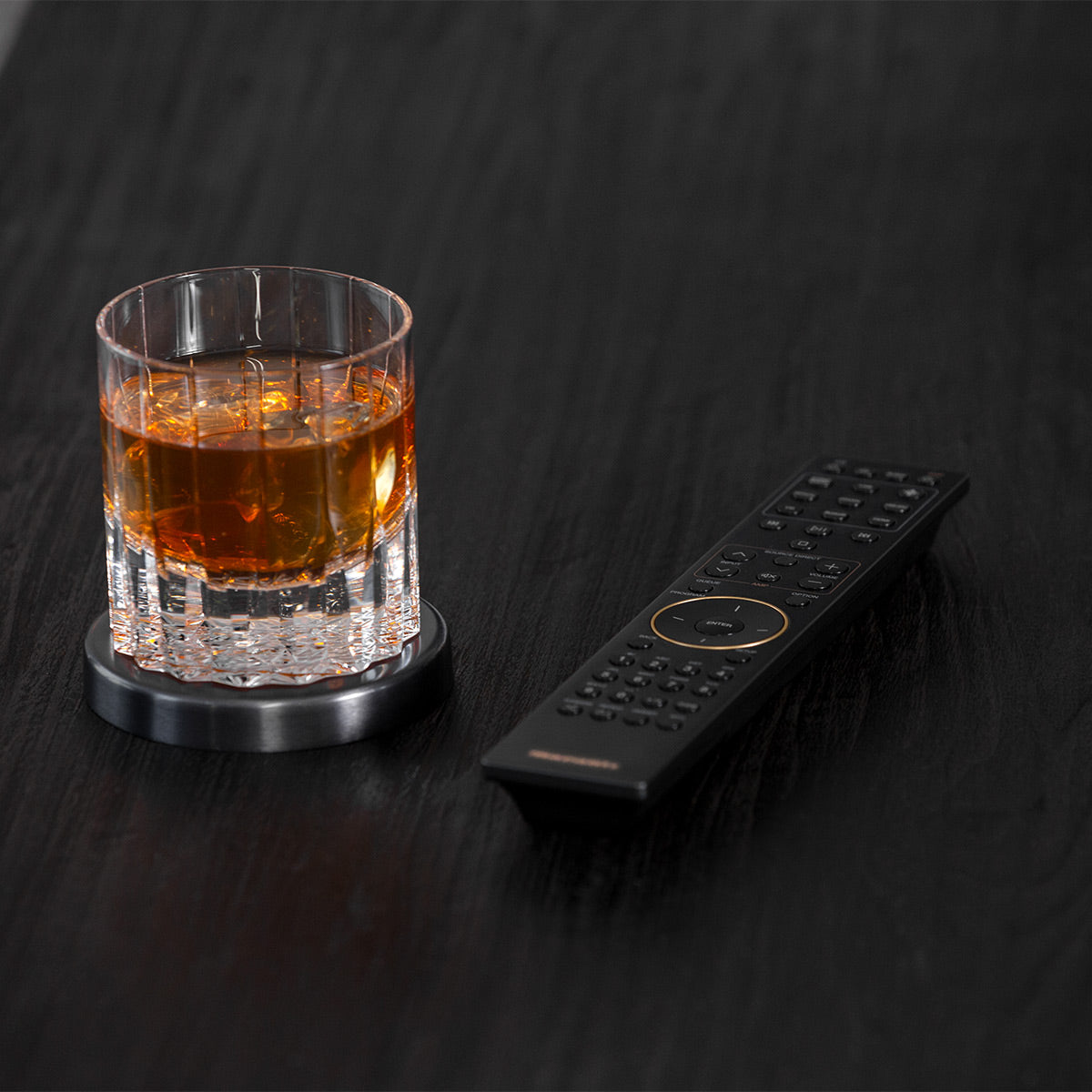

    • Remote Control: RC003PMND
    • System Remote Function: Yes
    • Maximum Dimensions (W × H × D): 17.40” × 5.11” x 16.96”
    • Weight: 31.3 lbs.

What's In The Box

  • MODEL 50 Pure Analog Stereo Integrated Amplifier
  • Power Cord
  • Manual
