Marantz CD 60 CD Player (Black)

Regular price $999.00
Sale price $999.00 Regular price
Save $-999.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Tue, Oct 8 – Tue, Oct 15
Other Options

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: CD60 | UPC: 747192136512

Specifications

What's In The Box

Product Information

Model: CD60 | UPC: 747192136512

The Most Musical Sound

Extraordinary sound and peerless style—Marantz CD 60 celebrates your CD collection with a player engineered to sound better than any other in this class. Built with high quality materials and Sound Master tuned, CD 60 adds precision CD playback to MODEL 40n or any high-quality audio system.

Features

  • CD & CD-R/RW Support
  • Hyper Dynamic Amplifier Modules
  • Optimized HDAM Circuit
  • High-Current Power Supply
  • Plays Hi-Res Audio USB Sources
  • Reference-Quality Digital-to-Analog Conversion
  • Customizable Digital Filter
  • High-Performance Headphone Amplifier

Hyper Dynamic Amplifier Modules

To preserve the detail, nuance, and essence of the music you love Marantz developed HDAM (Hyper Dynamic Amplifier Modules), which are superior in their speed and response to off-the-shelf modules found in other products. CD 60 leverages this unique Marantz innovation to ensure whatever you’re listening to is always the most musical.

Optimized HDAM Circuit

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.

High-Current Power Supply

The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors, and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply to improve current stability and reduce noise during highly demanding listening sessions.

Plays Hi-Res Audio USB Sources

The CD 60 can playback MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

Reference-Quality Digital-to-Analog Conversion

The CD 60 features a new hi-res D/A conversion. It is equipped with a reference class digital to analog converter, offering two selectable filter options. It provides up to 192kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, rich midrange, and smooth extended high frequencies.

Customizable Digital Filter

The CD 60 features a selectable digital filter option. This two-mode filter allows customized reproduction of digital music content to your taste. Filter 1 is a slow roll-off preset that improves deep stereo imaging, while Filter 2 is a sharp roll-off filter for more precise imaging reproduction.

High-Performance Headphone Amplifier

The CD 60 inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience. However, if you prefer, the headphone amp is also equipped with an "Off Circuit" function that automatically turns off the headphone amplifier when a headphone is not connected to the unit to avoid any unwanted interference or noise.

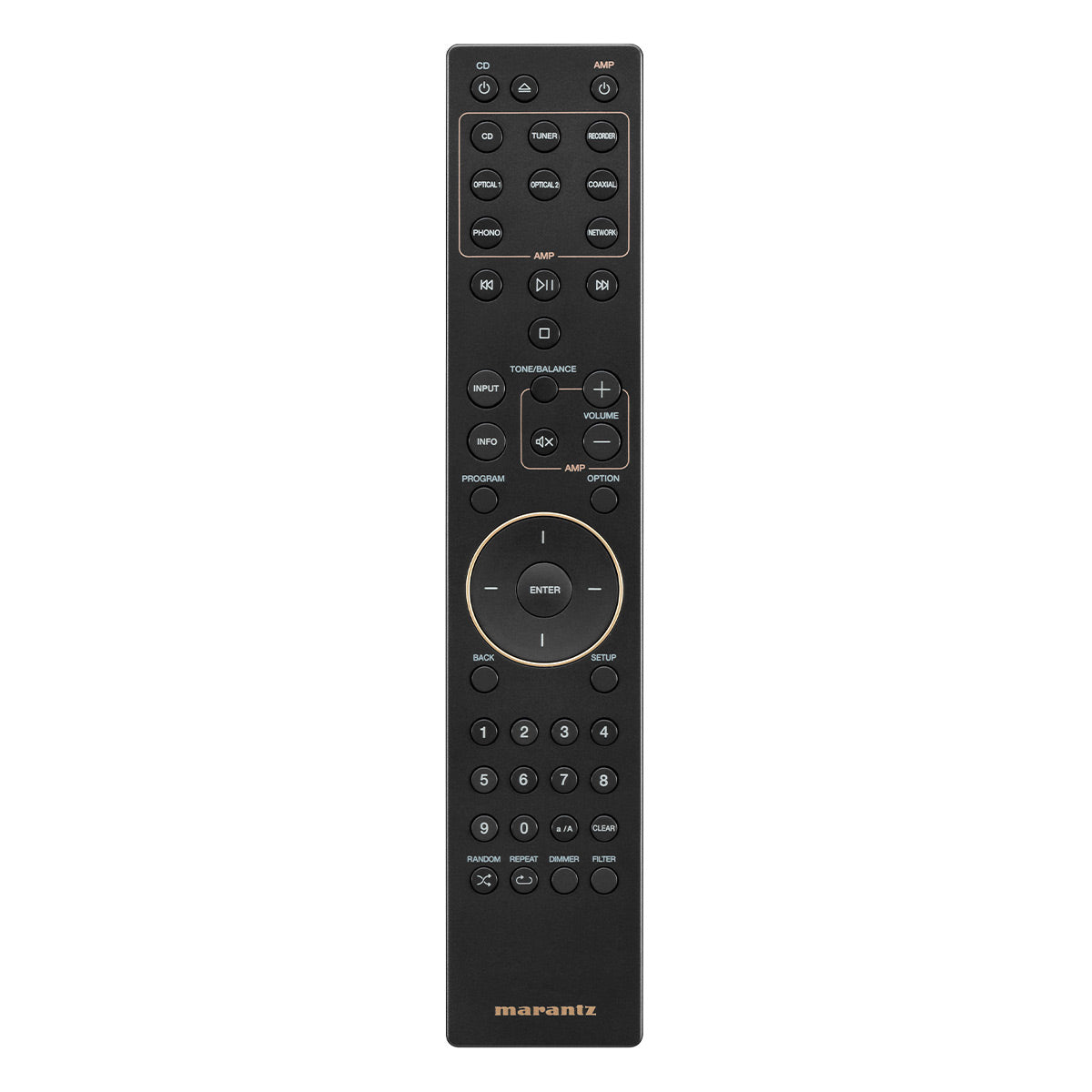

Full-System Remote Control

Use the remote control to operate CD 60 as well as a complementary MODEL 40n integrated streaming amplifier or MODEL 30 integrated amplifier.

Tuned with Passion

Performance is enhanced in this generation with 9 exquisite details and musicality. New high-performance component choices, an evolution of Marantz's legendary HDAM circuit, and careful validation by the Sound Master result in their finest CD player ever in this class.

Specifications

  • Power
    • Power Consumption 38W, 0.3W (Standby)
  • Audio
    • Frequency Response
      • USB DSD: 2Hz - 50kHz (-3dB)
      • USB PCM: 2Hz - 50kHz (-1.5dB)
      • CD: 2Hz - 20kHz
    • Harmonic Distortion
      • USB DSD : 0.0006%
      • USB PCM 24bit: 0.0005%
      • CD: 0.0015%
    • S/N
      • USB DSD: 110dB
      • USB PCM 24bit: 118dB
      • CD: 118dB
    • Dynamic Range
      • USB DSD: 110dB
      • USB PCM 24bit: 118dB
      • CD: 101dB
    • Line Output Level: 2.2Vrms
    • Variable Output Level: No
    • Headphone Output Level: 28mW / 32 ohms
  • Features
    • Output Circuit: New HDAM + HDAM-SA2
    • Power Transformer: EI
    • Headphone Circuit: High slew rate op-amp
      • + HDAM-SA2
    • H/P Amp Gain Setting: Yes (Low / Mid / High)
    • Audio Options: Digital Out On/Off + Dimmer
    • DAC Circuit: ES9016K2M
    • Digital Filter: Filter 1, 2 Selectable
  • Connectivity
    • Disc: CD / CD-R / CD-RW
    • Playability of Files Recorded on CD-R/RW: MP3, WMA
    • USB-A: 1 (Front)
      • Mass Storage Class
      • 5V/1A
    • USB Drive Format: FAT16, FAT32
    • Supported Audio File Format: MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, DSD (DISF / DSF)
  • Control
    • Remote Control Bus Terminal: Yes (RC-5 In / Out) with External / Internal Select Switch
    • RS232C: No
    • Flasher Input: Yes (U ver)
  • Cosmetic
    • Panel Color: Silver Gold / Black
    • Front Center Panel: Aluminum
    • Back Shell: Molded
    • Side Cover / Top Cover: SECC
    • Edge Lighting: No
    • Chassis Material: SECC
  • Dimensions (W x H x D)
    • Product Dimensions: 17.40" x 5.07" x 15.59"
    • Packaging Dimensions: 20.66" x 9.80" x 20.11"
  • Weight
    • Product Weight: 16.53
    • Carton Weight (incl. product): 22.48"
  • UPC
    • USA CD 60/U1B 747192136512 Black
    • USA CD 60/U1SG 747192136529 Silver Gold

What's In The Box

  • CD 60 CD Player
  • Full-System Remote Control
  • Power Cord
  • Audio Cable
  • Manual
