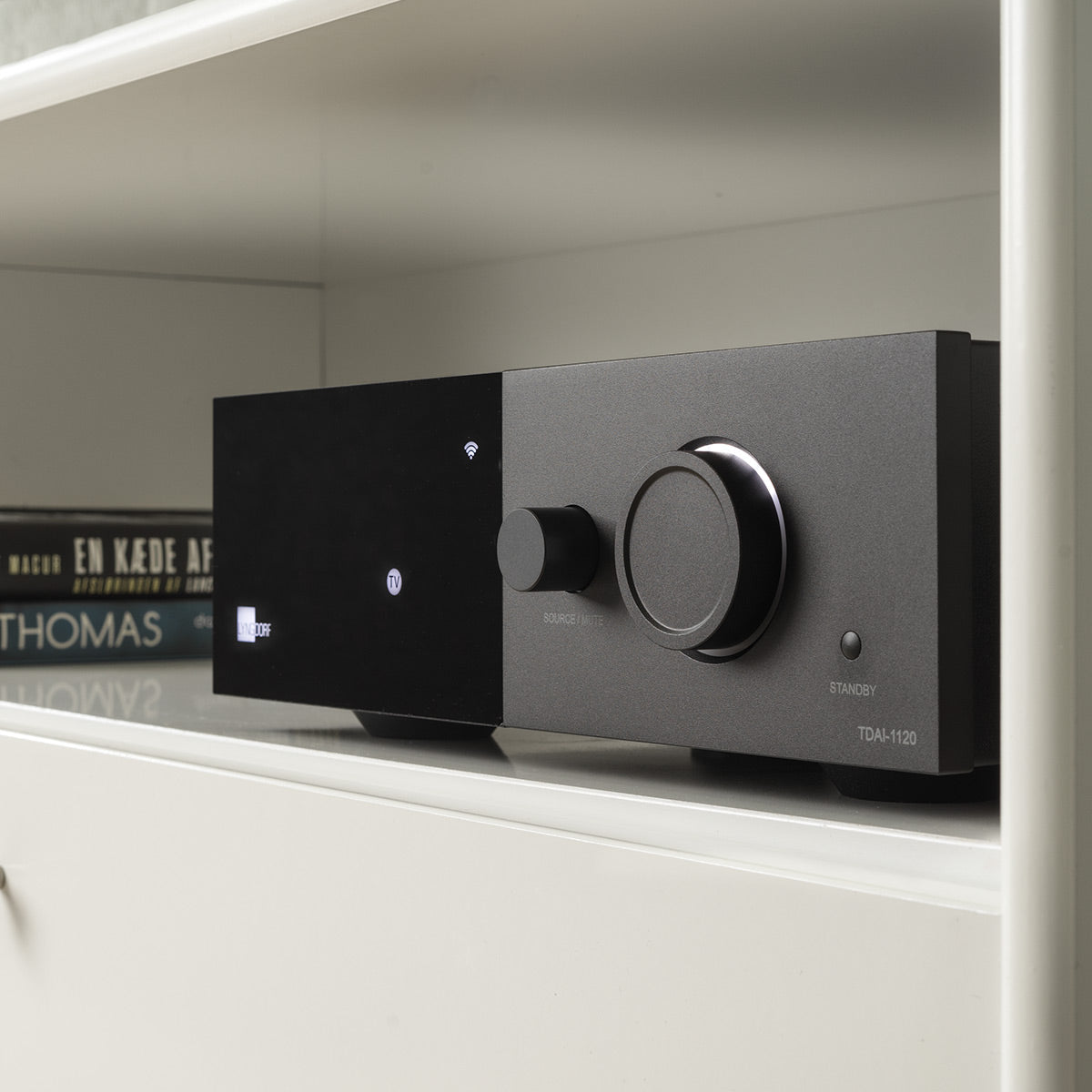

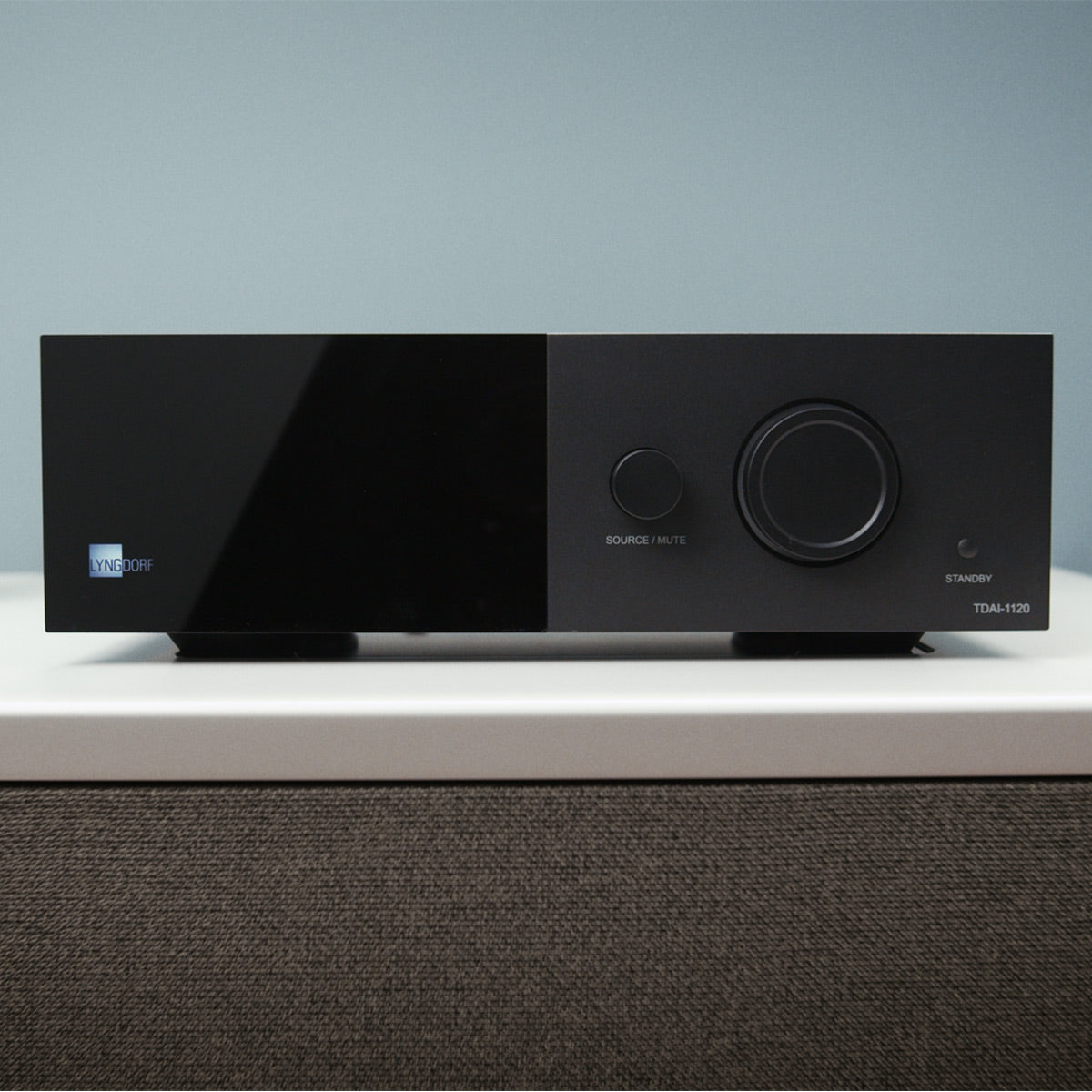

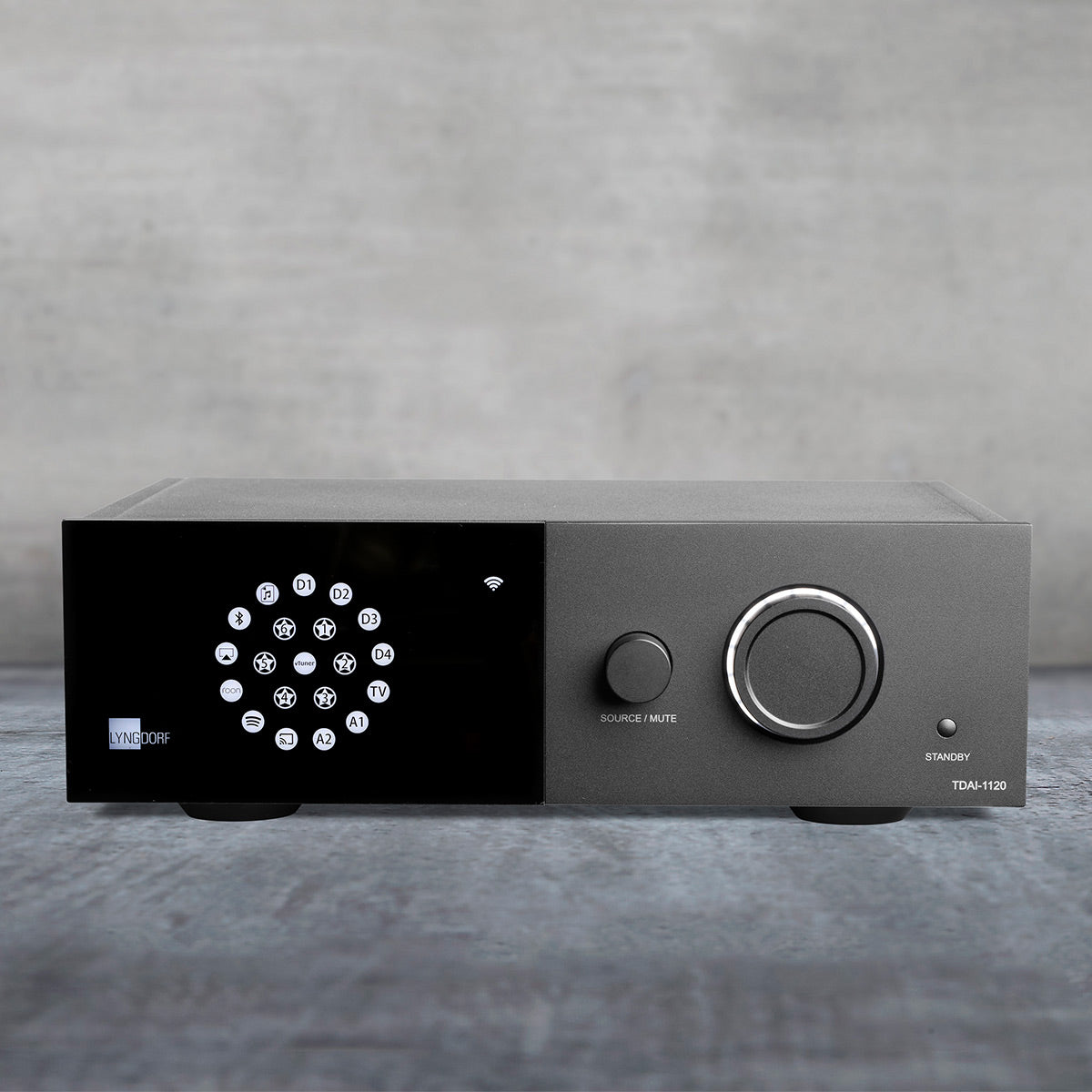

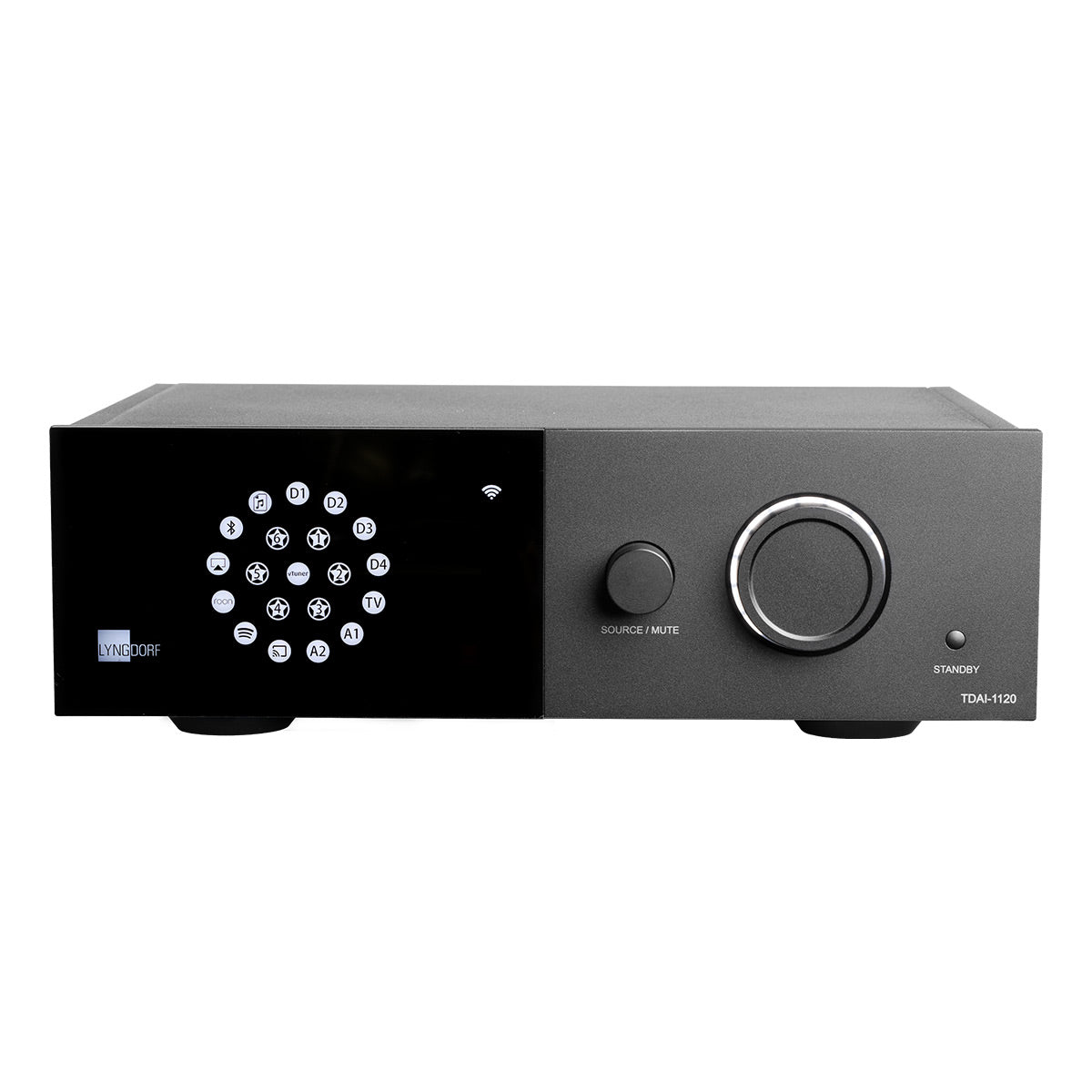

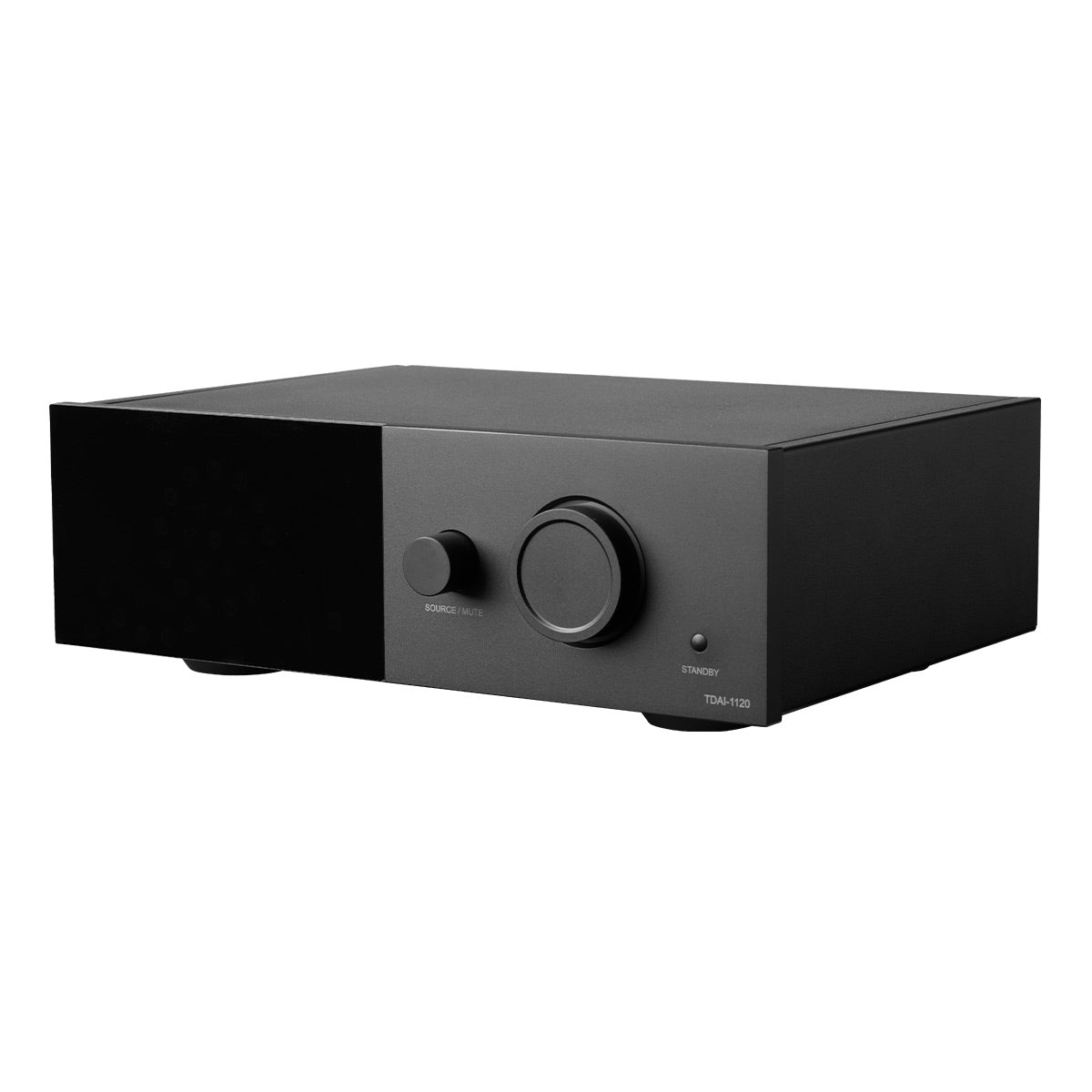

Lyngdorf Audio TDAI-1120 Streaming Digital Amplifier

Regular price $2,399.00
Sale price $2,399.00 Regular price
$0.00 Save $-2,399.00 (%)
OR

In Stock & Ready to Ship
Free Shipping Get it between Wed, Dec 10 – Wed, Dec 17

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 900010380 | UPC: 5704505103802

Specifications

What's In The Box

Product Information

Model: 900010380 | UPC: 5704505103802

The Lyngdorf TDAI-1120 combines a compact design with an extensive feature set, offering flexible placement and a wide range of streaming options. Powered by Lyngdorf’s renowned digital amplification and patented RoomPerfect™ room correction, it delivers an exceptional listening experience. With HDMI ARC connectivity, CEC, and eARC lip-sync support, it seamlessly integrates with modern televisions, transforming the TDAI-1120 into a powerful sound system for both music and movies—all controlled directly from your TV remote.

Features

  • Roon Ready
  • Bluetooth Connectivity
  • Network/Local File Playback
  • Stream with Airplay2, Google Cast, Spotify® Connect, TIDAL Connect, and more

True Digital Amplification

The TDAI-1120 amplification is 100% digital, without sound-deteriorating digital-to-analog conversion. The digital signal drives the speakers directly. This unique and technically demanding solution eliminates several analog components and signal paths, which are a major source of noise, hiss, crosstalk, and distortion in conventional amplifiers. TDAI amplifiers offer the best sound quality at all volume levels and will deliver the most enjoyable and uncolored sound you have ever experienced.

New World of Streaming

The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.

The Ultimate Experience

The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.

Specifications

  • Description: 2-channel streaming amplifier
  • Power Rating: 2 x 120 W RMS @ 4 Ohm / 2 x 60 W RMS @ 8 Ohm
  • Standby Power Consumption: < 0.5 W
  • Max Output Current: 30 A
  • Audio
    • Frequency Response: ±0.5 dB from 20 to 20,000 Hz
    • Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz
    • THD-N 1W/8 Ohm: 0.04%
    • THD-N 1W/4 Ohm: 0.04%
  • Digital Inputs (Asynchronous): 2 x Coaxial (≤192 kHz/24 bit), 2 x Optical (≤96 kHz/24 bit), 1 x HDMI eARC (≤192 kHz/24 bit)
  • Analog Inputs: 1 x Phono Single Ended RCA (RIAA / 47 kOhm 100 pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0 dBFS), 1 x Microphone input (XLR) for RoomPerfect™ calibration
  • Analog Output: 1 x Stereo Analog RCA (75 Ohm, Max output level 4 Vrms)
  • EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q
  • Media Player: Internet Radio (vTuner, airable), Spotify Connect, TIDAL Connect including MQA decoding, Qobuz Connect, Roon Ready, Google Cast, Apple AirPlay 2, DLNA Support (UPnP/see DLNA formats), Local file playback (USB), Bluetooth (BLE)
  • Wireless Connections: Bluetooth connectivity, Wi-Fi (802.11 n)

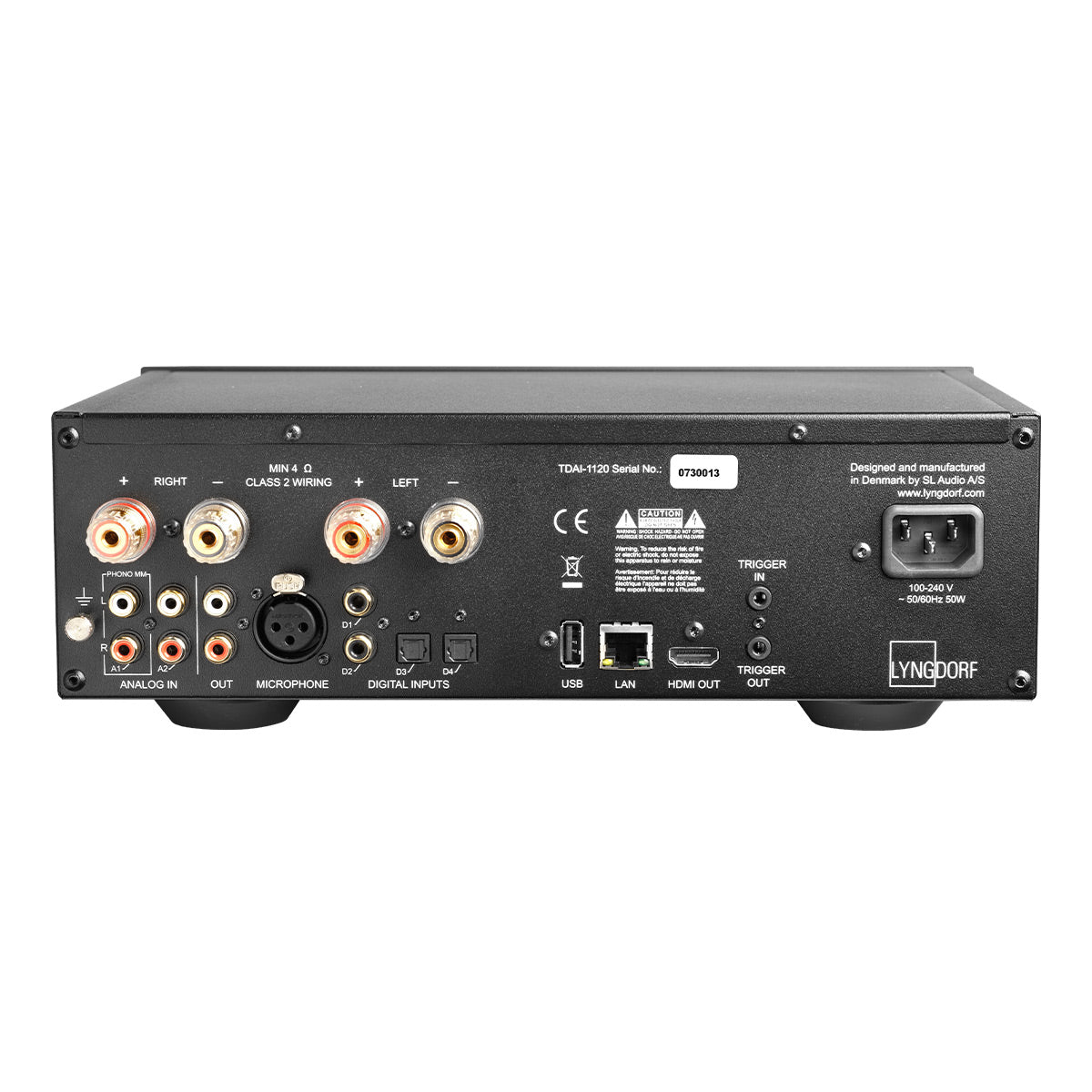

  • Interfaces: Intuitive input selector, Web interface for setup and media player, Remote application for iOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connector (Type A)
  • Remote Control: Infrared
  • Dimensions (H × W × D): 3.98 × 11.8 × 10.3 in (including connectors)
  • Weight: 7.3 lbs.

What's In The Box

  • TDAI-1120 Streaming Digital Amplifier
  • XLR Microphone Cable (26 ft.)
  • RoomPerfect™ Microphone
  • Power Cord
  • Manual
