Lyngdorf Audio MP-60 2.1 Surround Sound Processor

Now on demo at:

1 of 8

Lyngdorf Audio MP-60 2.1 Surround Sound Processor

Regular price $14,999.00
Sale price $14,999.00 Regular price
$0.00 Save $-14,999.00 (%)
This item is only available in our showroom. Call 215-368-8343 for details.

Trade In Your Gear

Get a personalized trade-in estimate within 48 hours and apply it toward your next premium upgrade.

Request Trade-In Quote
Trade In Your Gear

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781

Overview

Product Information

Model: 900010520 | UPC: 5704505105202

Specifications

What's In The Box

Product Information

Model: 900010520 | UPC: 5704505105202

MP-60 2.1 is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system RoomPerfect and the unsurpassed quality in digital signal processing. Together with the Steinway Lyngdorf version, the P300, the MP-60 2.1 is developed at the group headquarters in Skive, Denmark.

Features

  • 16-Channel Decoding for Dolby Atmos, DTS:X Pro, and AURO-3D
  • HDMI 2.1 With eARC, VRR, and HDR Passthrough
  • RoomPerfect™ Auto-Calibrates Sound to Your Room
  • Built-In Streaming via AirPlay 2, Spotify, Tidal, and Roon
  • Flexible Control Through App, Web, or Triggers
  • High-End DSP With Ultra-Low Distortion Output

State-Of-The-Art HDMI Processing

The MP-60 2.1 processor is intuitive to use and offers extraordinarily easy installation. It decodes up to 16 native audio channels which can be mapped out intelligently through the sleek website interface. The MP-60 2.1 offers full support of the latest immersive surround formats including Dolby Atmos®, DTS:X® Pro and AURO-3D®.

Advanced HDMI 2.1 Connectivity

With five HDMI inputs and two outputs, this new masterpiece from Lyngdorf Audio now supports HDMI 2.1 including features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. The MP-60 2.1 supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The MP-60 2.1 supports Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™.

Enhanced Audio Return Channel (eARC)

eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.

Specifications

  • Decoding: 16 decoding/upmixing channels — Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), and all legacy codecs
  • Post-Processing Options: Dolby Surround, AURO-MATIC®, DTS Neural:X
  • Audio
    • Inputs
      • 5 × HDMI (1 × HDMI eARC) ≤192kHz/24bit
      • 1 × AES/EBU S/P-DIF input (≤192kHz/24bit)
      • 3 × S/P-DIF coaxial inputs (≤192kHz/24bit)
      • 4 × S/P-DIF optical inputs (≤96kHz/24bit)
      • 1 × USB audio input (≤192kHz/32bit)
      • 1 × XLR microphone input (for RoomPerfect™)
    • Outputs
      • 16 × XLR analog outputs (8 Vrms max.)
      • 1 × S/P-DIF coax digital ZONE output (Fixed 96kHz/24bit)
    • General
      • Frequency Response: ±0.5 dB (20 Hz – 20,000 Hz)
      • Total Harmonic Distortion: ≤0.005% (20 Hz – 20,000 Hz)
      • EQ: RoomPerfect™, Subwoofer Level Assistant, 32 adjustable voicings supporting up to 8 shelving, high/low pass, or parametric filters with adjustable gain
  • Media Player
    • Streaming & Playback: Internet Radio (vTuner, airable), AirPlay 2, Spotify Connect, Tidal Connect (with Dolby Atmos Music), Roon Ready, DLNA, and FAT32-based media storage (uPnP/DLNA formats)
  • Video
    • Video Inputs: 5 × HDMI 2.1 (HDCP 2.3)
    • Video Outputs: 2 × HDMI (HDCP 2.3)
    • Supports
      • 8K30 RGB/YCbCr 4:4:4 10-bit video
      • 8K60 YCbCr 4:2:0 10-bit video
      • 4K120 4:4:4 10-bit high frame rate video
      • Includes VRR, FVA, and ALLM support, plus HDR, Dolby Vision™, and HLG

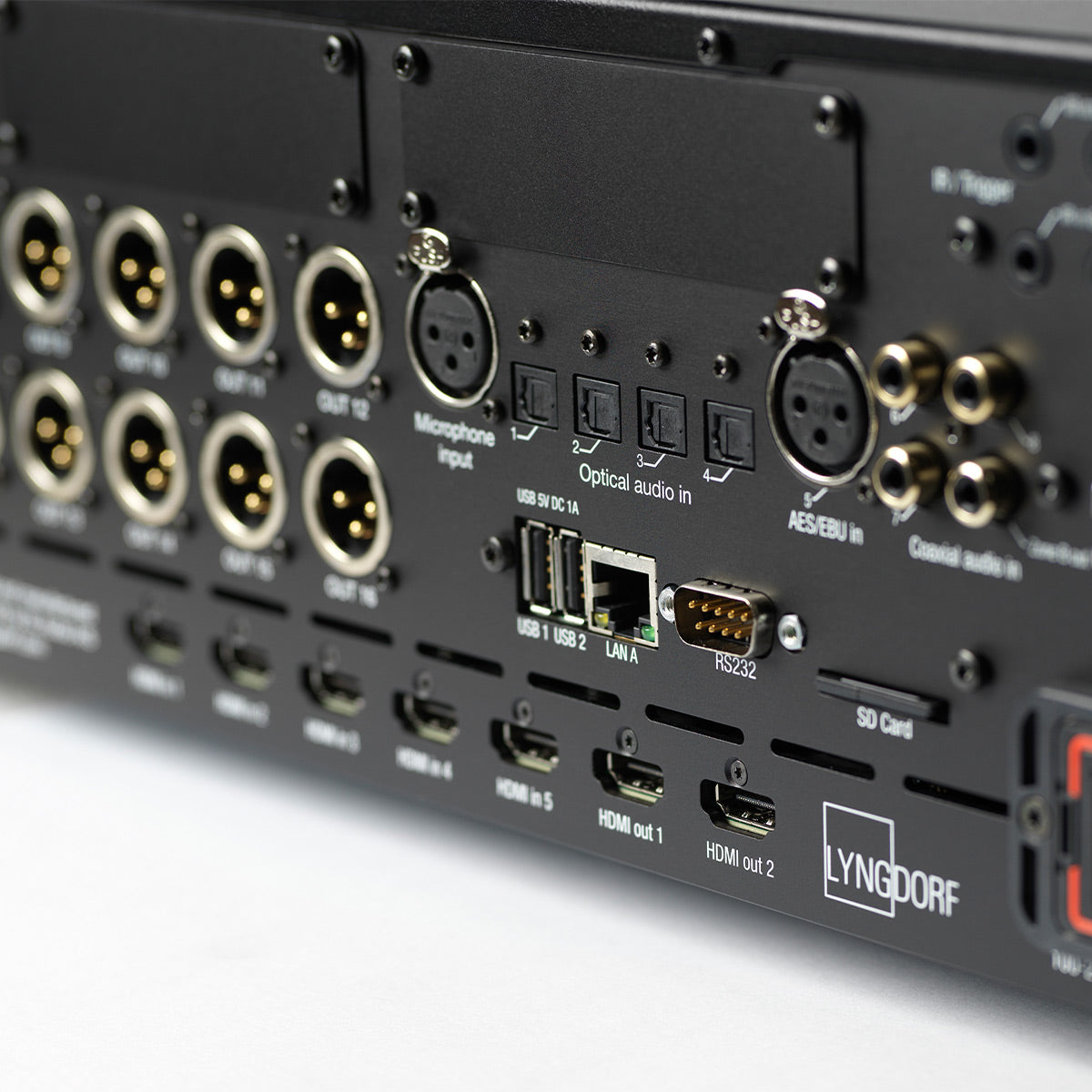

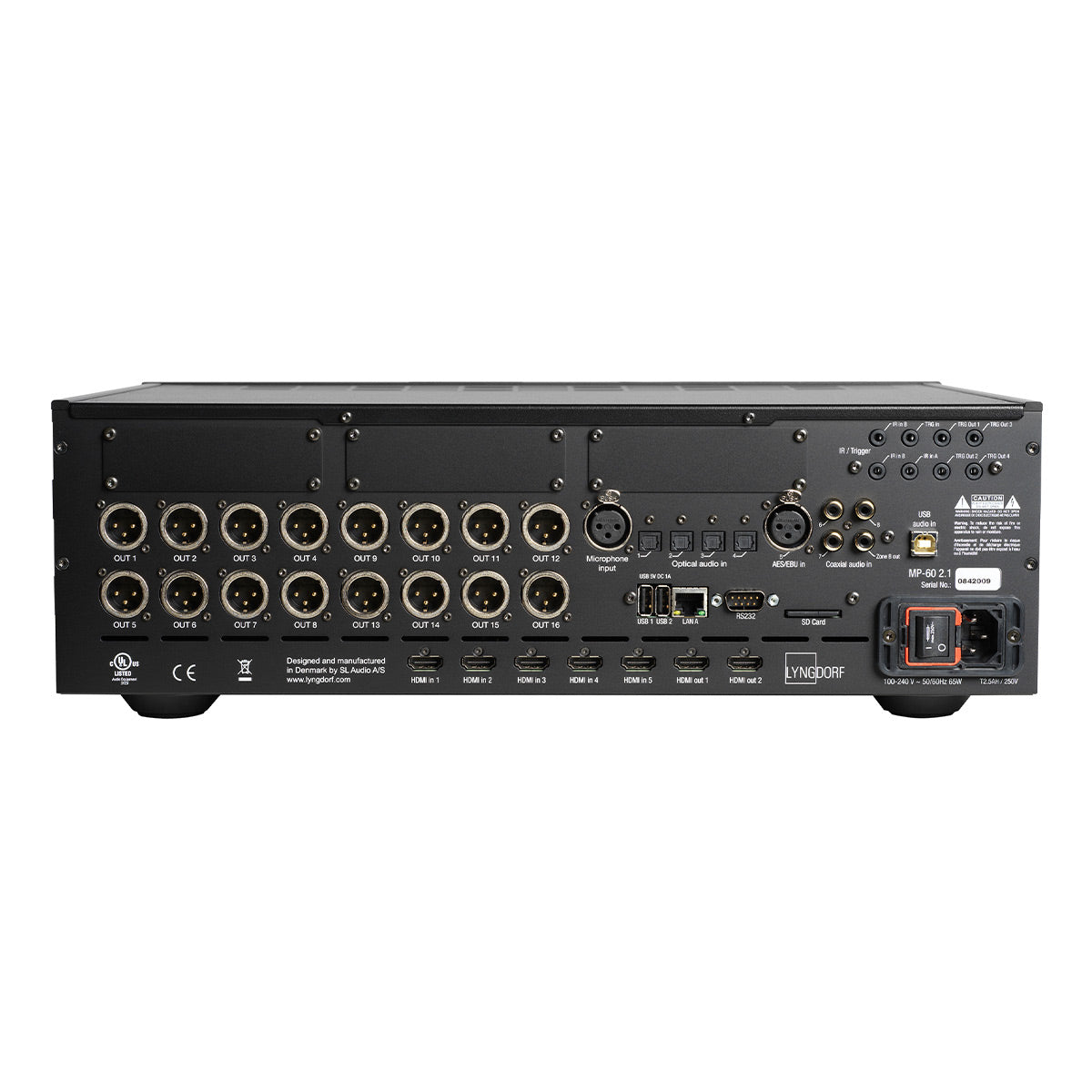

  • Connections
    • 1 × DB9 RS232 connector
    • 2 × IR sensor inputs
    • 1 × IR output (loop from sensor input)
    • 1 × trigger input
    • 4 × trigger outputs
    • 1 × RJ45 Ethernet LAN connector
    • 2 × USB-A connectors
    • 1 × SD card slot (for system backup and settings
  • Optional Modules (Sold Separately)
    • 16-channel DCI-compliant digital AES/EBU input for movie servers (up to 32-bit/192kHz)
    • 16-channel digital AES/EBU output module (24-bit, 48kHz or 96kHz selectable)
    • 16-channel AES67 digital input/output module (up to 32-bit/192kHz input, 24-bit/48kHz output)
  • Power & Thermal
    • Standby Power Consumption: < 0.5 W
    • Heat Dissipation: 340 BTU
  • Physical
    • Placement Options: Rack mount (4RU) or freestanding
    • Dimensions (H × W × D): 5.8 × 17.7 × 14.6”
    • Weight: 19 lbs.

What's In The Box

  • MP-60 2.1 Surround Sound Processor
  • RoomPerfect Microphone and Stand
  • RF Remote Control
  • Manual
