Lyngdorf Audio D-5 IC In Ceiling Speaker with Adjustable Tweeter - Each

Regular price $1,550.00
Sale price $1,550.00 Regular price
$0.00 Save $-1,550.00 (%)
OR

Need advice?

Consult with a system designer from our showroom.

Call: 1.866.961.7781 Chat Live

Overview

Product Information

Model: 900032178 | UPC: 5704505321787

Specifications

What's In The Box

Product Information

Model: 900032178 | UPC: 5704505321787

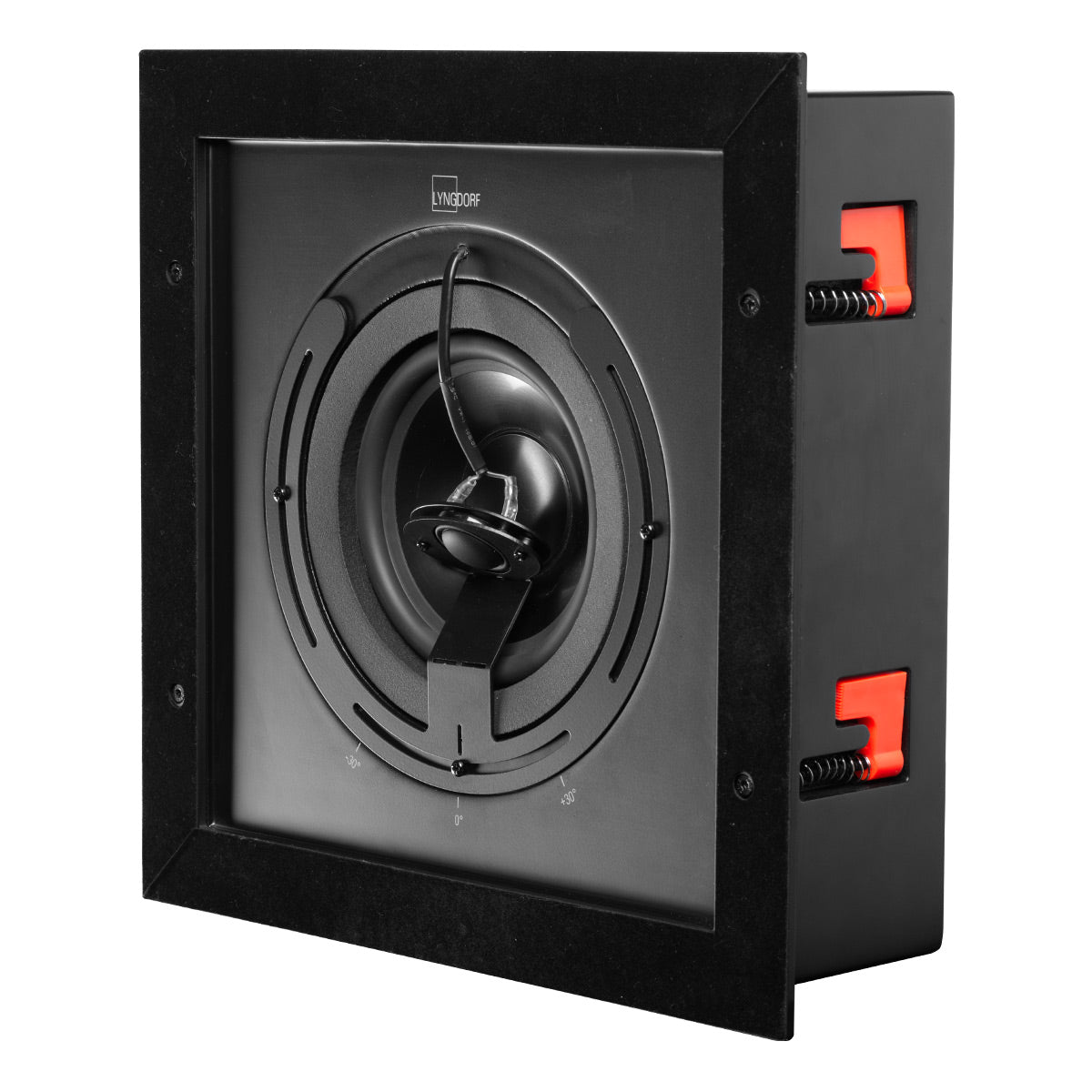

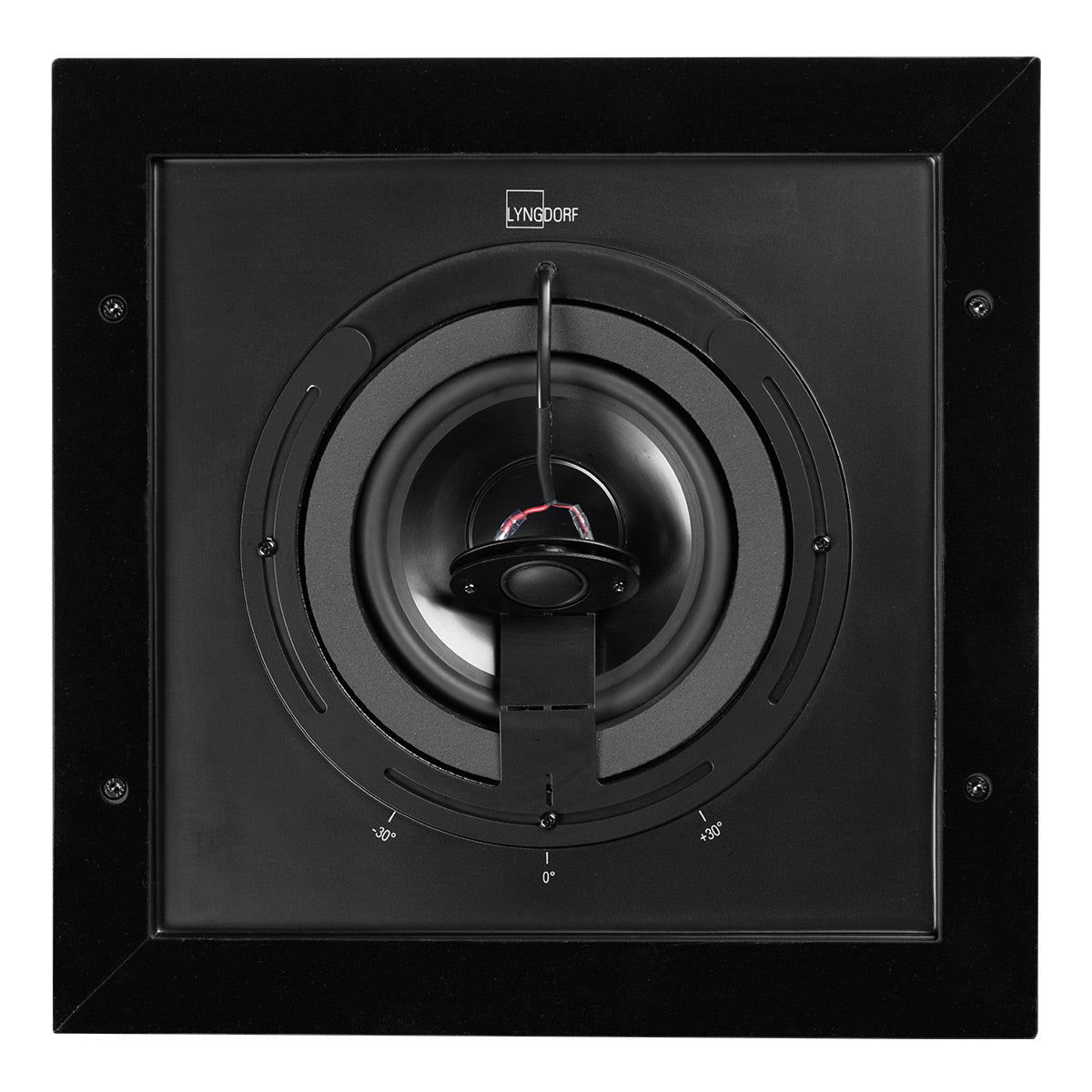

The Lyngdorf D-5 IC is a high-performance in-ceiling speaker designed for discreet installation and precise sound. Its rigid, pre-mounted MDF enclosure ensures controlled acoustics without needing an external backbox. The angled, adjustable tweeter provides accurate dispersion for clear, natural sound throughout the room. With a two-way design covering 80 Hz to 20 kHz, the D-5 IC delivers full, balanced audio ideal for immersive surround setups or refined multi-room sound systems.

Features

  • Discreet In-Wall Or In-Ceiling Installation
  • Built-In MDF Enclosure Design

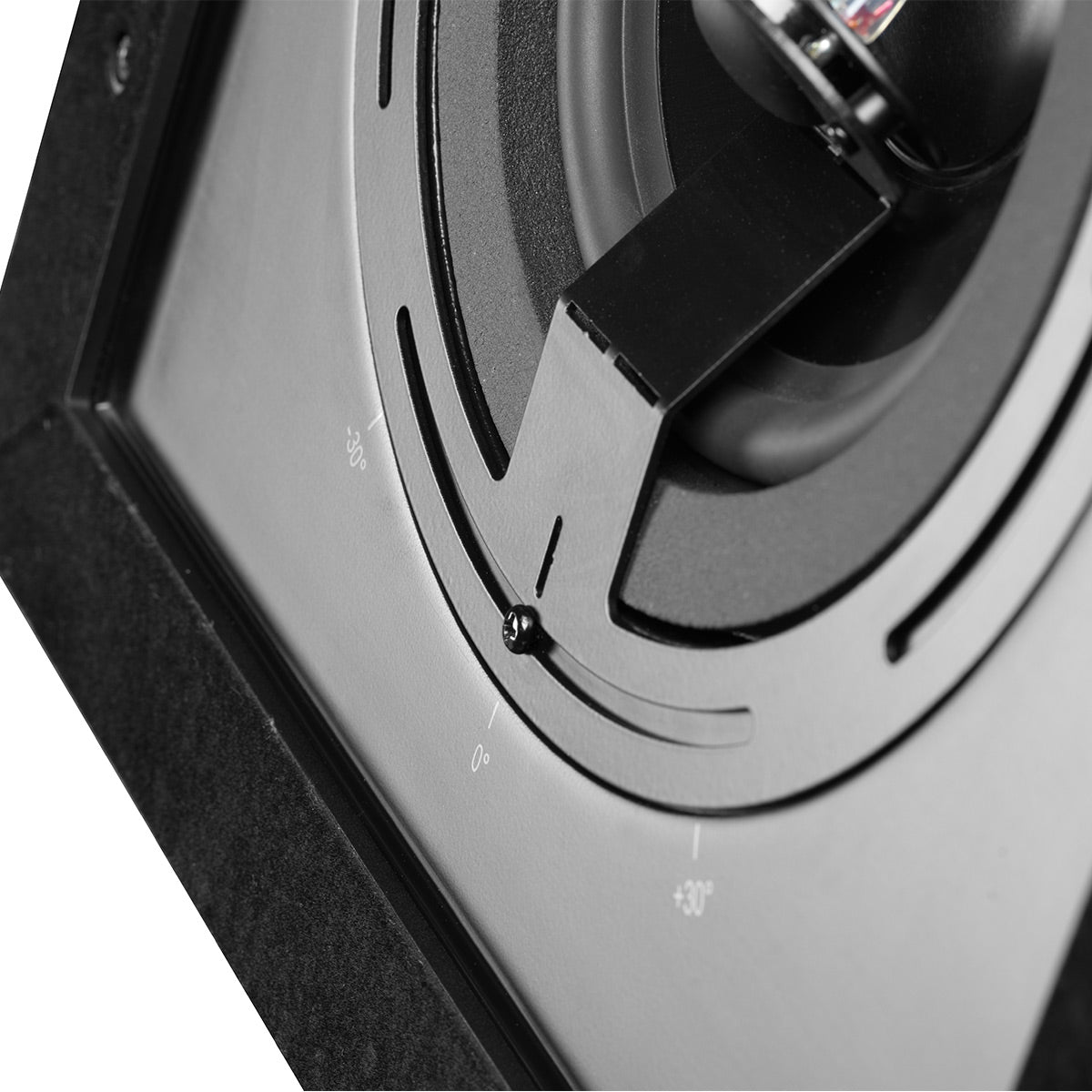

  • Angled Adjustable Tweeter
  • Coherent Two-Way Driver Alignment
  • 80 Hz–20 kHz Frequency Range

D Stands for Discreet

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. The models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Pre-Mounted Loudspeaker Enclosure

The D-5 comes with its own pre-mounted, rigid MDF enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall. It also prevents resonances and sound leakage.

Lyngdorf Audio Speaker Design & Drive-Units

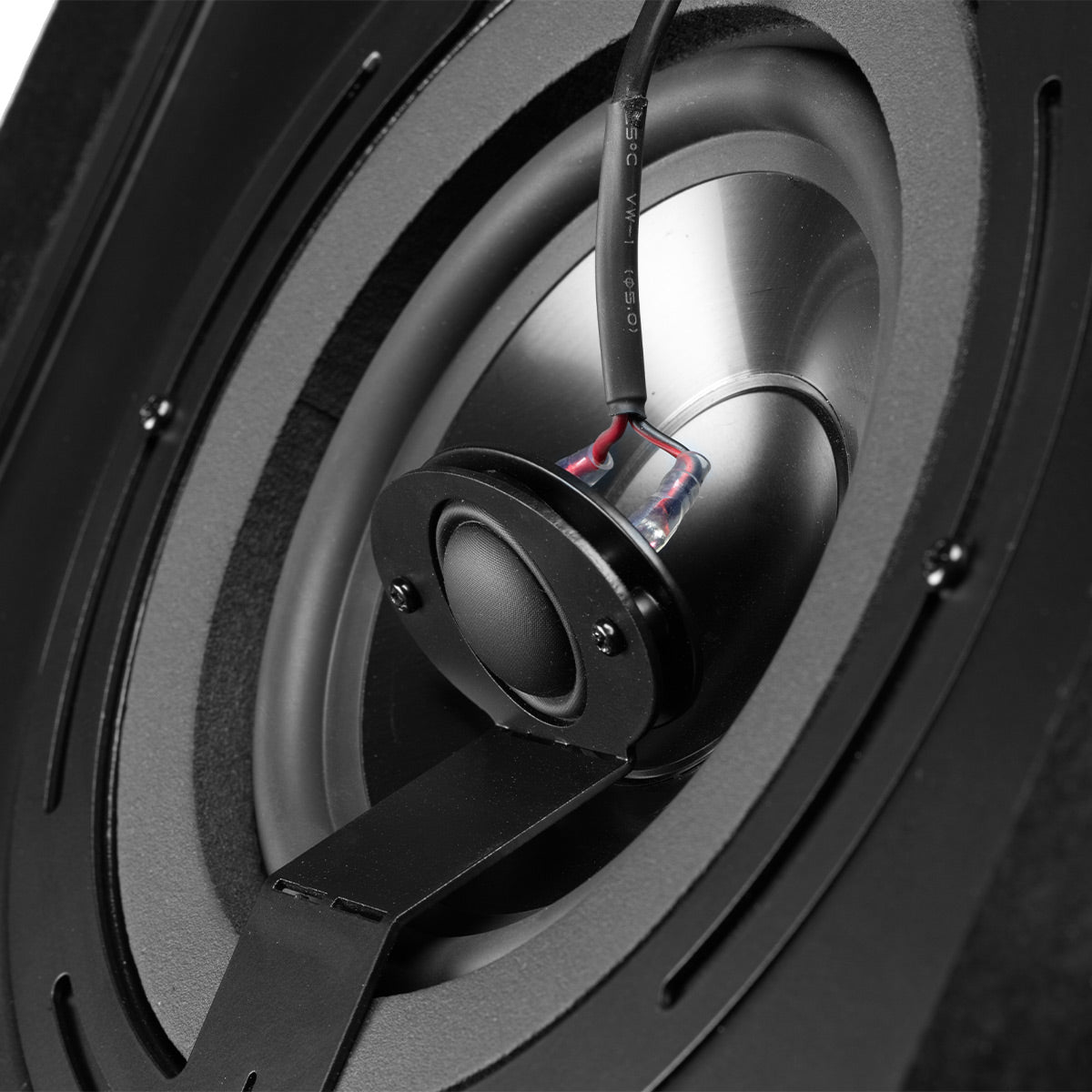

The midrange driver and tweeter are designed by Lyngdorf Audio and feature soft-dome tweeters, light aluminum cones, and powerful vented magnets.

Specifications

  • Description: 2 way speaker
  • Tweeter: 25 mm / 1” so` dome
  • Midrange driver: 180 mm, 35 mm voice coil, aluminum cone, vented magnet
  • Enclosure: Closed MDF cabinet
  • Frequency range: 80 - 20,000 Hz (-3 dB)
  • Nominal Impedance: 4 Ohm
  • Sensitivity: 88 dB (2.83V/1m)
  • Power handling: 100 W (IEC)
  • Maximum SPL: 105 dB
  • Crossover point: 2,2 kHz
  • Connection: Push-type spring terminal, gold-plated
  • Mounting: In-ceiling
  • Dimensions w. grill (W x H x D):  14.1 x 14.1 x 4.45 inches
  • Cut-out dimensions (W x H x D): 13.2 x 13.2 x 4.3 inches
  • Weight: 15.2 lbs.

What's In The Box

  • D-5 IC In Ceiling Speaker with Adjustable Tweeter - Each
  • Installation Template

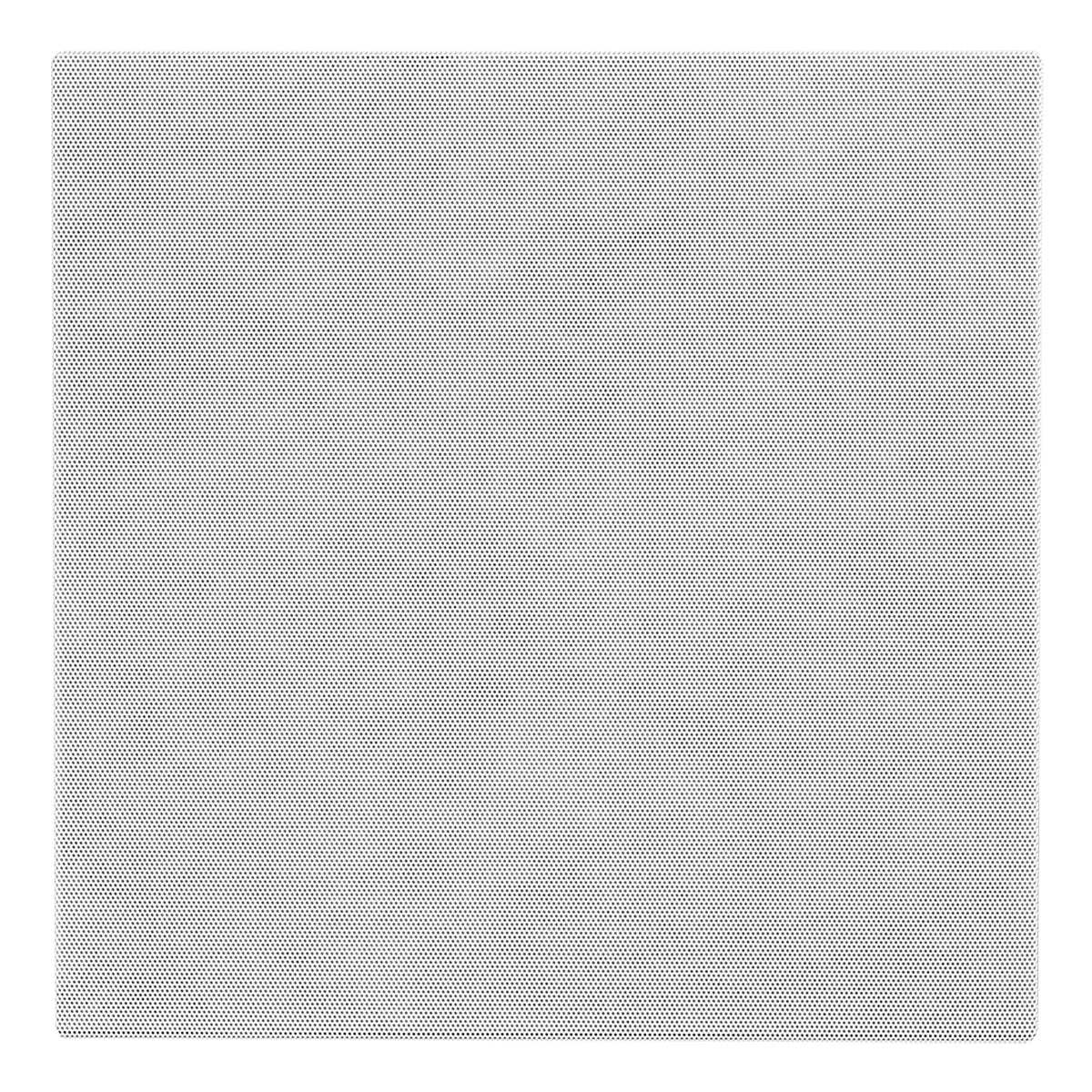

  • Grille
  • Safety Wire
  • Manual
